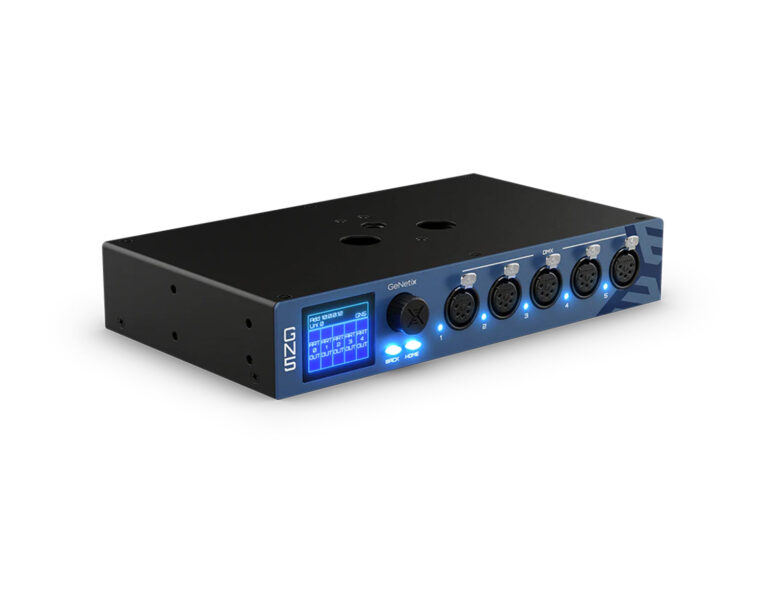

The ChamSys GeNetix GN5 is a 5-port Ethernet-to-DMX node supporting Art-Net and sACN, suited to medium-scale permanent installations and touring rigs. Each of the 5 RDM DMX ports can be set as an input or an output. It also has LTC timecode in and out, MIDI in and out, a 10Scene port for scene recall, 2 network ports, USB-C, and a built-in display and encoder for setup without a computer. Connected by USB it fully unlocks MagicQ PC, and over the network it fully unlocks up to 2 MagicQ instances. A 1U unit for DIN rail (clip included) or a 19in rack (ears included). Power is mains via powerCON TRUE1 (cable included) or PoE into network port 1.
5
DMX Ports
Art-Net 4
Protocols · sACN E1.31
Mains or PoE
Power · powerCON TRUE1
Art-Net and sACNAll GeNetix GN nodes support both Art-Net and sACN (E1.31) protocols and are fully RDM-compliant. Configuration is via the built-in web server or directly from ChamSys MagicQ consoles via network discovery, no separate node management software required.
Features
Art-Net 4 and sACN (E1.31) protocol support
Full RDM (Remote Device Management) on all ports
Configurable DMX timing, frame rate and inter-packet gap
Built-in web server for browser-based configuration
Auto-discovery from ChamSys MagicQ consoles
Mains via powerCON TRUE1 (110-240V AC) or PoE on network port 1
Status LEDs per DMX port for live monitoring
Specifications
| DMX Ports | 5 (configurable in/out) |
| Protocols | Art-Net 4, sACN E1.31 |
| RDM | Yes |
| Power | powerCON TRUE1 110-240V AC (max 60W) or PoE (port 1) |
| Network Ports | 2 (PoE input on port 1) |
| MIDI | 1 in, 1 out |
| LTC Timecode | 1 in, 1 out |
| 10Scene Ports | 1 |
| USB | 1 x USB-C |
| Dimensions (W x D x H) | 250 x 172 x 44.4mm (1U) |
| Weight | 1.4kg |
| In the box | powerCON TRUE1 power cable, 19in rack ear set, DIN rail mount clip, USB A to C cable, 2 Phoenix connectors, mounting screws, quick start guide |
| Config | Web browser / MagicQ |
