The Ecler IC6i is a 2-way in-ceiling speaker with a 6.5 inch polypropylene woofer and 1 inch tweeter, and this listing is for a pair in white. A built-in transformer gives 100V taps up to 15W, with a low-impedance 8 ohm setting rated at 40W RMS. It is a general-purpose ceiling speaker for background music and paging in shops, restaurants, offices, hotels and schools.
6.5in + 1in
2-way
163°
Conical coverage
15W
Max 100V tap
180 mm
Cut-out
100V taps top out at 15WOn a 100V line the highest tap is 15W. The 40W RMS rating applies only in 8 ohm low-impedance mode.
Features
Supplied as a pair

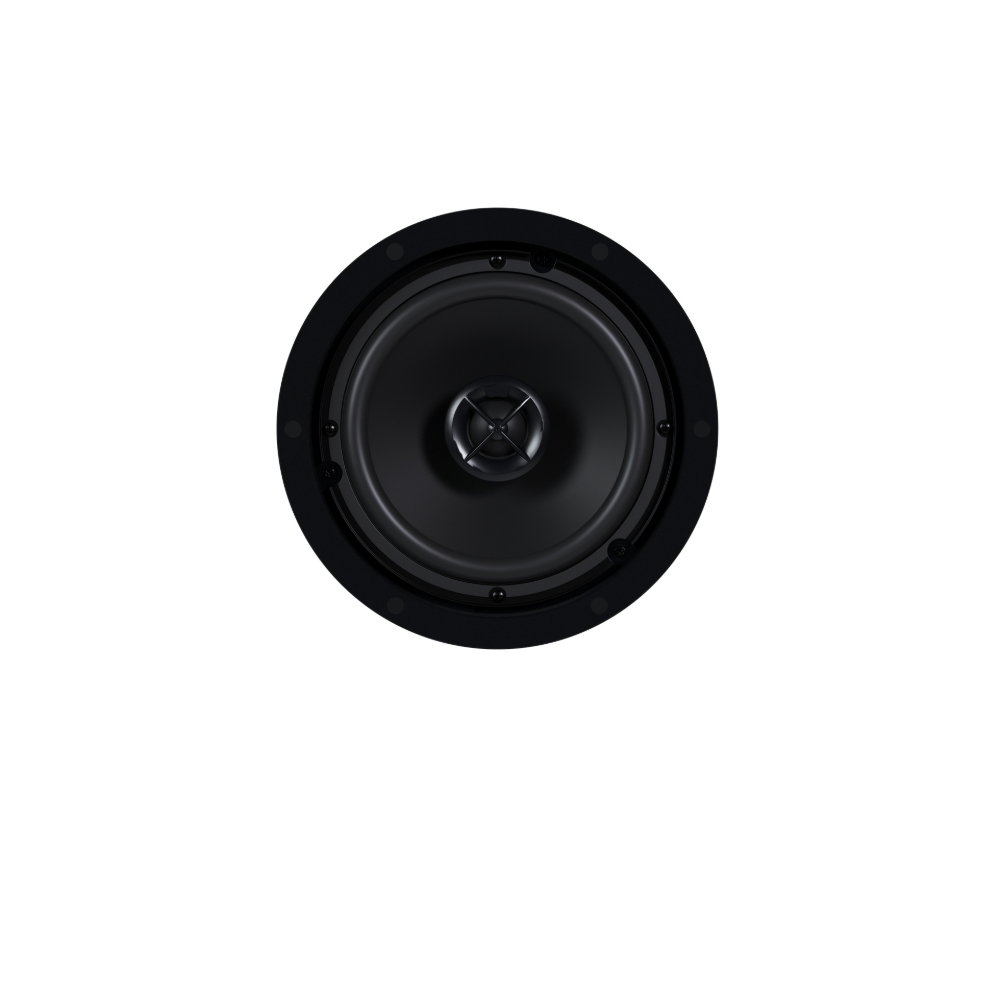

2-way design: 6.5 inch polypropylene woofer (heat and humidity resistant) with 1 inch tweeter
100V taps at 15W, 7.5W, 5W and 2.5W; 70V taps at 7.5W, 3.75W, 2.5W and 1.25W
8 ohm low-impedance setting, 40W RMS

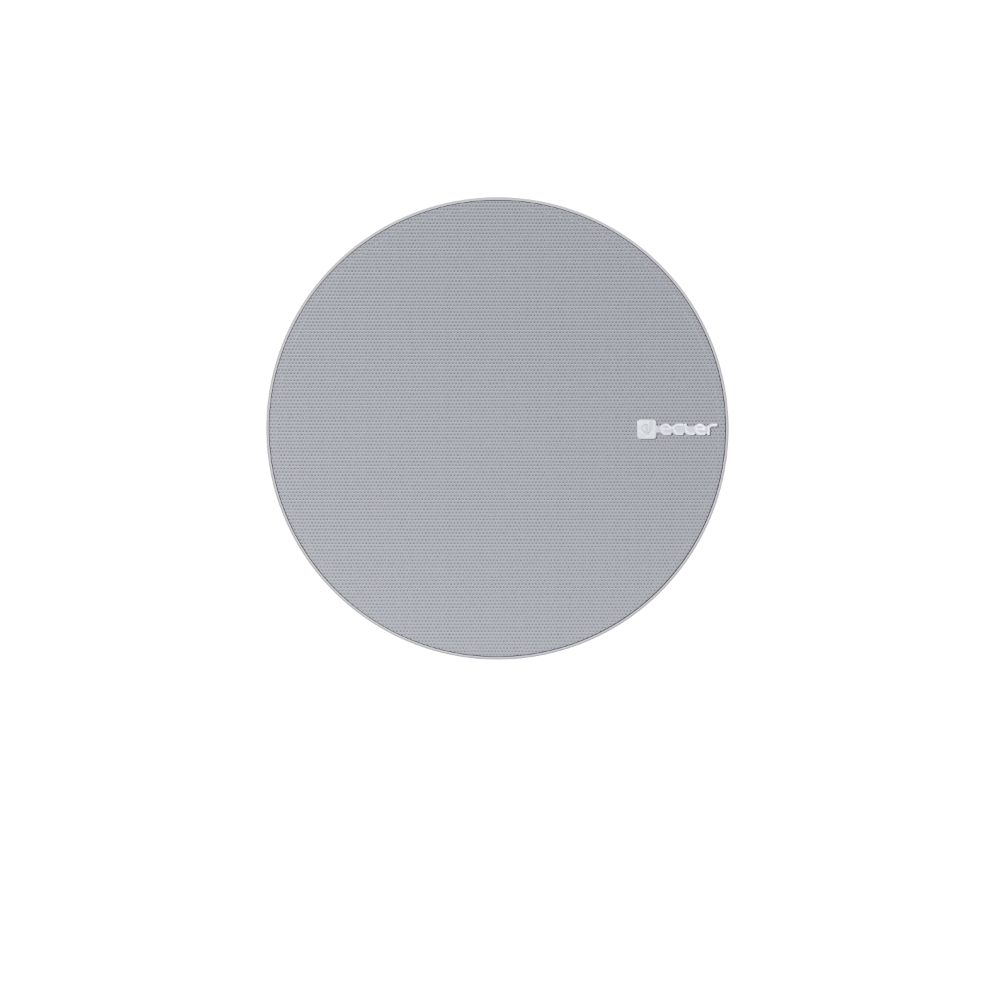

Frameless magnetic grille, removable for painting; Ecler logo can be removed

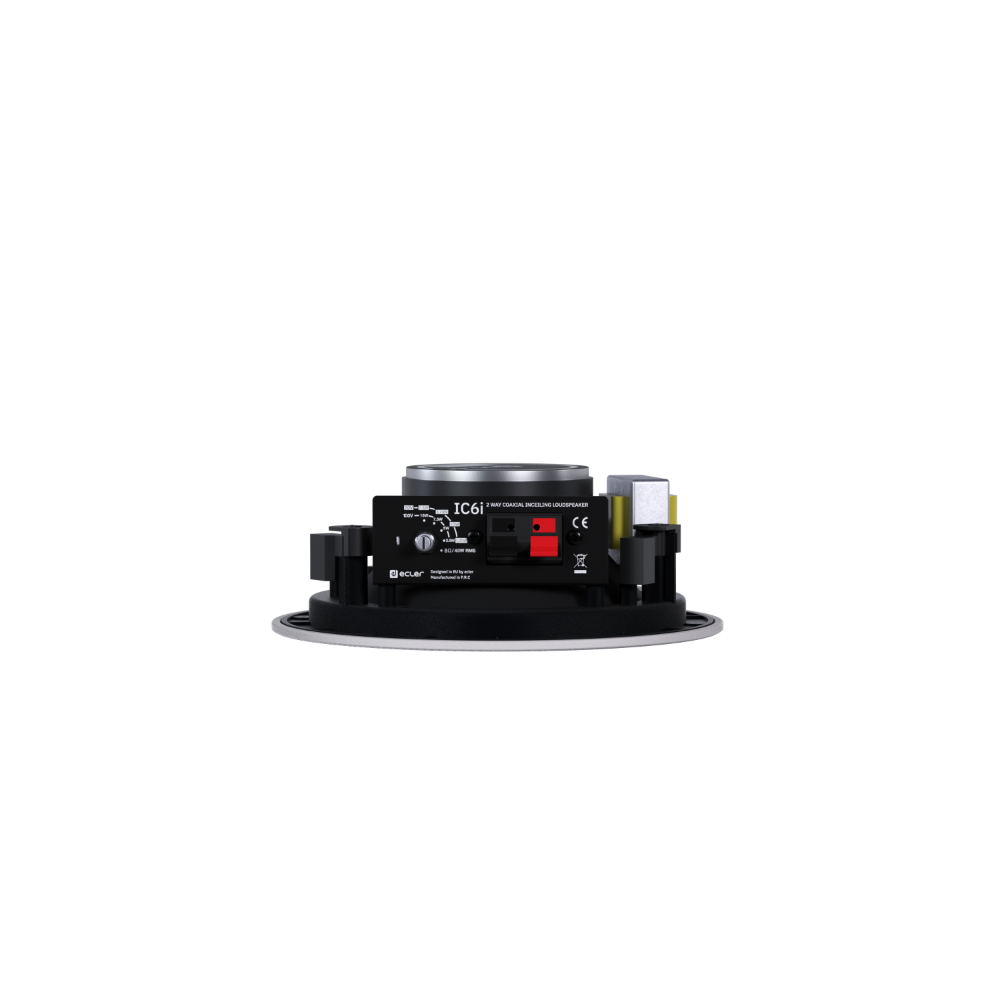

Clip-type terminals with high/low impedance tap selector

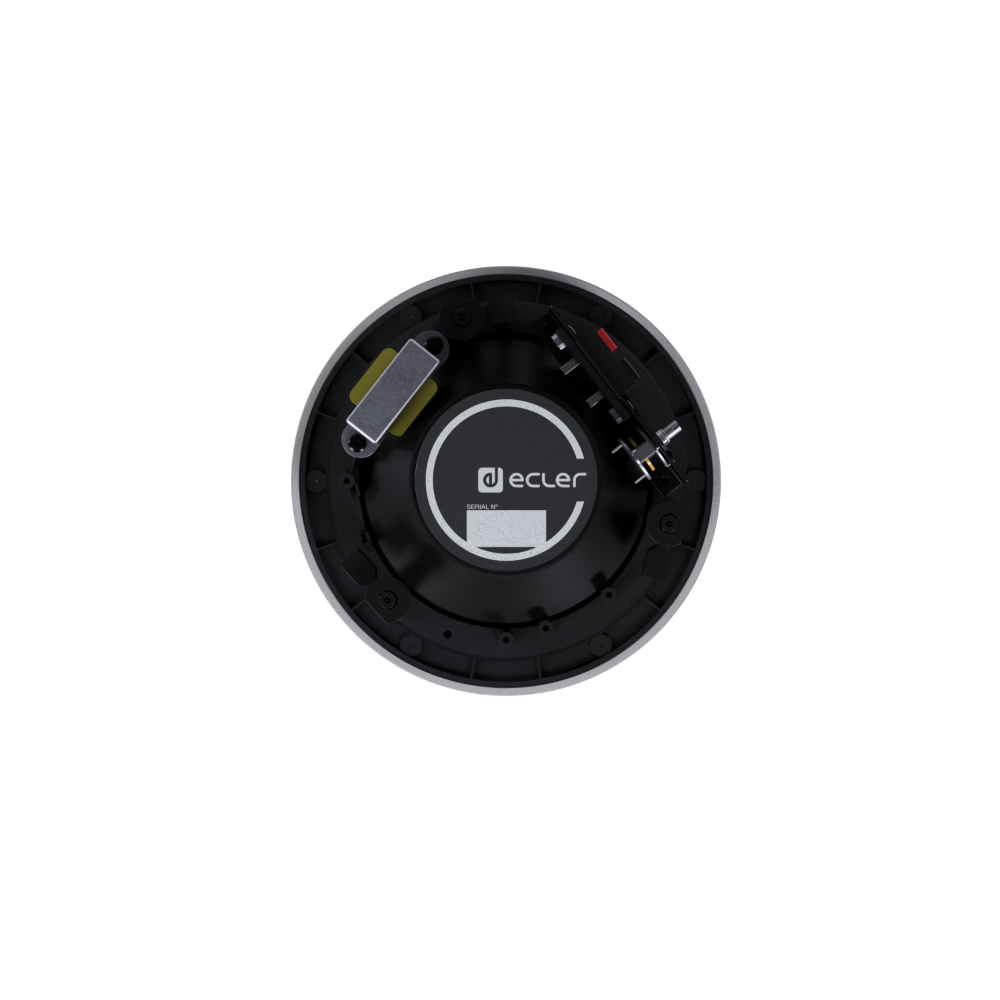

Three rotating clamp tabs; cutting template included
Optional IC-TB6 tile bridge for suspended ceilings
White finish (RAL 9003)
Specifications
| Frequency range | 75 Hz to 20 kHz (-10 dB) |
| Coverage | 163° conical |
| Power handling | 40W RMS, 160W peak (8 ohms) |
| Sensitivity | 93 dB (1W/1m) |
| Maximum SPL | 109 dB continuous, 115 dB peak |
| 100V taps | 15W, 7.5W, 5W, 2.5W |
| 70V taps | 7.5W, 3.75W, 2.5W, 1.25W |
| Recommended amplifier | 80W RMS (8 ohm use) |
| Drivers | 6.5 in woofer, 1 in tweeter |
| Connection | Clip-type terminals |
| Outer diameter | 213 mm |
| Cut-out diameter | 180 mm |
| Depth required | >73 mm |
| Weight | 1.6 kg |
| Operating temperature | -20°C to 70°C |
| Colour | White (RAL 9003) |
| Quantity | 2 speakers |
