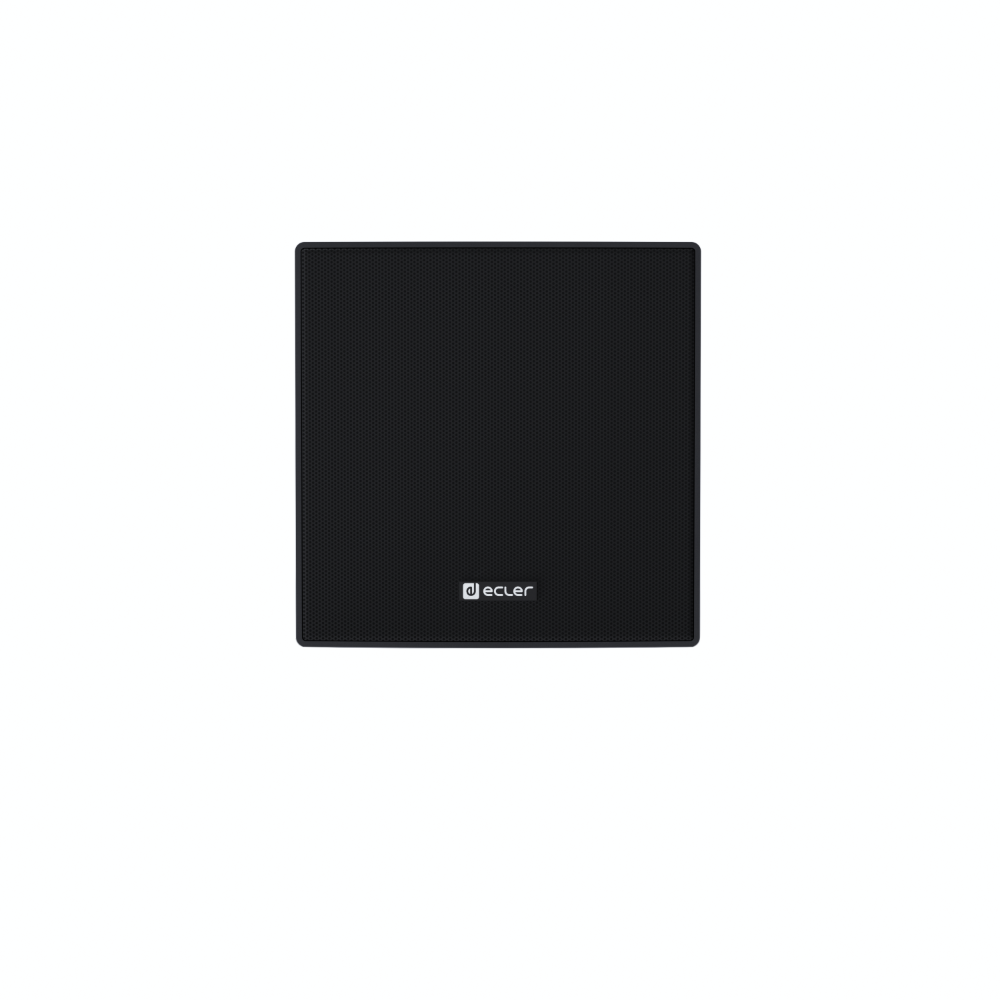

The Ecler AMBIT 16 is a 2-way coaxial surface mount speaker with a 6.5 inch woofer and 1 inch tweeter, and this listing is for a pair in black. Each speaker has a built-in transformer with 100V taps up to 30W plus an 8 ohm position, and an IP54 rated, UV resistant cabinet for indoor or sheltered outdoor use. It suits bars, restaurants, retail, gyms, offices and covered terraces.
6.5in + 1in
2-way coaxial
IP54
Indoor and outdoor
30W
Max 100V tap
91 dB
Sensitivity 1W/1m
Features
Supplied as a pair
2-way coaxial design: 6.5 inch woofer with 1 inch tweeter

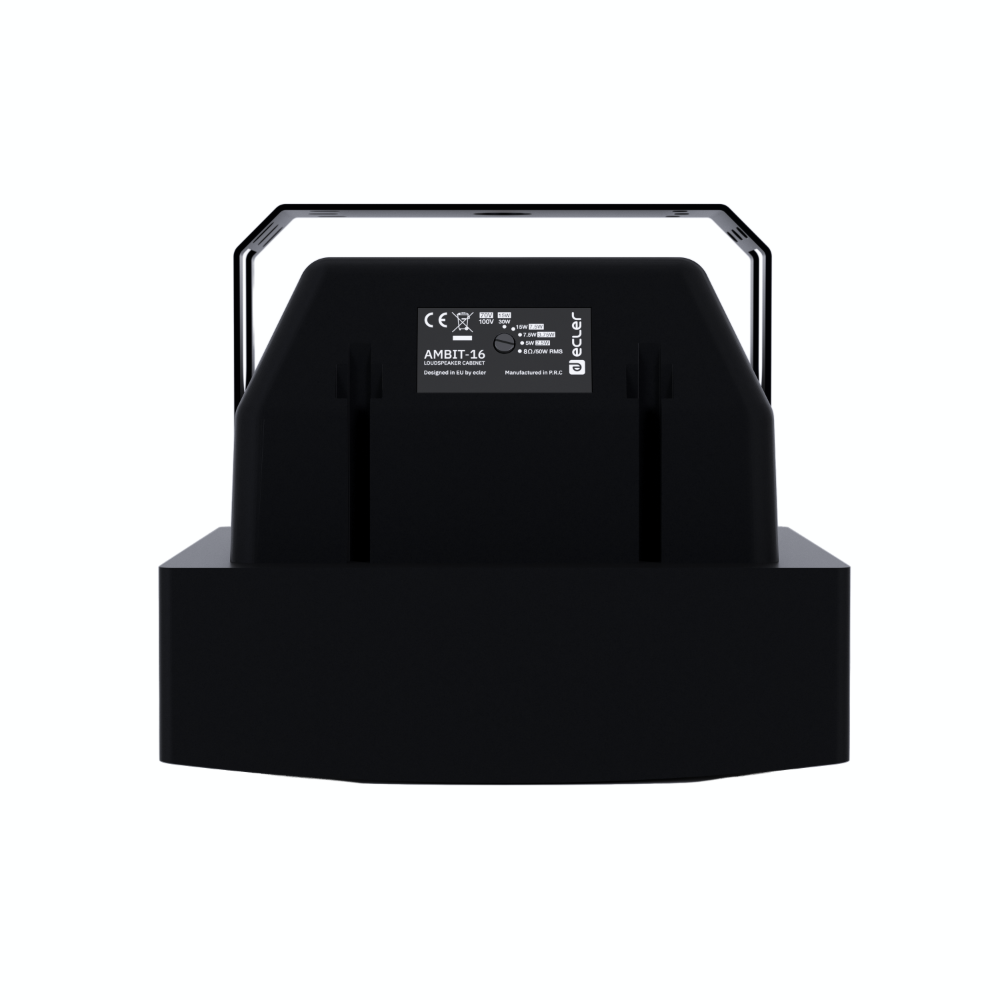

100V taps at 30W, 15W, 7.5W and 5W; 70V taps at 15W, 7.5W, 3.75W and 2.5W
8 ohm position, 50W RMS
IP54 rated ABS cabinet with aluminium grille and anti-UV treatment to limit colour fade
Spring-loaded input terminals with waterproof rubber cover
Wall mount hardware, safety sling, screws and wrench included
Black finish (RAL 9005)
Specifications
| Frequency range | 97 Hz to 20 kHz (-10 dB) |
| Coverage | 143° x 140° (H x V) |
| Power handling | 50W RMS, 200W peak (8 ohms) |
| Sensitivity | 91 dB (1W/1m) |
| Maximum SPL | 108 dB continuous, 114 dB peak |
| 100V taps | 30W, 15W, 7.5W, 5W |
| 70V taps | 15W, 7.5W, 3.75W, 2.5W |
| Recommended amplifier | 100W RMS (8 ohm use) |
| Drivers | 6.5 in woofer, 1 in tweeter |
| Connection | Spring-loaded terminals |
| Mounting | Surface, ceiling or corner via wall bracket |
| Environmental | IP54 |
| Materials | ABS cabinet, aluminium grille |
| Dimensions (W x H x D) | 210 x 210 x 160 mm |
| Weight | 2.75 kg |
| Operating temperature | -20°C to 70°C |
| Colour | Black (RAL 9005) |
| Quantity | 2 speakers |
