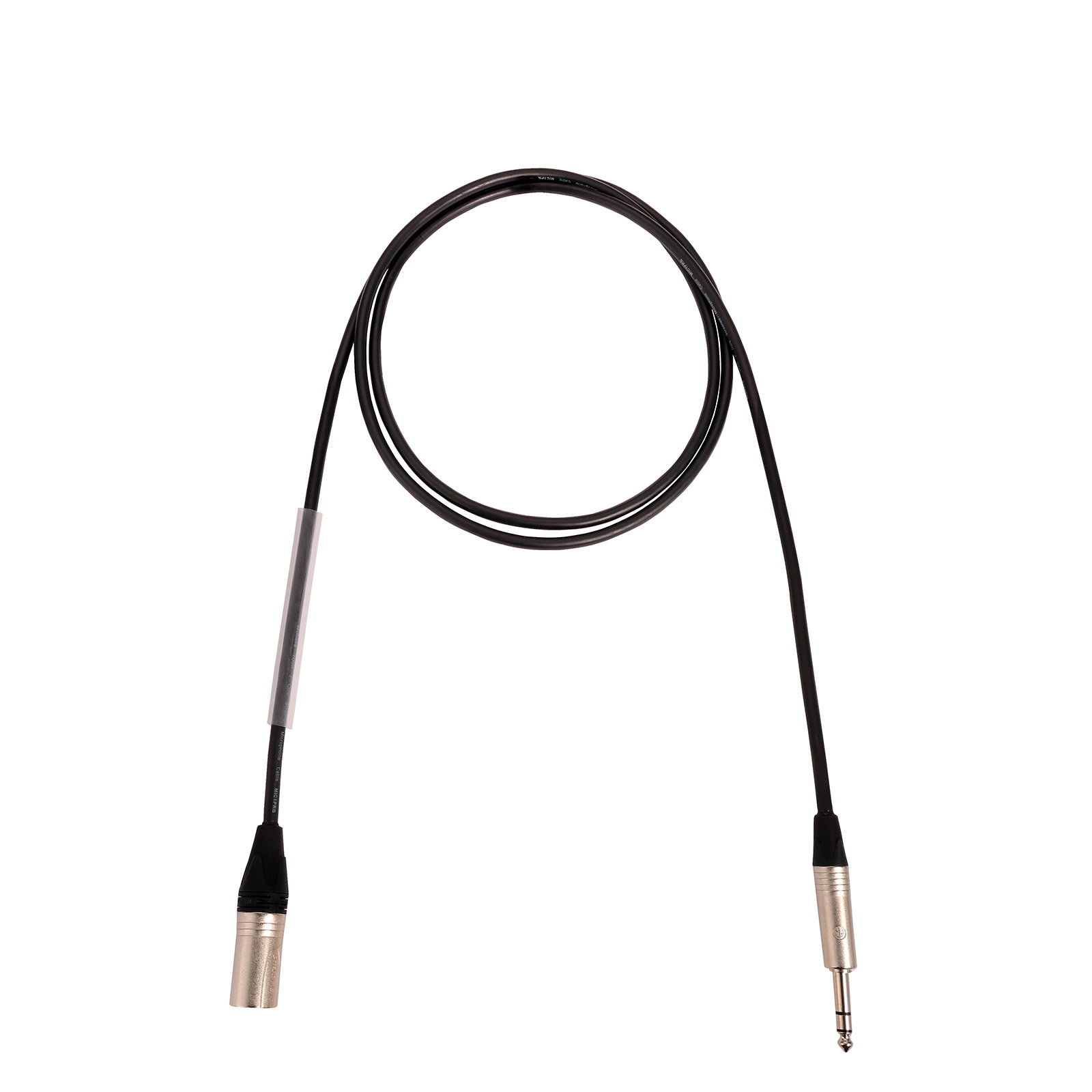

A 1m balanced lead from Elumen8, terminated with a 3-pole 6.35mm (1/4″) TRS jack at one end and a 3-pin male XLR at the other. One metre suits driving an XLR input from a jack output at close quarters: keyboard or DI feeds into a stagebox, or a desk insert send into a rack unit a few U away.
1m
LENGTH · Rack patch
2 x 0.51mm²
CONDUCTORS · 20AWG
90%
SCREEN · Braided tinned copper
6mm
CABLE OD · PVC jacket
Features
1m finished length for close-quarters jack to XLR input feeds
3-pole 6.35mm (1/4″) TRS jack to 3-pin male XLR, balanced throughout
Neutrik connectors
Braided tinned copper screen with 90% coverage
Super flexible PVC outer jacket with cotton stuffing
Clear heatshrink at each end for asset labelling or ID
Heat resistant construction
Made in Britain
NoteThis is the male XLR variant, so it feeds an XLR input. If you need to take a feed out of an XLR output into a jack, order the female XLR version instead.
Specifications
| Length | 1m |
| Connector A | 3-pole 6.35mm (1/4″) TRS jack |
| Connector B | 3-pin male XLR |
| Conductors | 2 x 0.51mm² (20AWG) |
| Screen | Braided tinned copper, 90% coverage |
| Outer diameter | 6mm |
| Jacket | Super flexible PVC, cotton stuffed |
| Colour | Silver |
| SKU | CABL2542 |
