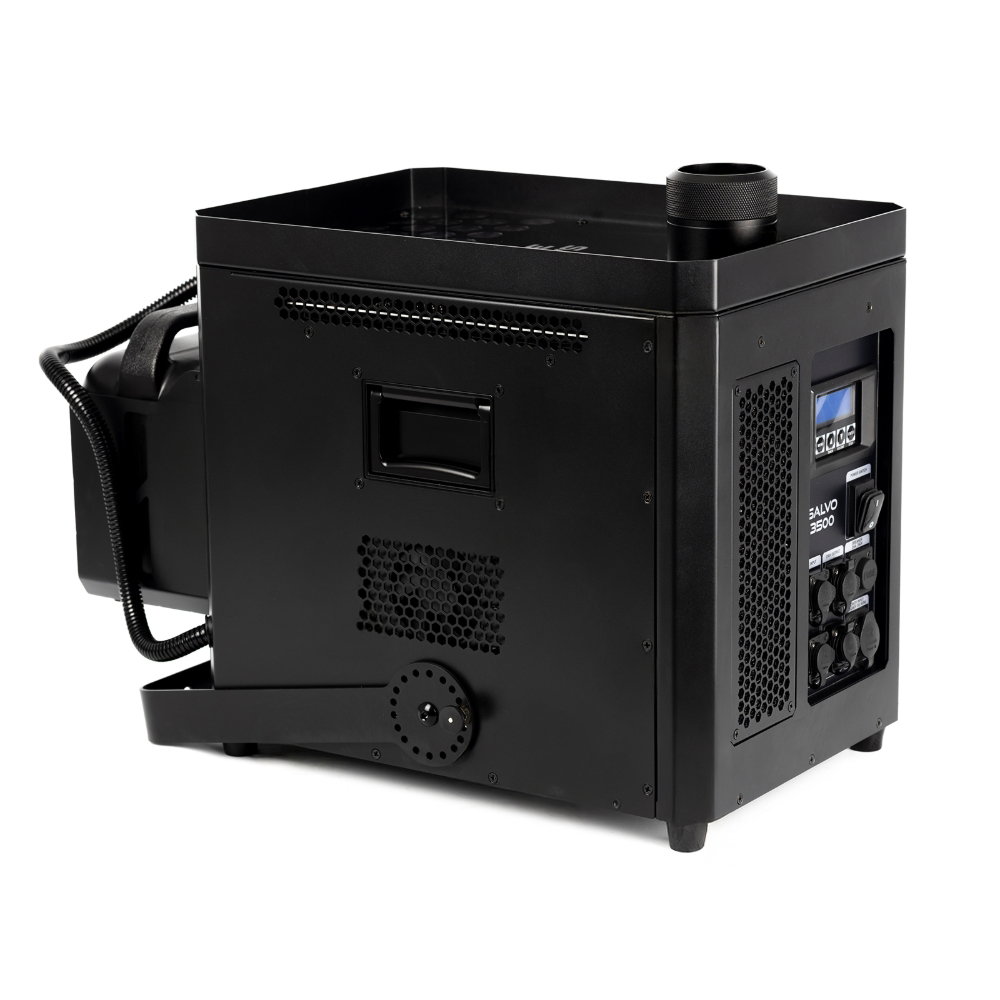

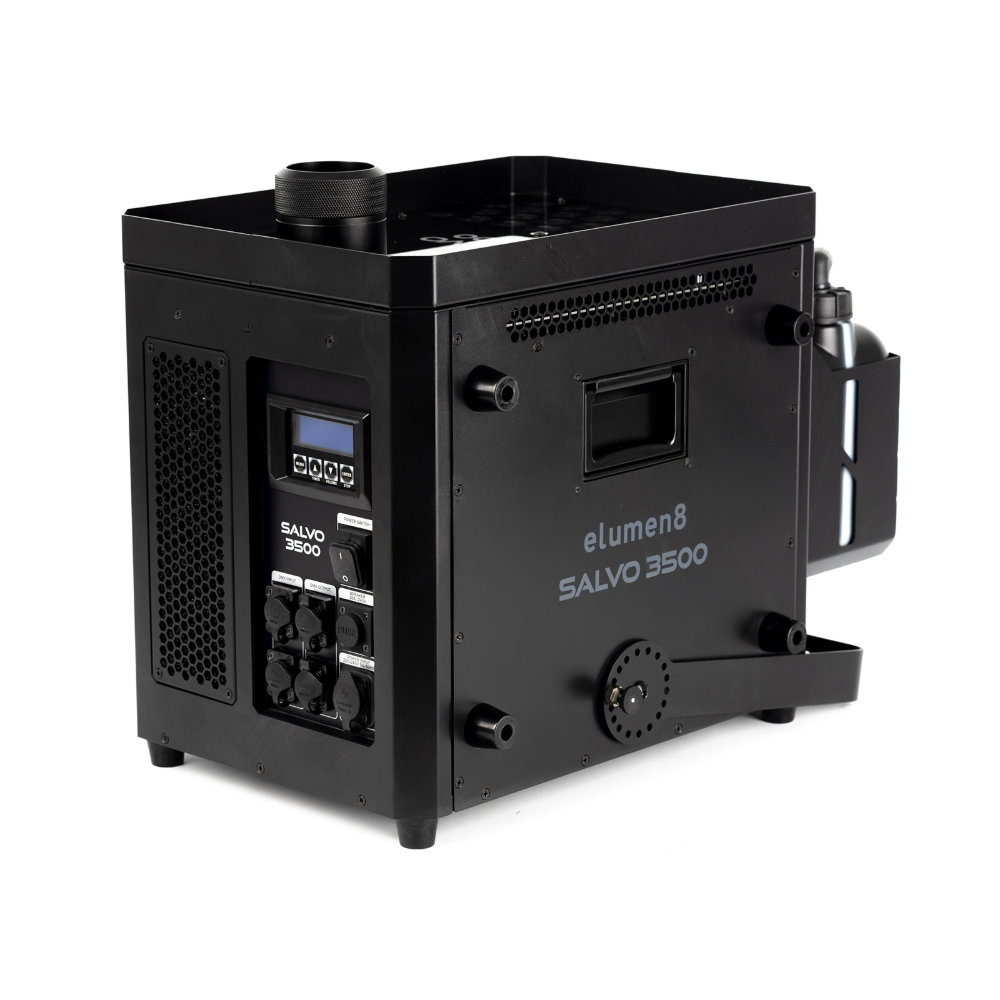

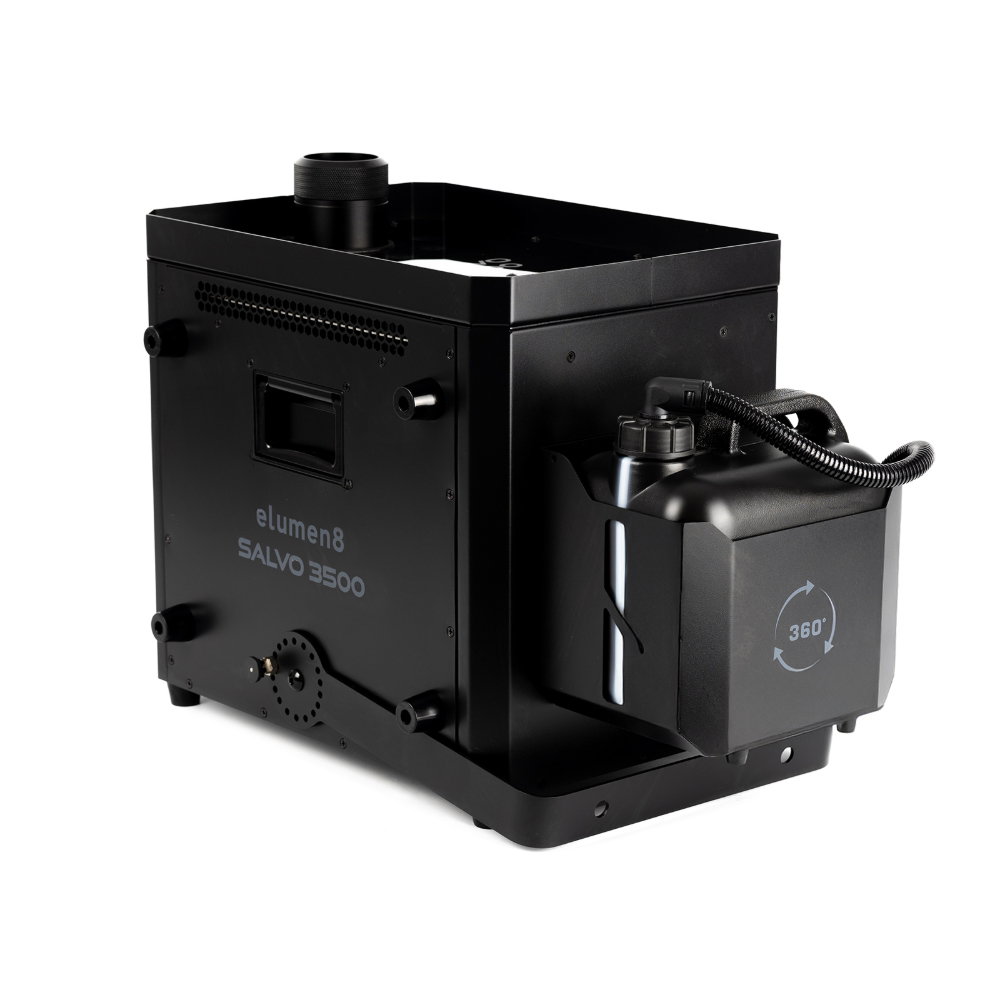

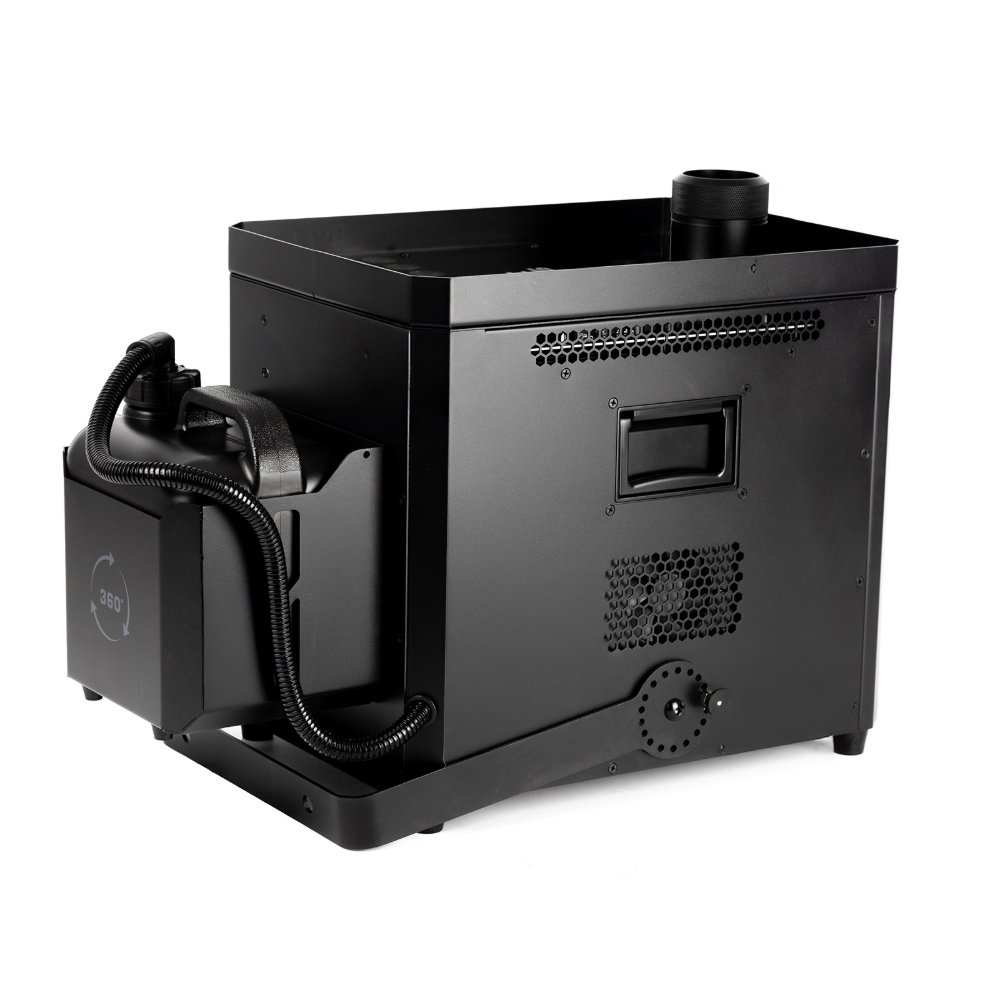

The Elumen8 Salvo 3500 is a high-output vertical fogger that combines a 3000W heater with 37 x 8W RGBA LEDs to deliver coloured fog blasts up to 15 metres. With Equinox CO2 emulation fluid, instant-stop technology mimics CO2 jet effects without the bottles or refills. Mountable vertical, horizontal or overhead via the supplied omega clamps.
3000 W
Heater
37 x 8 W
LED Array · RGBA
15 m
Max Reach
117,000 cu.ft/min
Output
5 L
Tank · fog fluid
Features
3000W heater for high-volume output

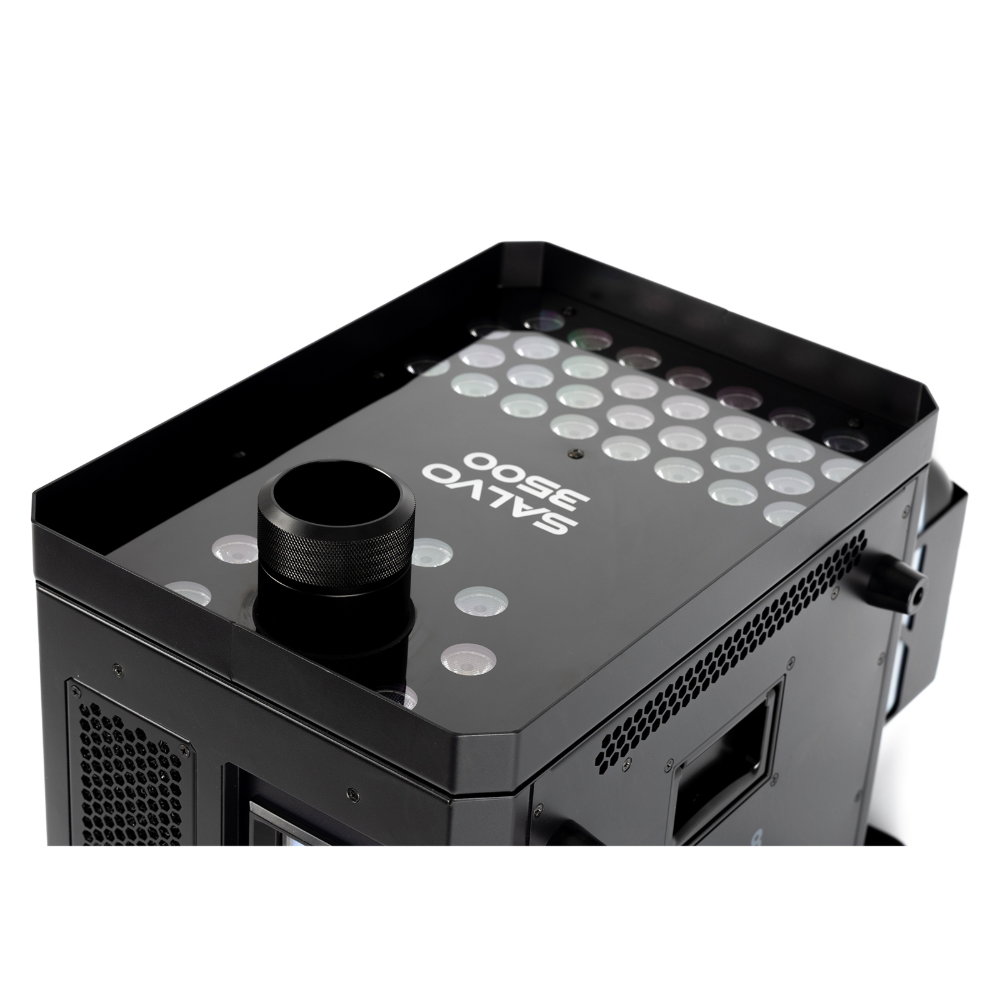

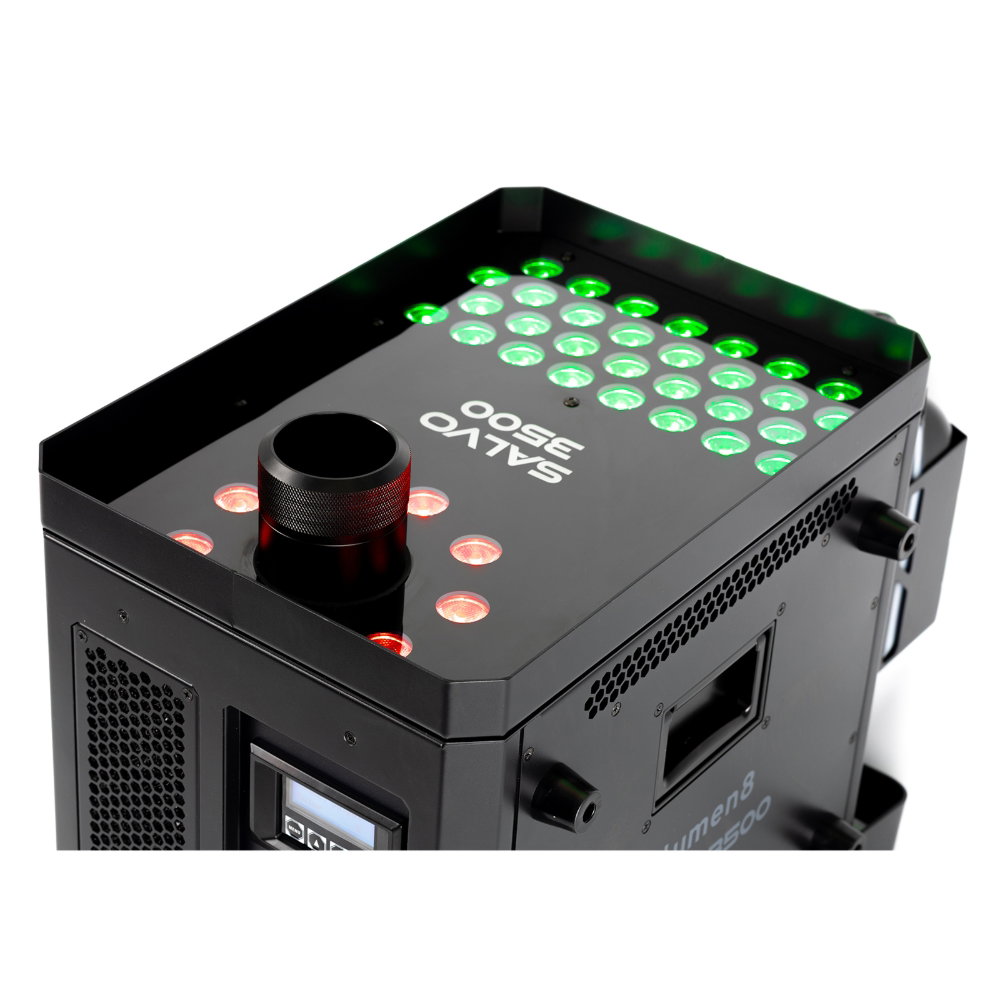

37 x 8W RGBA LED array for full-colour fog blasts
Up to 15 m maximum reach
Approx. 117,000 cu.ft/min output
Instant-stop CO2 emulation with Equinox CO2 fluid

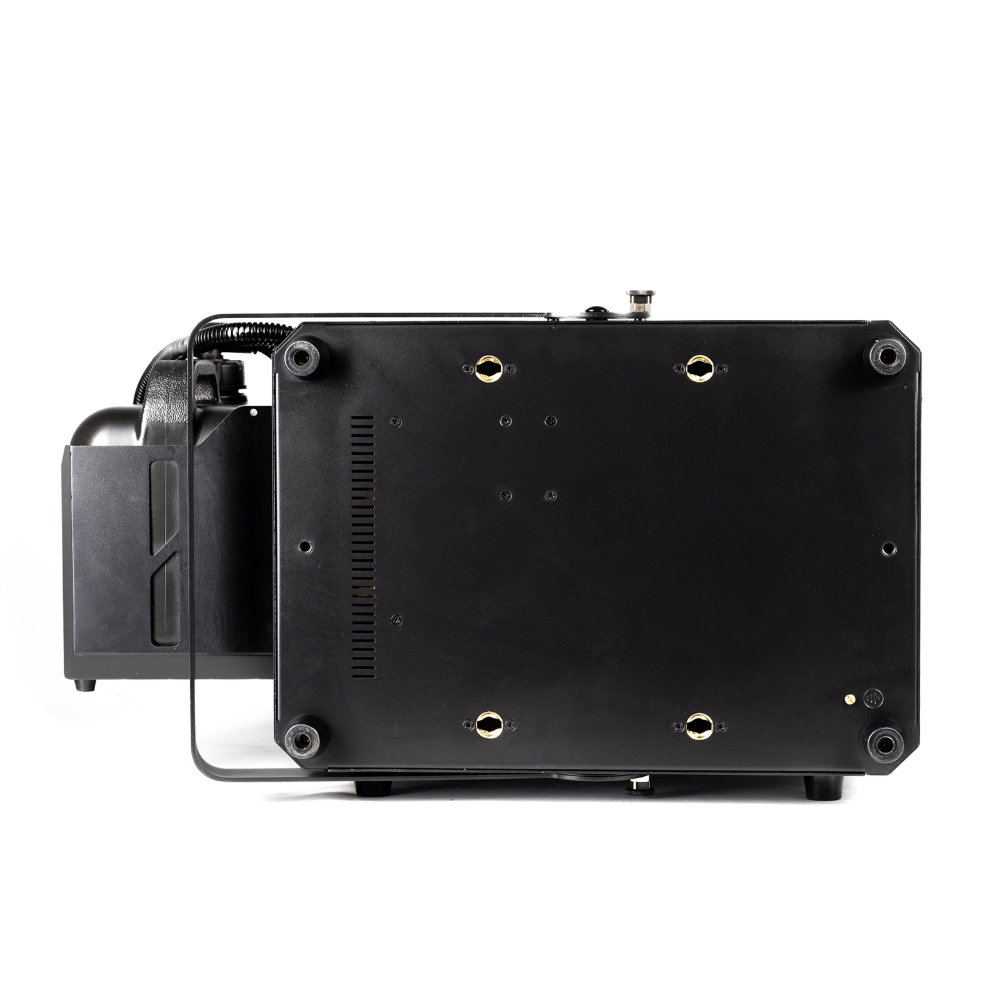

Mounts vertical, horizontal or overhead

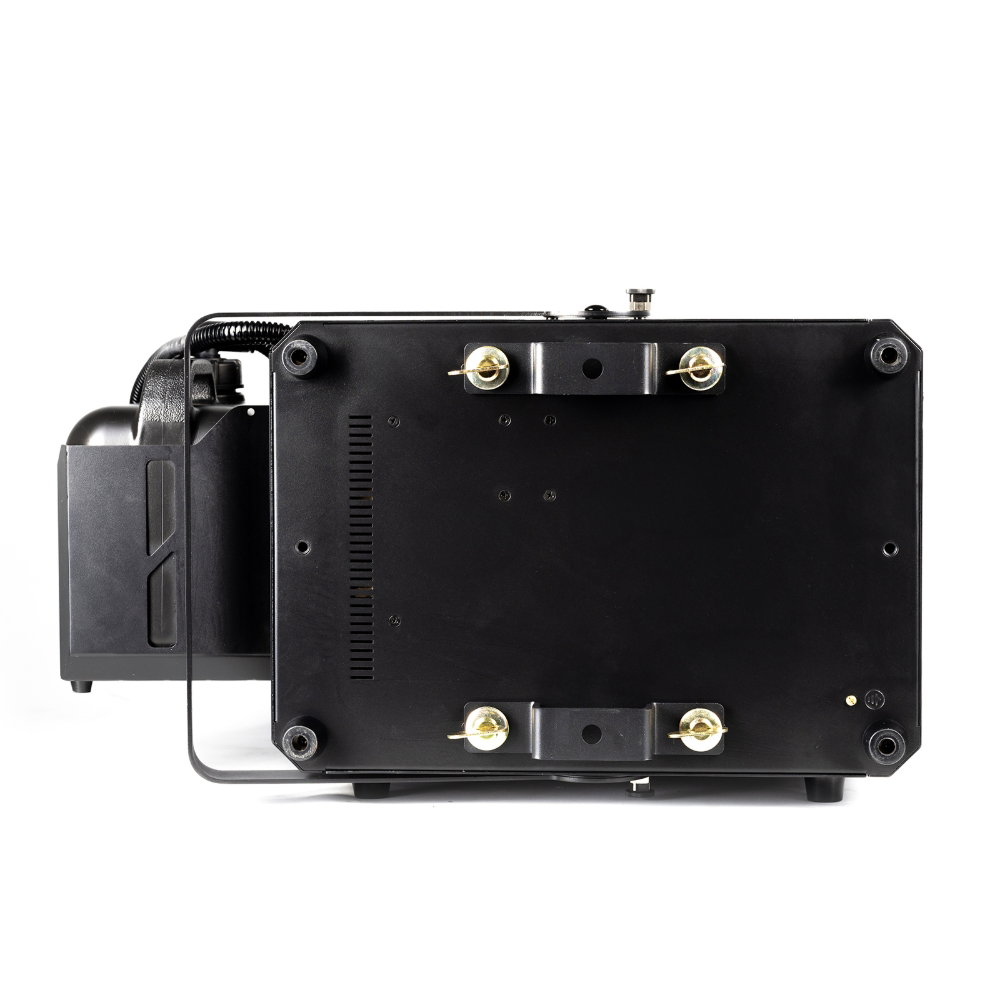

Supplied with omega clamps

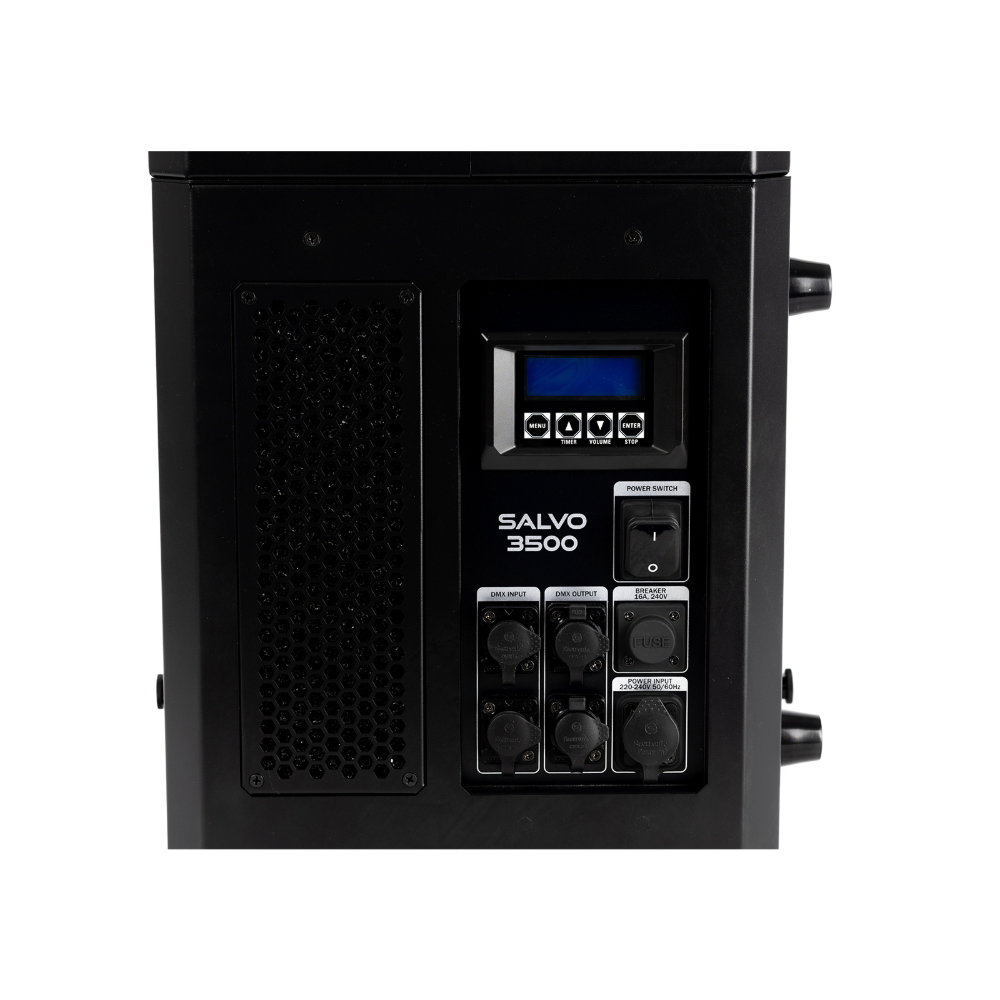

PowerCON TRUE1 power input

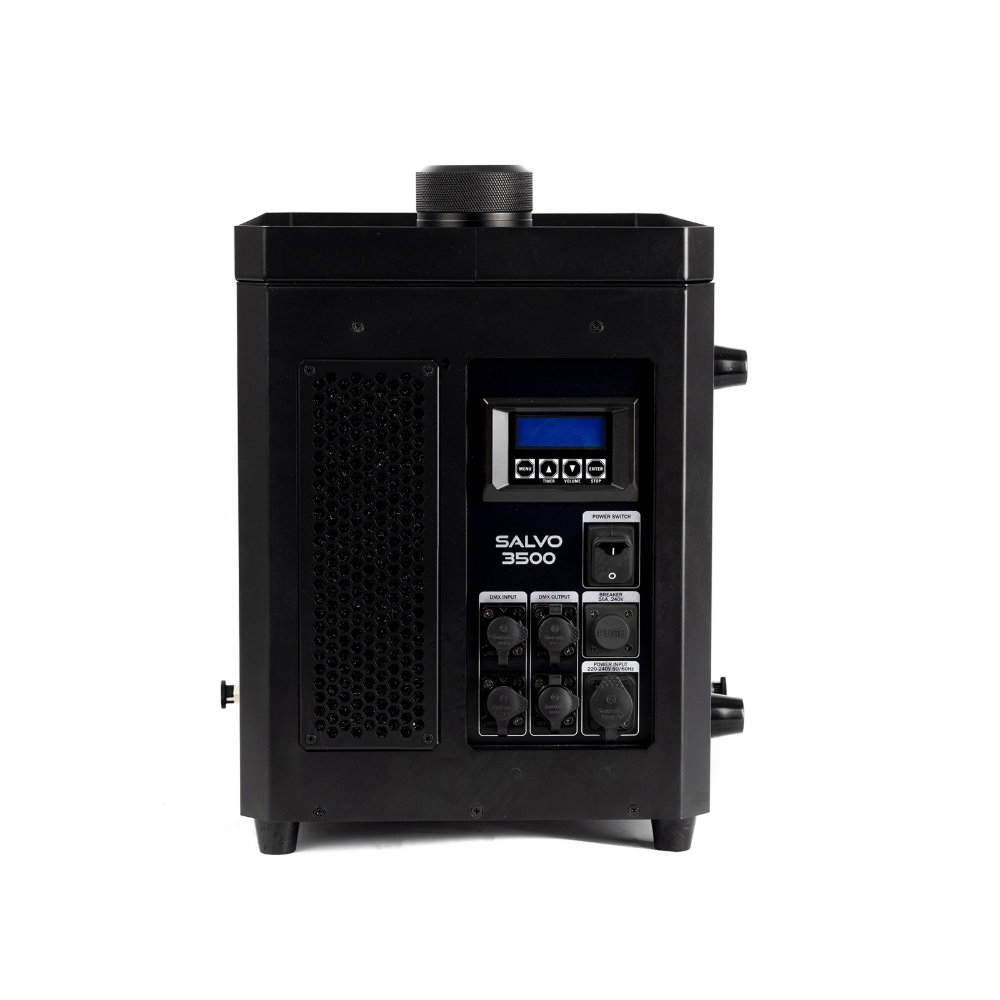

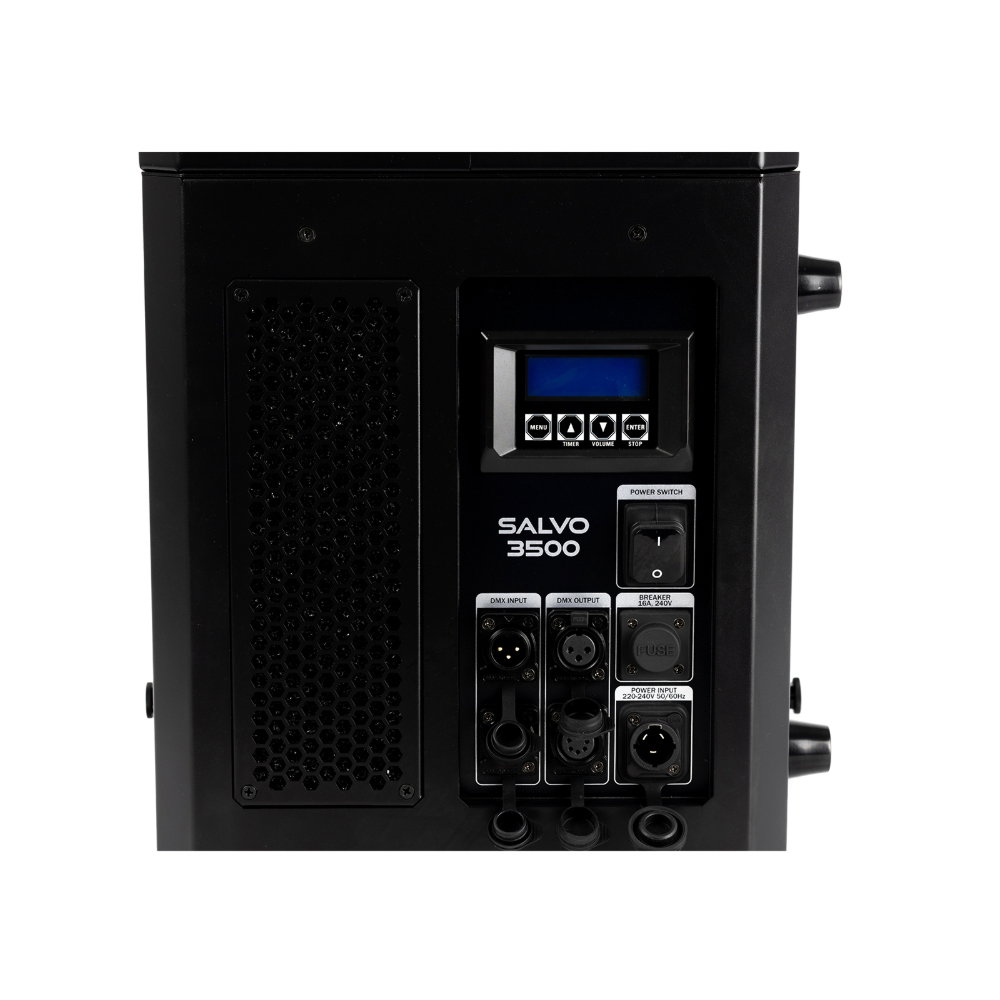

3-pin and 5-pin XLR DMX in/out

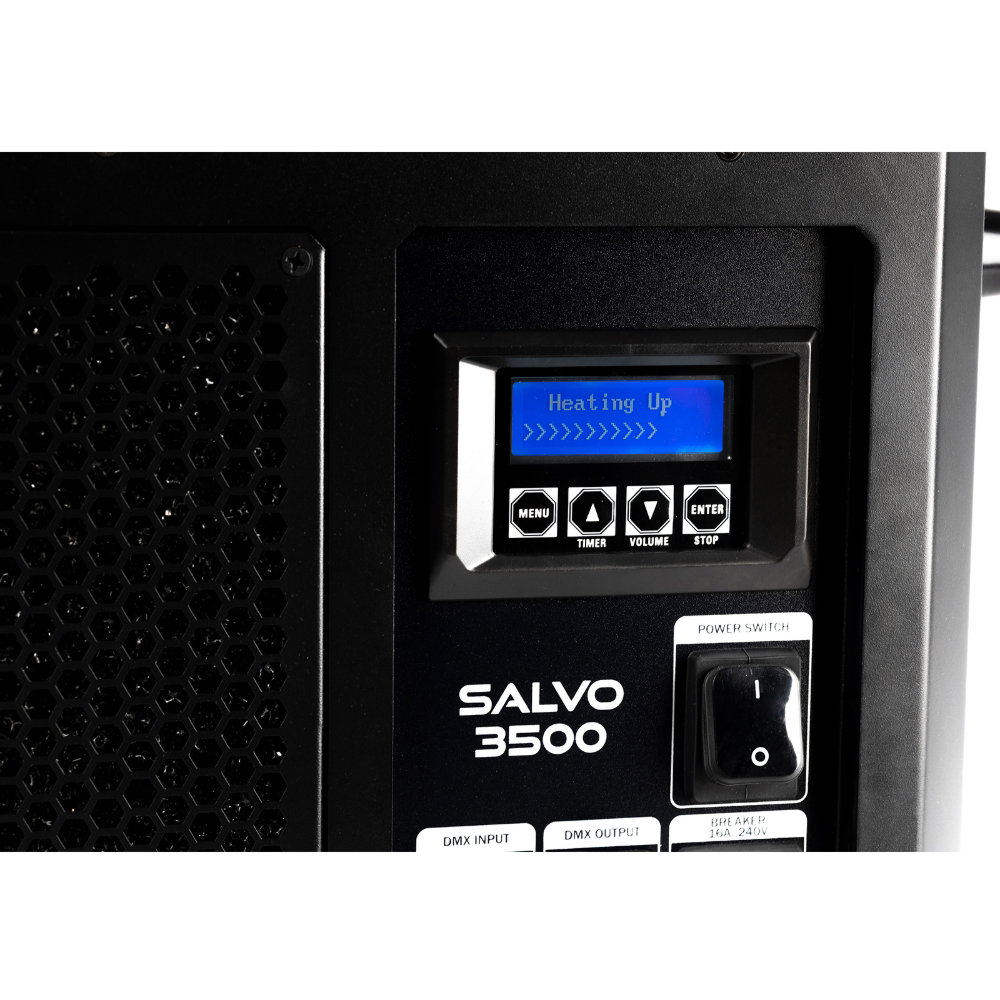

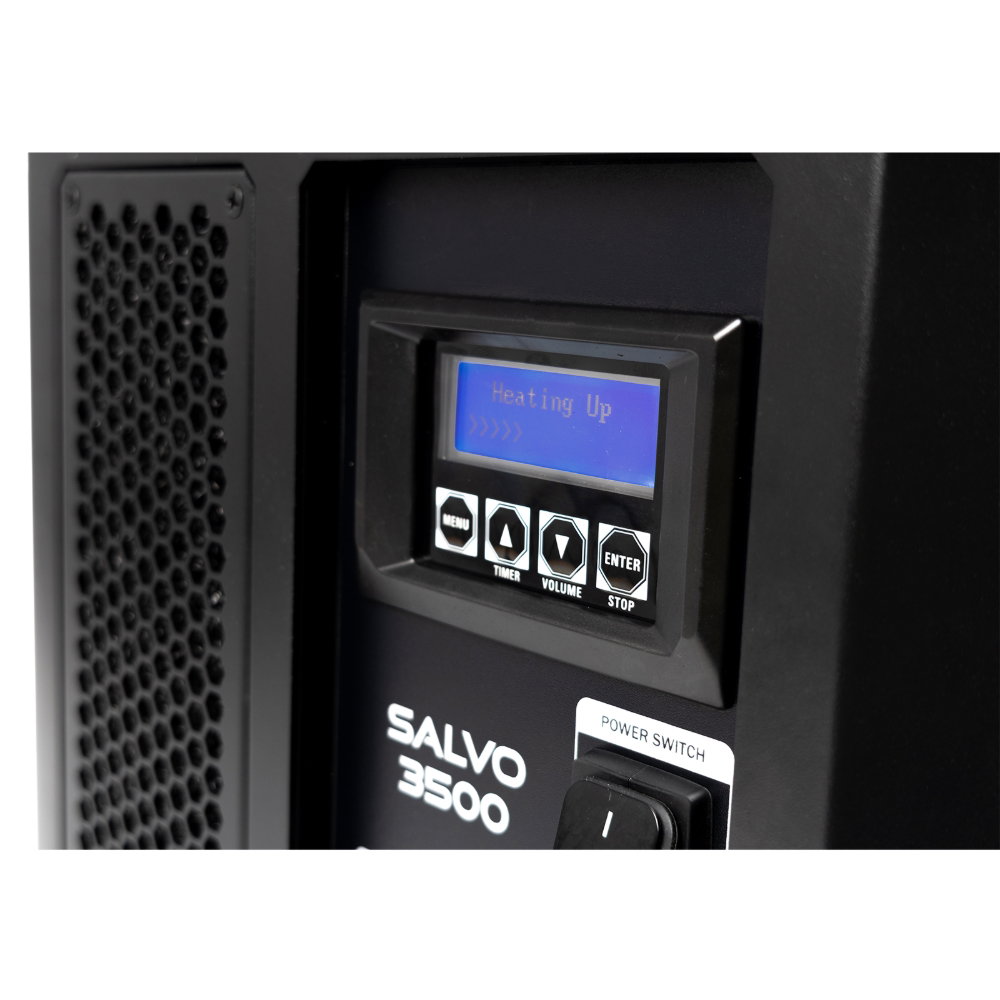

DMX, timer and manual control modes

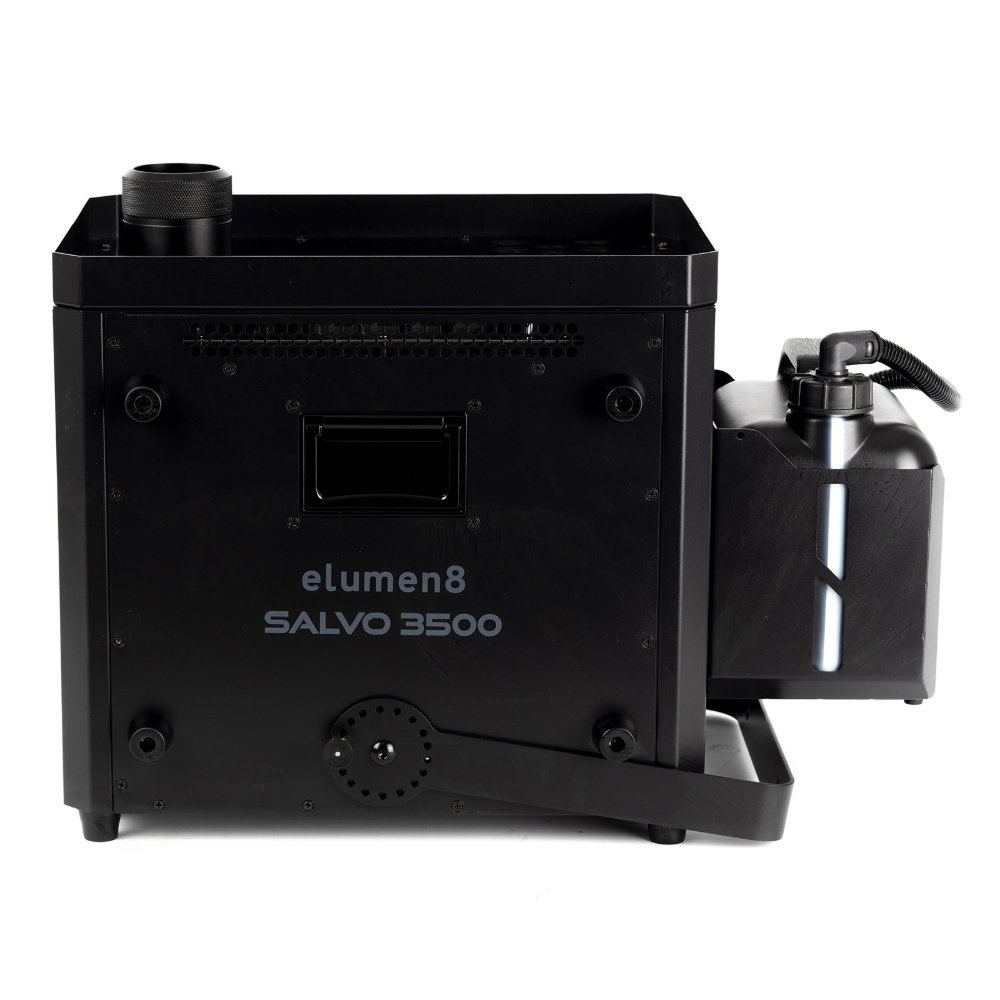

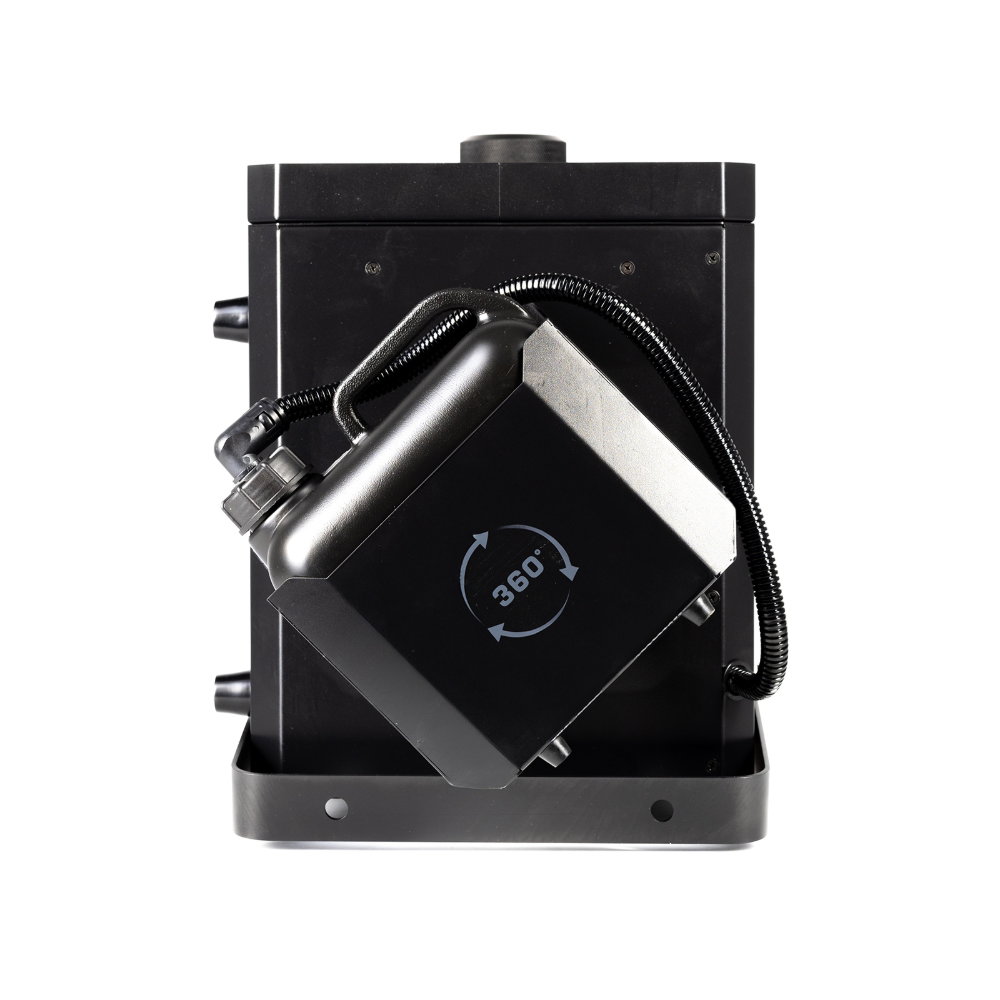

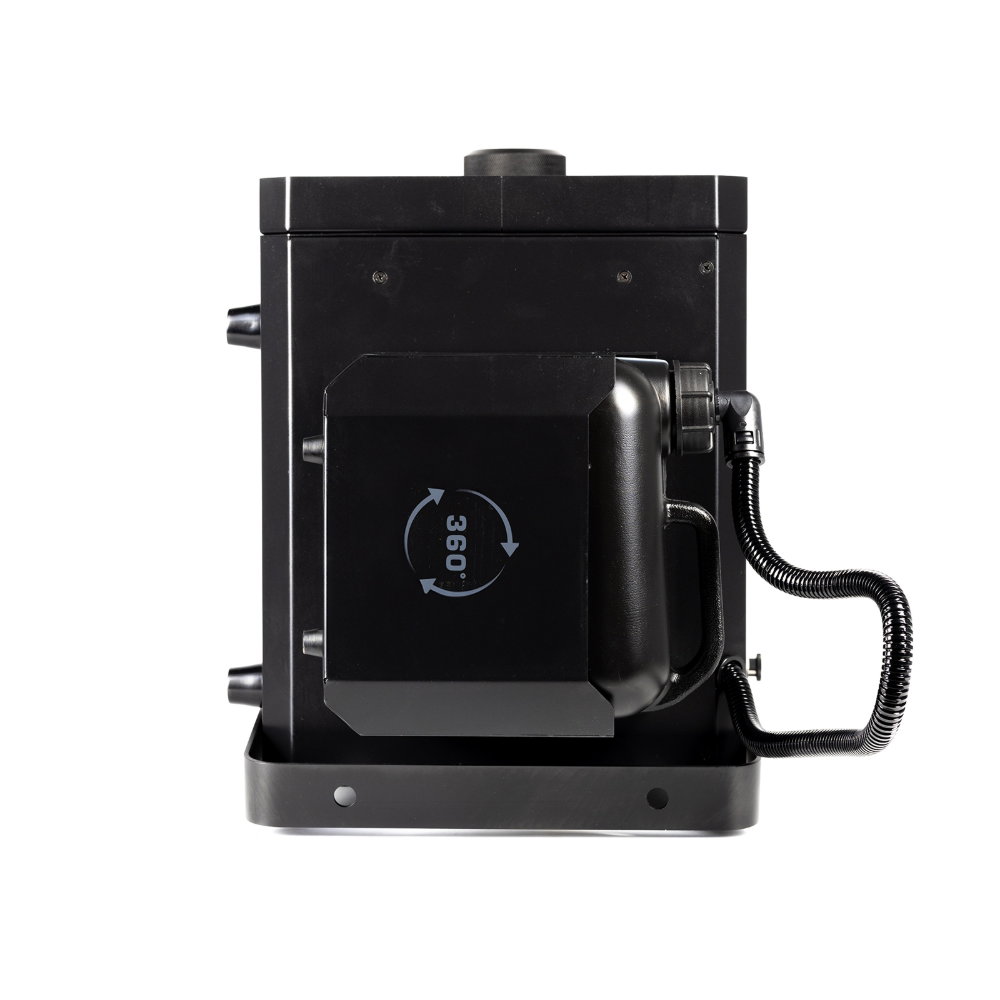

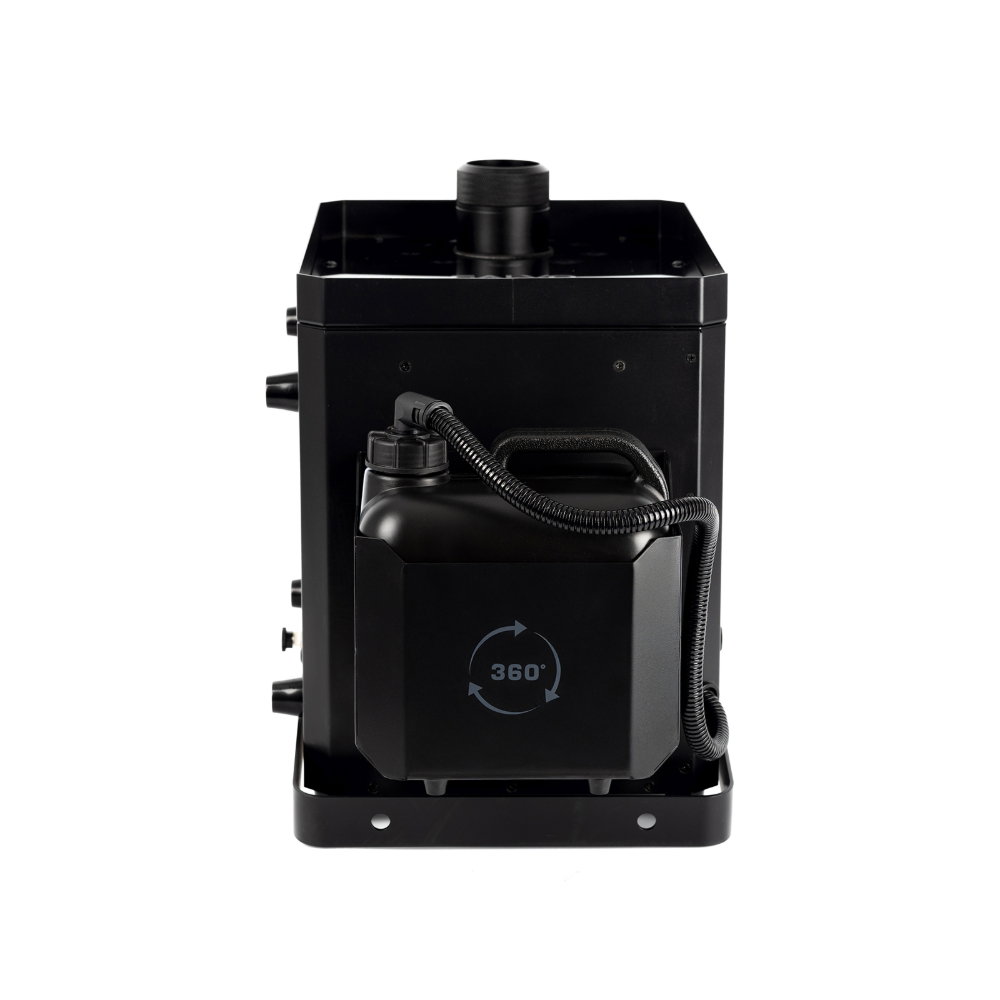

Dual fluid bottle orientation for floor or truss use
5L fluid tank, ~1.8 L/min consumption at 100%
UK Power3100W consumption at 220-240V. Allow 16A on a dedicated circuit. Comes with PowerCON TRUE1 input – factor a UK PowerCON TRUE1 mains lead into your spec.
Specifications
| Heater | 3000 W |
| LED array | 37 x 8 W RGBA |
| Max reach | 15 m |
| Output | Approx. 117,000 cu.ft/min |
| Max burst | 10 s at 100% |
| Warm-up time | Approx. 6 minutes |
| Fluid tank | 5 L |
| Fluid consumption | Approx. 1.8 L/min at 100% |
| Power input | PowerCON TRUE1 |
| Power consumption | 3100 W |
| Voltage | 220-240V 50/60Hz |
| DMX channels | 15 or 16 selectable |
| DMX connectors | 3-pin and 5-pin XLR in/out |
| Control modes | DMX, timer, manual |
| Dimensions (HxWxD) | 441 x 595 x 304 mm |
| Weight | 33 kg |
