Elumen8 Socapex 19-Pin to 6 x 16A Fan-Out Cable 2.5mm² (CABL465)

SKU: CABL465
Elumen8 Socapex 19-Pin to 6 x 16A Fan-Out Cable 2.5mm² (CABL465)
Elumen8 Socapex 19-Pin to 6 x 16A Fan-Out Cable 2.5mm² (CABL465) - Image 2
Click to enlarge

    £142.00 inc VAT
    £118.33 ex VAT

    Available on back-order

    On backorder, expected 1 Sep 2026
    Order in 1h 25m 30s for delivery by ThursdayClick & Collect available Wed 2nd Sep from us in London ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

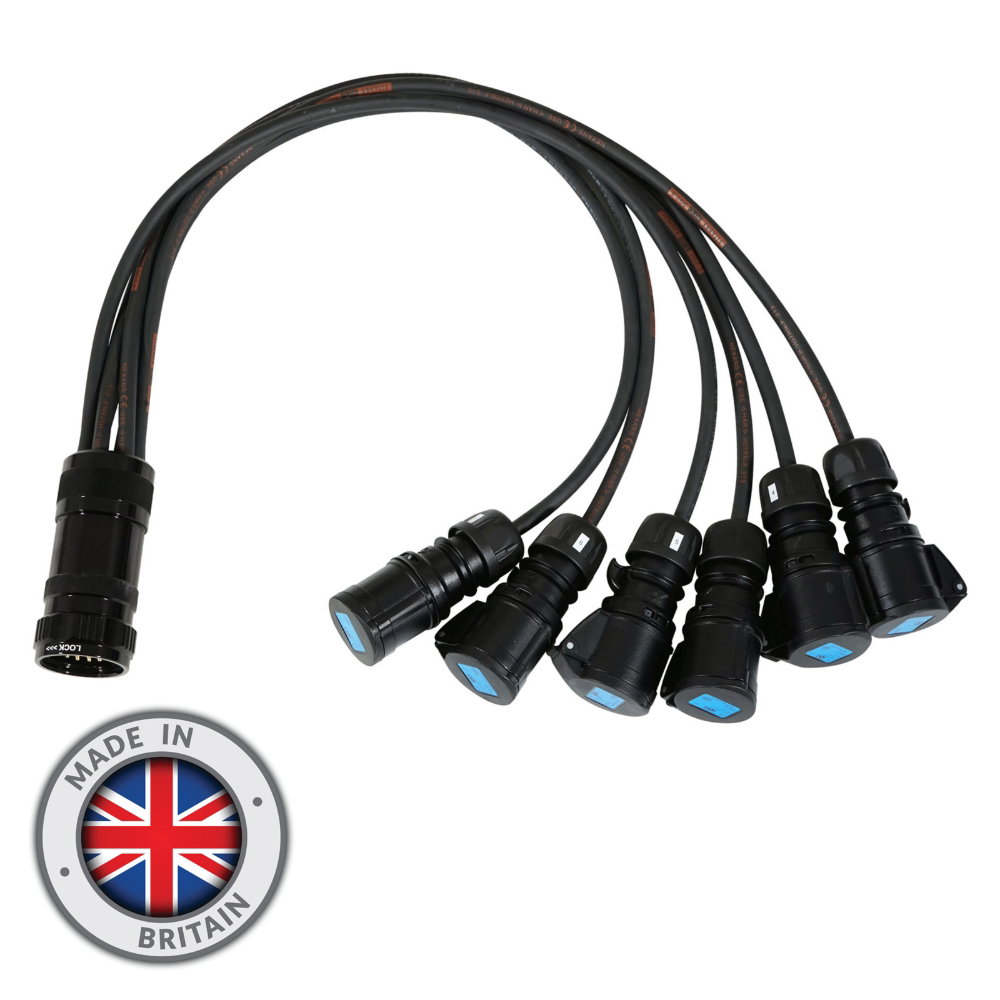

    Rental-ready Socapex fan-out that breaks a single Elumen8 Showsafe 19-pin Socapex feed out to six 16A 2P+E sockets, distributing six lighting circuits from one multicore at the far end of the run. British-made from genuine Titanex H07-RNF 2.5mm cable with numbered tails for fast circuit ID.

    6
    CIRCUITS · 2P+E 230V
    16A
    RATING · per circuit
    2.5mm²
    CABLE CSA · Titanex
    1m
    TAIL LENGTH · per tail
    Features
    Made in Britain from Titanex H07-RNF 2.5mm cable
    Elumen8 Showsafe 19-pin Socapex with 6-way cable gland
    6 x 16A 230V 2P+E black sockets, numbered tails
    Amphenol Socapex SL419 compatible
    IP67 ingress protection at the Socapex end when mated
    FMLB (first make, last break) earth contacts
    Multi-point gold-plated contacts
    Oil-resistant, flame-retardant to IEC/EN 60332-1-2
    Cross-linked elastomer insulation, -25 to 55°C
    Clear heatshrink tails for asset labels or cable ID
    Specifications
    Brand Elumen8
    Configuration Socapex 19-pin male to 6 x 16A 2P+E female (fan-out)
    Connectors Elumen8 Showsafe 19-pin Socapex, SL419 compatible
    Cable Titanex H07-RNF 2.5mm²
    Rating 16A 230V per circuit
    IP rating IP67 at Socapex end when mated
    Operating temp -25 to 55°C
    Tail length 1m per tail
    Origin Made in Britain
    Warranty 1 year

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • Made in Britain
    • Titanex H07-RNF 2.5mm cable
    • Elumen8 Showsafe 19-Pin connectors complete with 6-way cable gland
    • 6 x 16A 230V 2P+E black sockets
    • Clear heatshrink suitable for identification or asset label
    • Oil resistant and flame retardant according to IEC/EN 60332-1-2 standard
    • Chemical resistant cross-linked elastomer insulation
    • Bare copper conductors
    • Operating temperature range: -25 to 55°C
    • Maximum conductor temperature in service: 90°C
    • Amphenol Socapex SL419 compatible
    • IP67* ingress protection when mated (*Socapex end)
    • FMLB (first make, last break) earth contacts
    • Multi-point gold plated contacts
    • Individual tail length: 1m
