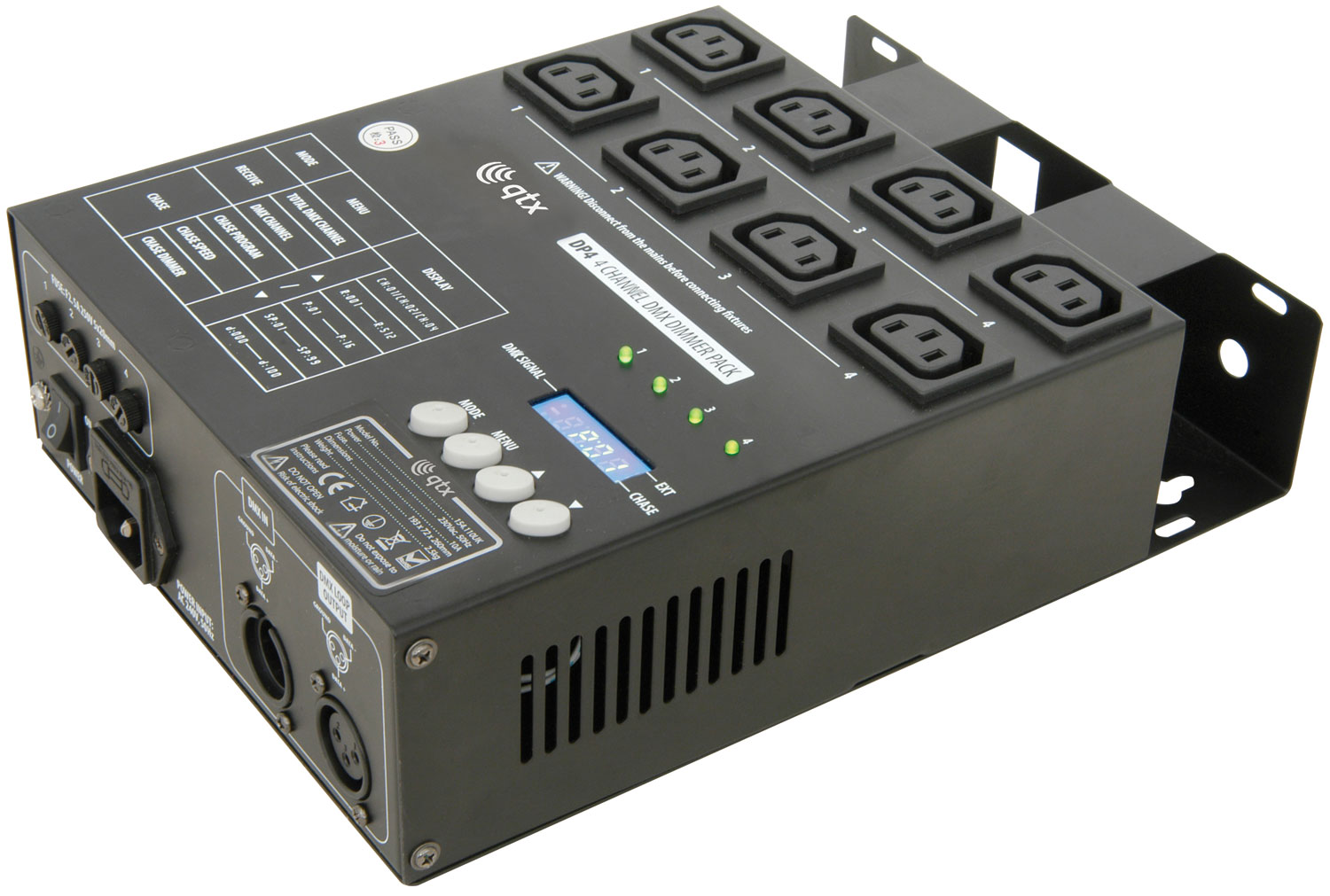

The QTX DP4 is a 4 channel DMX dimmer pack for lamp-based lighting, with two IEC power outputs on each channel, eight outlets in all. Run it from a DMX controller using 4 DMX channels, or stand-alone from its 16 built-in chase programs, with master/slave linking for multiple packs. A pulse feature keeps lamp filaments warm so they snap on and off instantly, and the LED readout shows the current setting. The pack can be wall mounted. The DP4 is not suitable for LED products, which can flicker or switch randomly on a dimmer channel; for LED fixtures and effects use the QTX RP4 relay pack instead.
Features
4 dimmer channels, each with 2 IEC outputs
4 channel DMX control
16 built-in chase programs
Master/slave mode
Pulse feature keeps lamp filaments warm for instant on/off
LED readout display
Wall mountable
Not suitable for LED products (use the QTX RP4)
Specifications
| Channels | 4 |
| Outputs | 8 x IEC (2 per channel) |
| Control | 4 channel DMX, 16 chase programs, master/slave |
| Power supply | 230V AC, 50Hz (IEC inlet) |
| Working temperature | -5°C to +45°C ambient |
| Dimensions | 193 x 72 x 260mm |
| Weight | 2.5kg |
| Packed dimensions | 324 x 153 x 153mm |
| Packed weight | 2.7kg |
| Country of origin | China |
| Model | DP4 |
| Barcode | 5015972086148 |
| AVSL code | 154.110UK |
