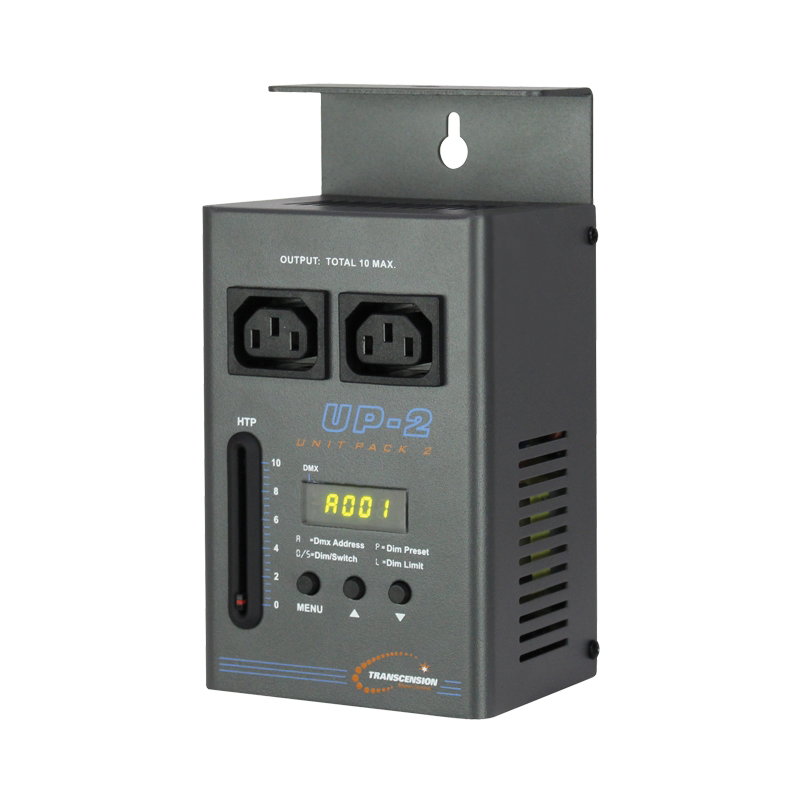

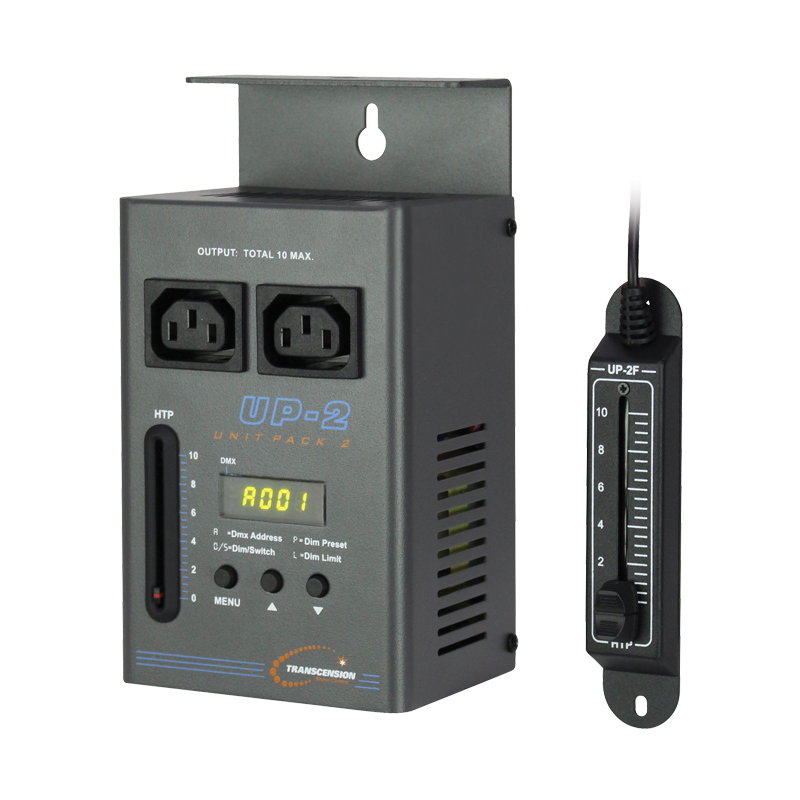

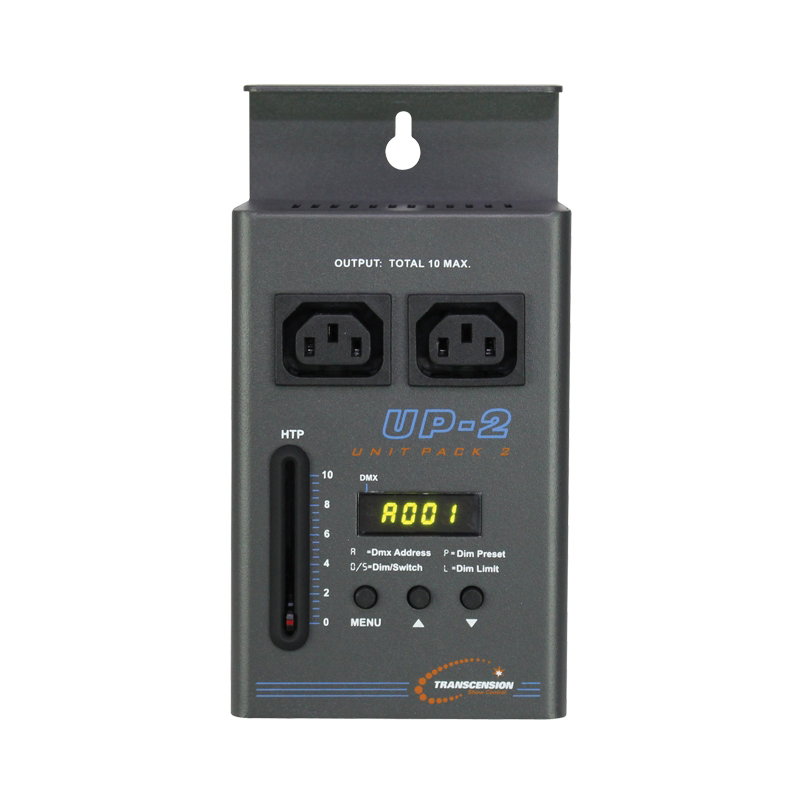

The Transcension UP2 is a convection cooled single channel dimmer pack rated at 10A. It takes DMX on 5-pin XLR and comes with a remote fader, combining the two HTP, so it works on a DMX rig or as a standalone dimmer for a small studio, a follow spot or a single lamp. Trailing edge dimming, a dim preset and a dim limiter are built in, and it can be set as a switch pack for loads that should not be dimmed. Output is on two IEC sockets with a captive mains lead in.
Features
1 channel DMX and HTP dimmer

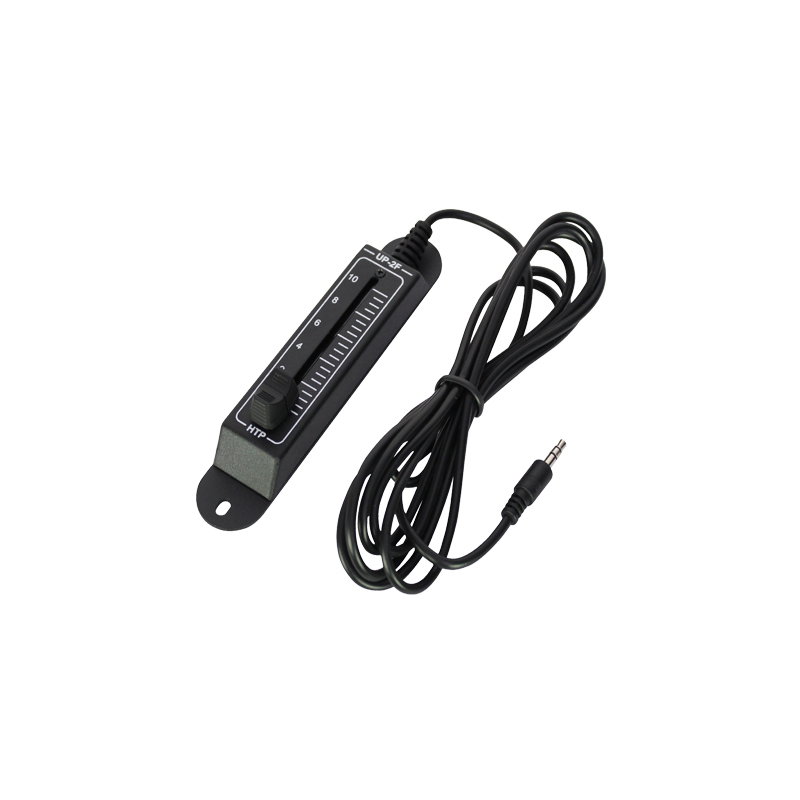

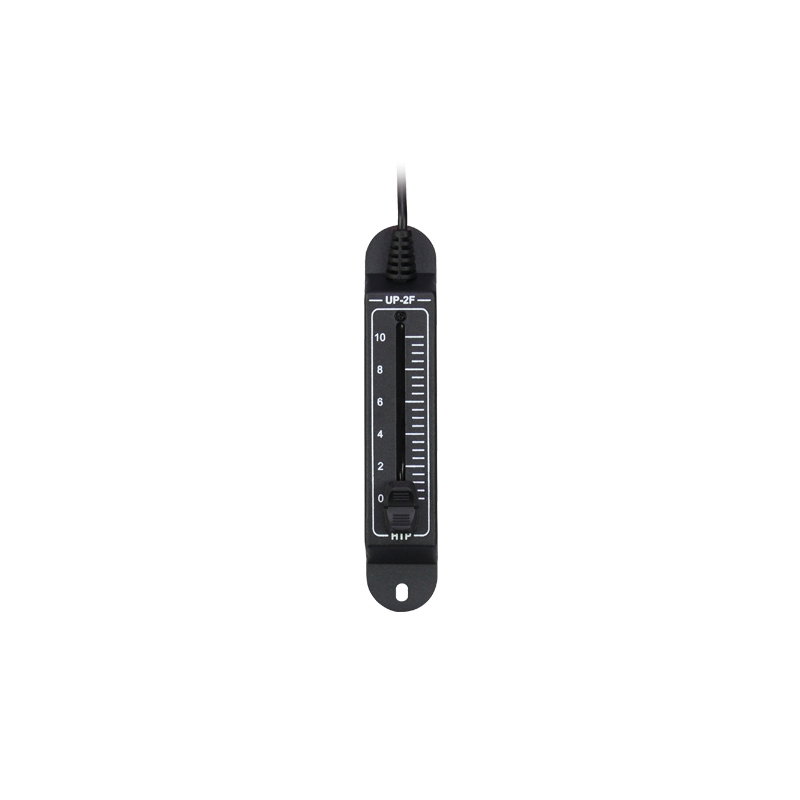

Remote fader included
Trailing edge dimming
Can be configured as a switch pack
Dim preset and dim limiter
5-pin XLR DMX in/out
2 x IEC output sockets
Convection cooled, no fan
Mounting bracket and captive power cable
Specifications
| Channels | 1 |
| Max. output | 10A |
| Control | DMX512 and remote fader (HTP) |
| DMX connection | 5-pin XLR in/out |
| Output connectors | 2 x IEC |
| Power supply | 240V, 50Hz |
| Fuse | F10A 250V |
| Dimmer dimensions (H x W x D) | 200 x 105 x 90mm |
| Remote fader dimensions (H x W x D) | 135 x 25 x 25mm |
| Weight | 1.3kg |
| Barcode | 0721405345380 |
| Order code | BOTE32 |
