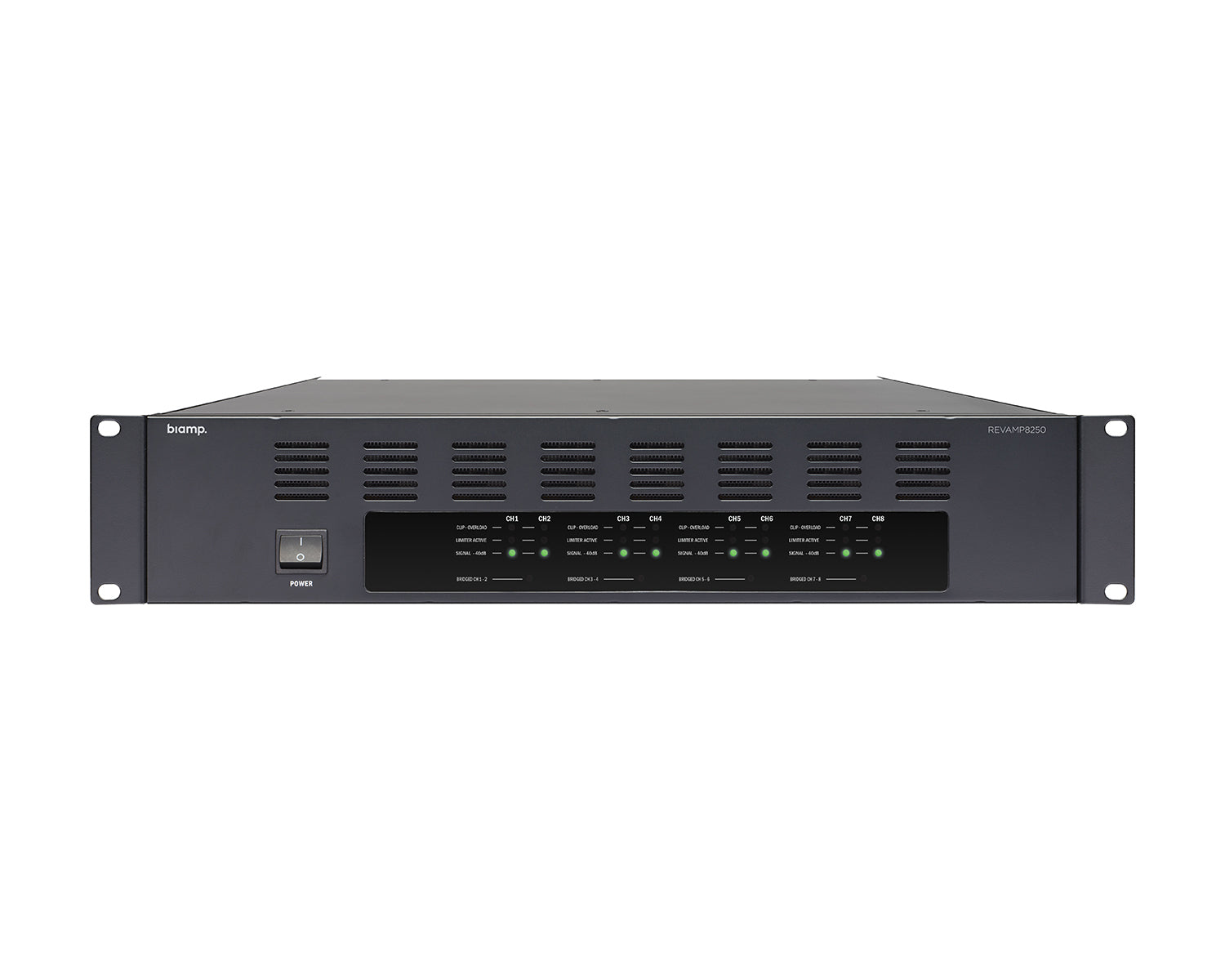

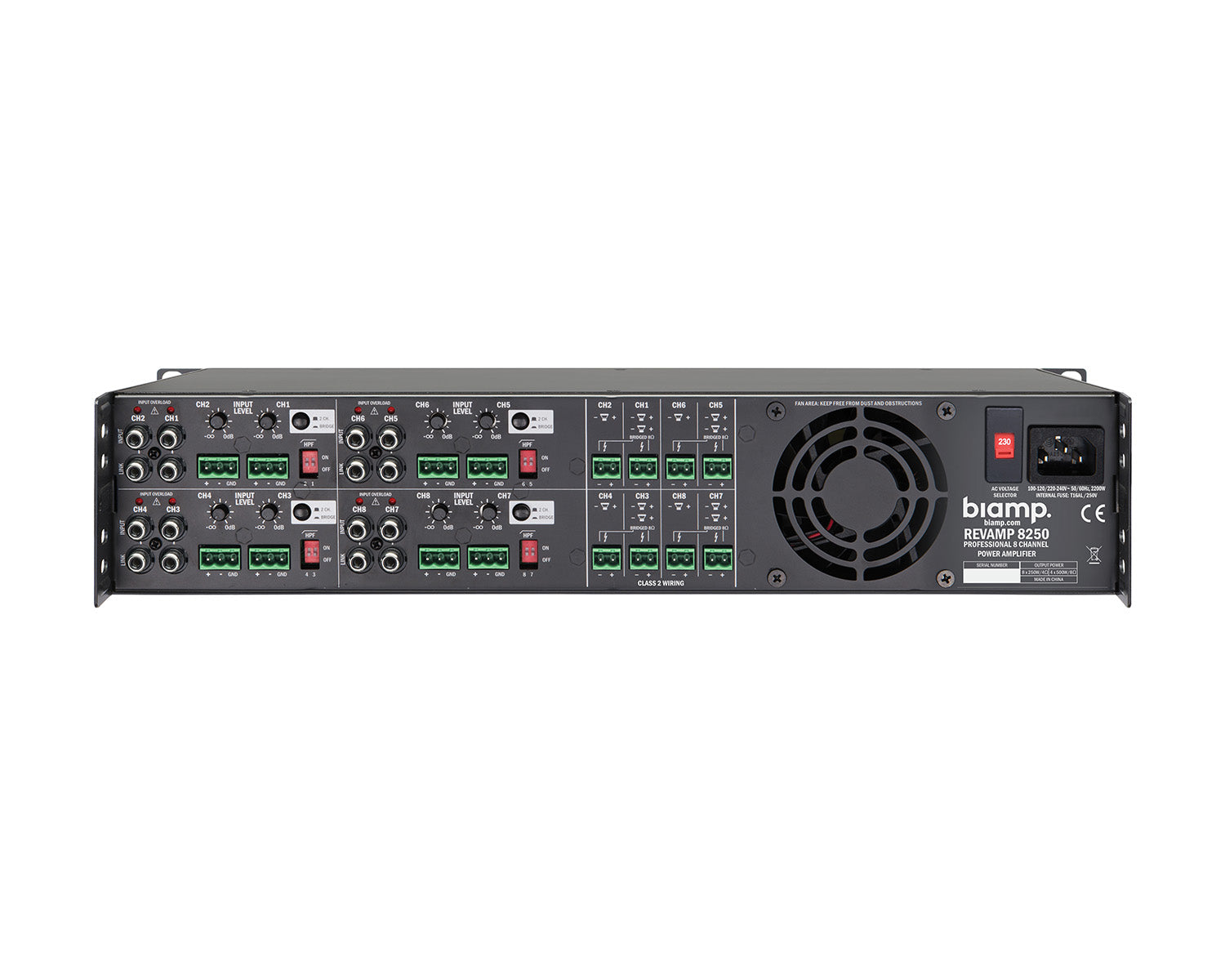

The Apart Revamp 8250 is an 8-channel bridgeable Class D power amplifier delivering 8 × 250 W RMS into 4 Ω, or 4 × 500 W RMS bridged into 8 Ω, from a 2U chassis. Paired with a preamplifier or matrix it can drive 8 mono zones, 4 stereo zones, 4 bridged mono or 2 bridged stereo systems, so one box covers what would otherwise take several amplifiers. Rear input overload LEDs and front clip indicators make commissioning quick, and an intelligent variable speed fan keeps it cool under load.
Features
Specifications
| RMS output @ 4 Ω | 8 × 250 W |
| Dynamic output @ 4 Ω | 8 × 350 W |
| RMS output @ 8 Ω | 8 × 125 W |
| Dynamic output @ 8 Ω | 8 × 175 W |
| RMS output bridged @ 8 Ω | 4 × 500 W |
| Dynamic output bridged @ 8 Ω | 4 × 650 W |
| Minimum load | 4 Ω per channel, 8 Ω bridged |
| Topology | Class D |
| Line inputs | 8 balanced, 8 unbalanced |
| Channel separation | > 60 dB @ 1 kHz |
| Power supply | 115 – 230 VAC, switching mode |
| Max power consumption | 2,200 W |
| Application | Low impedance (not 100V) |
| Dimensions (H × W × D) | 88 × 483 × 330 mm (2U) |
| Weight | 21.7 kg |
| Warranty | 1 year |
