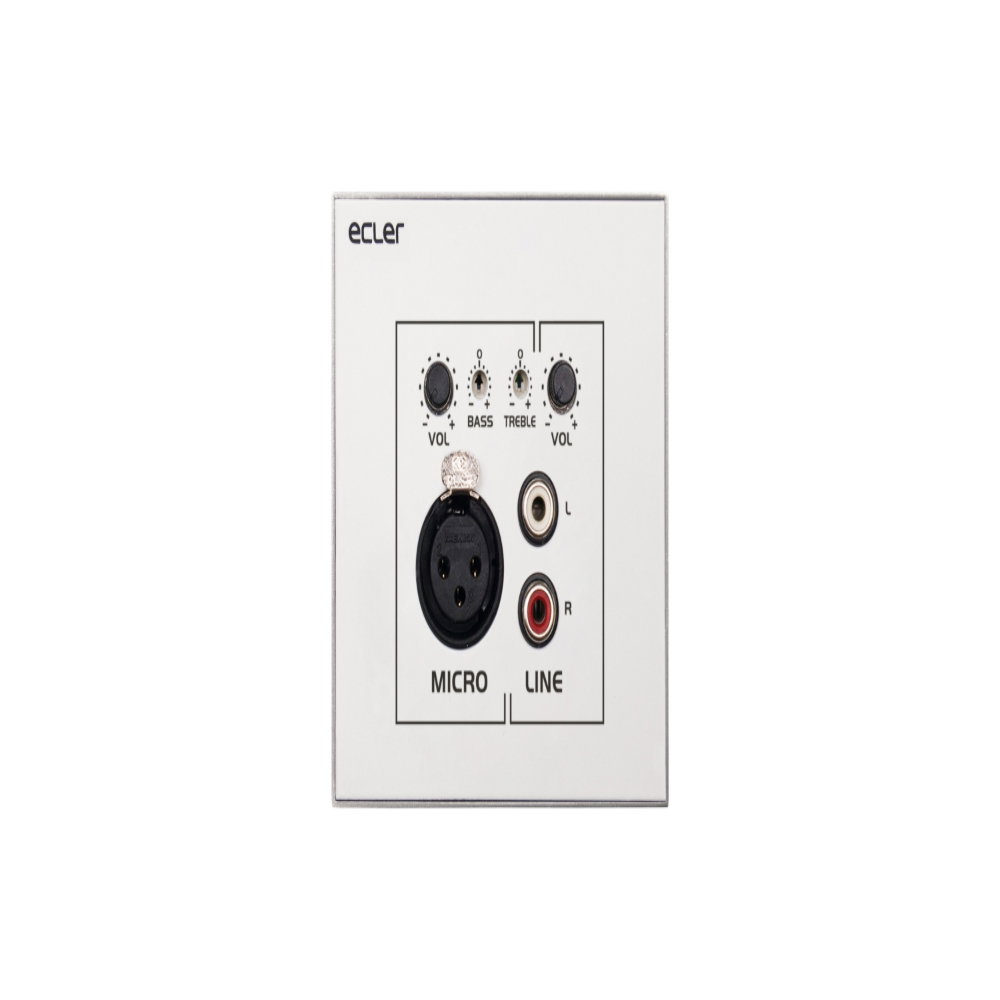

The Ecler WPaMIX-T is a wall-mounted two-channel micro mixer that combines a stereo RCA line input and an XLR microphone input into one balanced mono line output. The microphone has bass and treble controls, switchable phantom power and talkover that ducks the line signal. It can also pair with an eMCONTROL1 as a remote input to a HUB zone mixer, and suits meeting rooms, retail, bars and function rooms.
XLR + RCA
Mic and line in
Talkover
Mic over line
Balanced
Mono out
15/24V DC
Power
PowerNeeds an external 15V or 24V DC supply, such as the Ecler WP24-PSU (sold separately), or power from an eMCONTROL1 when used with a HUB.
Features
Unbalanced stereo line input on 2x RCA
Balanced XLR mic input with bass and treble and selectable +15V phantom
Separate volume controls for line and mic
Talkover: mic ducks the line input by 30 dB
Balanced mono line output on Euroblock
Works with eMCONTROL1 as a remote audio input for HUB series and eMIMO1616

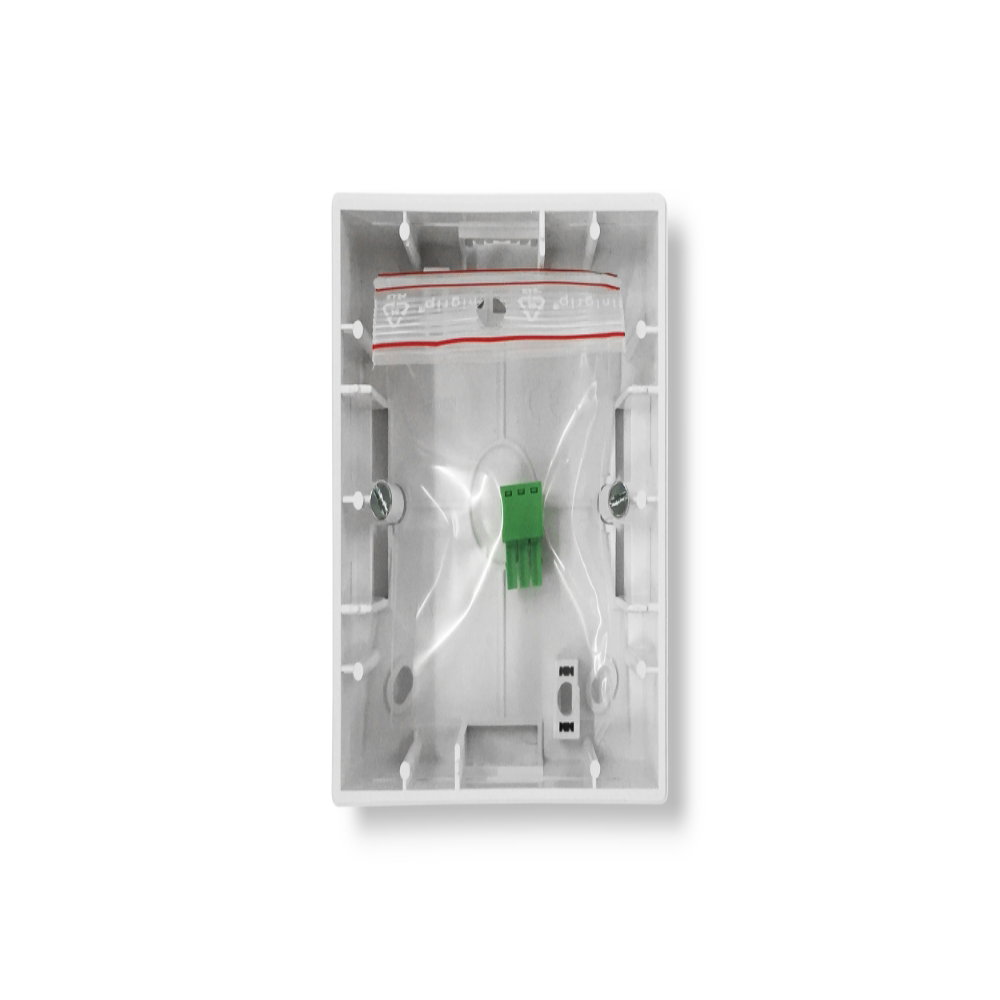

Surface-mount box included; white RAL 9016
Specifications
| Line input | 2x RCA, -10 dBV, 10 kohm |
| Mic input | XLR, balanced, -40 or -20 dBV (internal), >1 kohm |
| Output | Balanced mono, 0 dBV (max +17 dBV), 600 ohm minimum load |
| Frequency response | Line: 5 Hz to 30 kHz; mic: 10 Hz to 40 kHz |
| THD | Line: <0.005%; mic: <0.01% |
| Signal-to-noise ratio | Line: >105 dB; mic: >90 dB |
| Tone control | Bass 100 Hz, treble 10 kHz, ±10 dB |
| Talkover | -30 dB, approx. 3 seconds |
| Phantom power | +15V DC |
| Power | 15V or 24V DC external, min 30 mA; consumption 25 mA |
| Dimensions (W x H x D) | 86 x 86 x 30 mm |
| Weight | 125 g |
