ADJ DMX FX512 3U Rack 512-Channel DMX Controller | RDM, Moving Heads + LED

Product code: 150884

£134.00 inc VAT
£111.67 ex VAT

SKU: ADJ1322000064
3 available online
more expected on 27 Nov 2026
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

The ADJ DMX FX512 is a professional 3U rack-mount DMX controller offering 512 channels with both DMX-512 and RDM protocols. Designed for clubs, churches, stages and event production, it provides tactile hands-on control of moving heads and RGB LED fixtures in a robust install-grade chassis.

512
Channels · 1 universe
19″ Rack 3U
Form Factor · Install-grade
DMX-512 + RDM
Protocols · Industry standard
Moving Heads + LED
Best For · Tactile control

Features

512 DMX channels (1 universe)
3U 19-inch rack-mount form factor
Supports DMX-512 and RDM protocols
Designed for moving heads and RGB LED fixtures
Tactile button and fader control
Robust metal chassis for fixed install
Suitable for clubs, churches, stages, event production
Hands-on operation without computer dependency

Specifications

ADJ DMX FX512 3U Rack 512-Channel DMX Controller | RDM, Moving Heads + LED specifications
DMX Channels 512 (1 universe)
Protocols DMX-512 + RDM
Form Factor 19″ Rack mount, 3U
Output 5-pin XLR DMX
Best For Moving heads, RGB LED, install + production

Full features

SPECIFICATION
Features:
  • 19" Rack-mount DMX Controller
  • DMX 512 & RDM protocol.
  • 512 DMX channels.
  • Control up to 32 intelligent fixtures, up to 18 channels each
  • 32 chases, each up to 100 steps, can run 5 chases simultaneously
  • 32 programmable scenes
  • Soft-patchable faders & control wheels
  • 16 built-in effects generator. 9 for moving light and 7 for RGB LED fixtures
  • USB for data backup and firmware update.
Control:
  • DMX512 and RDM
  • RDM to set the DMX addresses and DMX channel mode of the fixtures from controller
  • 16 channel control faders
  • Dedicated Pan/Tilt wheels (User Assignable)
  • 16 Effects / Fixture select buttons
  • Sound sensitivity digitally adjustable (0%-100%), built-in Mic.
  • With Wired Digital Communication Network

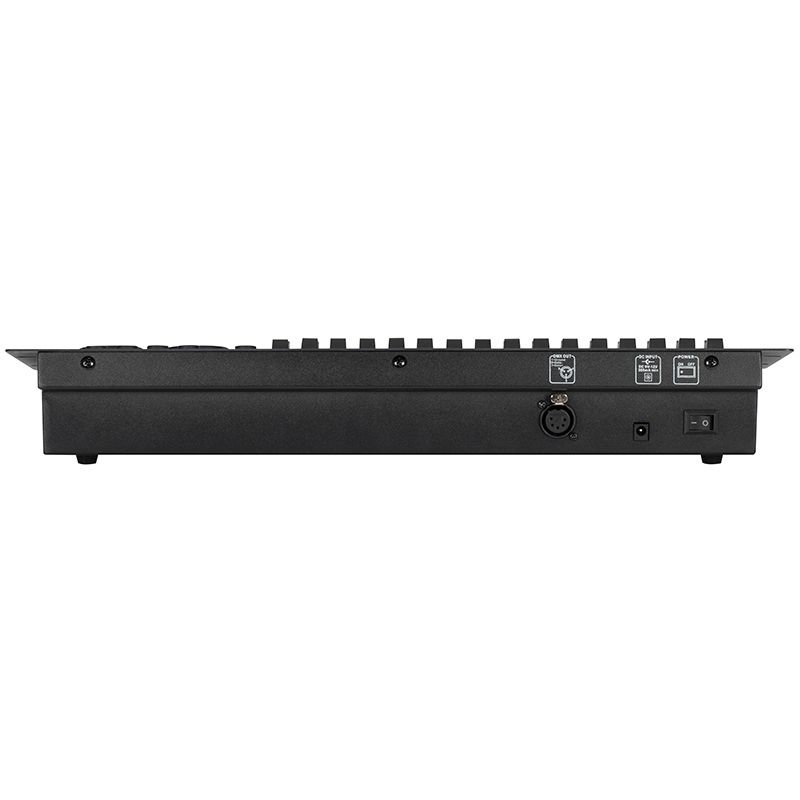

Connections:
  • 5pin XLR DMX Output
  • Power Supply Input
  • USB A Port
Operational Conditions:
  • Use in dry location only
  • Min. ambient temperature: 0°C
  • Max ambient temperature: 45°C
  • Humidity: <75%
  • Allow 6" minimum between this controller and surrounding devices or wall
Storage Conditions:
  • Store in a dry location
  • Ambient storage temperature: 25°C
Power:
  • Power Supply: DC9V 12V 300mA min. (DC9V 1A PSU Included)
  • Power Consumption: DC9V 165mA 1.5W, DC12V 16mA 2W
Dimensions & Weight:
  • Length: 134mm.
  • Width: 482mm.
  • Height: 68.9 mm.
  • Weight: 2.13 kg
Certifications & Rating:
  • CE
  • cETLus (Pending)
  • IP20
Specifications are subject to change without notice.
  • Manufacturer Part Number: 1322000064
