ADJ PC415X 4 Way Power and DMX Distribution with Wireless DMX, 1U

SKU: ADJ1321000096
ADJ PC415X
ADJ PC415X
ADJ PC415X
ADJ PC415X
ADJ PC415X
ADJ PC415X
Click to enlarge

    £369.00 inc VAT
    £307.50 ex VAT

    4 available online
    FREE delivery by MondayOrder by 3pm
    Click & Collect tomorrow ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

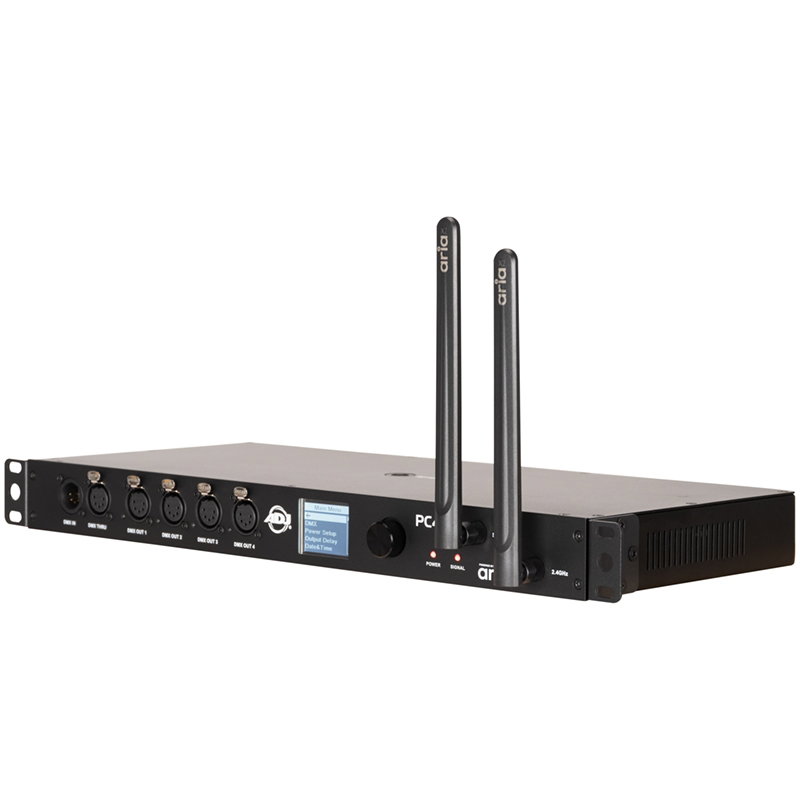

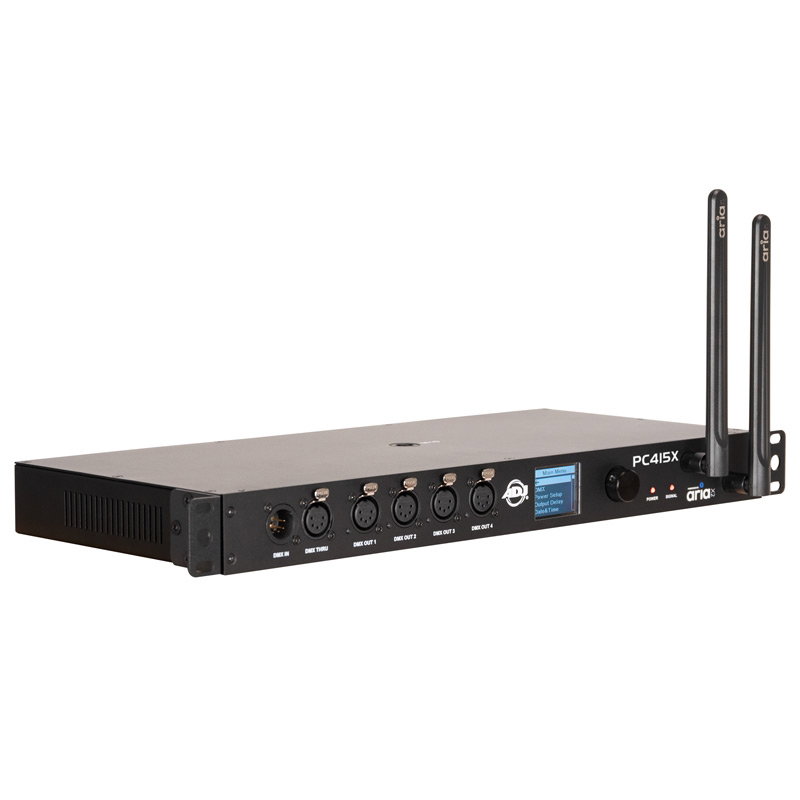

    The ADJ PC415X (part 1321000096) is a 1U rack-mountable unit combining a 4-output power distribution centre, an Aria X2 wireless DMX transceiver and a 4-output DMX/RDM splitter. It is aimed at live events, touring and fixed installs where power, wireless DMX and signal distribution are needed from a single device. Supplied with rack ears for 19-inch mounting, two Aria X2 antennas and one IP65 locking power cable.

    Key Features
    4 power outputs, Aria X2 transceiver and DMX/RDM splitter in one unit
    4 IP65 locking power outputs with 15A resettable breakers
    1 DMX input and 4 DMX outputs
    1, 2 or 4 DMX channel modes

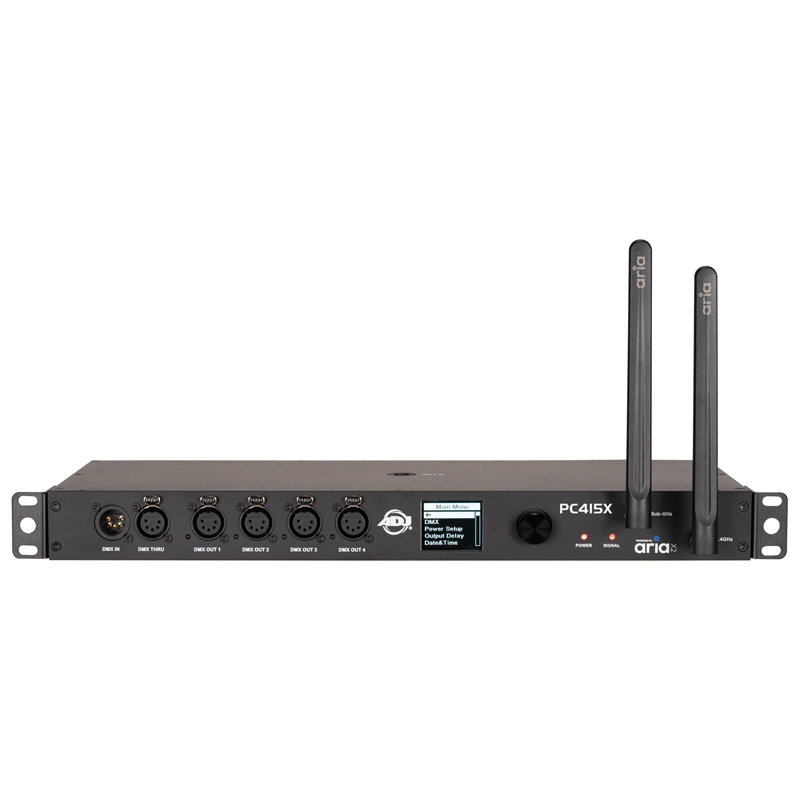

    OLED display with push button and encoder wheel
    Internal on/off scheduler for power and DMX outputs
    Sub-GHz, 2.4GHz, Bluetooth 5.2 and Aria X2 Mesh protocols
    Rack and truss mountable IP20 metal enclosure
    Specifications

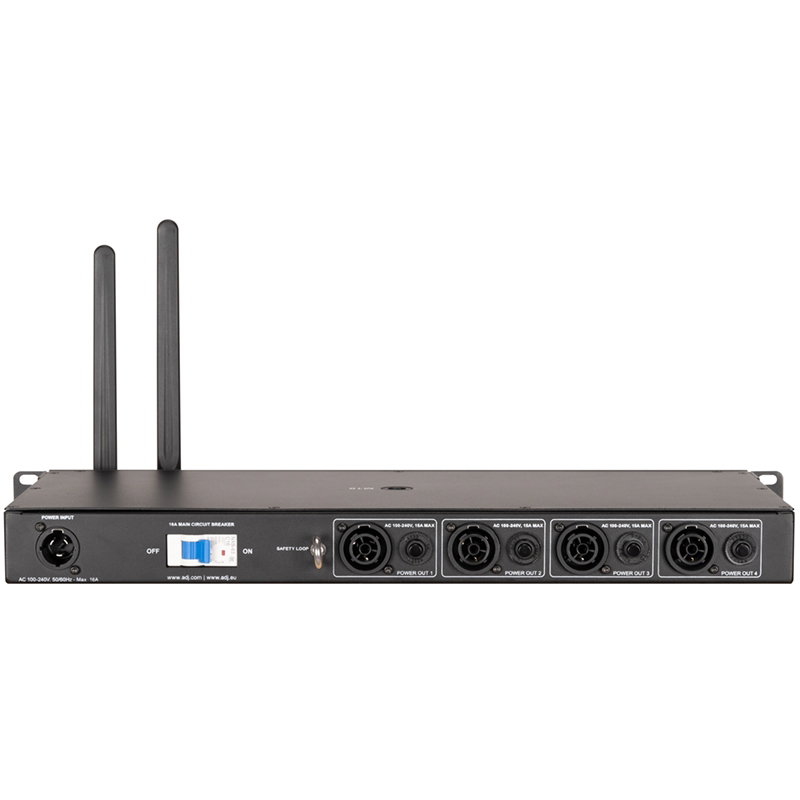

    Power outputs 4 x IP65 locking, 15A resettable breakers
    DMX 1 input, 4 outputs (RDM support planned)
    RF frequency 2404 to 2480MHz, plus EU 863 to 870MHz
    Power input AC 100 to 240V 50/60Hz, 16A main switch
    IP rating IP20 (indoor)
    Dimensions (L x W x H) 482 x 249.17 x 43.8mm
    Weight 3.36kg

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    SPECIFICATIONS
    Key Features:
    • Multi-functional Design: The PC415X offers 4 power outputs
    • 4 power outputs, an Aria X2 transceiver, and DMX/RDM splitter in one device.
    • Flexible DMX Channel Modes: Operate in 1, 2, or 4 DMX channel modes, ensuring compatibility across different setups
    • User-Friendly Control: Navigate with ease using the push button and encoder wheel, complemented by an OLED control menu display
    • Event Scheduler: Manage power and DMX outputs with an internal On/Off scheduler for automated operation
    • Single DMX Universe: Works seamlessly as a single DMX universe transmitter, ideal for precise control over lighting configurations
    • Multi-Protocol Support: Features Sub-GHz, 2.4 GHz WiFi, Bluetooth, and proprietary Aria X2 Mesh Protocol for reliable wireless communication
    • Future-Ready: Configuration via front panel and app support (app coming soon) for on-the-go adjustments
    • Mounting Flexibility: Rack-mountable and truss-mountable for versatile installation options
    Supported Protocols:
    • DMX/RDM: Designed for DMX lighting control, with RDM support planned in a future software release
    • Proprietary Protocols: Supports Aria X2 Mesh Protocol and 802.15.4 communication, plus Bluetooth 5.2 for versatile device connectivity
    RF Characteristics:
    • Frequency Range: Operates between 2404-2480 MHz, with additional EU (863-870 MHz) and US (902-928 MHz) bands
    • Enhanced Reliability: CSMA and planned adaptive frequency hopping ensure minimal interference
    • Over-the-Air Updates: Future-proof your setup with OTA updates
    Standards & Compliance:
    • Safety: Meets EN IEC 62368-1 and BS EN standards for safe operation
    • Health & EMC: Complies with EN IEC 62311:2020 and ETSI EMC standards, ensuring safety and low interference
    Connectors:
    • DMX and Power Options: Features (1) DMX input, (4) DMX outputs, and (4) IP65 locking power outputs with 15A resettable breakers
    • Antenna Compatibility: Equipped with dual 5G JT SMA antennas
    Power Requirements:
    • Versatile Power Input: Compatible with AC100-240V 50/60Hz and equipped with a 16A main power switch
    • Low Power Consumption: Runs efficiently with minimal power requirements and features on a CR2032 lithium battery for critical backup
    Physical Specifications:
    • Robust Design: Durable IP20 metal enclosure with a digital screen, rotary knob, and safety eyelet
    • Temperature Tolerant: Operates in ambient temperatures up to 45° C and humidity below 75%
    • Compact Dimensions: At just 3.36 kg, it is designed for easy handling and secure installation
    Dimensions & Weight:
    • Length: 482mm
    • Width: 249.17mm
    • Height: 43.80mm
    • Weight: 3.36 kg
    Approvals & Included Accessories:
    • Approvals: IP20-rated for indoor use
    • Accessories: Comes with rack ears for a standard 19-inch rack mount, two Aria X2 antennas and one IP65 locking power cable
    Specifications are subject to change without notice.

    Manuals & Downloads

    PDFManuals & Instructions: adj_pc415x_-_user_manual.pdfPDF
