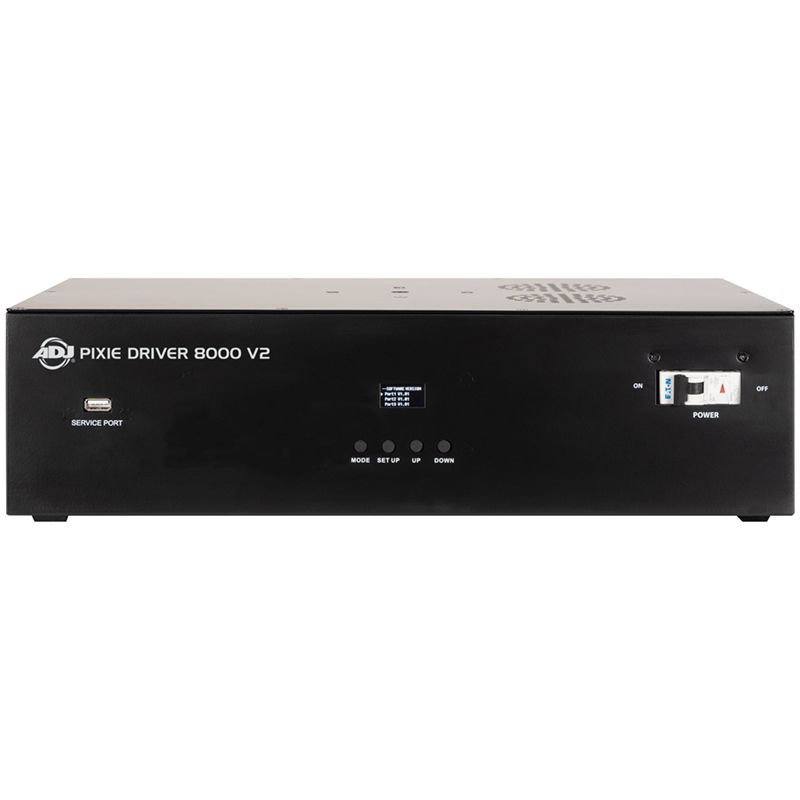

The Pixie Driver 8000 V2 is the power and data hub for ADJ’s Pixie Strip 30, 60 and 120 LED pixel battens, driving up to 8,160 pixels across eight outputs via Kling-Net, Art-Net or sACN. Each of the eight 4-pin outputs carries both DC24V power and data down a single proprietary combo cable, which keeps large pixel-mapped walls and set pieces tidy to rig and quick to fault-find. On-board manual dimming, strobe control and internal programs cover simple jobs without a media server, and the unit mounts in a standard 19-inch rack (ears included) or on truss with a clamp.
8,160
Max pixels
8
Power/data outputs
3 protocols
Kling-Net / Art-Net / sACN
19″
Rack mountable
Features
Power and data supply for Pixie Strip 30, 60 and 120
Drives up to 8,160 pixels (1,020 per port)
Kling-Net, Art-Net and sACN pixel mapping control
Manual RGB mode, dimming, strobe and internal programs
OLED screen with 4-button menu
Two Ethernet ports (RJ45 in/out)
USB port for firmware updates
Rack ears included, truss-mountable via clamp, safety eye fitted
Specifications
| SKU | ADJ1226200079 |
| Manufacturer part number | 1226200079 |
| GTIN | 810087373542 |
| Compatible fixtures | ADJ Pixie Strip 30 / 60 / 120 |
| Control protocols | Kling-Net, Art-Net, sACN |
| Pixel capacity | 8,160 max (1,020 per port); per port: 34 x Pixie Strip 30, 17 x Pixie Strip 60 or 8 x Pixie Strip 120 |

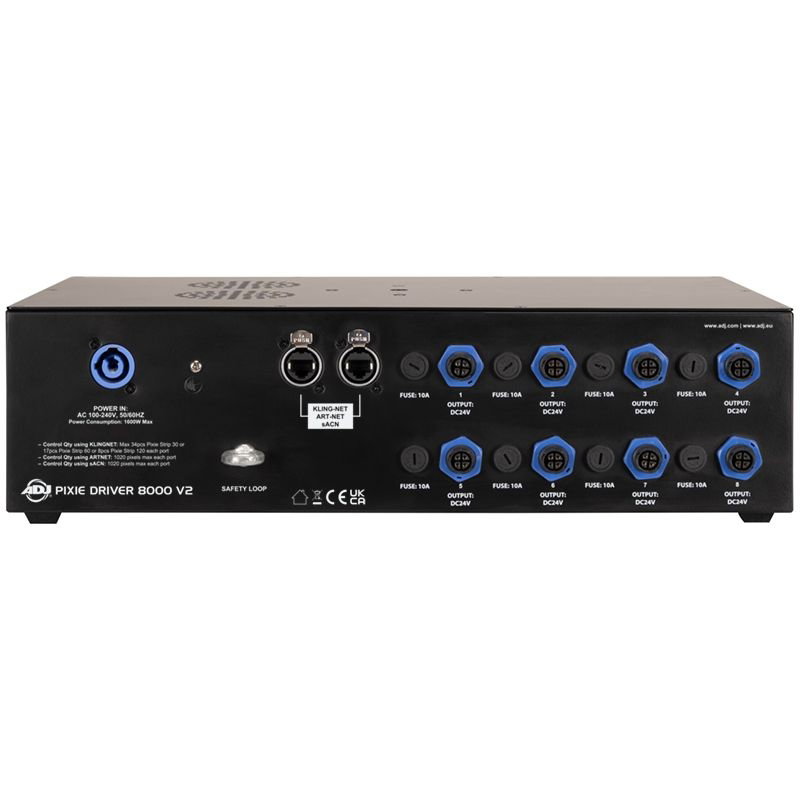

| Outputs | 8 x 4-pin DC24V power/data |
| Power input | PowerLock, AC 100-240V, 50/60Hz auto-switching |
| Power consumption | 1,600W max |
| Operating temperature | -20°C to 45°C |
| Dimensions (L x W x H) | 294 x 480 x 120mm |
| Weight | 6.1kg |

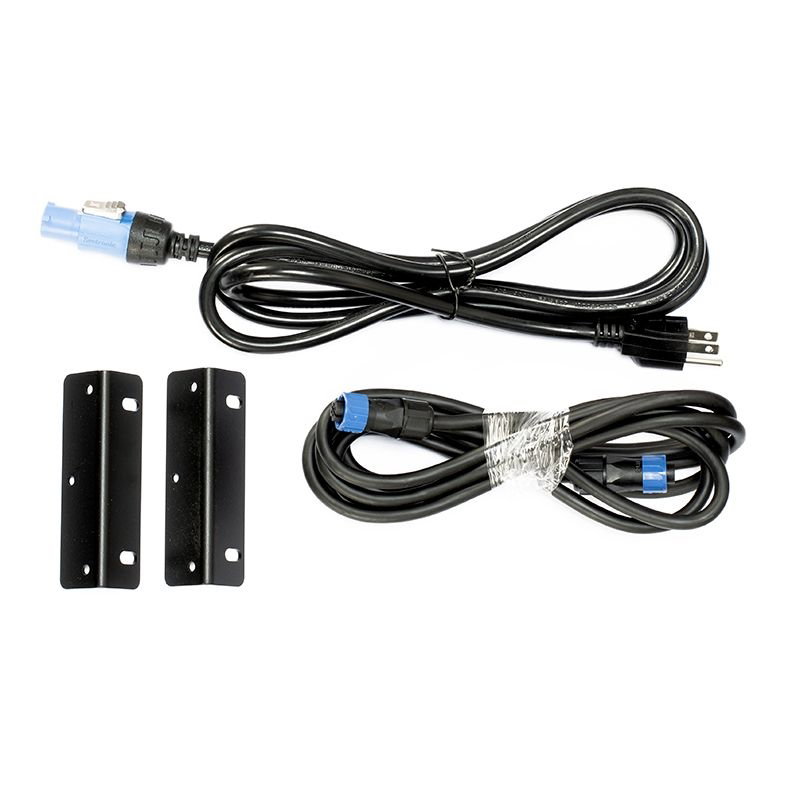

| Included | 1 x PIXEL BC10 (PIX339) 10ft 4-pin cable, 1 x SIP20MPC (SIP293) power input cable, 2 x 19″ rack ears |
| Warranty | 1 year |
