Avolites T1+ Titan USB to DMX Interface 1024 Ch, 1 Prism Output

Product code: 180997

£389.00 inc VAT
£324.17 ex VAT

SKU: 30-01-9631

20 in stock

Ordered from supplier, allow 1–3 weeks
FREE delivery by Tue 15th DecOrder by 3pm tomorrow
Click & Collect Mon 14th Dec ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

USB to DMX interface from the Avolites Travel Collection, unlocking either Titan for lighting or Prism for media on any Windows computer. The T1+ carries one physical DMX port, using the computer’s own network and display ports for the remaining outputs. Unlocks 1,024 DMX channels in Titan, or 1 display output and 1,024 DMX pixels in Prism (DMX pixels are listed by Avolites as coming soon).

1,024
Titan channels

One
DMX ports

USB
Connection

T1+
Model

Windows only, and one product at a timeTitan and Prism run on Windows. A key unlocks either Titan (lighting) or Prism (media), not both simultaneously, so pick the channel count against the larger of the two jobs you expect to run.

Features

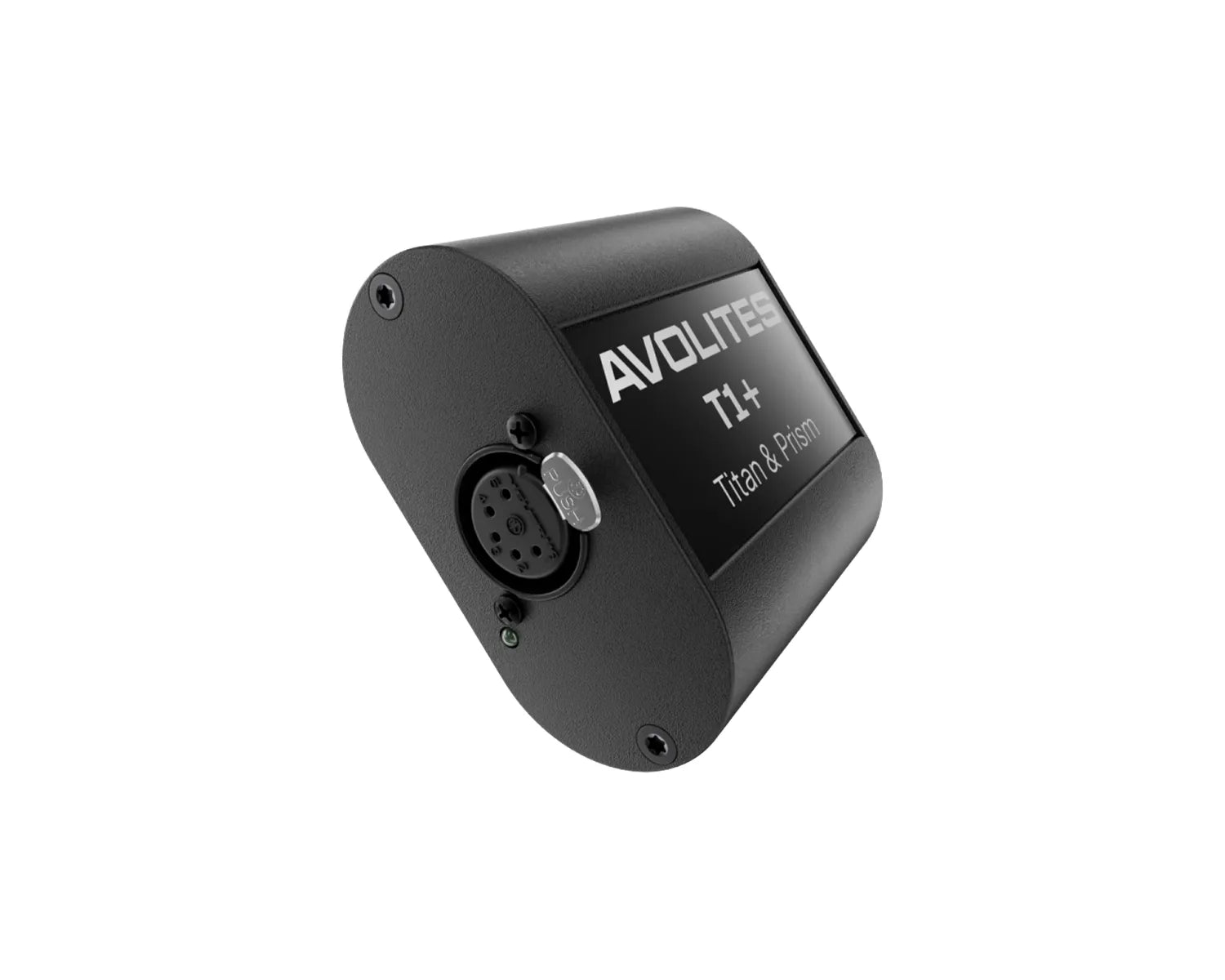

One physical DMX port: Neutrik 5-pin XLR, DMX in and out
Unlocks 1,024 DMX channels in Titan
Or 1 display output and 1,024 DMX pixels (coming soon) in Prism
Uses the computer network and display ports for further outputs
Pre-programme and run a show from a Windows laptop

Specifications

Avolites T1+ Titan USB to DMX Interface 1024 Ch, 1 Prism Output specifications
Brand Avolites
Manufacturer part number 30-01-9631
Type USB to DMX interface and licence key
Model T1+
Physical DMX ports One
Titan channels 1,024
Prism outputs 1 display output
Platform Windows

Full features

  • 1 physical DMX port
  • 1,024 DMX channels within Titan
  • 1 display output from Prism
  • 1,024 DMX Pixels from Prism (coming soon)
  • T3 Wing, D3 Wing & Titan Mobile Wing support - extend your control and stay hands-on during every show
  • D3 Touch integration - remotely trigger Titan from a reliable touchscreen
  • Titan WebAPI - build 3rd Party integrations which connect directly into Titan
  • Prism DMX Pixels - between 1 to 4 DMX channels… from a simple intensity through to full RGBW
  • USB MIDI devices for external triggering and control

Full specifications

  • Titan Software

    • DMX Channels Per Device:  1,024
    • Max Fixtures:  Unlimited
    • 3D Visualisation:  Capture Engine
    • USB Wing Support:  1x D3 Wing, T3 Wing, or Titan Mobile Wing
    • D3 Touch Support:  Yes (unlimited)
    • Mobile App:  Yes - iOS & Android (“Titan Remote”)
    • Control Protocols:
      • DMX512 (E1.11)
      • Streaming ACN (E1.31)
      • Art-Net & Art-RDM
      • CITP
      • GDTF (through Capture)
      • MIDI over USB (MIDI Notes & MTC)
      • Web API
  • TitanNet

    • Expand Processing:  Yes
    • Offload Processing:  Yes
    • Multi-Console Session:  Yes
    • DMX Channels per System:  32,768
  • Prism Software

    • Display Outputs:  1 (physical*, NDI or RTSP)
    • DMX Pixels:  1,024 (DMX Pixels coming soon to Prism. Each pixel can be 4 DMX channels (e.g. RGBW))
    • Layers:  16
    • Banks:  256
    • Max Surface Resolution:  8K / Super High Definition (SHD) square (7680px x 7680px)
    • Max Output Resolution:  4K / Ultra High Definition (UHD) square (3840px x 3840px)
    • Inputs:  4 (physical*, NDI or RTSP)
    • Surfaces:  16
    • Blend Modes:  17
    • Elements per Bank:  256
    • (* the physical ports on a graphics card / capture card)
  • Connectivity

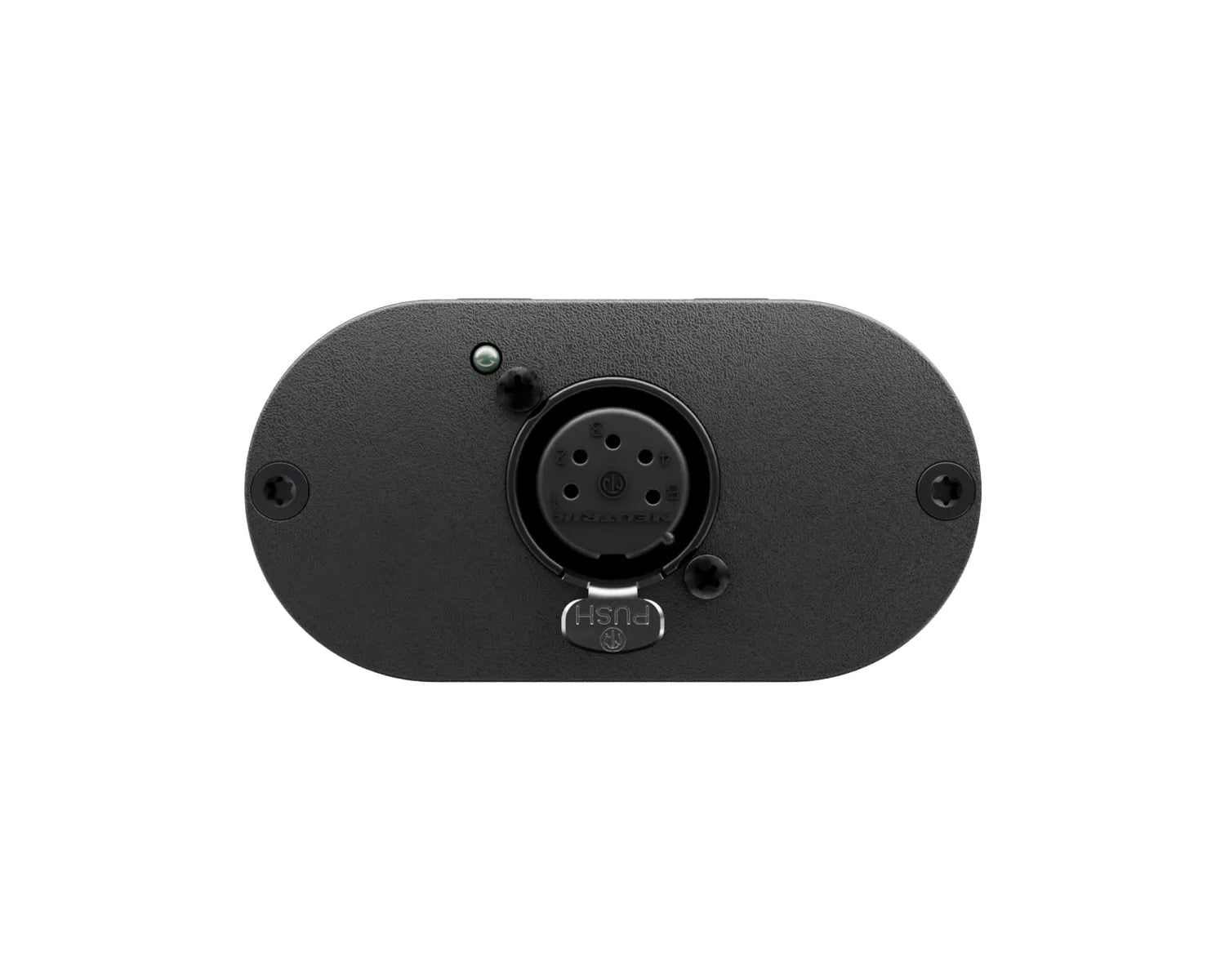

    • DMX (In & Out):  1x Neutrik 5-pin XLR

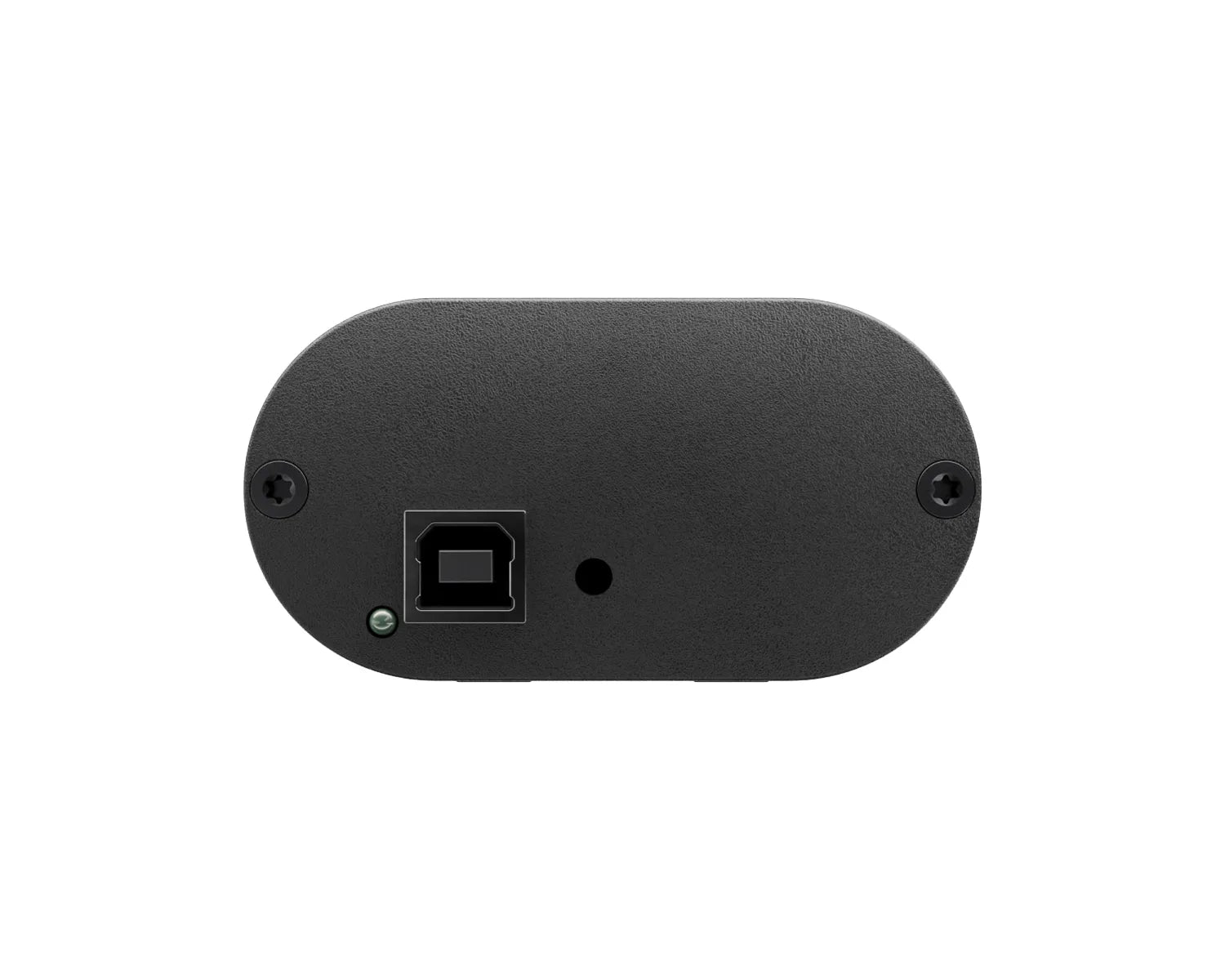

    • USB:  1x USB B
  • Hardware

    • Operating Voltage:  5V DC
    • Power Connector:  USB B
    • IP Rating:  IP20 (indoor use only)
    • Operating Temperature:  0°C to 40°C
    • Humidity:  95% non-condensing
  • Certifications and Safety

    • Conformity:  CE, WEEE, RoHS
  • Physical & Dimensions

    • Weight:  TBC
    • Dimensions:  79 x 69 x 41 mm
