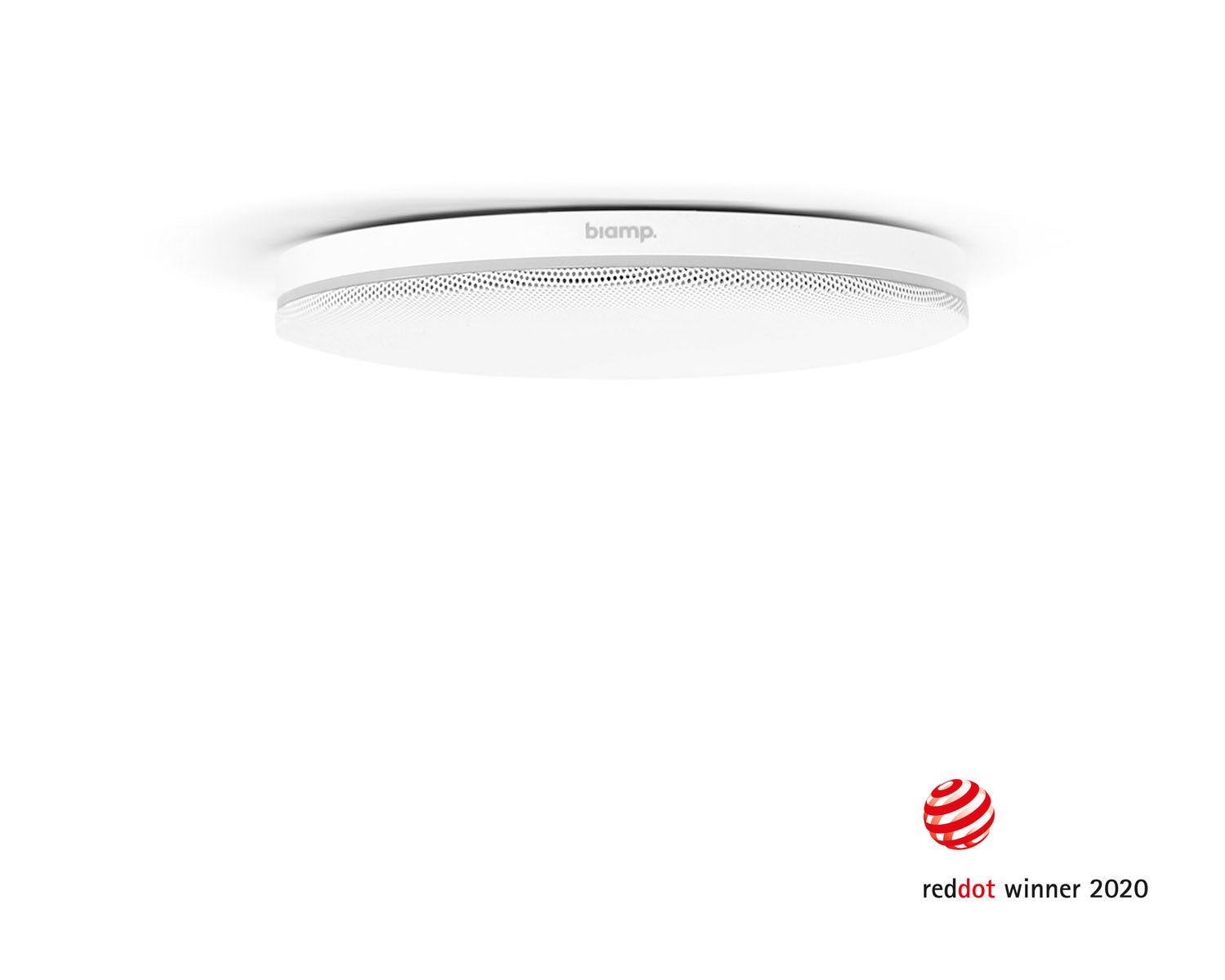

The Biamp Parlé TCM-X is a low-profile AVB ceiling microphone for Tesira systems, pairing a 150 mm ceiling-mounted mic with a network box that carries its own DSP. Beamtracking technology with four 90° zones gives full 360° coverage, actively tracking and intelligently mixing conversations around the table so far-end participants hear the room as if they were in it. It suits a wide range of meeting rooms with ceilings of 10 ft or lower where the microphone needs to disappear.
360°
Room Coverage
16
Element Digital Array
1
AEC Channel Per Mic
15 mm
Profile Height
Features
Beamtracking actively tracks and intelligently mixes conversations
Four 90° zones for full 360° room coverage
Works out of the box, no lobe aiming or room mapping
Mounts directly to the ceiling to virtually disappear in the room
Network box includes DSP for Beamtracking
Uses only one channel of AEC per microphone
Single CAT cable connection
Additional RJ-45 to add an optional TCM-XEX (max two mics per network box)
LED mute status indicator
Evaluated to UL 2043, suitable for air handling spaces
CE marked, UL listed and RoHS compliant
Covered by Biamp’s five-year warranty
Specifications
| Microphone technology | 16-element digital array |
| Polar pattern | Active beamformed |
| Frequency response | 150 Hz – 16 kHz (± 3 dB) |
| SNR | > 76 dB (1 kHz, 94 dB SPL, A-weighted) |
| Maximum SPL | 109 dB (< 1% THD) |
| Dynamic range | 92 dB A-weighted (THD+N < 1%) |
| Indicator | Mute LED (green/red) |
| Connector | RJ-45 |
| Finish | White |
| Height (excluding ceiling mount) | 15 mm |
| Diameter | 150 mm |
| Weight | 340 g |
