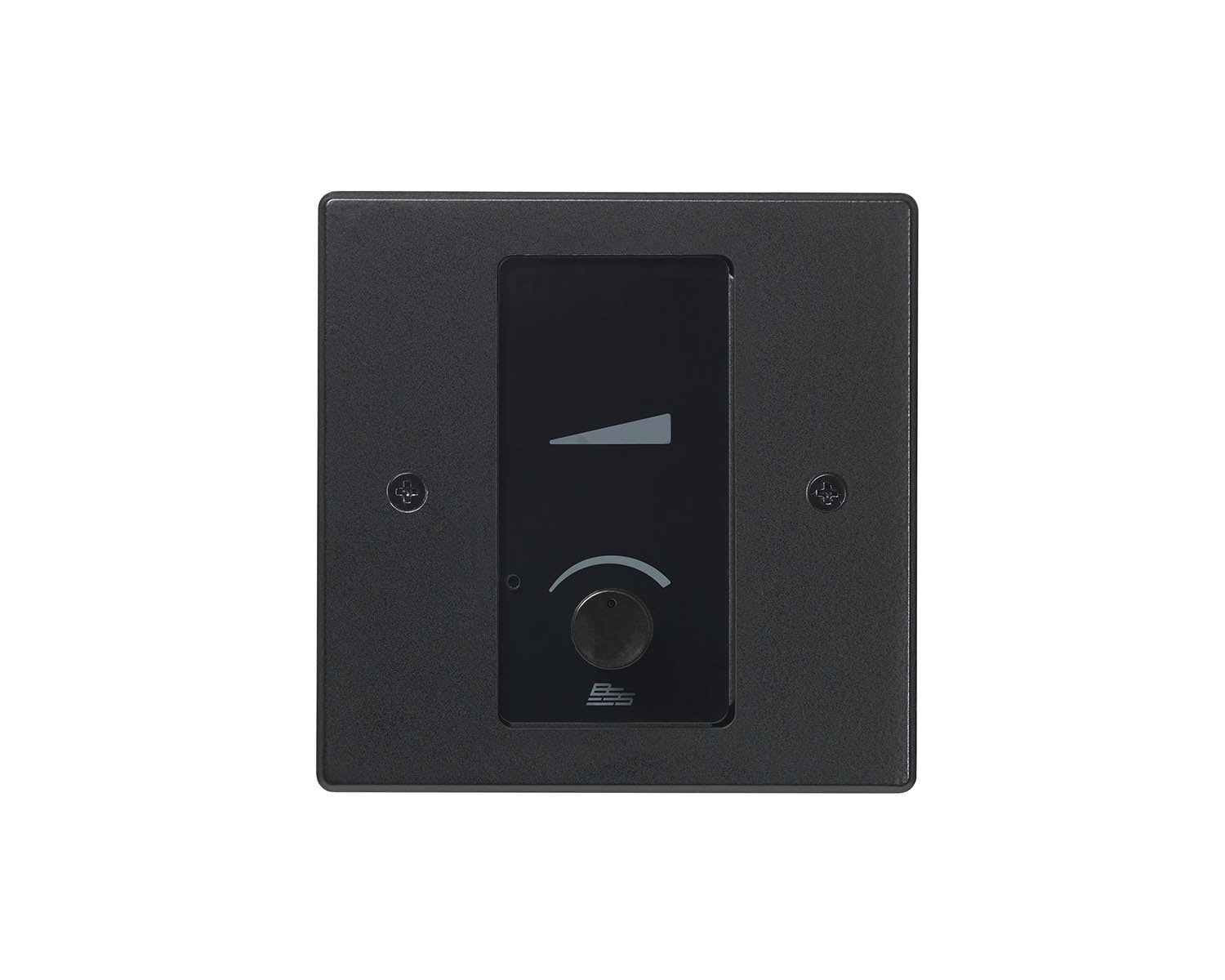

The BSS Soundweb Contrio AC-V is a simple analogue wall controller for BSS Audio Soundweb London devices, supplied here in black in single-gang EU form factor. Built around a single 47k Ohm logarithmic potentiometer, it is designed for volume control, giving venue staff a clean, tamper-resistant level control without access to the underlying DSP configuration.
GPI wiring
The AC-V connects to a General Purpose Input (GPI / Control Input) and uses one GPI per unit. Most Soundweb London devices provide 12 GPI, so up to 12 controllers can connect to a single device; the BLU-GPX provides 36 GPI for up to 36 controllers.
Features
✓
Single 47k Ohm logarithmic potentiometer
Single 47k Ohm logarithmic potentiometer
✓
Ideal for zone or system volume control
Ideal for zone or system volume control
✓
Requires one GPI per controller
Requires one GPI per controller
✓
Up to 12 per Soundweb London device, 36 per BLU-GPX
Up to 12 per Soundweb London device, 36 per BLU-GPX
✓
Configured via HiQnet London Architect or HiQnet Audio Architect
Configured via HiQnet London Architect or HiQnet Audio Architect
✓
Black finish, single-gang EU form factor
Black finish, single-gang EU form factor
Specifications
| Type | Analogue wall controller |
| Control element | 47k Ohm logarithmic potentiometer |
| Typical use | Volume control |
| Connection | One GPI (Control Input) |
| Finish / form factor | Black, single-gang EU |
| SKU | BSSACV-BLK-V-EU |
