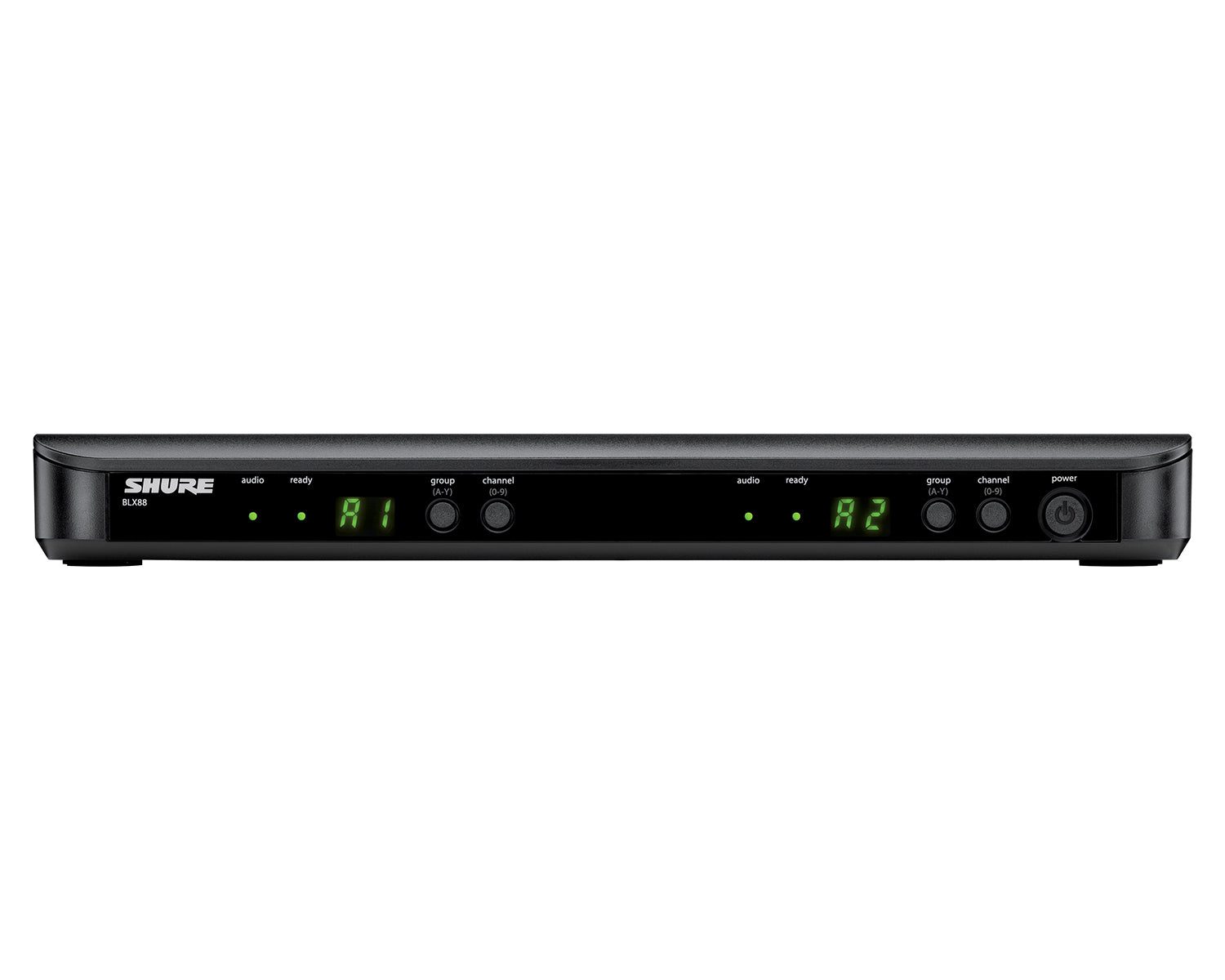

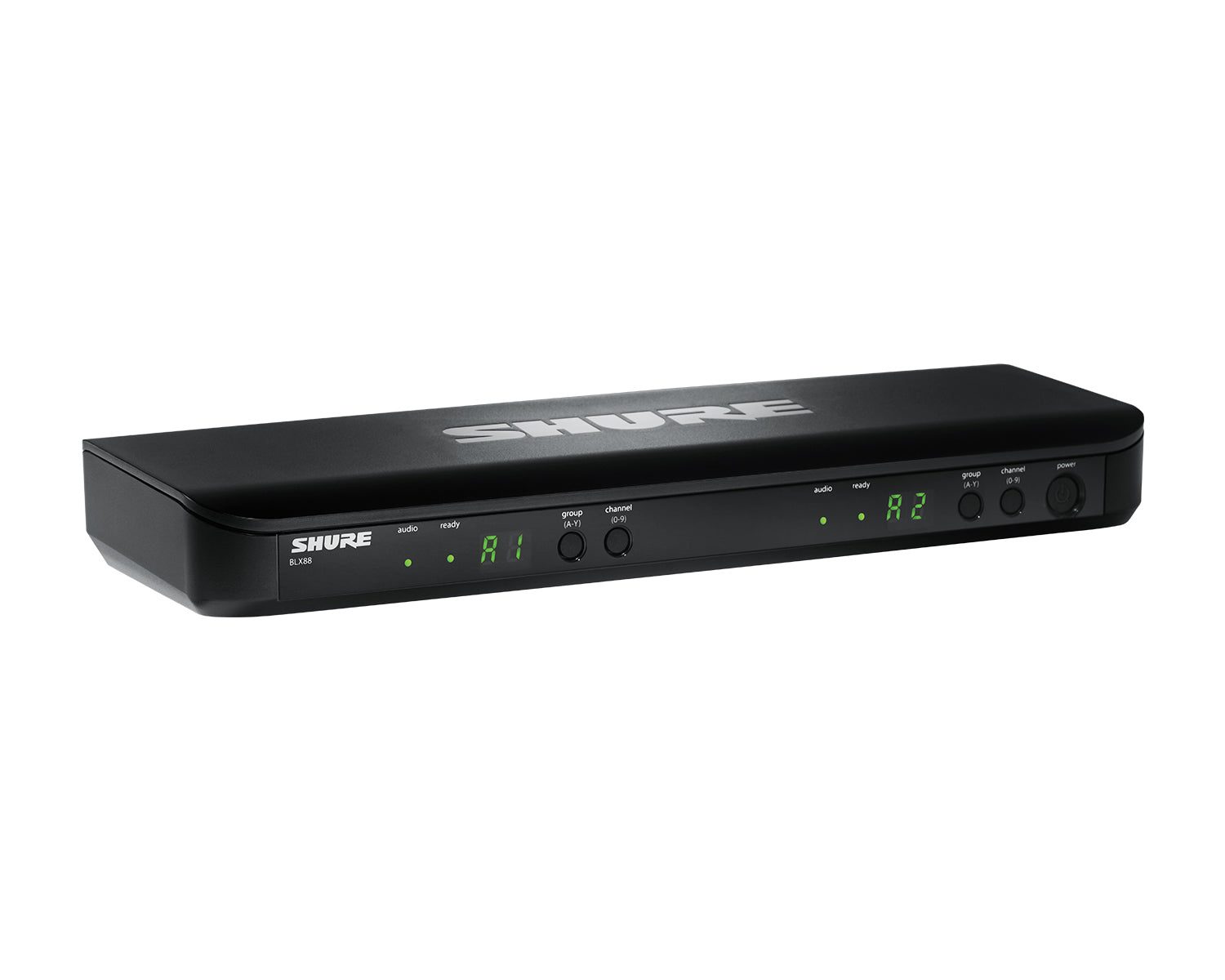

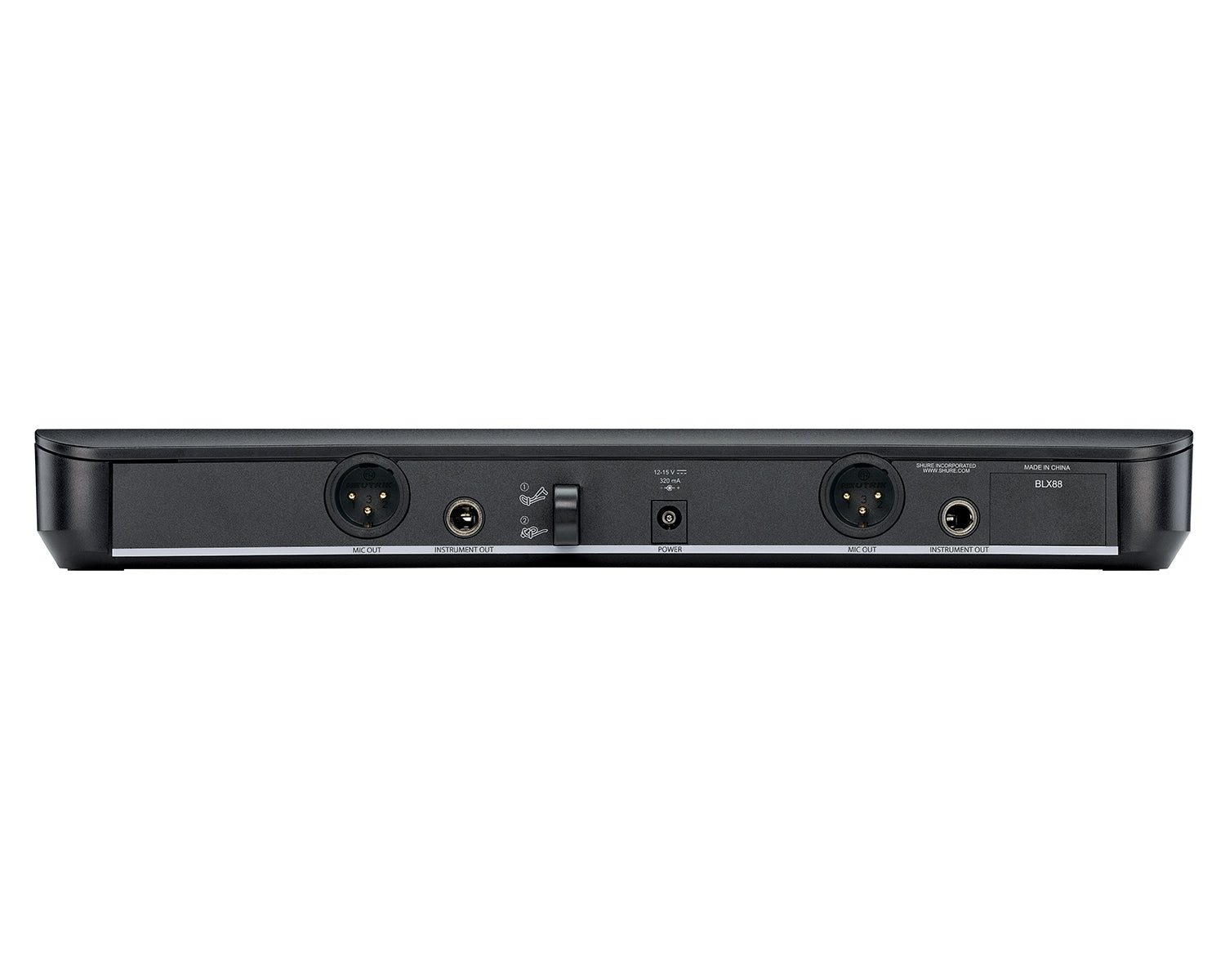

The Shure BLX88 is a dual-channel tabletop receiver for the Shure BLX analogue UHF wireless system, supplied without transmitters. It is the K3E band variant and runs two independent BLX channels through a single 1U half-width chassis. It is intended as an expansion or replacement receiver for venues already using compatible BLX1 bodypacks or BLX2 handhelds.
LicensingIn the UK, 606 to 613.5 MHz falls under Ofcom’s Channel 38 shared licence; frequencies above 613.5 MHz within the K3E tuning range require a site-specific coordinated PMSE licence from Ofcom. Operators must hold the appropriate licence before use.
Key Features
Operates in the K3E (606 to 630 MHz) UHF band
Analogue FM transmission at 10 mW RF output
Up to 91 m (300 ft) line-of-sight working range
QuickScan frequency selection finds a clear channel automatically
Microprocessor-controlled internal antenna diversity
Audio frequency response 50 Hz to 15 kHz
Dynamic range 100 dB A-weighted (typical)
Total harmonic distortion 0.5 percent typical
Two independent BLX channels in a single chassis
Compact tabletop chassis with internal antennas
Specifications
| Brand | Shure |
| Model | BLX88UK |
| System family | BLX Wireless |
| Band | K3E (606 to 630 MHz) |
| Transmission | Analogue FM |
| RF output power | 10 mW |
| Audio frequency response | 50 Hz to 15 kHz |
| Dynamic range | 100 dB (A-weighted, typical) |
| Total harmonic distortion | 0.5 percent typical |
| Working range | 91 m (300 ft) line of sight |
| Receiver | BLX88 dual-channel tabletop, internal antennas |
