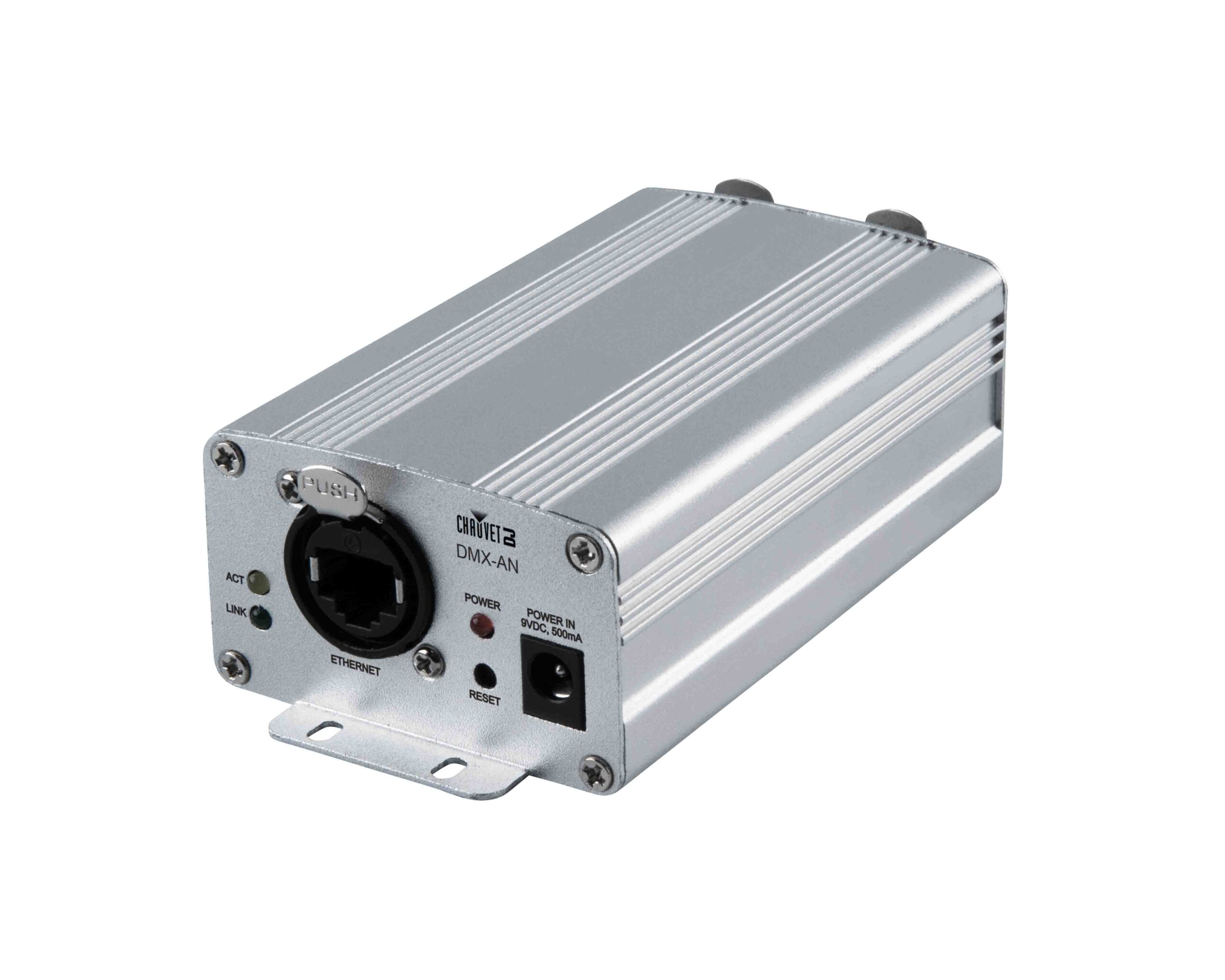

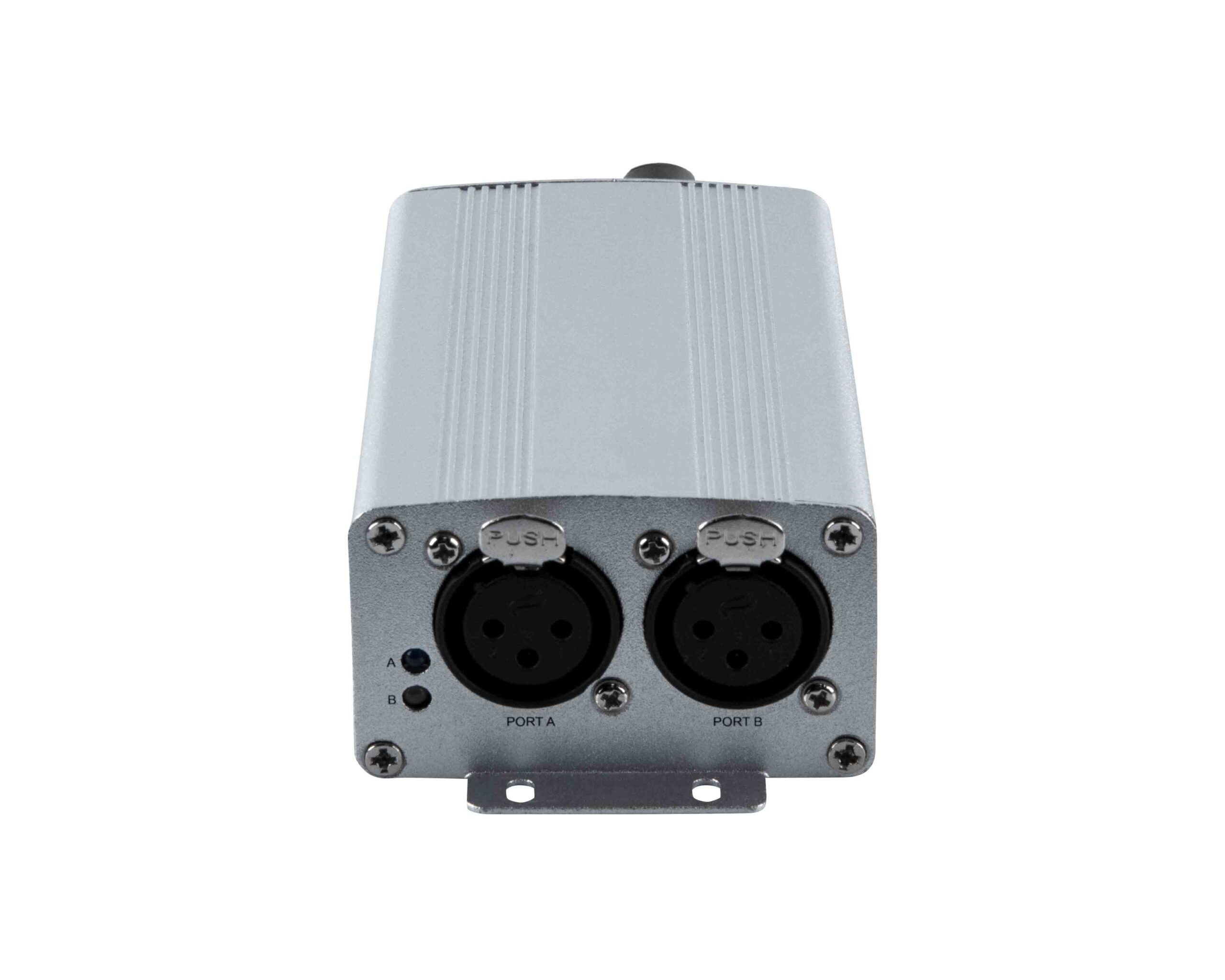

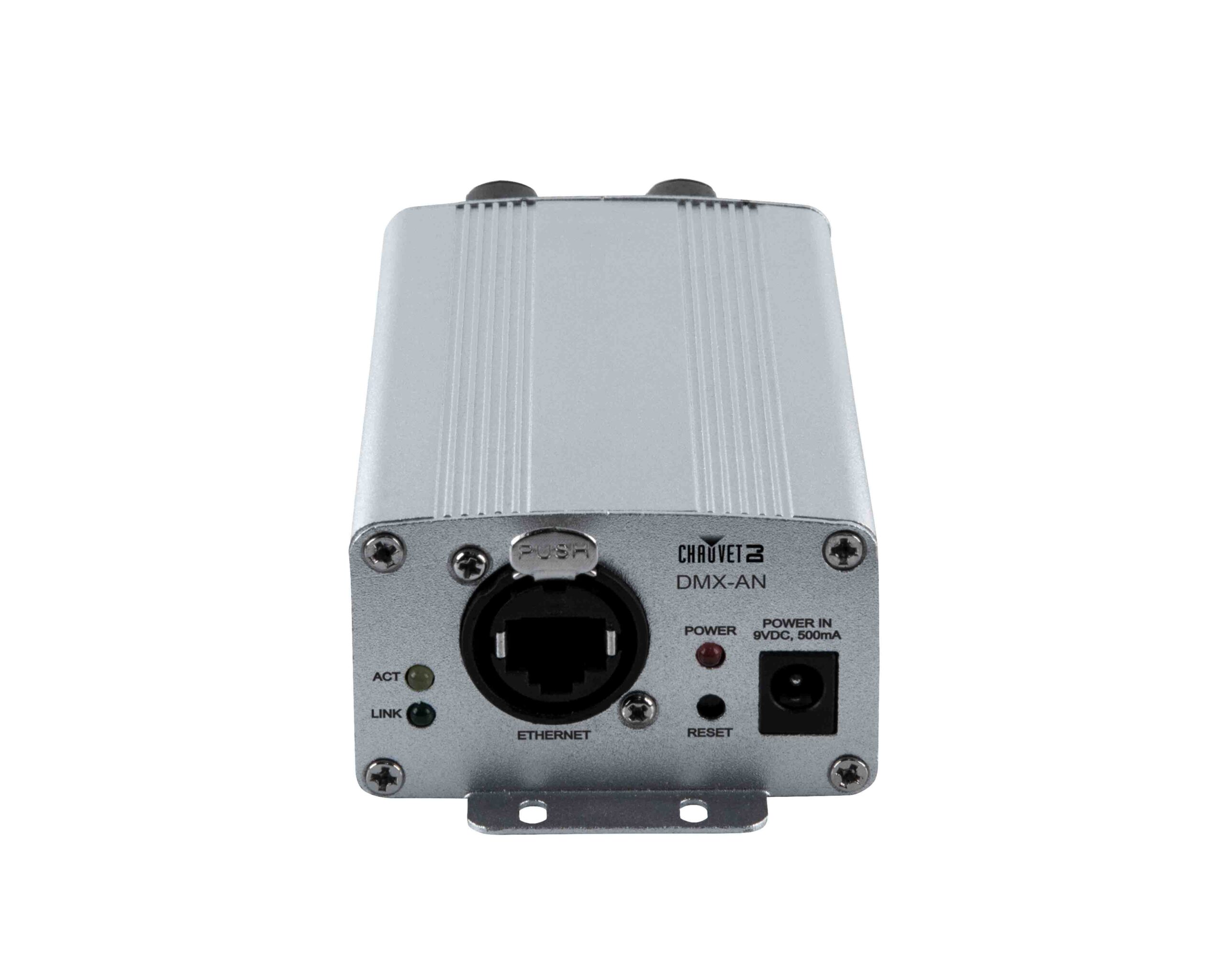

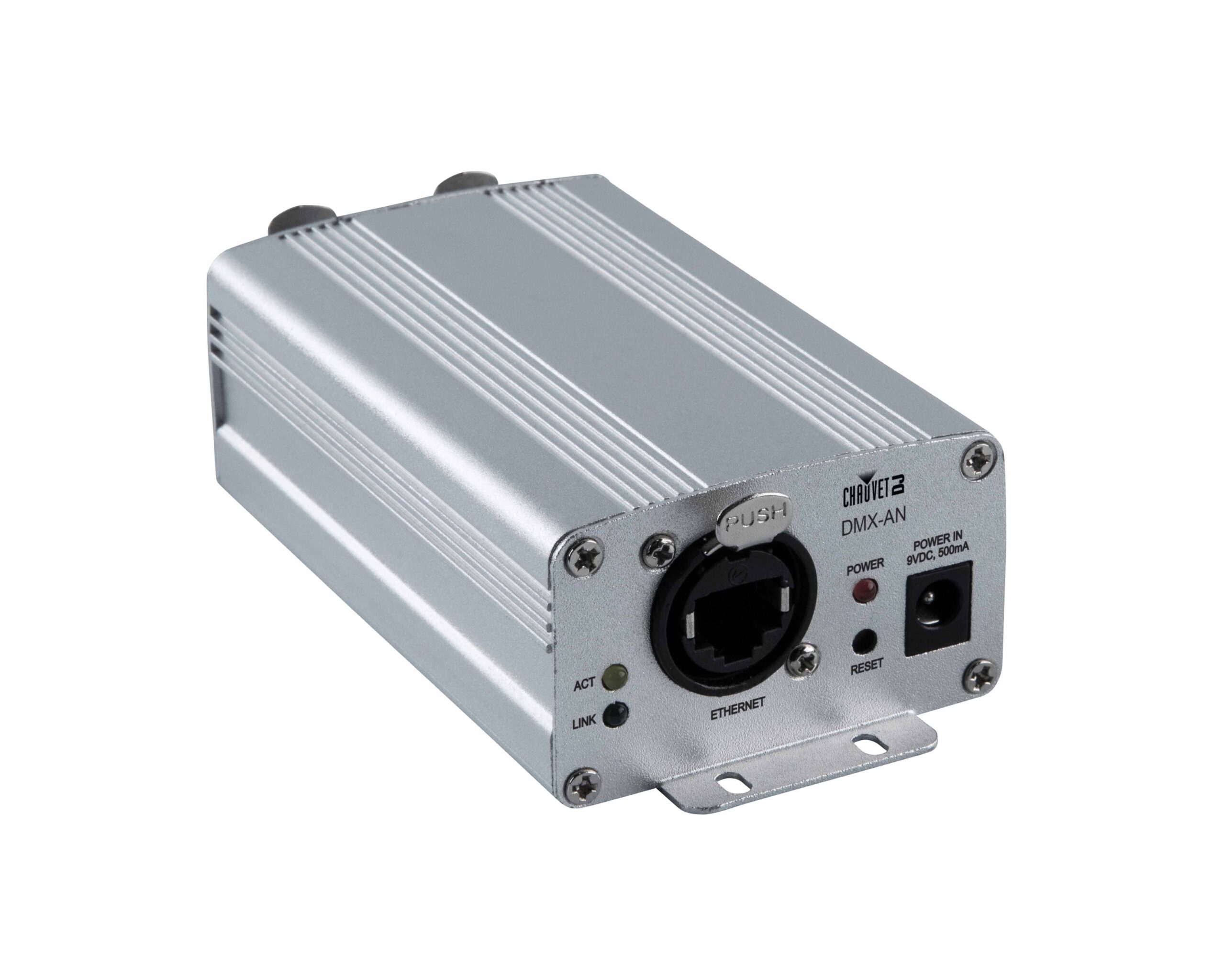

The Chauvet DJ DMXAN2 is a bi-directional Art-Net/sACN node that converts a single Ethernet cable to two DMX universes, or DMX back to Art-Net. Built around a rugged Neutrik etherCON port and configured through a built-in web GUI, it is a reliable, install-friendly bridge between network lighting control and DMX fixtures for production companies, venues and AV integrators.
Bi-directional
Conversion · Art-Net ↔ DMX
2
Universes · DMX outputs
Art-Net / sACN
Protocols · Per-output selectable
PoE
Power · Or external PSU
Web-Based ConfigurationA built-in web GUI removes the need for manual universe and subnet setup, so the node can be configured from any browser on the network. Each of the two outputs can be independently set to Art-Net or sACN.
Features
Bi-directional Art-Net to DMX or DMX to Art-Net conversion
Converts one Ethernet cable to two DMX universes
Multi-purpose Art-Net / sACN node
Built-in web GUI, no manual universe/subnet setup
Durable Neutrik etherCON in/through network port
Power over Ethernet (PoE) or external power supply
Each output independently set to Art-Net or sACN
Install-friendly node for networked lighting control
Specifications
| Function | Art-Net/sACN to DMX node, bi-directional |
| DMX universes | 2 (one Ethernet cable to two universes) |
| Protocols | Art-Net and sACN, per-output selectable |
| Network connector | Neutrik etherCON in/through |
| Power | PoE or external power supply |
| Configuration | Built-in web-based GUI |
| Model | DMXAN2 |
