Rated 4.9 (130 reviews)

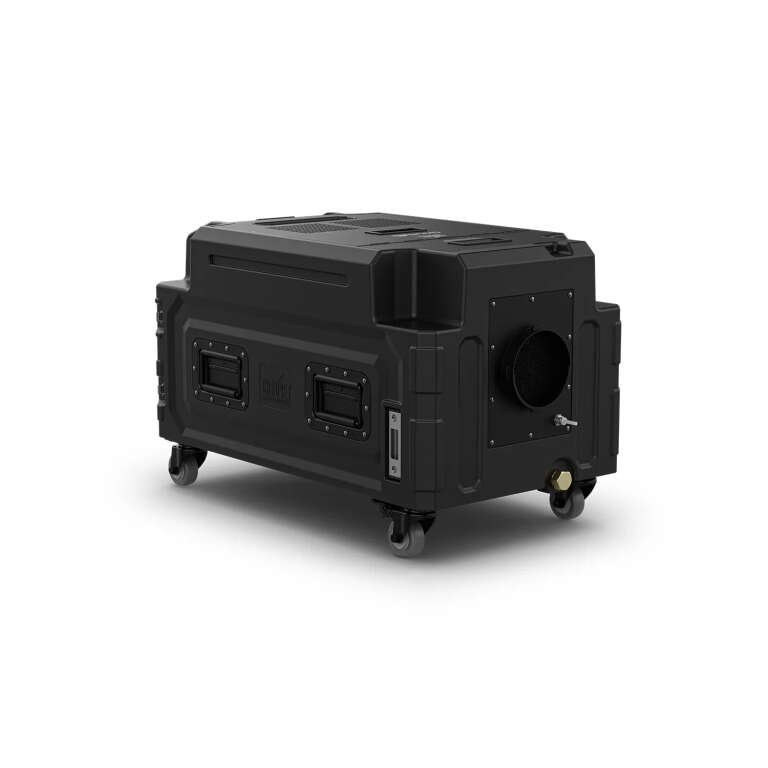

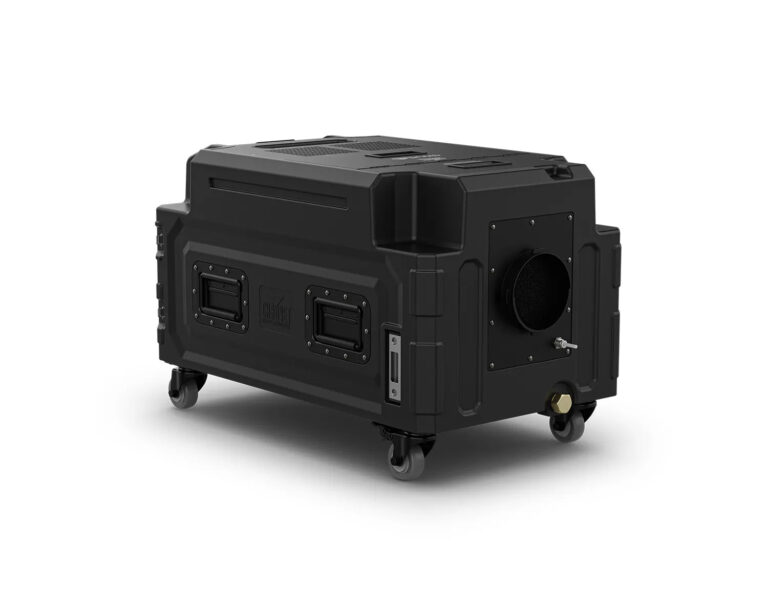

The Chauvet Professional Cloud 9X IP is a compact low-lying fog machine that produces continuous ground fog using LLG fluid and ordinary tap water, covering approximately 3,230 square feet per unit. Its corrosion-resistant IP53 housing reaches operating temperature in five minutes and accepts a standard garden hose fitting for unattended water refilling. Control is via onboard full-colour display, DMX (3 and 5-pin), RDM, or the included wireless RF remote.
Key Features
Continuous low-lying fog output
Coverage up to 3,230 sq ft per unit
IP53 corrosion-resistant housing, temporary outdoor/wet use
Five minute warm-up to operating temperature
Uses LLG fluid with tap water (no distilled required)
Garden hose fitting for automated water refill
3-pin and 5-pin DMX plus RDM
Full-colour onboard display
USB-C port for firmware updates
Wireless RF handheld remote included
Stackable up to 3 high for transport
Removable rear cover for accessory storage
Specifications
| Type | Low-lying fog machine |
| IP rating | IP53 |
| Coverage | Approx. 3,230 sq ft |
| Warm-up time | 5 minutes |
| Fluid | Chauvet LLG low-lying fog fluid plus tap water |
| Control | 3 and 5-pin DMX, RDM, onboard, wireless RF remote |
| Water refill | Garden hose fitting |
| Firmware | USB-C update port |
| Dimensions (with rear cover) | 958 x 441 x 488 mm |
| Weight | 34.75 kg |
| Power | 230 V AC, 50 Hz: 1281 W, 5.59 A |
| Power input | Seetronic Powerkon IP65, 1.5 m power cable |
| Data connectors | 3-pin and 5-pin DMX, IP rated |
| DMX channels | 3 (1 personality) |
| Fan performance | 81 cfm |
| Water tanks | 18.6 L primary plus 9.1 L reserve (27.7 L total) |
| Fog fluid tank | 3 L |
| Consumption | Fog fluid 25 ml/min, water 184.7 ml/min |
| Runtime | Fog fluid 2 hr (3 L tank), water 2.5 hr (27.7 L) |
| Output hose | 2 m, 130 mm diameter (3.4 m fully extended) |
| Operating temperature | -20 °C to 45 °C |
| Mounting | Floor positioning only, locking wheels |
| Certifications | CE, RoHS, UKCA |
| In the box | Cloud 9X IP, Seetronic Powerkon IP65 power cable, RF remote (2-button), 2 m output hose (130 mm), hose coupler (130 mm), floor nozzle (130 mm), removable rear cover, barbed hose adapter (13 mm) with 2 clamps (25 mm), 2 hose clamps (152 mm), overfill hose (204 cm), Quick Reference Guide |
| Dimensions (without rear cover) | 762 x 441 x 488 mm |
