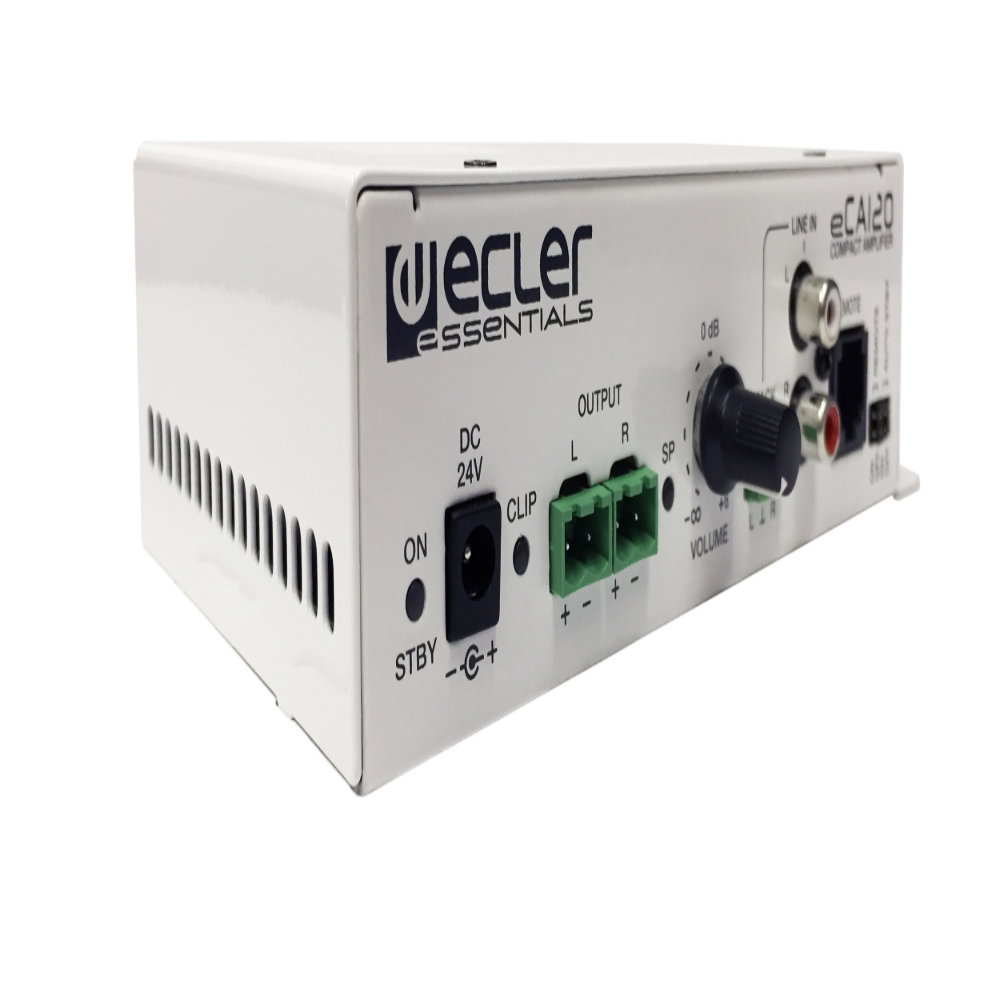

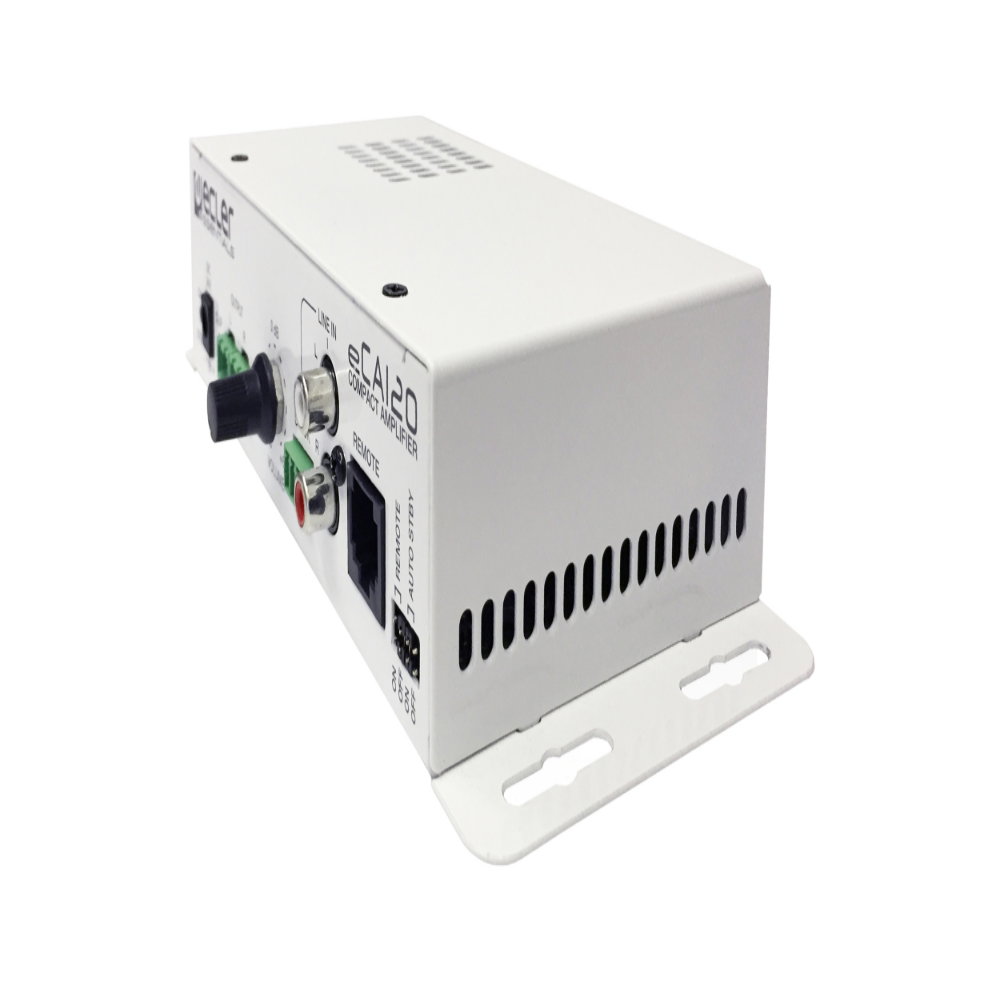

The Ecler eCA120 is a compact fanless stereo amplifier rated at 2x 60W into 4 ohms, with a single stereo line input on RCA and Euroblock. Volume is set on the front knob or from an Ecler WPaVOL wall panel through its 0 to 10V remote input. It is a simple background music amplifier for cafés, small shops, salons, reception areas and meeting rooms.
2x 60W
Into 4 ohms
1
Stereo line input
0-10V
Remote volume
Fanless
Cooling

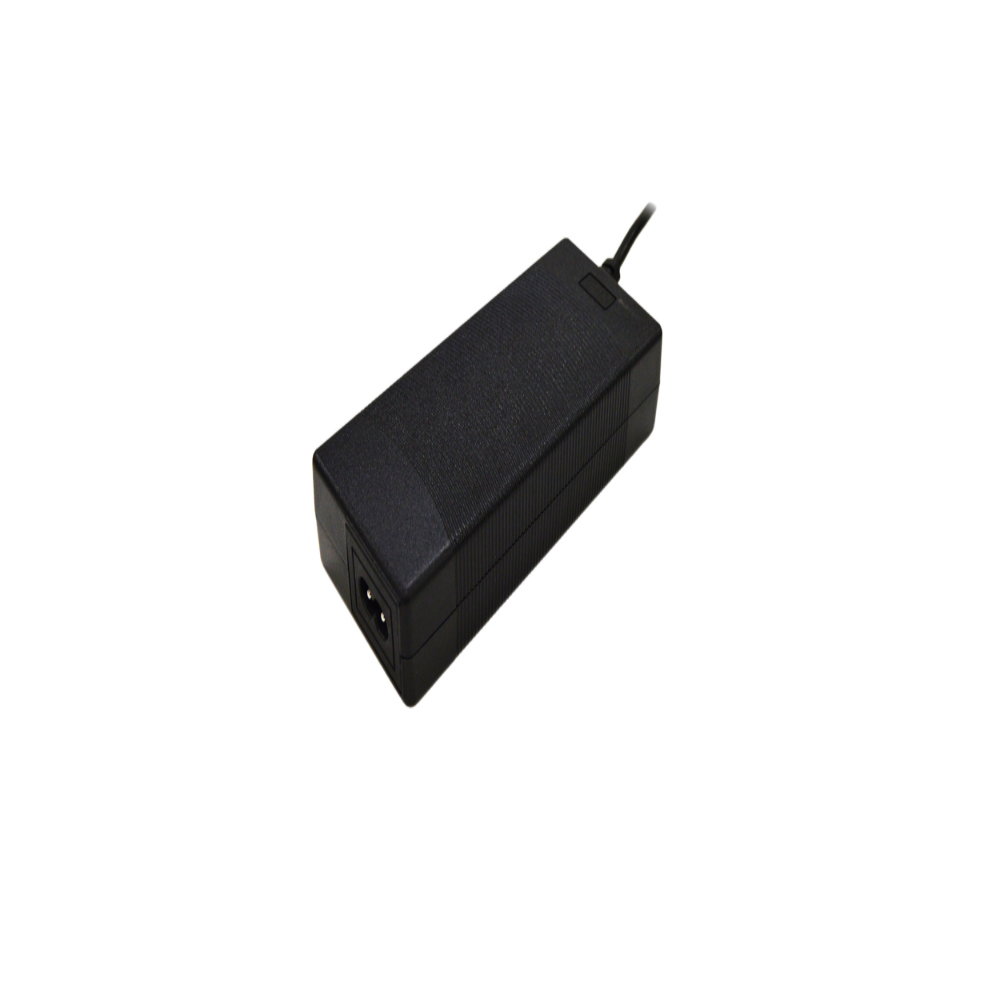

Mounting and powerPowered by an external universal 24V DC supply. Designed to sit on a wall or under a shelf, table or cupboard rather than in a rack.
Features
2x 60W into 4 ohms, stereo or parallel mono
1 unbalanced stereo line input with dual RCA and 3-pin Euroblock (input or link-through)

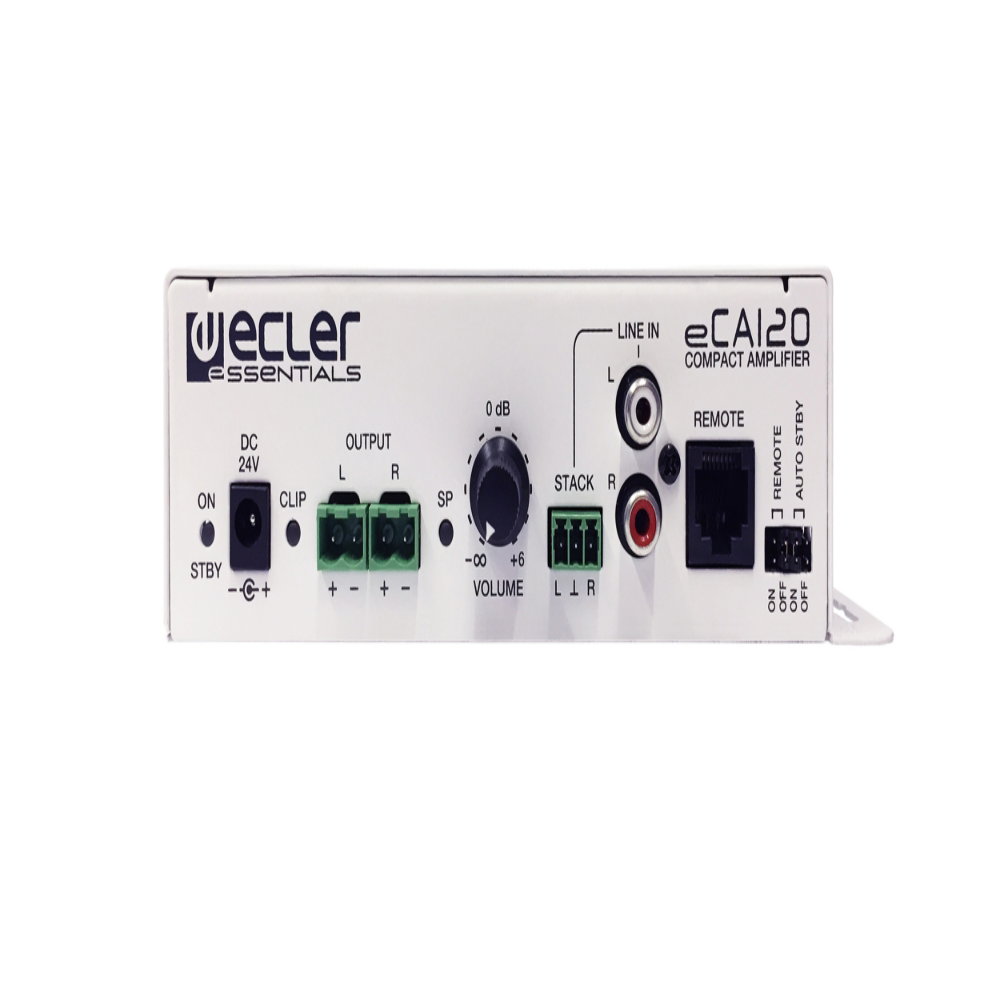

Front panel volume knob
0 to 10V remote input for Ecler WPaVOL series wall panels
Auto standby after 120 seconds without signal
Fanless convection cooling
Specifications
| Rated power | 2x 60W into 4 ohms |
| Measured power (1% THD) | 2x 56W into 4 ohms, 2x 34W into 8 ohms |
| Output modes | Stereo or parallel mono |
| Input | 1 stereo line, dual RCA and 3-pin Euroblock |
| Input sensitivity | 0 dBV |
| Input impedance | >20 kohm |
| Frequency response | 15 Hz to 30 kHz (-3 dB) |
| THD+N | <0.15% (1 kHz) |
| Signal-to-noise ratio | >85 dB |
| Remote | 1x 0 to 10V volume input |
| Power | External 24V DC supply, 100 to 240V AC |
| Power consumption | 1/8 power into 4 ohms: 26W; standby: <2.5W |
| Dimensions (W x H x D) | 190 x 48 x 90 mm (excluding knobs and connectors) |
| Weight | 0.6 kg |
