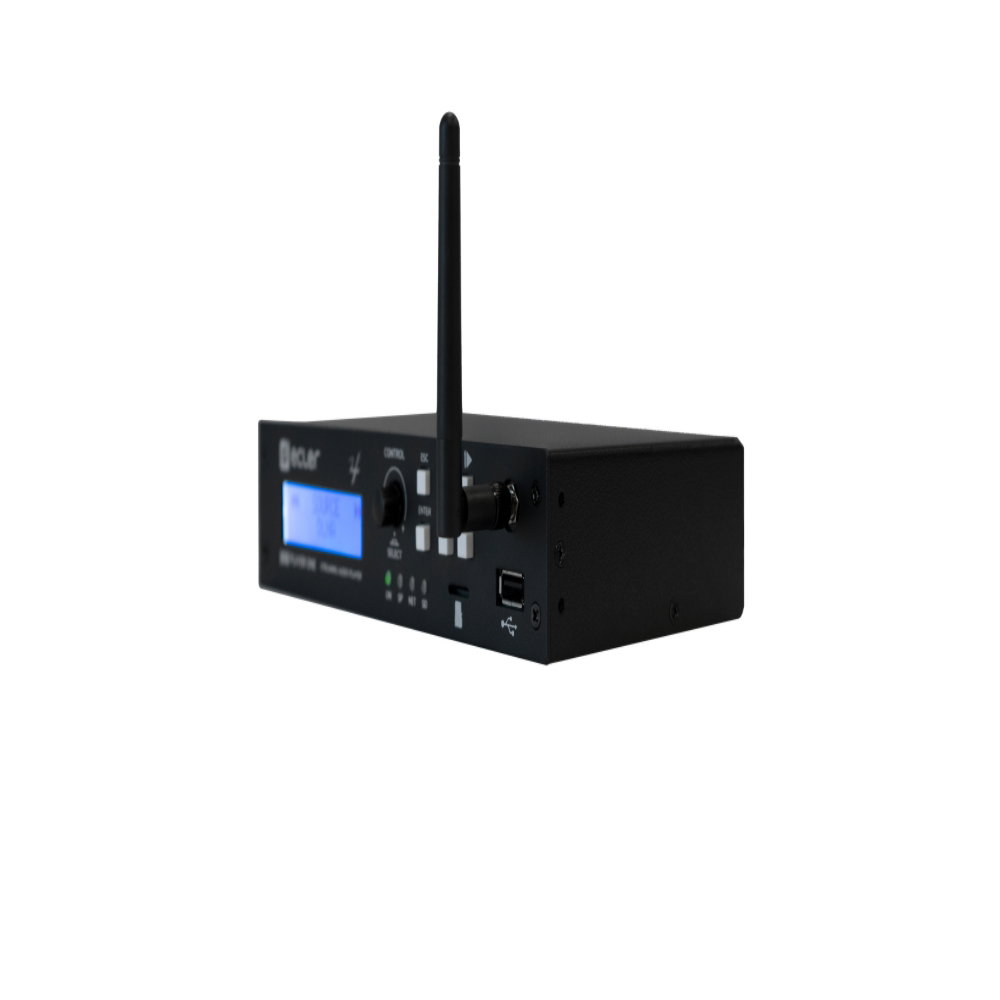

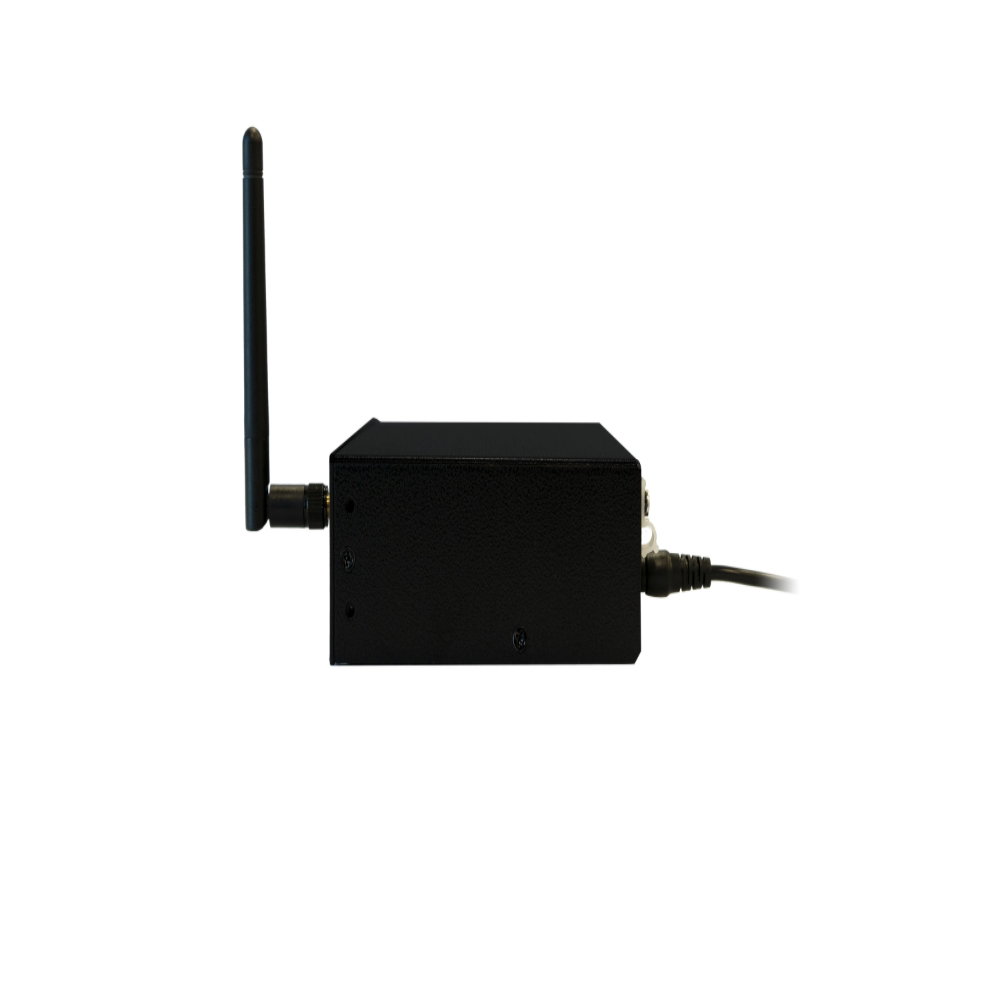

Ecler PLAYER ONE MicroSD and Streaming Audio Player with AirPlay

• Single-deck audio player
• Stereo output, RCA connectors and mini-jack
• Internet streaming receiver
• Digital sharing streams receiver (DLNA and Airplay)
• Local media player (from USB and MicroSD card slots)
• Front panel LCD display and local controls
• Programmable and controllable via front panel, embedded web app and Ecler Gallery
• Calendar events trigger, synchronization of contents hosted in the cloud (Cloud Disk Sync) and execution of “scripts” (files of instructions written by the user, Lua language – www.lua.org).
• Compatible with the JSON protocol

Digital Engine

• Processor: MIPS Single Core 64bits 580MHz

Audio Converters

• Sampling rate: 48kHz
• Resolution: 16 bit
• Bit rate: 32~320kbps
• Frequency response: 5Hz - 24kHz (-3dB)

Media Player

• Audio sources: Local storage (USB & microSD), Internet radio, AirPlay, DLNA
• Compatible file formats: mp3, ogg, WAV, FLAC, AIFF
• Compatible playlist formats: m3u, pls
• Dynamic range: From -80dB to 0dB
• THD + Noise: < 0.008% (1kHz, 1Vrms)

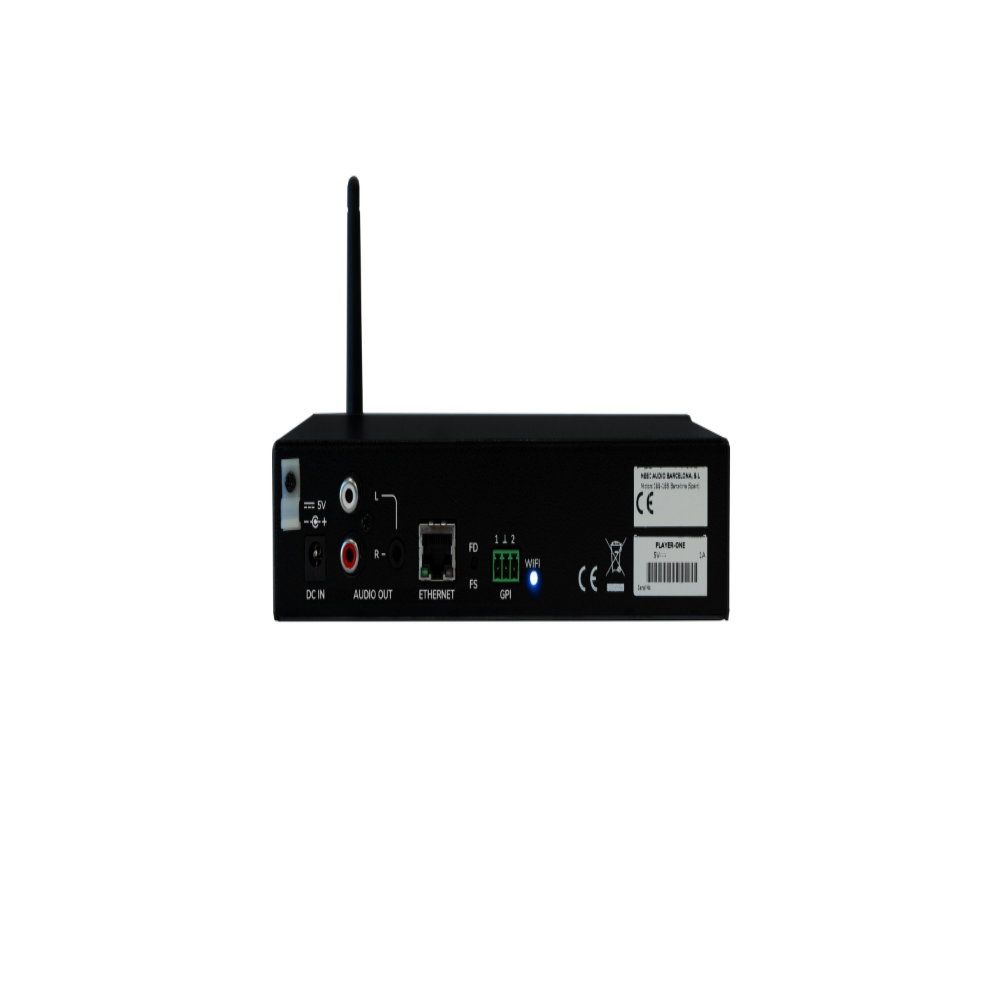

Analogue Audio Outputs

• Number of outputs: 2 x Stereo output (unbalanced)
• Connection type: RCA stereo, minijack 3,5mm
• Max output level: 6dBV / 5kΩ
• Output impedance: 460Ω
• Dynamic range: TBC
• Crosstalk: TBC

Connectivity

• Ethernet: 1 RJ45 connector 10/100Mbps
• Wi-Fi: 2.4GHz Wi-Fi, 802.11 b/g/n
• Programing and control: Web Application, RePLAYER & Ecler Gallery.
  Third party integration: JSON

Remote Control Connections

• GPIs: 2 ports, Dry contact to ground, 3 pin Terminal block

Real-Time Clock

• Retention time: 240 hours aprox.
• Accuracy: ±1 minute / month

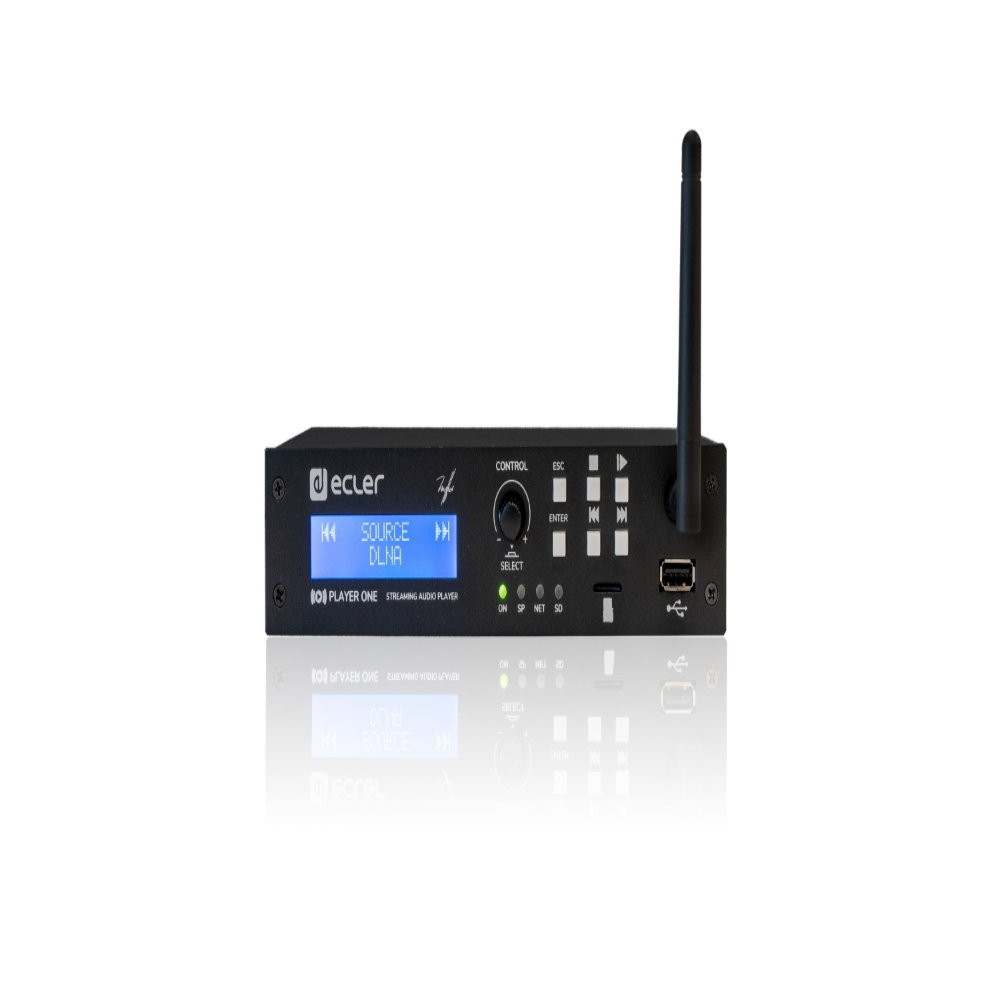

Front Panel Monitoring And Control

• Display: LCD Alphanumeric 2x16 cells
• LED indicators: Front panel: NET, SP, SD, Power
  Rear panel: Wifi
• Buttons: Front panel: Encoder, Enter, Esc, Play/pause, Next, Prev, Stop
  Rear panel: Factoty Defaults / Failse Safe (pin-hole)

Local Storage

• Micro SD: Supports micro SD SDXC
• USB: Support USB 2.0 High Speed (480 Mbps)
• Capacity: Up to 2TB
• File system: Supports FAT16, FAT 32, VFAT and NTFS (read-only)
  Multi-partition up to 1
• Playable audio files: mp3, ogg, WAV, FLAC, AIFF, m3u, pls
• Files analysis: 65354 playable folders
  65354 playable folders within each folder
  65354 playable files within each folder
• Folder hierarchy: Up to 8 containing the root directory
• Sorting: UNICODE
  Up to 100 folders, 100 files by folder
  (Folders/files over 100 sorted in the FAT order)

Electrical

• Power supply: External, universal, 5VDC (included)
• AC mains requirement: 90-264VCA @ 50-60Hz
• AC mains connector: International AC plugs set
• Power consumption: 6 VA / 3W
• Ventilation: Passive

Physical

• Operating temperature: Min 0°C, +32°F
  Max +35°C, +95°F
• Operating humidity: < 85% HR
• Storage temperature: Min -10°C, +14°F
  Max +50°C, +122°F
• Storage humidity: < 90% HR
• Installation options: Desktop, rack (1/2 of 1UR)
• Included accessories: AD/DC Power Supply, WiFi antenna, adhesive rubber feet, rack tray screws , GPI connector, warranty card and standard user guide
• Optional accessories: 1UHRMKIT
• Dimensions: 198.5 x 44 x 132mm / 7.81 x 1.73 x 5.19 in. (WxHxD)
• Weight: 0.8kg / 1.76 lb
• Shipping dimensions: 220 x 60 x 450mm / 8.66 x 2.36 x 17.71 in. (WxHxD)
• Shipping weight: 1kg / 2.20 lb
