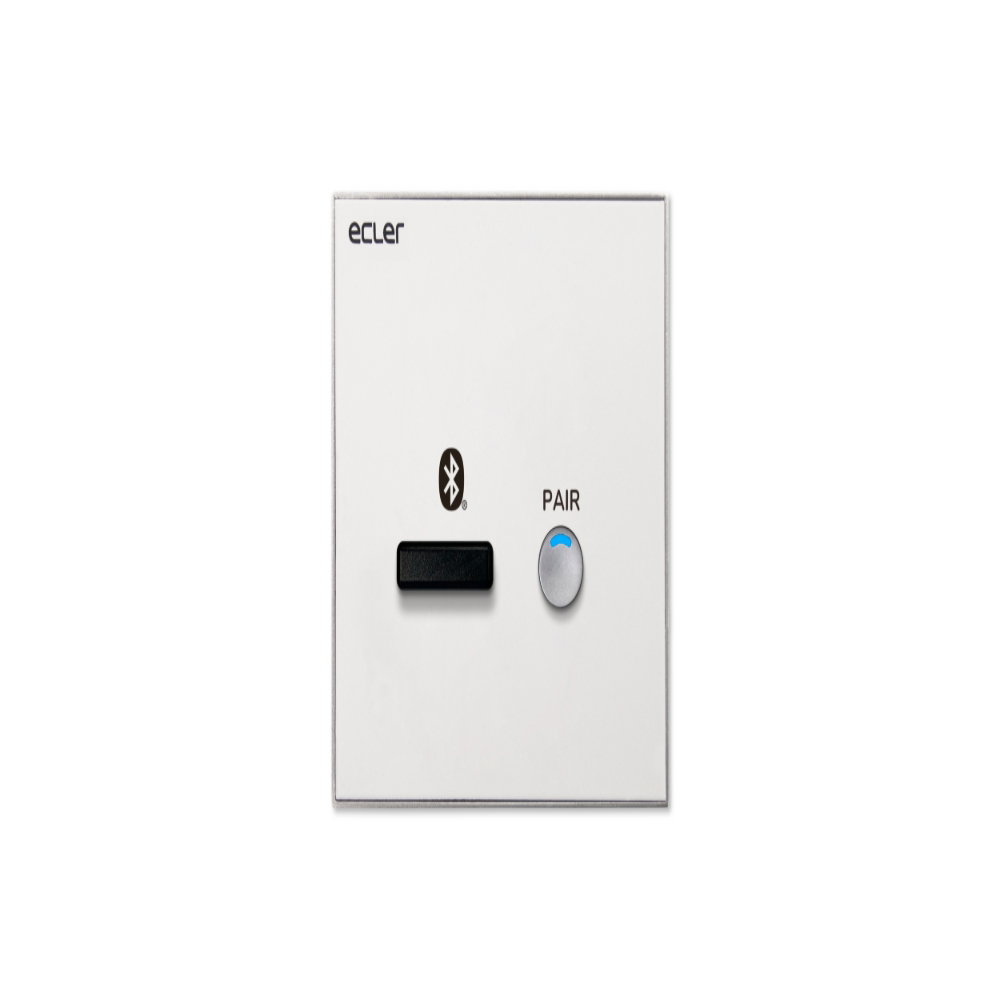

Ecler WPa-BT Bluetooth Wall Panel Receiver

Product code: 194318

£205.00 inc VAT
£170.83 ex VAT

SKU: ECL0089

9 in stock

9 available online
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

The Ecler WPa-BT is a Bluetooth audio receiver in a WPa series wall plate, with a balanced stereo output on Euroblock. It lets staff or guests play music from a phone into an Ecler system or any balanced line input, and can work with an eMCONTROL1 as a remote input to a HUB zone mixer. Typical uses are bars, cafés, gyms, meeting rooms and hotel function rooms.

BT 5.0
Class 1
25 m
Range
Balanced
Stereo out
24V DC
Power
PowerNeeds 24V DC from the optional WP24-PSU, via its terminal strip, or from an eMCONTROL1 power bus. Configuration uses a Windows app over USB-C; the USB-C cable is not included.

Features

Bluetooth 5.0 Class 1 receiver, A2DP, up to 25 m
Balanced stereo Euroblock output, configurable as dual mono
PAIR button with blue LED, which can be switched off
Device name, PIN and stereo/mono set with Ecler Bluetooth Manager for Windows
GPO signals an active A2DP connection, for automatic priority
Fits 60 mm round boxes; surface box included

Specifications

Ecler WPa-BT Bluetooth Wall Panel Receiver specifications
Bluetooth 5.0, Class 1, A2DP, 25 m range
Output Balanced stereo, Euroblock
Power 24V DC external (WP24-PSU, optional) or eMCONTROL1 bus
Configuration USB-C behind front cover, Windows app
Finish White, RAL 9003
Operating temperature 0 to 35°C
Dimensions (W x H x D) 86 x 86 x 25 mm
Weight 0.14 kg

Full features

  • Bluetooth® receiver in WPa wall panel format (standard UE).
  • Bluetooth® class 1 (range 25m), version V5.0. A2DP profile.
  • Balanced stereo Euroblock output dual-mono configurable.
  • PAIR button with blue LED activity indicator. This can be turned off in dark rooms so as not to disturb.
  • Easy device name configuration, PIN, stereo/mono output and other adjustments via the Ecler Bluetooth® Manager application for Windows devices.
  • External 24VDC power supply (WP24-PSU, optional), via terminal strip or via eMCONTROL1 power supply bus
  • GPO: to indicate that an A2DP audio connection is active (automatic priority management)
  • USB-C configuration port: not visible, behind the front cover. Easily accessed by removing only the front cover; it is not necessary to remove the device from the wall. USB-C cable not included
  • Compatible with round electrical boxes that are 60mm in diameter.

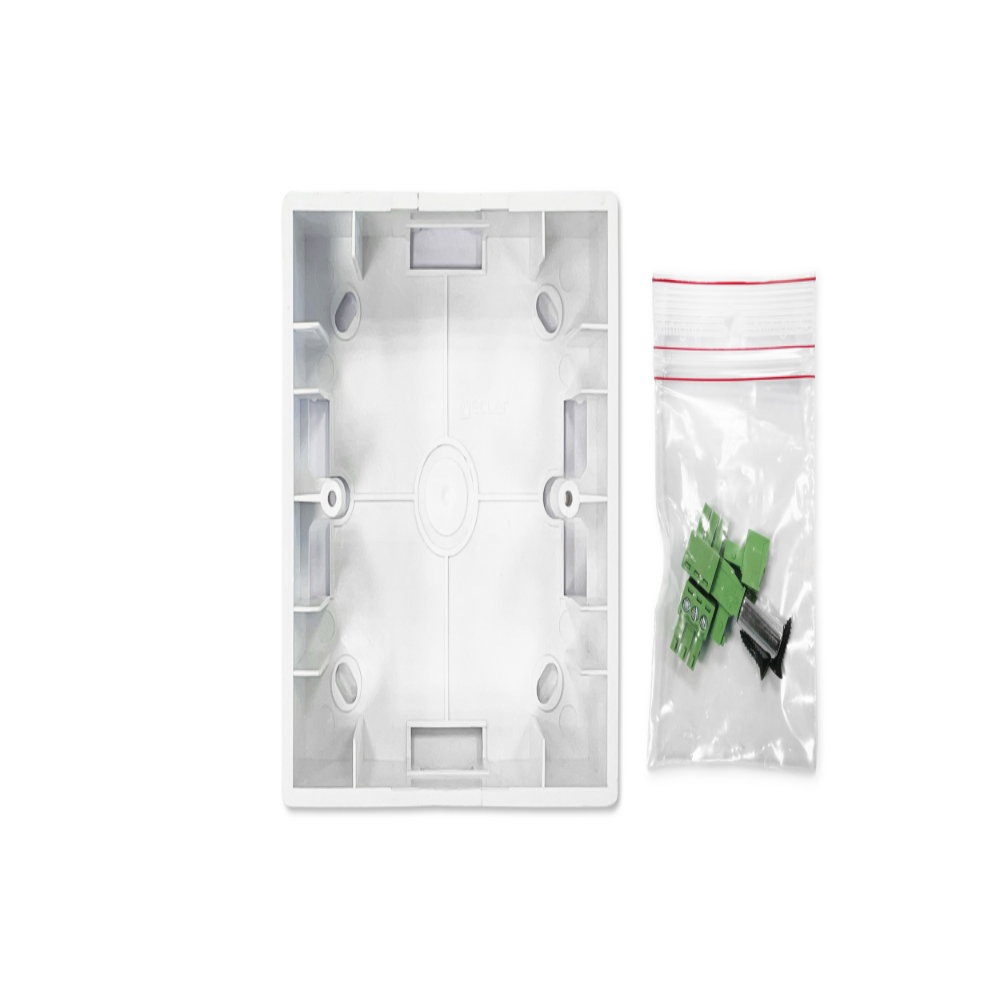

  • Surface mounting box included
  • Compatible with WPa2FMBOX and WPa2SMBOX mounting boxes
  • It can be combined with an eMCONTROL1 to work as a remote audio input for HUB Series digital zoner

Physical

  • Type: Bluetooth® Receiver
  • Format: Double Gang EU Forma
  • Installation options: Surface, In-wall
  • Enclosure material: Zincor front panel, plastic frame
  • Operating temperature: Min: 0°C ; 32°F
    Max: 35°C ; 95°F
  • Operating humidity: <85% HR
  • Storage temperature: Min: -10°C ; 14°F
    Max: 50°C ; 122°F
  • Storage humidity: <90% HR
  • Included accessories: Euroblock connectors, Surface mount box,
    Warranty card, Getting started card, Magnet and
    Screws
  • Optional accessories: WP-PSU 24V
  • Finished colour: White (RAL 9003)
  • Dimensions: 86 x 86 x 25mm / 3.4 x 3.4 x 1 in (WxHxD)
  • Weight: 0.14kg / 0.3 lb
  • Pieces per box: 1 unit
  • Shipping dimensions: 21.5 x 7.5 x 12mm / 8.5 x 3 x 0.5 in (WxHxD)
  • Shipping weight: 0.29kg / 0.64 lb
