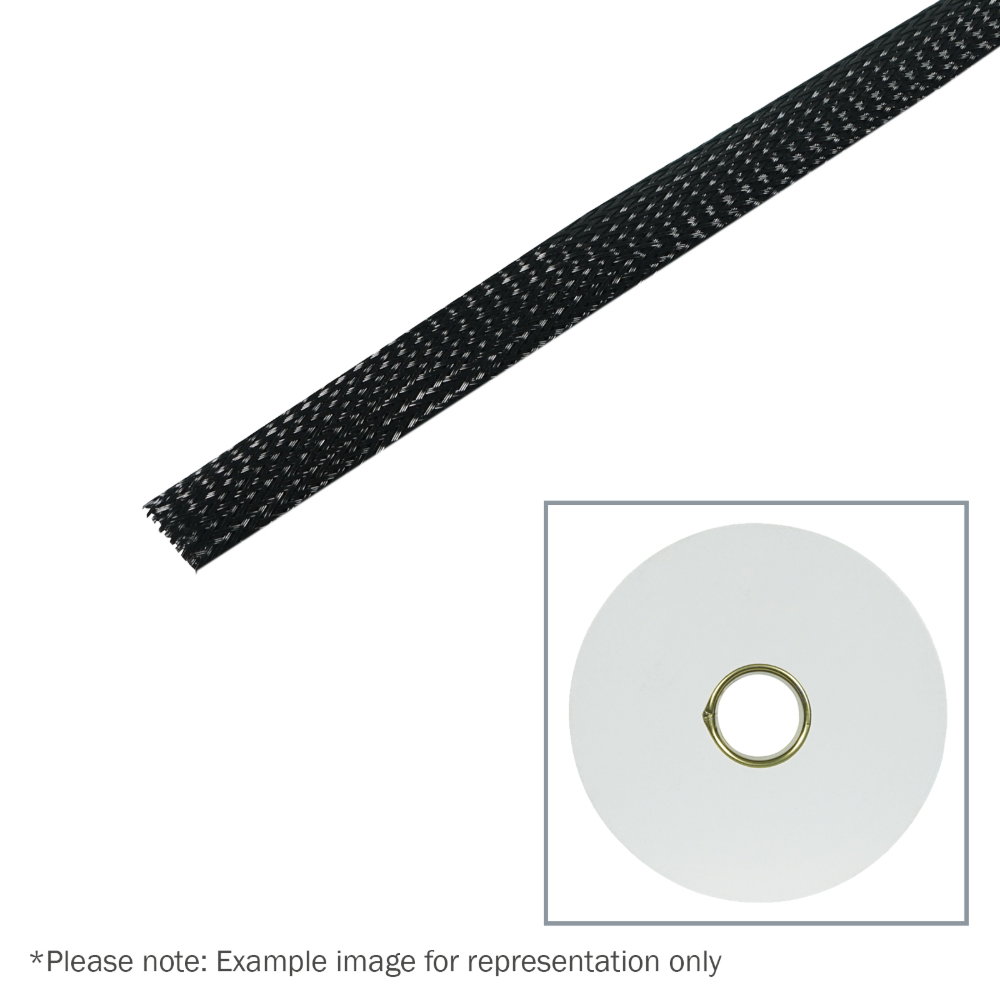

Expandable braided polyester sleeving in a 12mm nominal diameter, supplied on a 100m roll. It slides over cable bundles and expands to fit, tidying multicore runs, tour looms, fixture tails and rack wiring into a single abrasion-resistant sheath. The 12mm size suits medium bundles – a few DMX or mains tails gathered together – and the braid opens up enough to pass over connectors before relaxing back onto the cable.
Diameter
12mm
Nominal
Roll length
100m
Per roll
Temperature
-50 to +150°C
Operating range
Flammability
VW-1
Rating
Note
Cut with a hot knife. Scissors or a blade will leave the braid to unravel from the cut end – the hot knife seals the polyester filaments as it cuts.
Features
✓
Standard polyester braid construction
Standard polyester braid construction
✓
12mm nominal diameter, expands over connectors
12mm nominal diameter, expands over connectors
✓
100m roll – enough for a full loom rebuild
100m roll – enough for a full loom rebuild
✓
Wide -50°C to +150°C operating range
Wide -50°C to +150°C operating range
✓
Melting point 240±10°C
Melting point 240±10°C
✓
VW-1 flammability rating
VW-1 flammability rating
✓
Protects cable bundles against abrasion and chafing
Protects cable bundles against abrasion and chafing
✓
Cuts cleanly with a hot knife
Cuts cleanly with a hot knife
Specifications
| Stock code | TAPE133 |
| Material | Polyester – Standard |
| Nominal diameter | 12mm |
| Roll length | 100m |
| Operating temperature | -50°C to +150°C |
| Melting point | 240±10°C |
| Flammability | VW-1 |
| Recommended cutting tool | Hot knife |
| Barcode / EAN | 5056742201125 |
| Country of origin | China |
