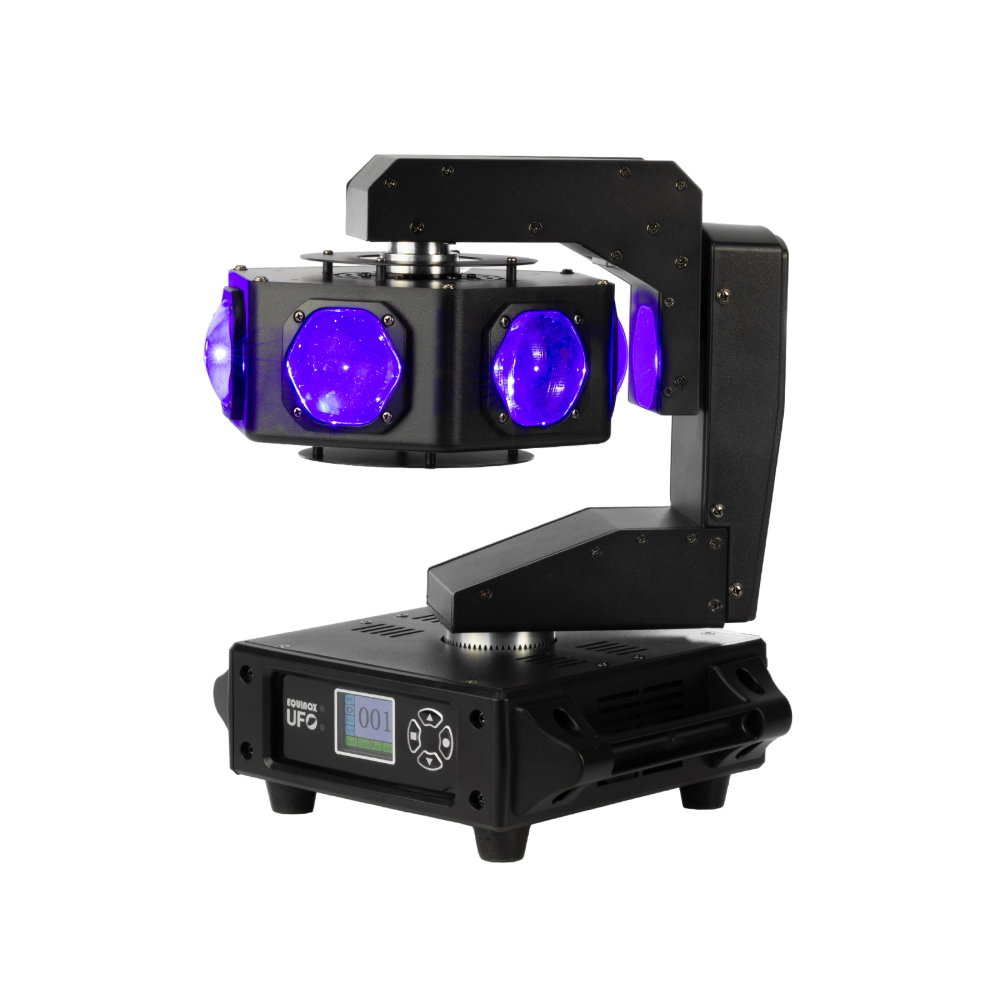

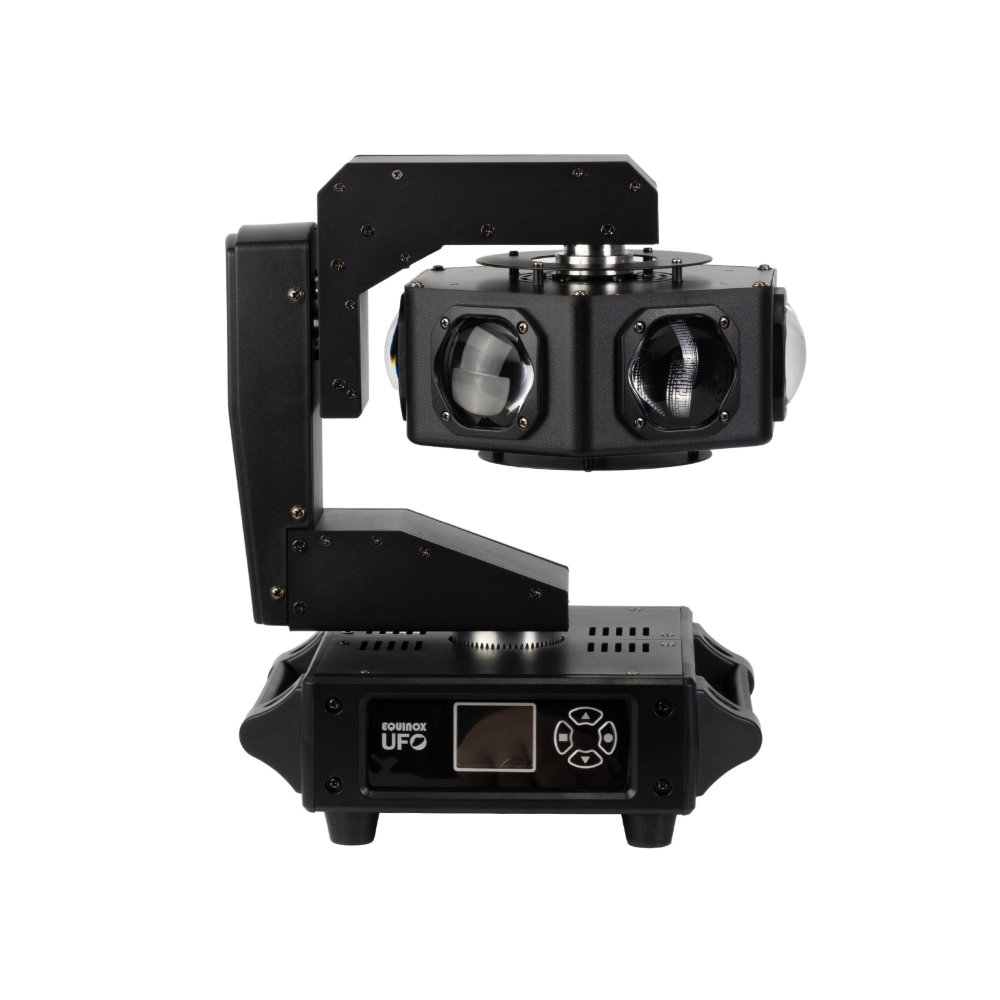

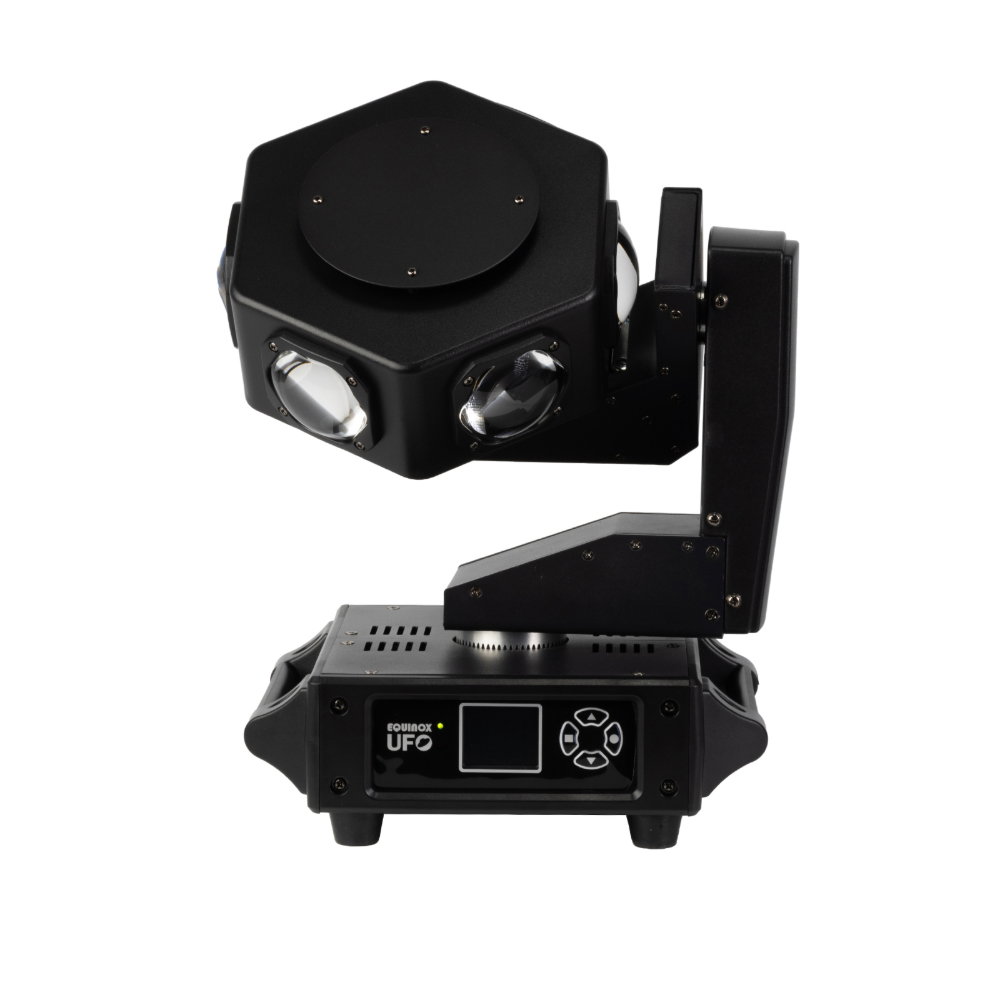

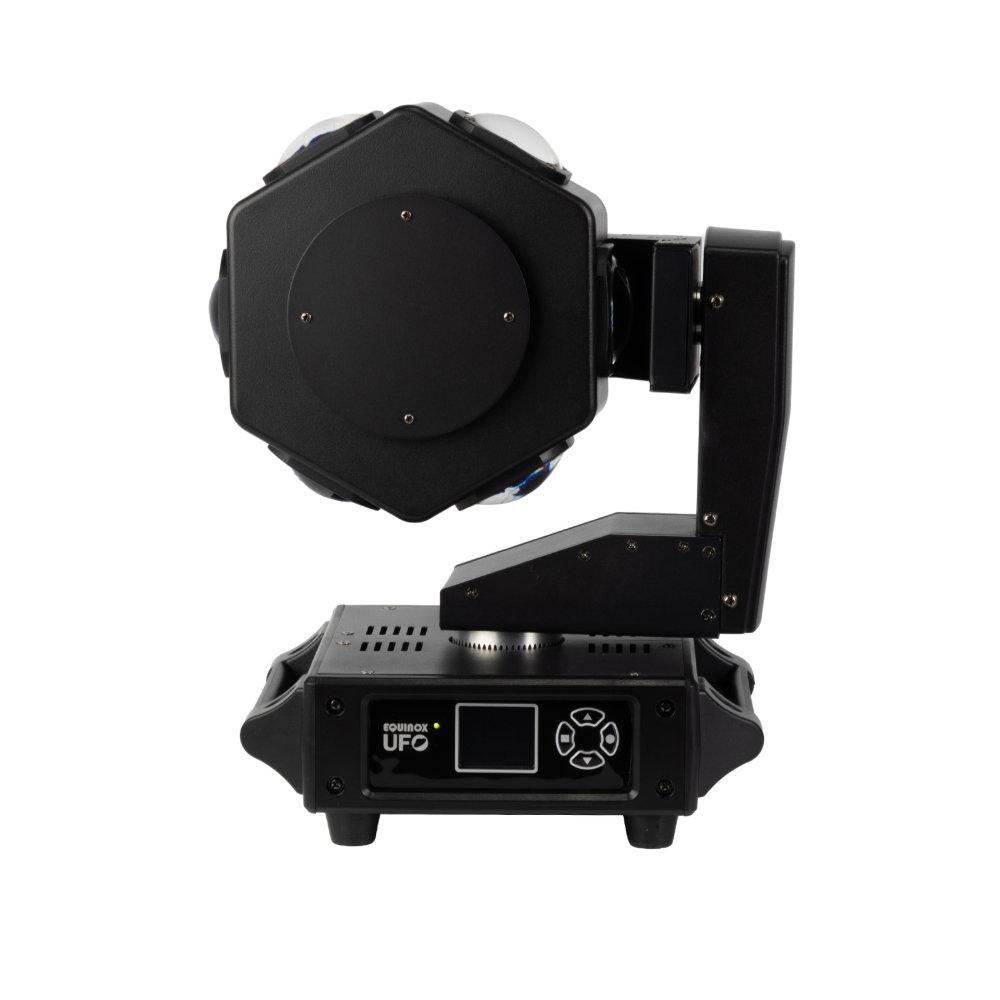

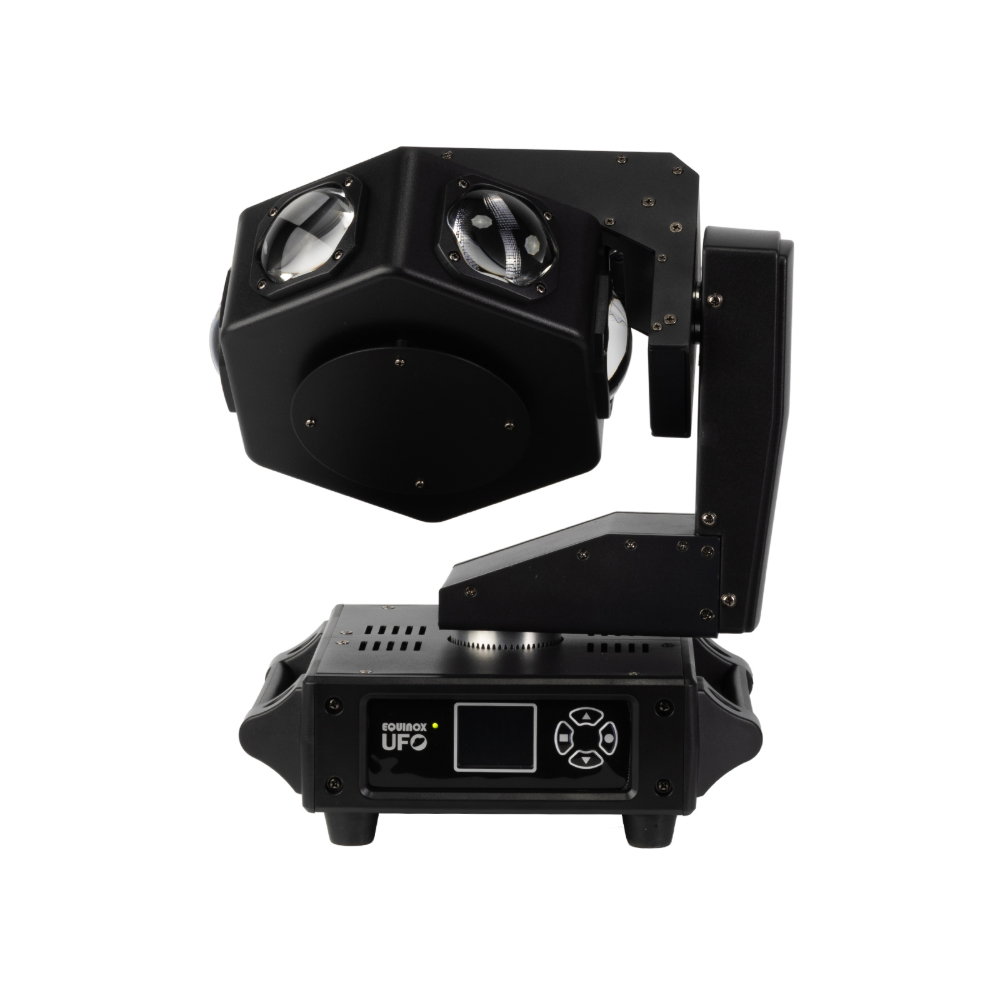

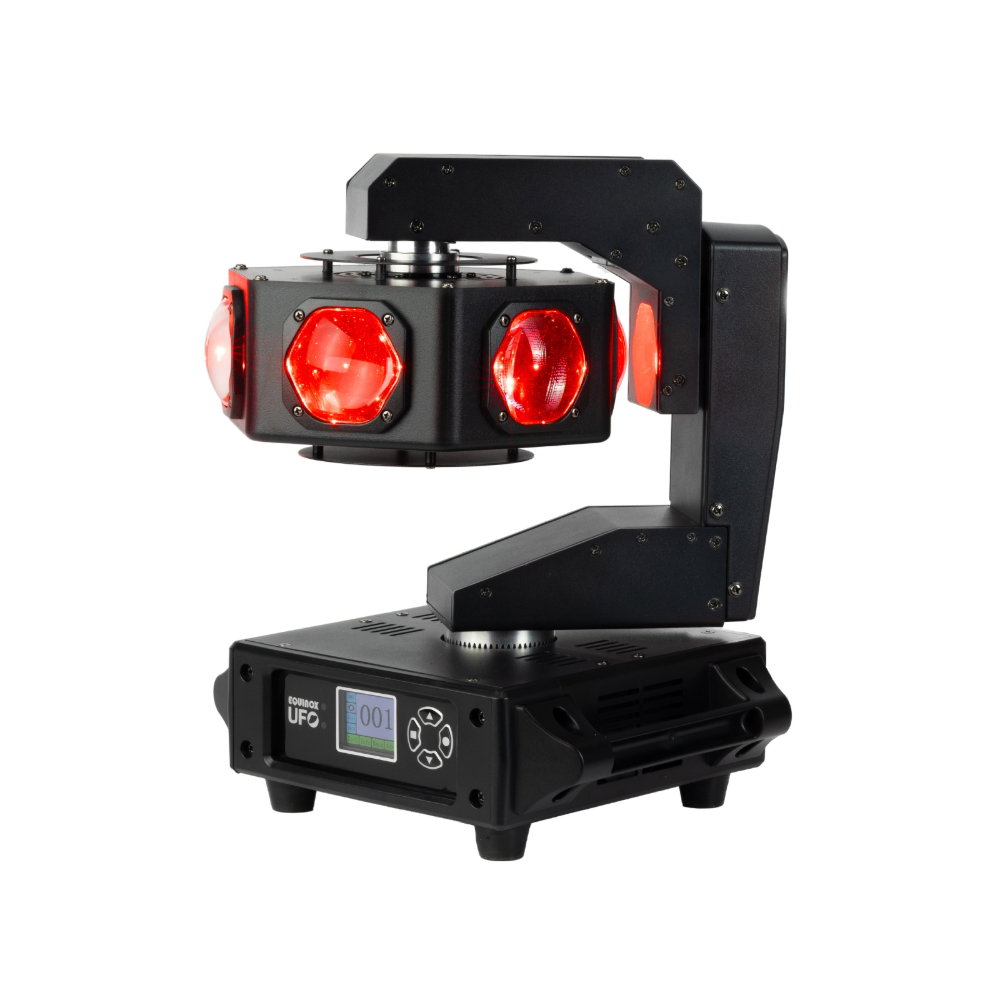

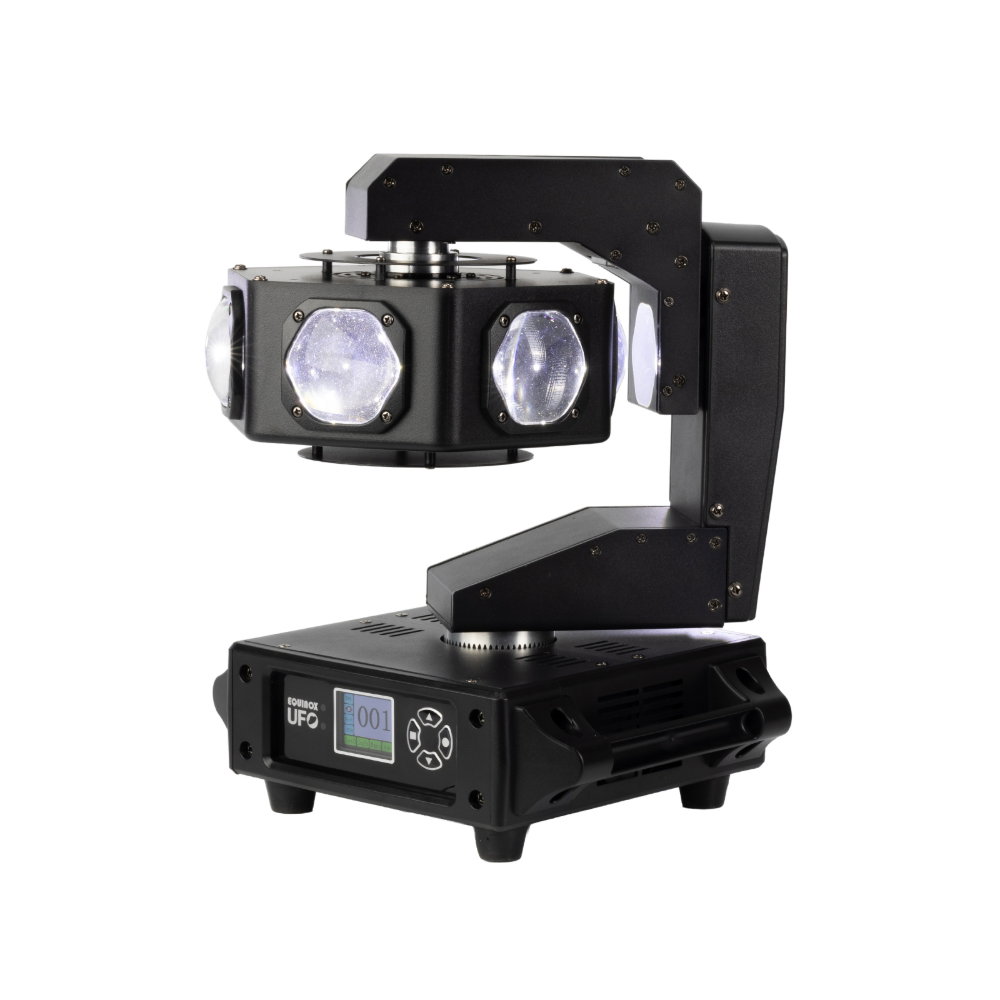

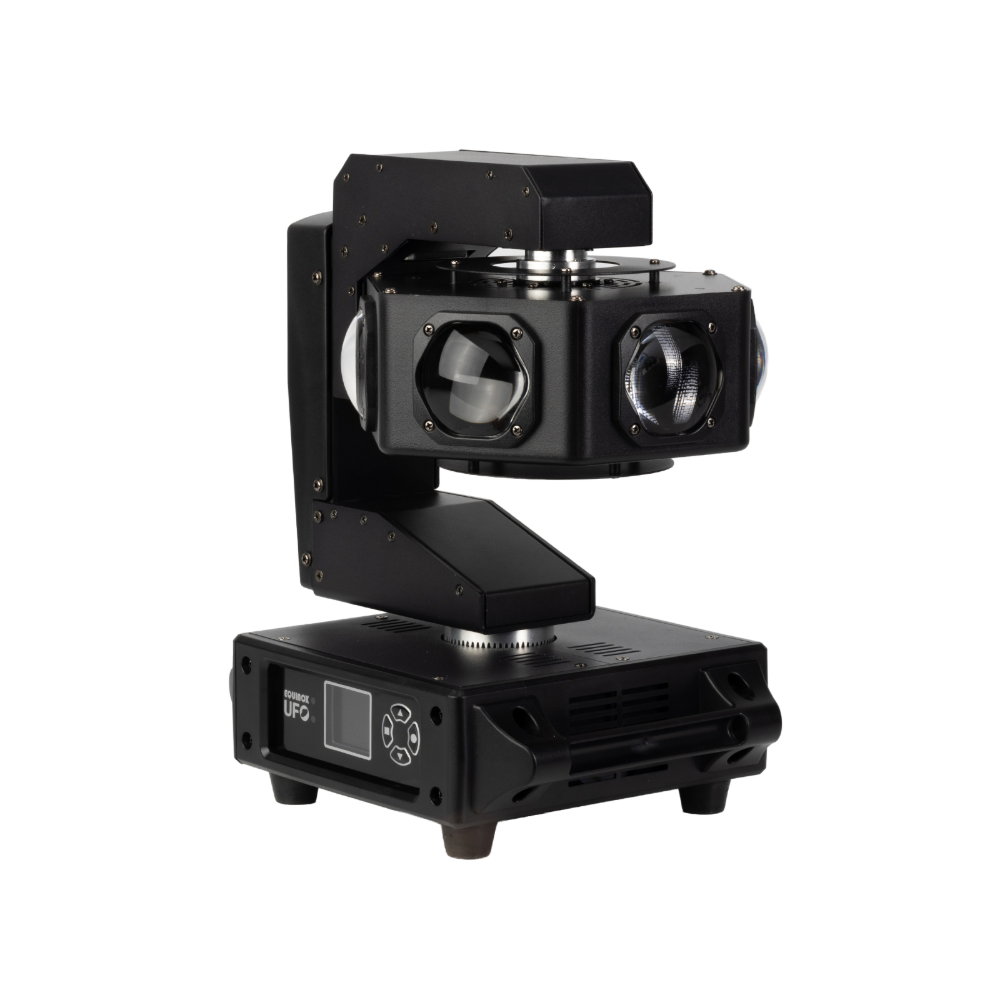

A single arm multi-beam moving head with six 40W RGBW LEDs. Narrow 2° beams rise, fall and hover as the head rotates, giving a big aerial effect from a compact, light fixture. It runs on its own in auto or sound active mode, links to other units in primary/secondary, or takes 14 or 16 DMX channels.
6 x 40W
RGBW LEDs
2°
Beam angle
360°
Continuous head pan
5.9kg
Weight
Features
Six 40W quad colour RGBW LEDs
Narrow 2° beams
540° base pan, 270° tilt and 360° continuous head rotation
Auto, sound active, manual and primary/secondary modes
14 or 16 channel DMX

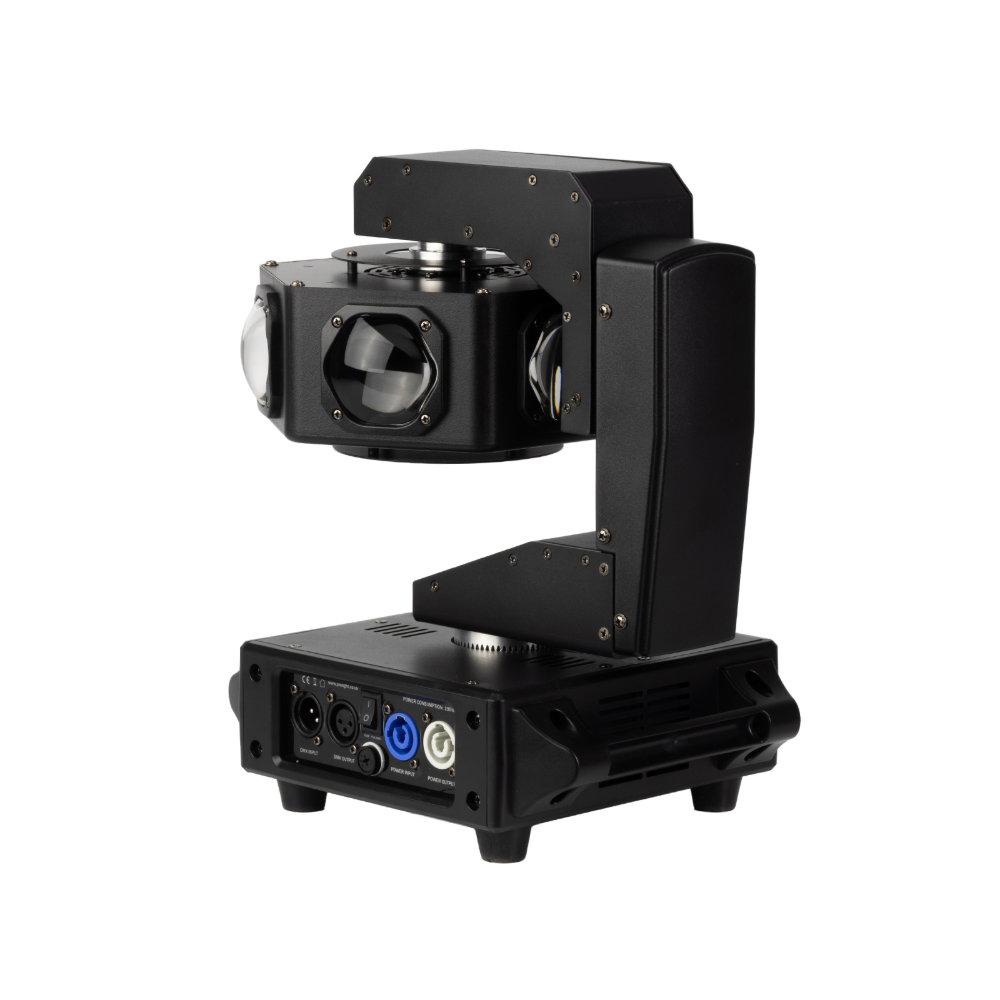

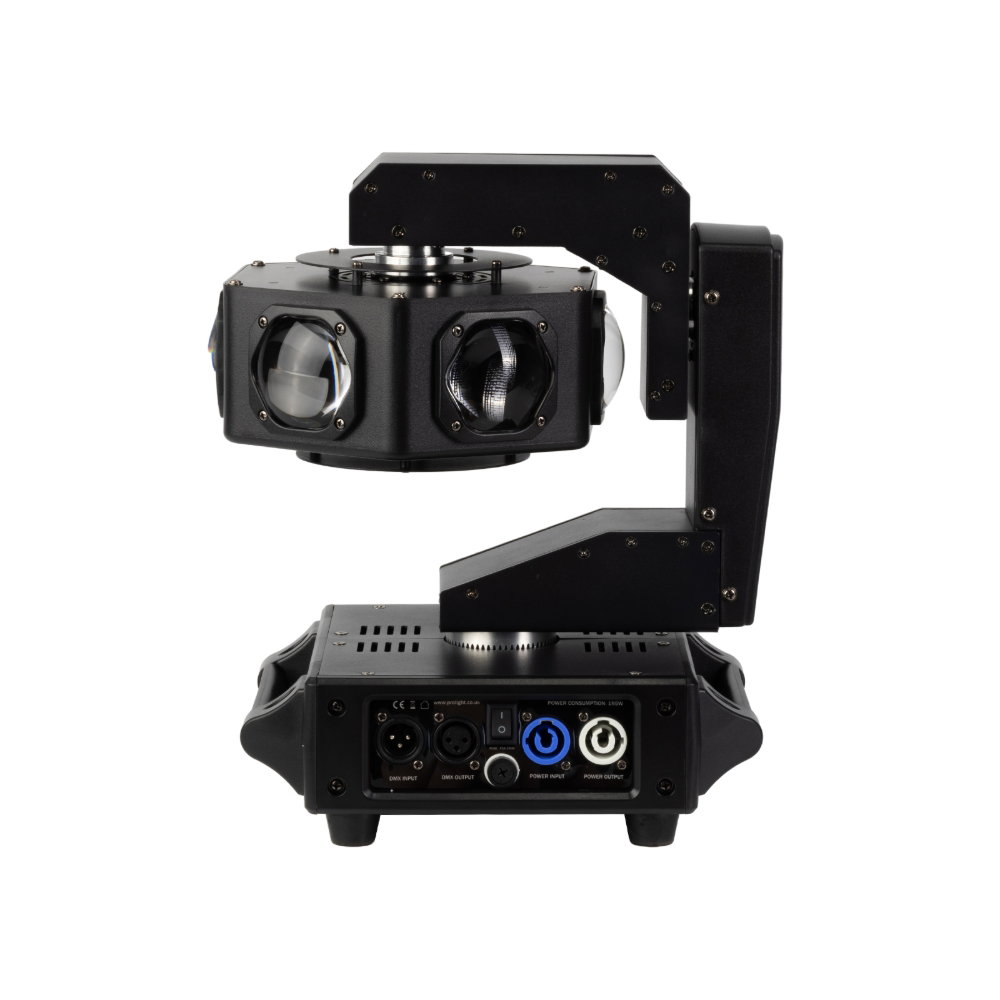

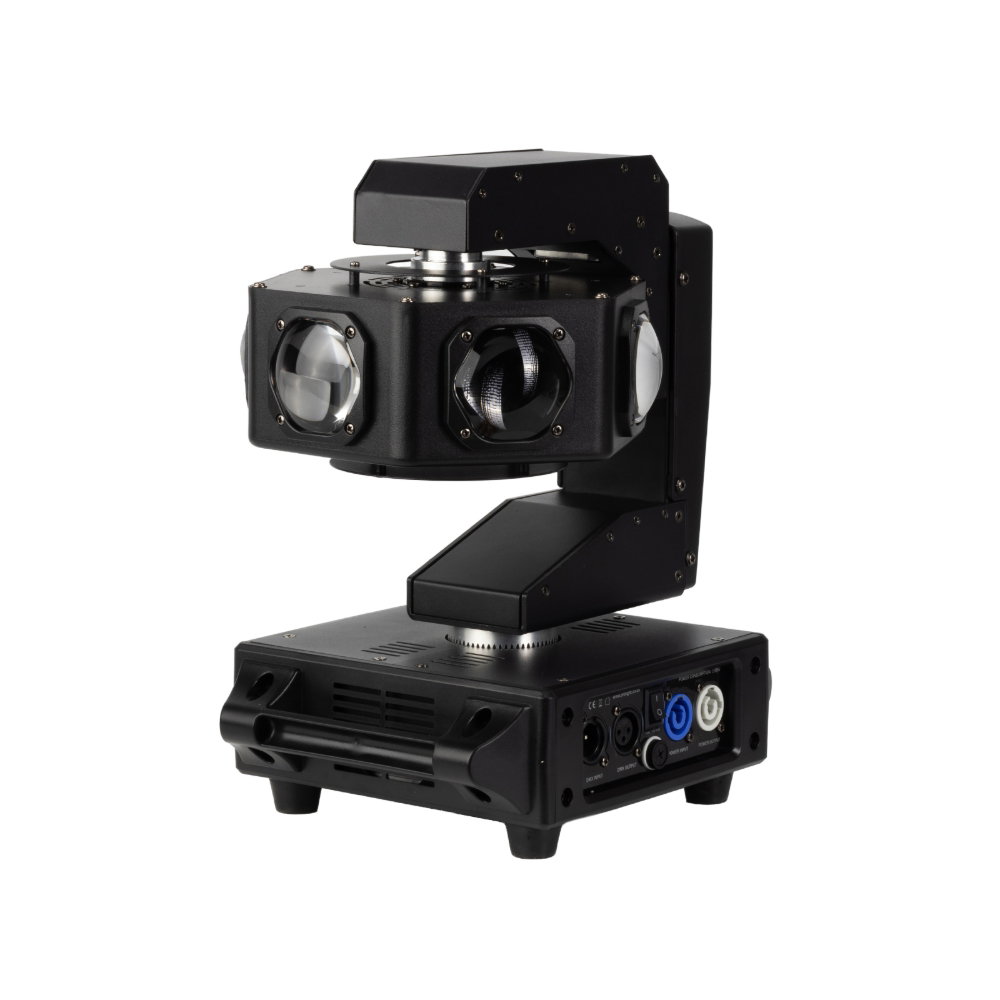

PowerTwist and 3-pin XLR in and out for daisy chaining

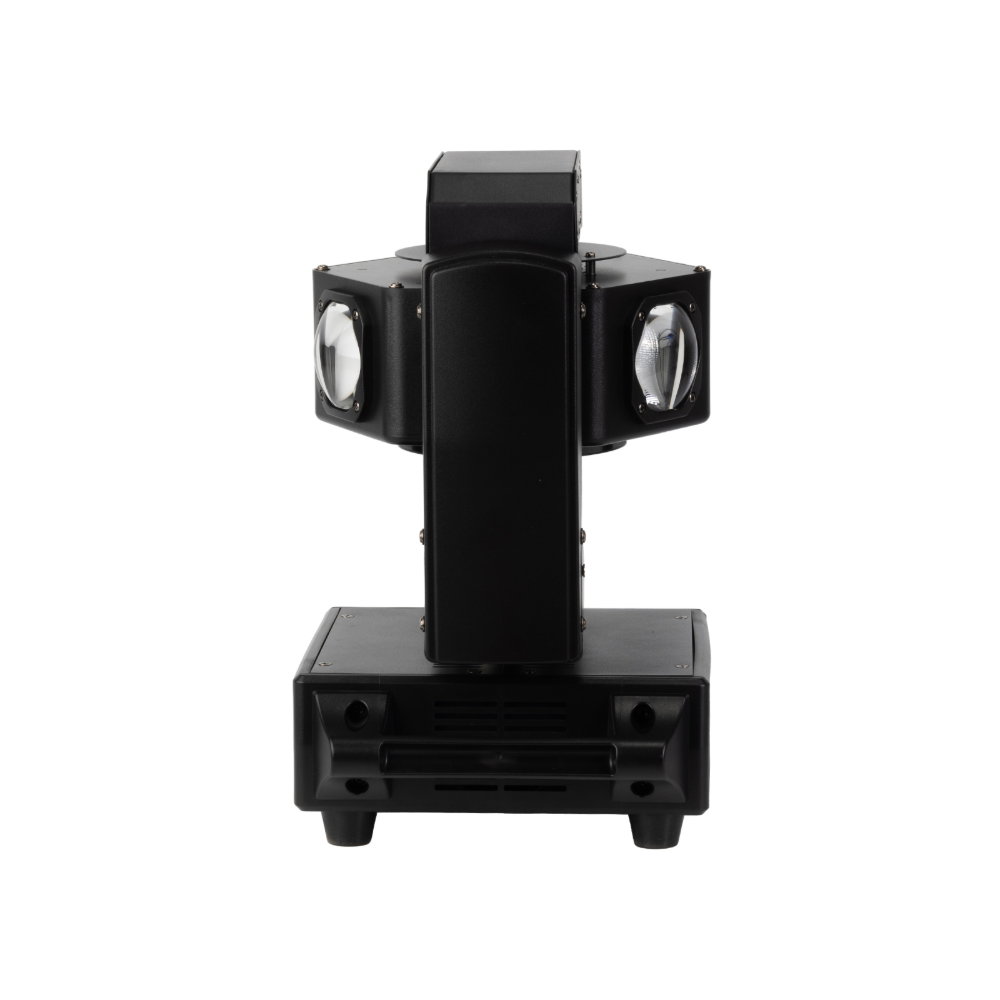

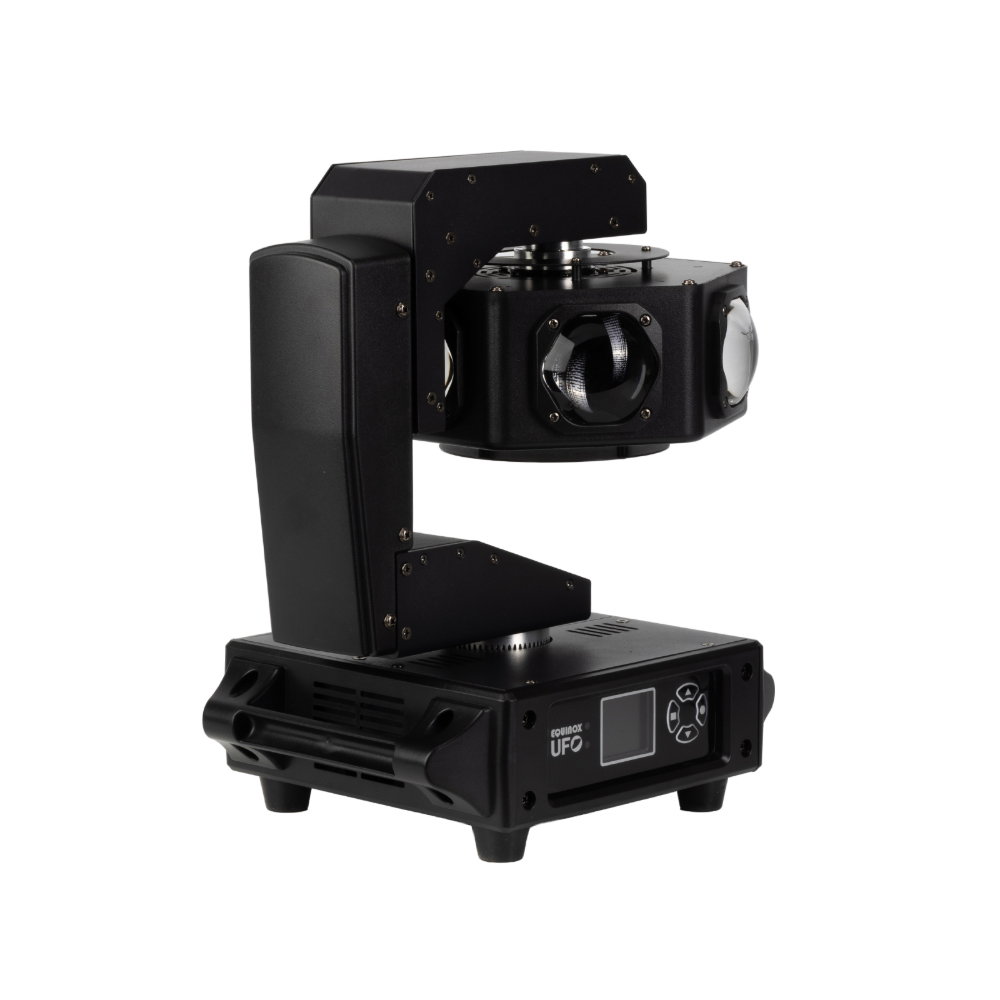

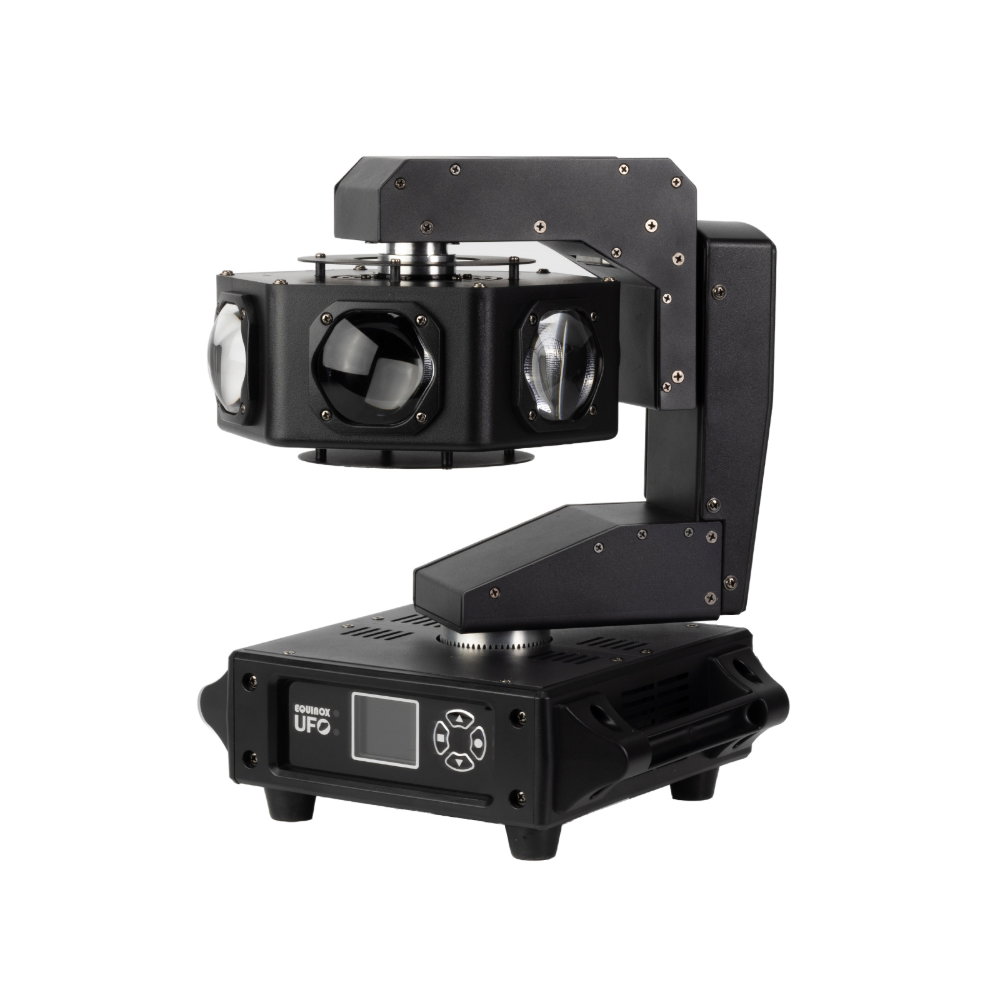

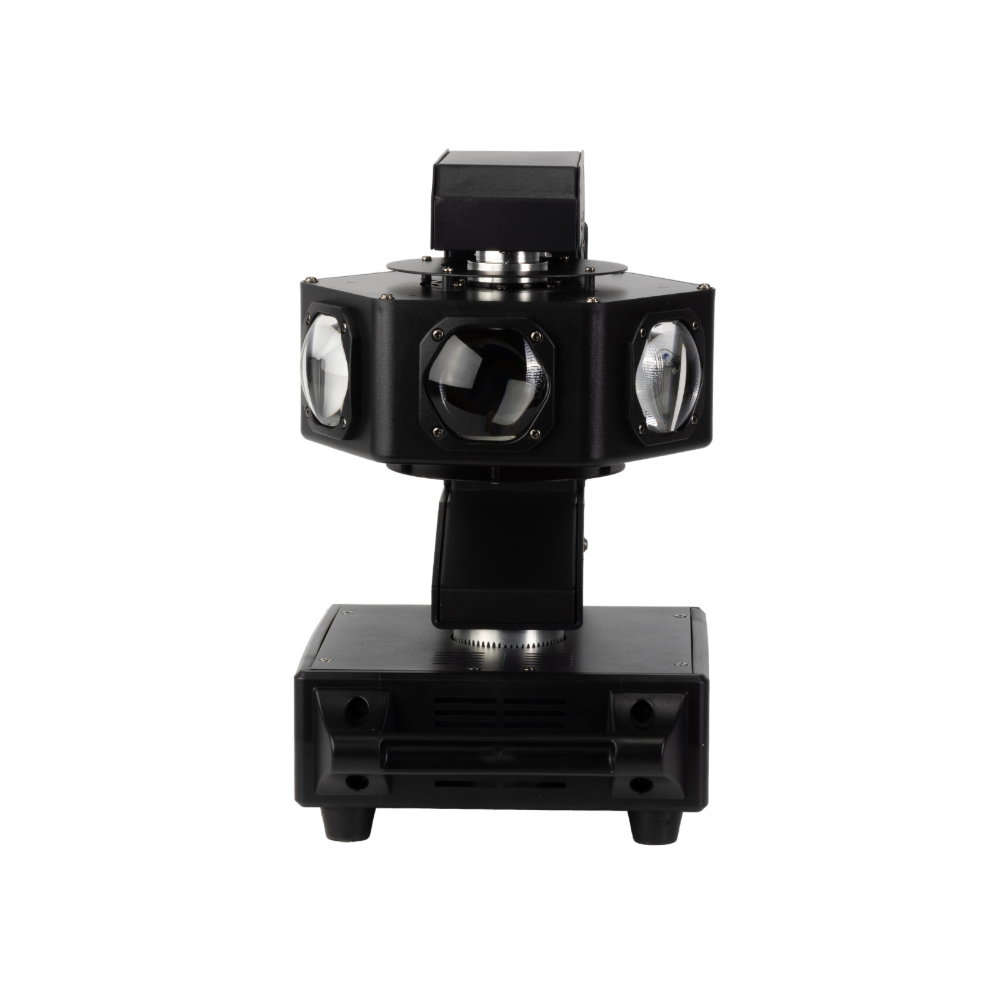

Compact single arm design
Specifications
| Brand | Equinox |
| Stock code | EQLED463 |
| LEDs | 6 x 40W quad colour RGBW |
| Beam angle | 2° |
| Movement | 540° base pan, 270° tilt, 360° continuous head pan |
| Control modes | DMX (14 or 16 channels), auto, sound active, manual, primary/secondary |

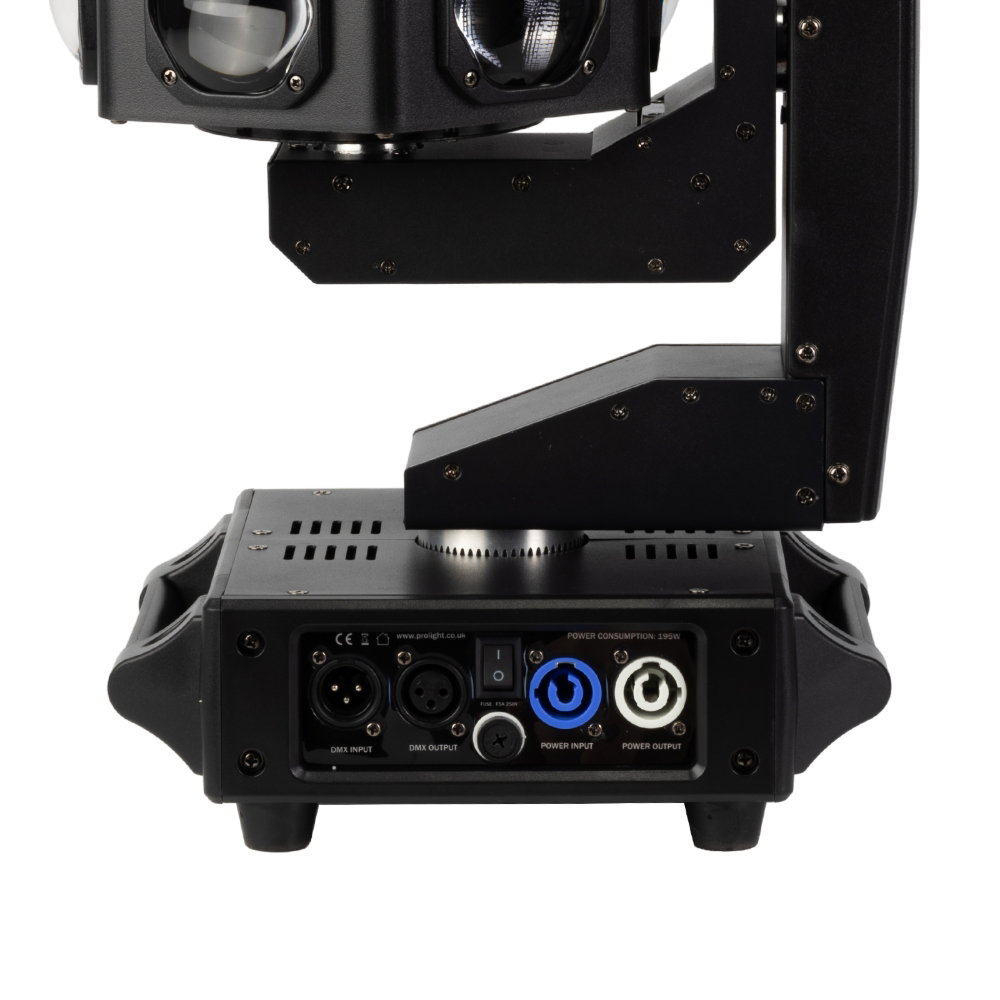

| Connections | PowerTwist in/out, 3-pin XLR in/out |
| Power supply | 100 to 240V, 50/60Hz |
| Power consumption | 195W |
| Fuse | F5A 250V |
| Dimensions (H x W x D) | 335 x 295 x 208mm |
| Weight | 5.9kg |
