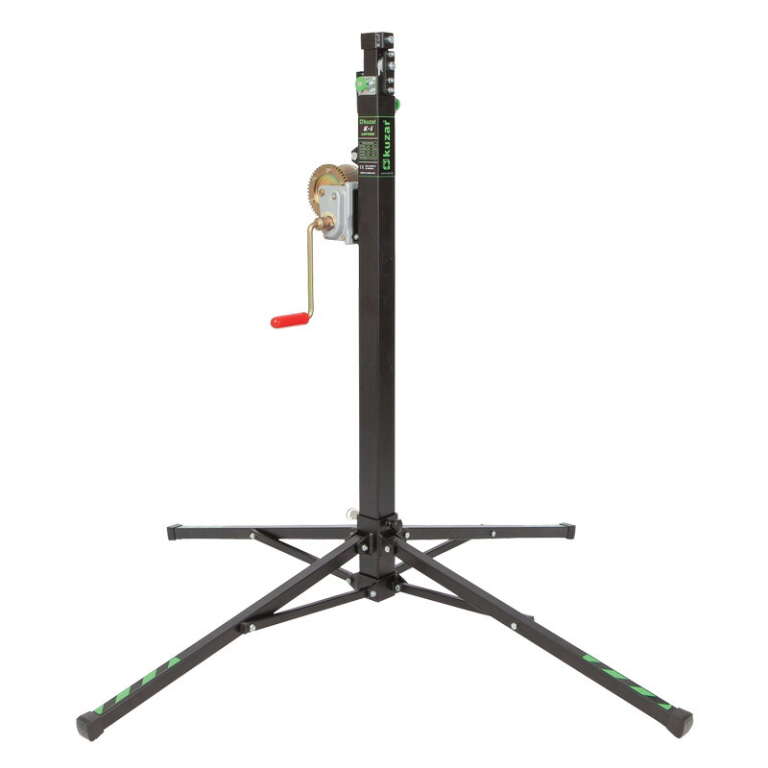

Kuzar K-1 Telescopic Lifter 3.8m 125kg

SKU: K-1
Kuzar K-1 Telescopic Lifter 3.8m 125kg
Kuzar K-1 Telescopic Lifter 3.8m 125kg
Click to enlarge

    £581.00 inc VAT
    £484.17 ex VAT

    9 available online
    FREE delivery by WednesdayOrder by 3pm Monday
    Click & Collect Tuesday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    Available lengths
    3.8m5.35m
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp
    Optional Add-Ons
    Kuzar SB-3 T-Bar for K-1 / K-3 / PRIME-80 Kuzar SB-3 T-Bar for K-1 / K-3 / PRIME-80
    £93.00 inc VAT
    £77.50 ex VAT
    Add to basket
    Kuzar UN-3 Truss Adaptor K-1 / K-3 / PRIME-80 Kuzar UN-3 Truss Adaptor K-1 / K-3 / PRIME-80
    £84.00 inc VAT
    £70.00 ex VAT
    Add to basket
    Kuzar ACS-3 TV Spigot Adaptor for K-1 / K-3 / PRIME-80 Kuzar ACS-3 TV Spigot Adaptor for K-1 / K-3 / PRIME-80
    £78.00 inc VAT
    £65.00 ex VAT
    Add to basket

    About this Product

    The Kuzar K-1 is a Spanish-built telescopic wind-up lifter capable of raising 125kg to a maximum 3.8m height. Built to BGV C1 and CE machinery directive standards with automatic safety locks, four foldable legs and an anti-corrosion steel cable, it’s the best-selling lifter in Kuzar’s telescopic range, for raising light trussing and lighting indoors or outdoors.

    125kg
    Max load · Lifting capacity
    3.8m
    Max height · Folded 1.26m
    21kg
    Net weight · Without load
    BGV C1
    Standards · CE 2006/42
    BGV C1 ComplianceManufactured in Europe to BGV C1 (lifting equipment for performances above persons) and CE Machinery Directive 2006/42/CE. Suitable for use in performance environments where standard lifters are not permitted.
    Features
    125kg max lifting capacity to 3.8m
    Three-profile telescopic system on protected bearing pads
    4mm anti-torsion DIN 3060 steel cable, 180kg/mm² tensile
    KAT automatic safety locks at every stage
    Four foldable legs for a 1.12 x 1.12m footprint
    35mm female adaptor fitment
    Built in Europe with 2 year warranty
    BGV C1 compliant for performance use
    Specifications
    Max load 125kg
    Max height 3.8m
    Folded height 1.26m
    Net weight 21kg
    Footprint 1.12 x 1.12m
    Cable 4mm steel DIN 3060
    Adaptor 35mm female
    Min load 25kg (minimum for the winch brake to operate)
    Height without extension bar 3.2m (3.8m with extension bar)
    Folded dimensions 1.27 x 0.27 x 0.36m
    Shipping dimensions 1.28 x 0.29 x 0.18m (handle removed)
    Winch 450kg certified, automatic brake
    Construction Steel profiles EN 10305, polyester powder coat
    Standards BGV C1, CE 2006/42/CE
    Compare the Range
    Kuzar K-1 Telescopic Lifter 3.8m 125kg
    Kuzar K-1 Telescopic Lifter 3.8m 125kg
    £581.00 inc VAT
    £484.17 ex VAT
    • Max load: 125kg
    • Max height: 3.8m
    • Folded height: 1.26m
    • Footprint: 1.12 x 1.12m
    Viewing Now

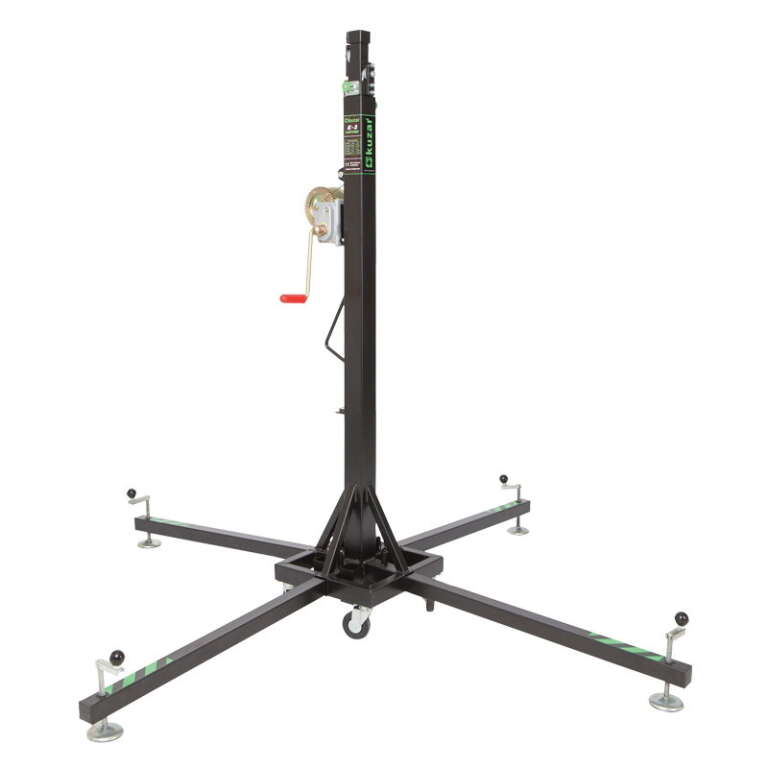

    Kuzar K-3 Telescopic Lifter 5.35m 125kg
    Kuzar K-3 Telescopic Lifter 5.35m 125kg
    £1,169.00 inc VAT
    £974.17 ex VAT
    • Max load: 125 kg
    • Max height: 5.35 m
    • Folded height: 1.72 m
    • Footprint: 1.43 x 1.43 m
    View →

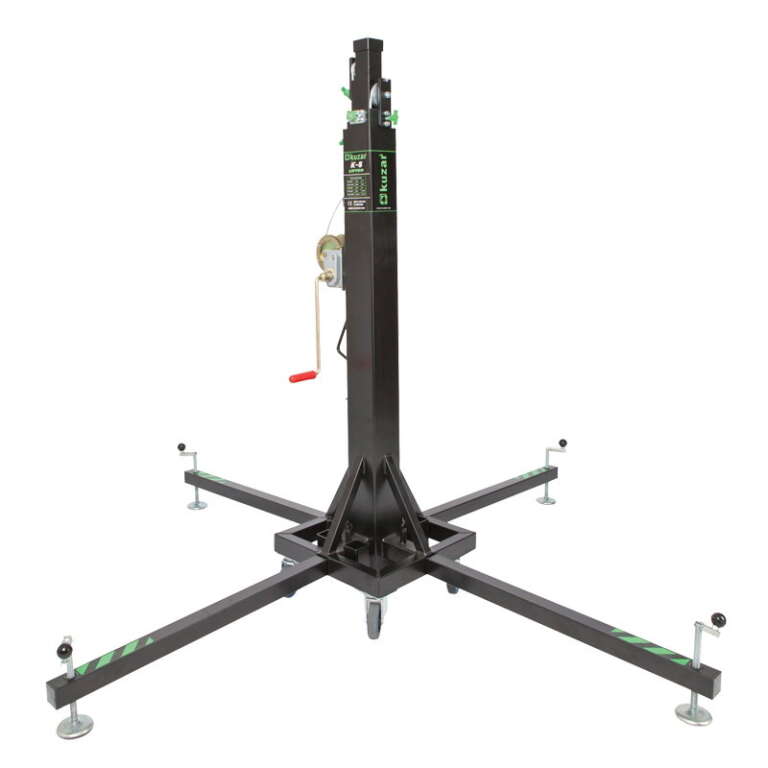

    Kuzar K-5 Telescopic Lifter 5.35m 250kg
    Kuzar K-5 Telescopic Lifter 5.35m 250kg
    £1,318.00 inc VAT
    £1,098.33 ex VAT
    • Max load: 250 kg
    • Max height: 5.35 m
    • Folded height: 1.74 m
    • Footprint: 1.53 x 1.53 m
    View →

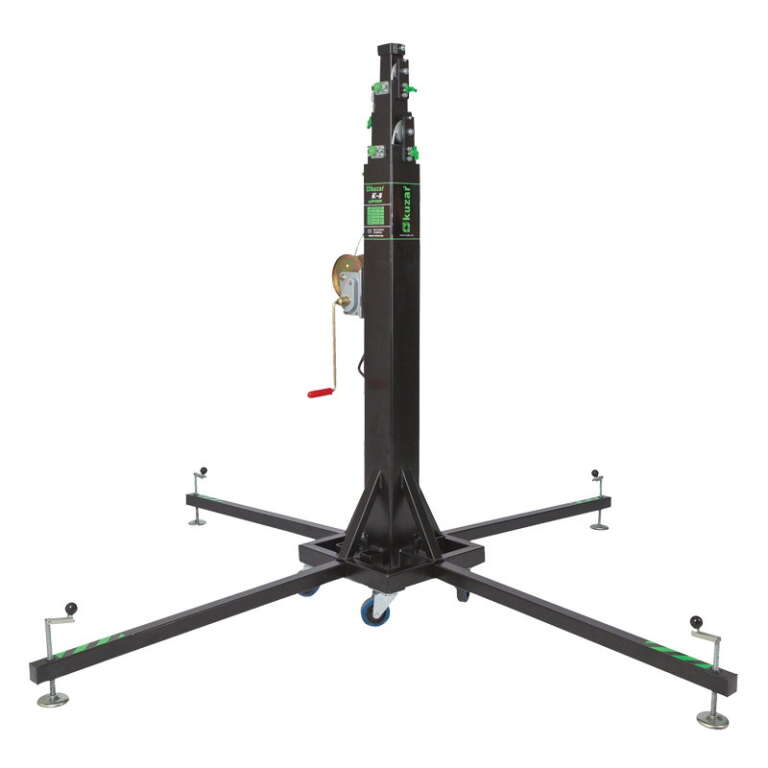

    Kuzar K-8 Telescopic Lifter 6.5m 300kg
    Kuzar K-8 Telescopic Lifter 6.5m 300kg
    £1,587.00 inc VAT
    £1,322.50 ex VAT
    • Max load: 300 kg
    • Max height: 6.5 m
    • Folded height: 1.87 m
    • Footprint: 1.85 x 1.85 m
    View →

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • 2 year warranty
    • Maximum load: 125kg
    • KAT automatic locks slot into each section as the lifter rises and hold the load if the cable fails
    • High quality AL-KO winches loaded with steel cable
    • Manufactured in Europe to both BGV C1 and CE (2006/42/CE) standards

    Manuals & Downloads

    PDFManuals & Instructions: STAN150_ManualPDF
    PDFManuals & Instructions: STAN150_DSPDF
    PDFManuals & Instructions: STAN150_CertificatePDF
    ZIPManuals & Instructions: STAN150_CAD_FilesZIP
