The Linea Research 88 C6 is an eight-channel installation amplifier delivering 750W per channel, striking an effective balance between channel count and per-channel output for mid-scale fixed installations. Well suited to venues, houses of worship, conference facilities, and multi-zone commercial audio systems, the 88 C6 provides eight independently controllable outputs with 96kHz DSP, constant-voltage line support, and comprehensive remote management in a 2U chassis.
Channels
8
Independent outputs
Power per Channel
750W
All channels driven
Form Factor
2U
Rack mount
DSP Sample Rate
96kHz
Internal processing
Installation Integration

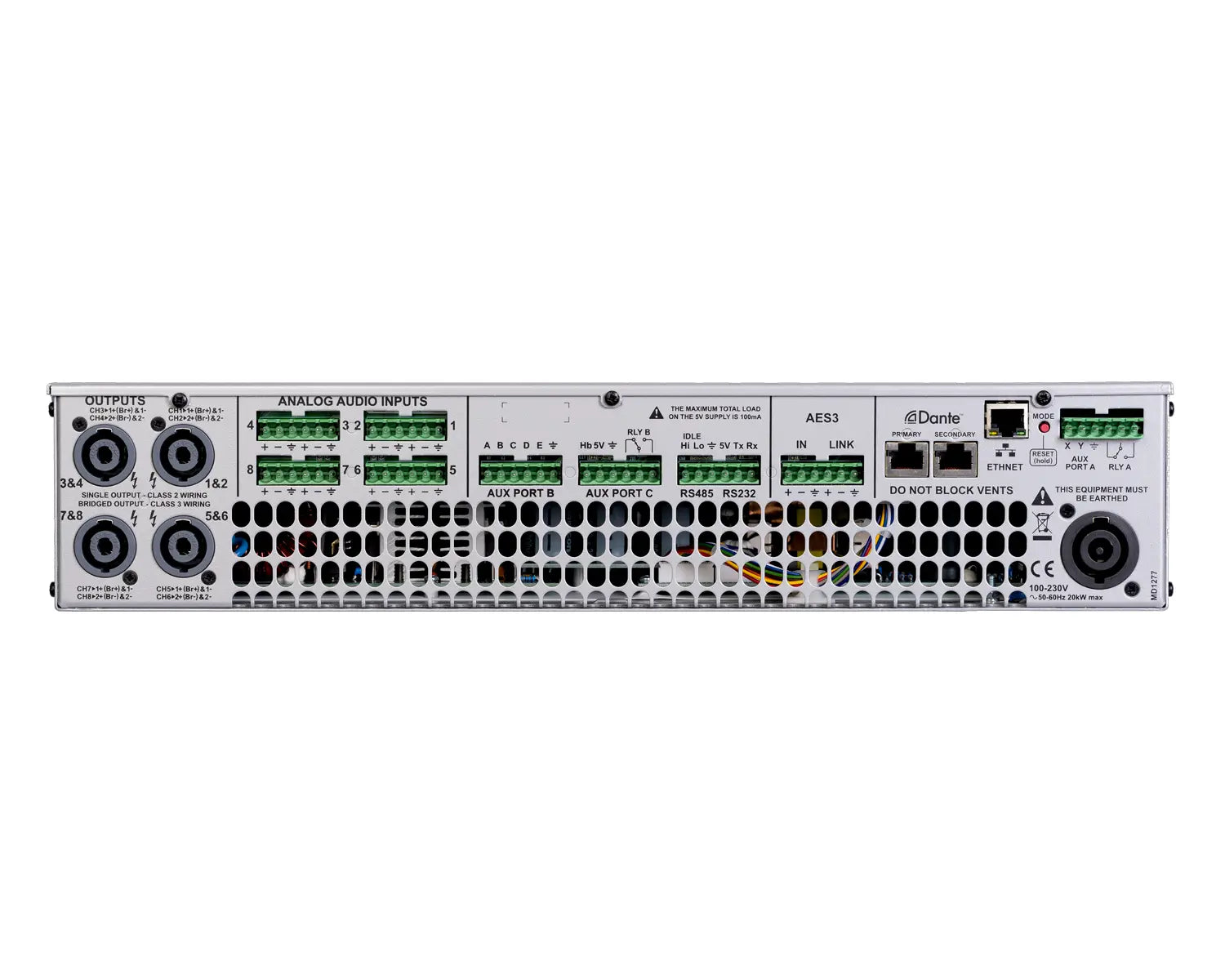

Designed for permanent installation with full remote management via Linea Research SE System Engineer software over Ethernet. Third-party control systems connect via TCP/IP, RS232, or RS485. Comprehensive relay and contact closure ports allow integration with building management and fire alarm systems. The tamper-proof front panel provides status verification without exposing controls to unauthorised adjustment.
Features
✓
Eight independent channels in a single 2U chassis for maximum zone density
Eight independent channels in a single 2U chassis for maximum zone density
✓
All eight channels deliver rated power simultaneously without derating
All eight channels deliver rated power simultaneously without derating
✓
7-10% more efficient than competing amplifier platforms
7-10% more efficient than competing amplifier platforms
✓
25V, 70V, and 100V constant-voltage line support for distributed speaker systems
25V, 70V, and 100V constant-voltage line support for distributed speaker systems
✓
96kHz DSP engine with LIR phase-linear crossovers and VX Limiters for loudspeaker protection
96kHz DSP engine with LIR phase-linear crossovers and VX Limiters for loudspeaker protection
✓

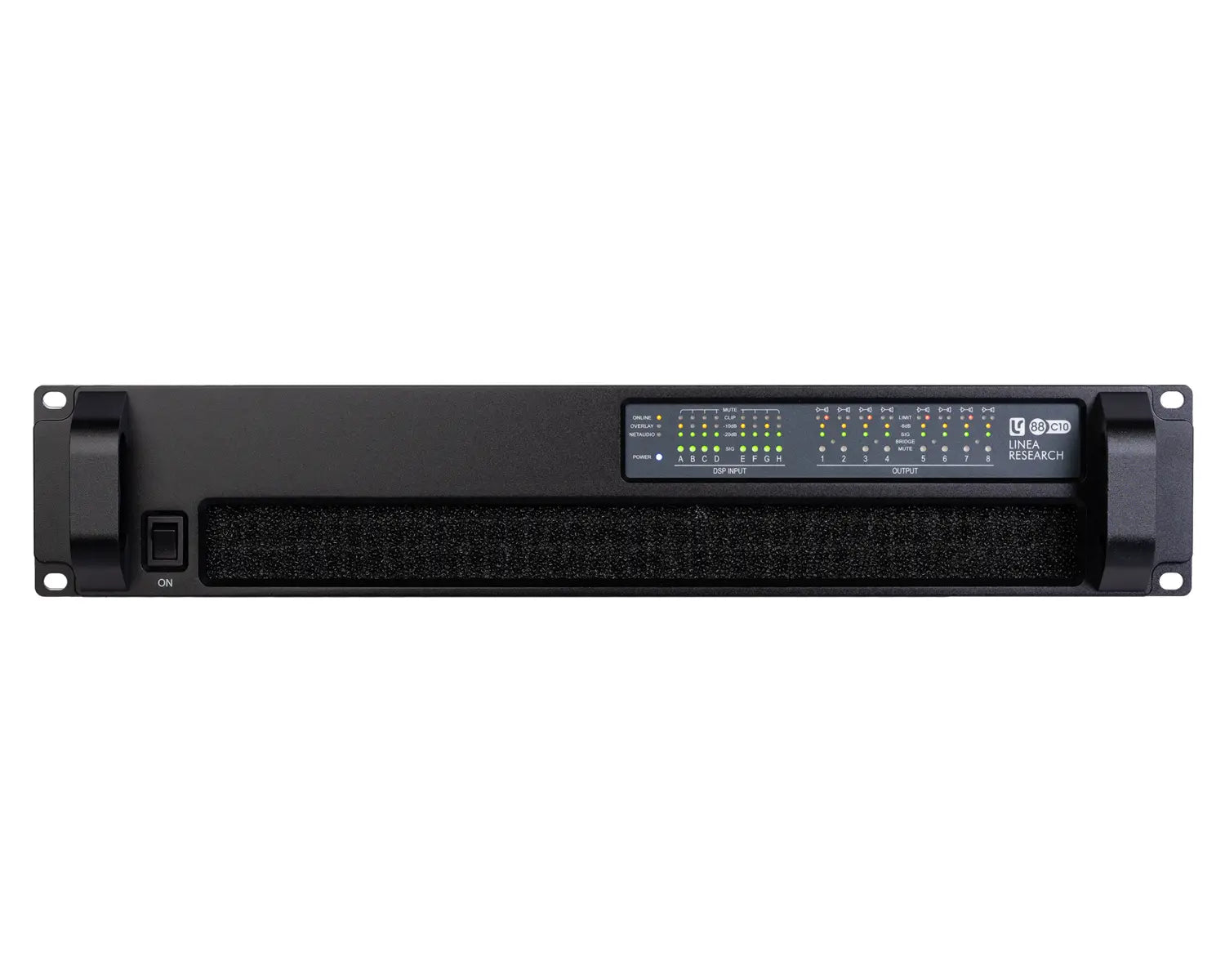

Tamper-proof front panel for status monitoring without local control access
Tamper-proof front panel for status monitoring without local control access
✓
Third-party control via TCP/IP, RS232, and RS485 protocols
Third-party control via TCP/IP, RS232, and RS485 protocols
✓
Relay and contact closure ports for building management and emergency system integration
Relay and contact closure ports for building management and emergency system integration
✓
Ethernet connectivity for remote monitoring and control via SE System Engineer
Ethernet connectivity for remote monitoring and control via SE System Engineer
✓
Designed for continuous duty in unattended fixed installations
Designed for continuous duty in unattended fixed installations
Specifications
| Model | 88 C6 |
| SKU | ZR1207 |
| Channels | 8 |
| Power per Channel | 750W |
| Constant Voltage | 25V, 70V, 100V |
| DSP Sample Rate | 96kHz |
| DSP Features | LIR crossovers, VX Limiters |
| Control Interfaces | TCP/IP, RS232, RS485, Ethernet |
| Software | SE System Engineer (PC) |
| Form Factor | 2U rack mount |
| Series | C Series (Installation) |
