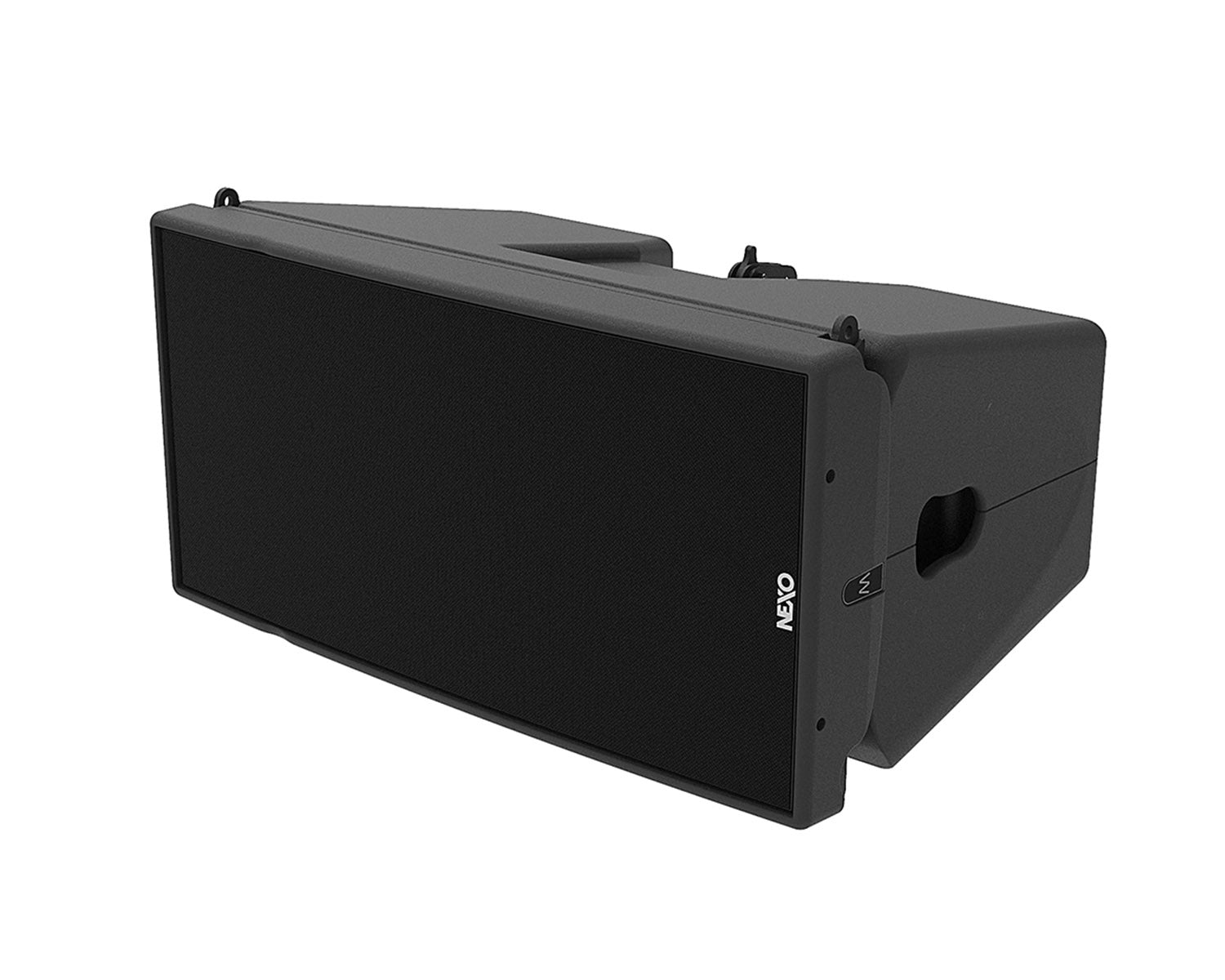

The NEXO GEO M1210-I is the install-specification, 10° vertical dispersion module of the GEO M12 line array series. Combining a 12" neodymium LF driver with a 3" voice-coil / 1.4" throat HF driver, it is built for fixed installations that need a longer-throw line source with a permanently rigged, low-profile enclosure.
LF Driver
12"
Neodymium
Vertical Dispersion
10°
Fixed
Horizontal
80° / 120°
Switchable
Weight
34 kg
Per cabinet
Passive or active operation
The GEO M1210-I can be driven passive or bi-amped active, and horizontal dispersion is set to 80° or 120° using tool-free magnetic waveguide flanges – giving flexibility to match amplifier topology and room coverage.
Features
✓Install-specification GEO M12 line array module
✓12" neodymium LF driver
✓3" voice-coil / 1.4" throat HF driver
✓Selectable passive or active operation
✓Fixed 10° vertical dispersion for longer throw
✓Tool-free 80° / 120° horizontal switching
✓Honeycomb-structure urethane co-polymer cabinet
✓Integral rigging with no loose parts; rear and side handles
Note
This is the install (-I) 10° variant. For 20° vertical coverage see the GEO M1220-I, and for the touring specification see the GEO M1210.
Specifications
| Type | 2-way passive/active line array module (install) |
| LF driver | 12" neodymium |
| HF driver | 3" voice coil, 1.4" throat |
| Vertical dispersion | 10° |
| Horizontal dispersion | 80° or 120° (switchable, tool-free) |
| Dimensions (W x H x D) | 700 x 370 x 446 mm |
| Weight | 34 kg |
| Cabinet | Honeycomb-structure urethane co-polymer |
| Finish | Black (also white / custom RAL) |
