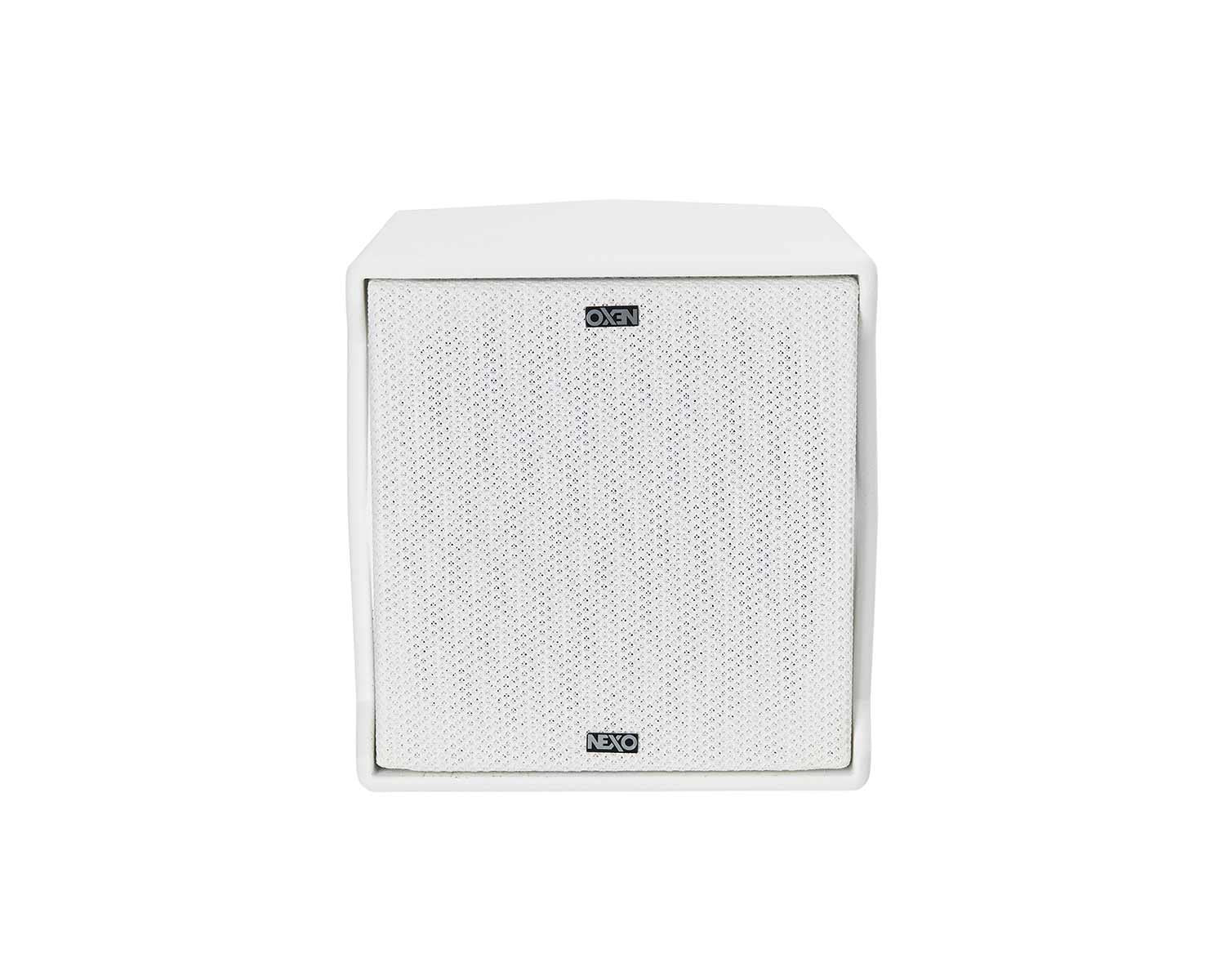

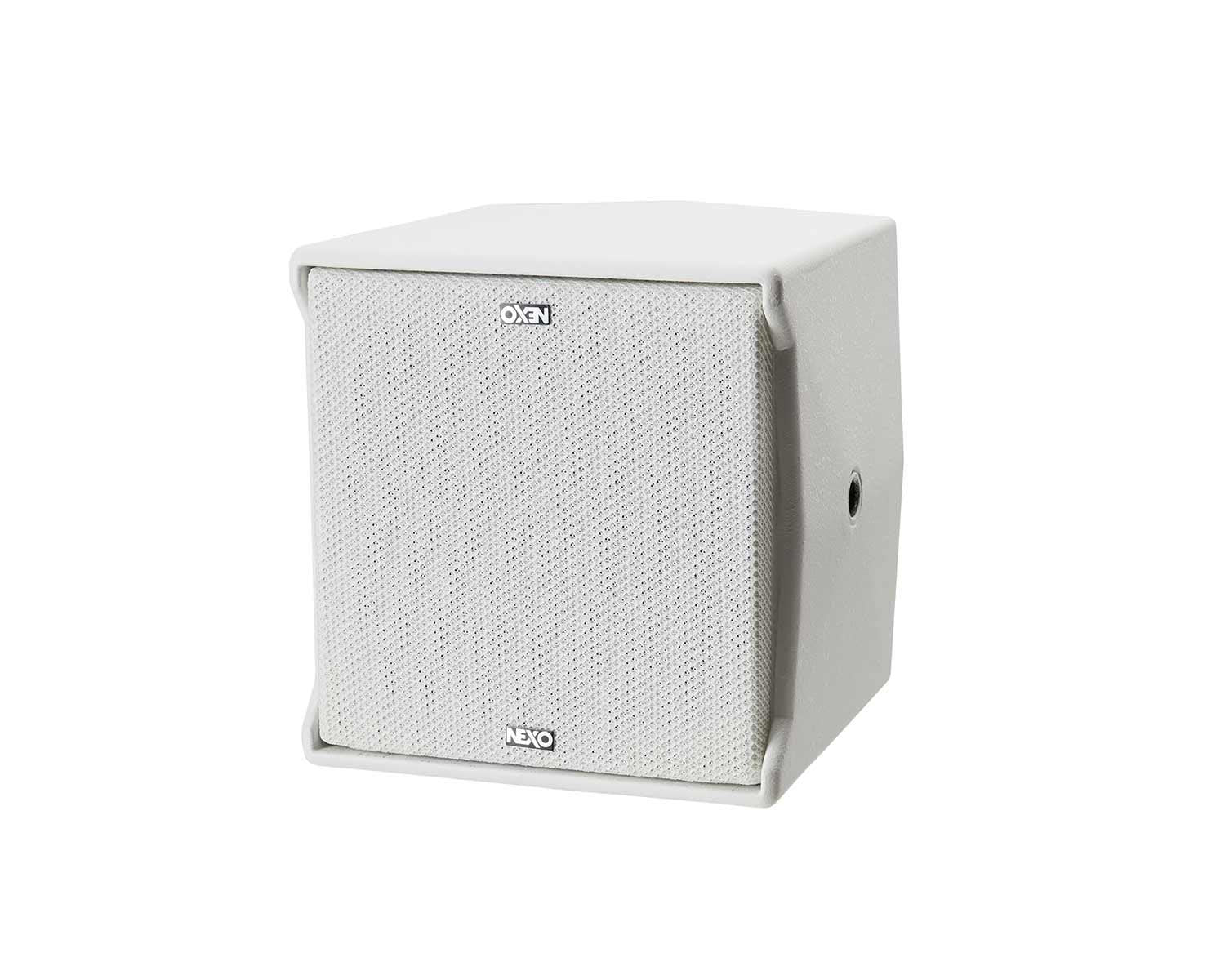

The NEXO ID14-I is a compact 4″ coaxial point-source loudspeaker built for permanent install and portable use alike, delivering high output and NEXO’s signature clean, smooth sound from a very small enclosure. This is the 100°x100° symmetric-dispersion variant in a white finish, ideal for FOH and stage-monitor duties in venues, bars, restaurants and AV installations.
Driver
4″
Coaxial
Dispersion
100°x100°
Symmetric horn
LF Voice Coil
1.3″
4″ LF driver
HF Diaphragm
1.4″
HF motor
Amplification & Setup
Each horn has a dedicated preset on the NXAMP powered controller to ensure perfect coverage at every frequency. The ID14 carries NEXO’s phase signature, allowing interoperability with all NEXO speakers at every crossover point, except monitor setups where latency is minimised.
Mounting
Flexible fixing options:
M10 threads each side
Dedicated U bracket
Mic-stand mount
Rear M6 inserts (73mm pitch)
Dedicated U bracket
Mic-stand mount

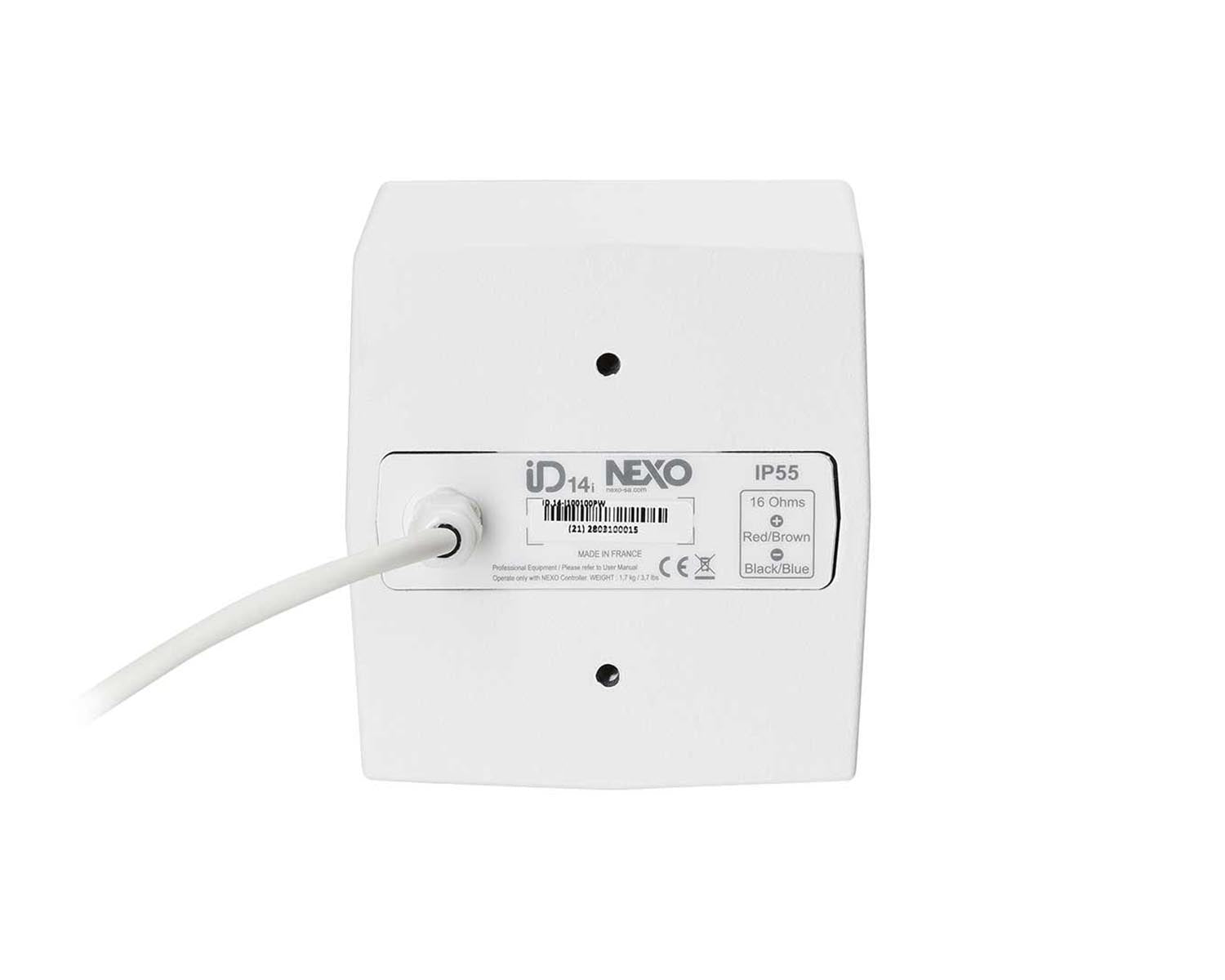

Rear M6 inserts (73mm pitch)
Wall-Mount Accessories
Rear inserts accept:
NEXO ID-WM01
NEXO ID-WB02
NEXO ID-WB02
Features
✓Powerful custom 4″ coaxial driver
✓100°x100° symmetric dispersion horn
✓Robust polyurethane shell, outdoor-resistant
✓Fully symmetric design – no left/right versions
✓Suits FOH and stage-monitor (wedge) applications
✓M10 side threads plus rear M6 inserts for mounting
✓NEXO phase signature for interoperability across the range
✓Dedicated NXAMP controller preset per horn
Note
This is the standard 100°x100° symmetric-dispersion variant. An asymmetric 90°x140° horn version can be ordered separately for wider, angled coverage.
Specifications
| Type | Compact coaxial point-source install loudspeaker |
| Driver | 4″ coaxial |
| LF voice coil | 1.3″ |
| HF diaphragm | 1.4″ |
| Dispersion | 100° x 100° |
| Enclosure | Polyurethane shell, outdoor-resistant |
| Mounting | M10 side threads; rear M6 inserts, 73mm pitch |
| Recommended controller | NEXO NXAMP powered controller |
| Finish | White |
