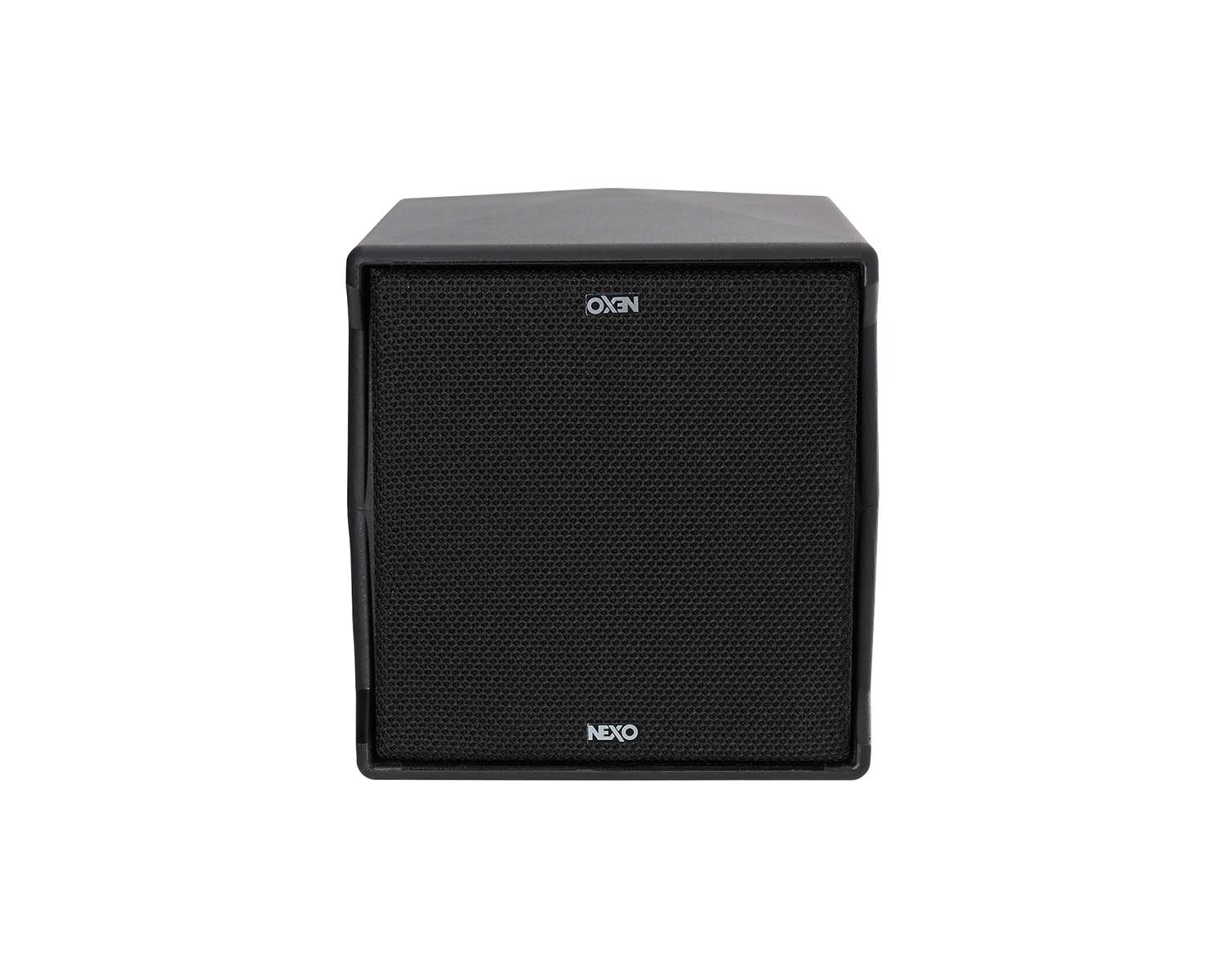

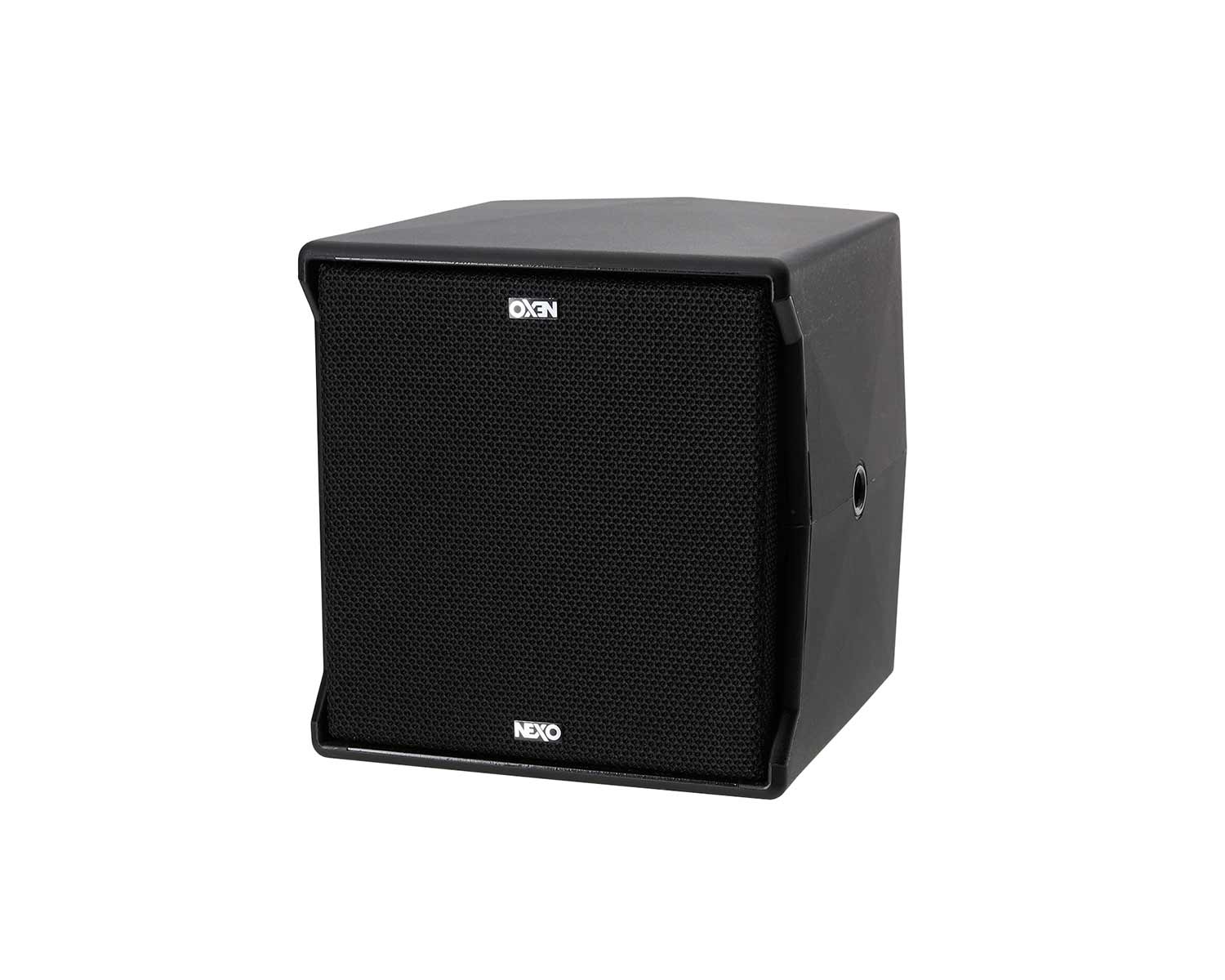

The NEXO ID14 is a compact coaxial point-source loudspeaker built around a custom 4" driver, delivering the smooth, powerful sound NEXO is known for in a rugged, weatherproof enclosure. This is the Installation (ID14-I) version, configured with the asymmetric 90° x 140° horn for wide, even coverage where a taller vertical spread is needed – ideal for fixed-install AV, retail, hospitality, houses of worship and outdoor use.
Driver
4" Coaxial
Single point source
Dispersion
90° x 140°
Asymmetric horn
Ingress
IP55
Outdoor rated
Version
Install
Cable gland input
Requires NXAMP powered controller
The ID14 is a passive enclosure driven and processed by a NEXO NXAMP powered TDcontroller. A dedicated setup preset for the 90° x 140° horn ensures correct coverage and protection across the full frequency range. The ID14’s acoustic phase response follows the NEXO phase signature, allowing inter-operability with other NEXO cabinets at all crossover points.
Features
✓

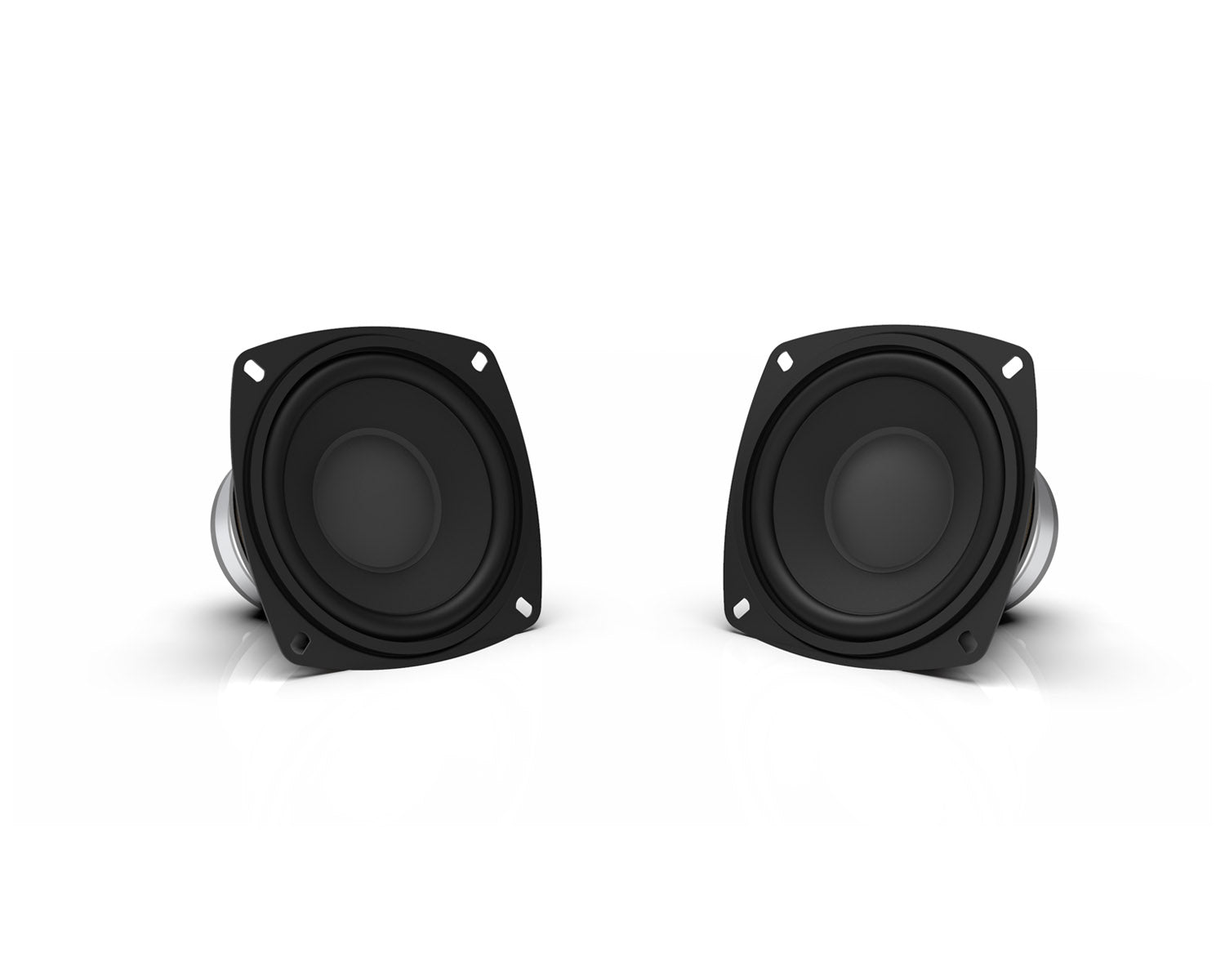

Custom-designed coaxial driver: 4" LF with 1.3" voice coil, 1.4" diaphragm HF motor
Custom-designed coaxial driver: 4" LF with 1.3" voice coil, 1.4" diaphragm HF motor
✓
Asymmetric 90° x 140° horn for wide, tall coverage
Asymmetric 90° x 140° horn for wide, tall coverage
✓
Polyurethane shell enclosure, robust and outdoor resistant (IP55)
Polyurethane shell enclosure, robust and outdoor resistant (IP55)
✓
Install version: acoustic cloth front grille and cable-gland 2-core audio input
Install version: acoustic cloth front grille and cable-gland 2-core audio input
✓
Threaded M10 insert on each side for the dedicated U-bracket or a mic stand
Threaded M10 insert on each side for the dedicated U-bracket or a mic stand
✓
Two rear M6 inserts (73 mm pitch) for ID-WM01 / ID-WB02 wall-mount accessories
Two rear M6 inserts (73 mm pitch) for ID-WM01 / ID-WB02 wall-mount accessories
✓
Fully symmetric design – no left/right version, every unit is interchangeable
Fully symmetric design – no left/right version, every unit is interchangeable
✓
NEXO phase signature for seamless integration with other NEXO cabinets
NEXO phase signature for seamless integration with other NEXO cabinets
Note
This is the 90° x 140° asymmetric-horn Install variant in black. The standard horn option is 100° x 100°. Choose the horn to match the space – each has its own NXAMP setup preset.
Specifications
| Type | Compact coaxial point-source loudspeaker (passive) |
| Transducer | Coaxial 4" LF (1.3" voice coil) + 1.4" HF diaphragm |
| Dispersion | 90° x 140° (asymmetric horn) |
| Version | Installation – acoustic cloth grille, cable-gland 2-core input |
| Ingress protection | IP55 |
| Enclosure | Polyurethane shell, outdoor resistant |
| Mounting | M10 side inserts; 2x rear M6 (73 mm pitch) |
| Amplification | NEXO NXAMP powered TDcontroller (dedicated preset) |
| Finish | Black |
