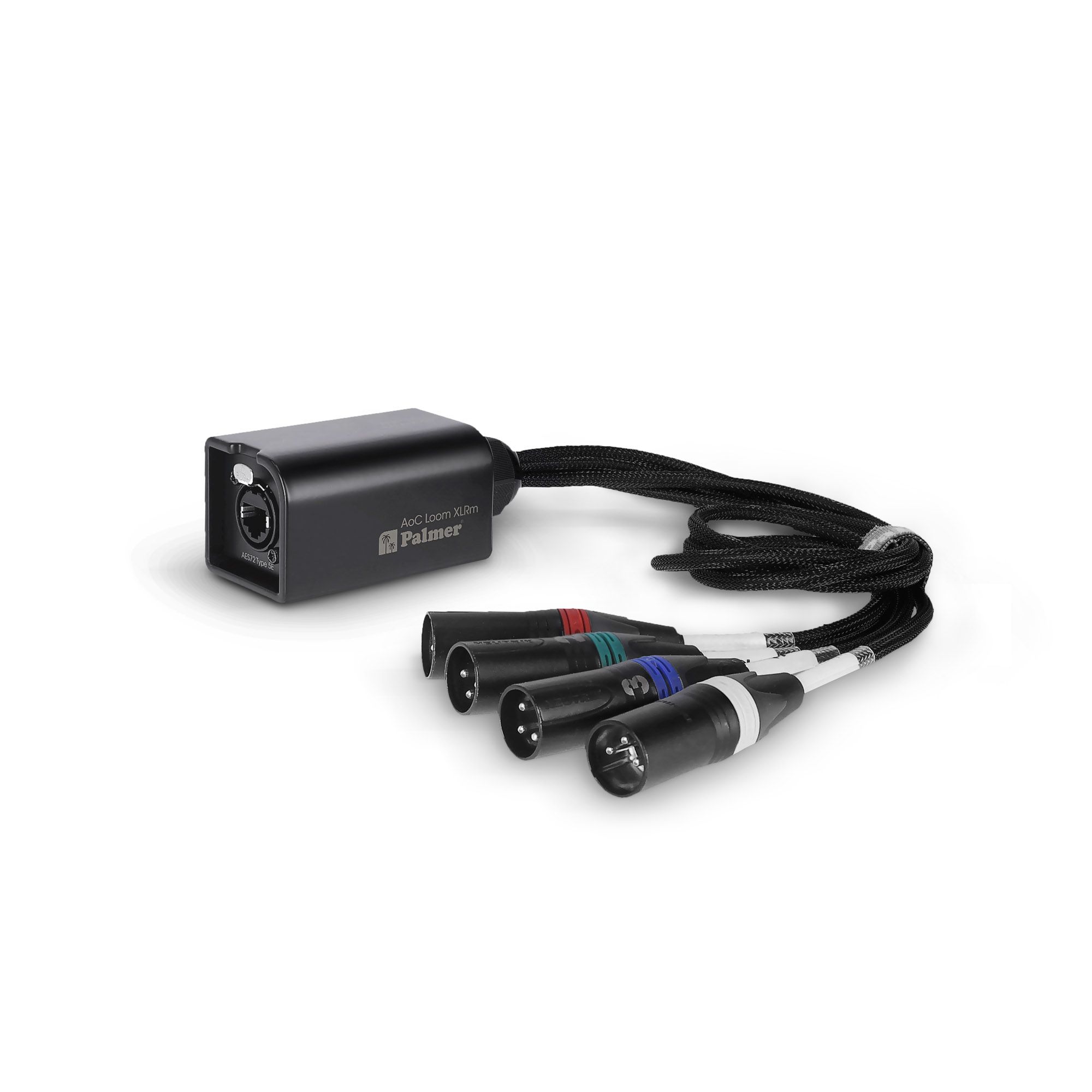

The P AOC L XLR M is a multicore adapter cable that facilitates the stable transmission of 4 separate analog and balanced audio signals or 8 digital AES3 signals through a network cable (not included). The male XLR plugs are numbered and color-coded for easy identification. The Ethercon connection is safeguarded against unlocking to prevent accidental cable disconnection.In addition to audio signals, the P AOC L XLR M enables the transmission of DMX, or MIDI control signals, along with 48-volt phantom power, via a single, standard Ethernet cable.
Features
Product type: Audio over Cat adapter
Pin 1: Channel 3 –
Input Connector: RJ45
Pin 6: Channel 4 +
Depth: 45
Pin 7: Channel 2 –
Material: Aluminium, Steel
Output type: balanced
Pin 5: Channel 1 –
Input type: balanced
Specifications
| Product type | Audio over Cat adapter |
| Input Connector | RJ45 |
| Depth | 45 |
| Material | Aluminium, Steel |
| Output type | balanced |
| Input type | balanced |
| Cable Length | 0.5 |
| Height | 45 |
| Number of outputs | 4 |
| Number of inputs | 4 |
| Width | 80 |
| Air humidity | > 80 % (non-condensing) |
| Output connector | 3 pin XLRm |
| Frequency range | 0 Hz – 20 kHz |
| Pin 1 | Channel 3 – |
| Pin 6 | Channel 4 + |
| Pin 7 | Channel 2 – |
| Pin 5 | Channel 1 – |
| Pin 4 | Channel 1 + |
| Pin 8 | Channel 2 + |
| Pin 3 | Channel 4 – |
| Pin 2 | Channel 3 + |
| Channel 1 | Red |
| Channel 3 | Blue |
| Channel 4 | White |
| Channel 2 | Green |
| Max. input level (< 1% THD 1 kHz) | + 32 dBu |
| THD (1 kHz +4 dBu unity unweighted) | < 0,0005 % |
