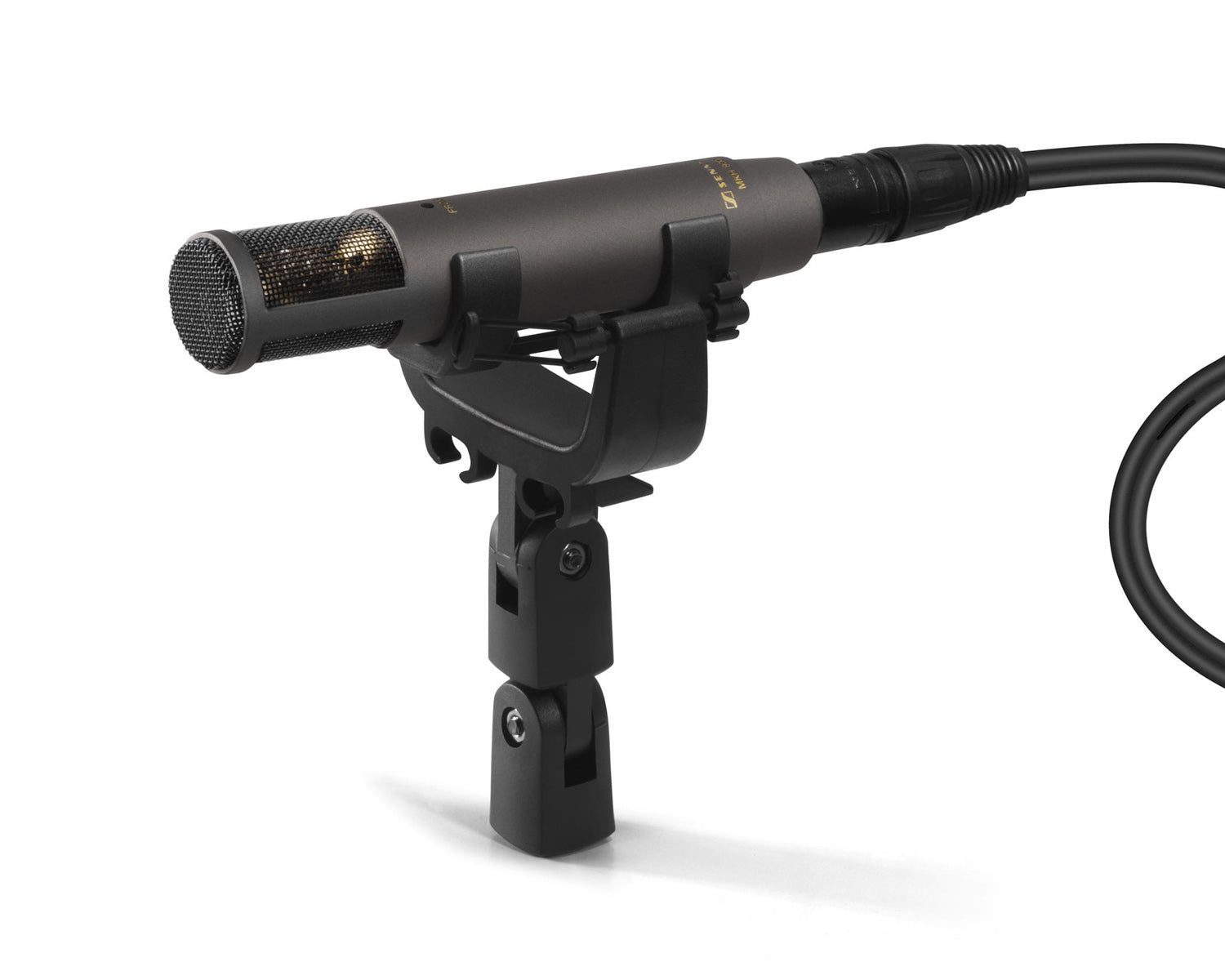

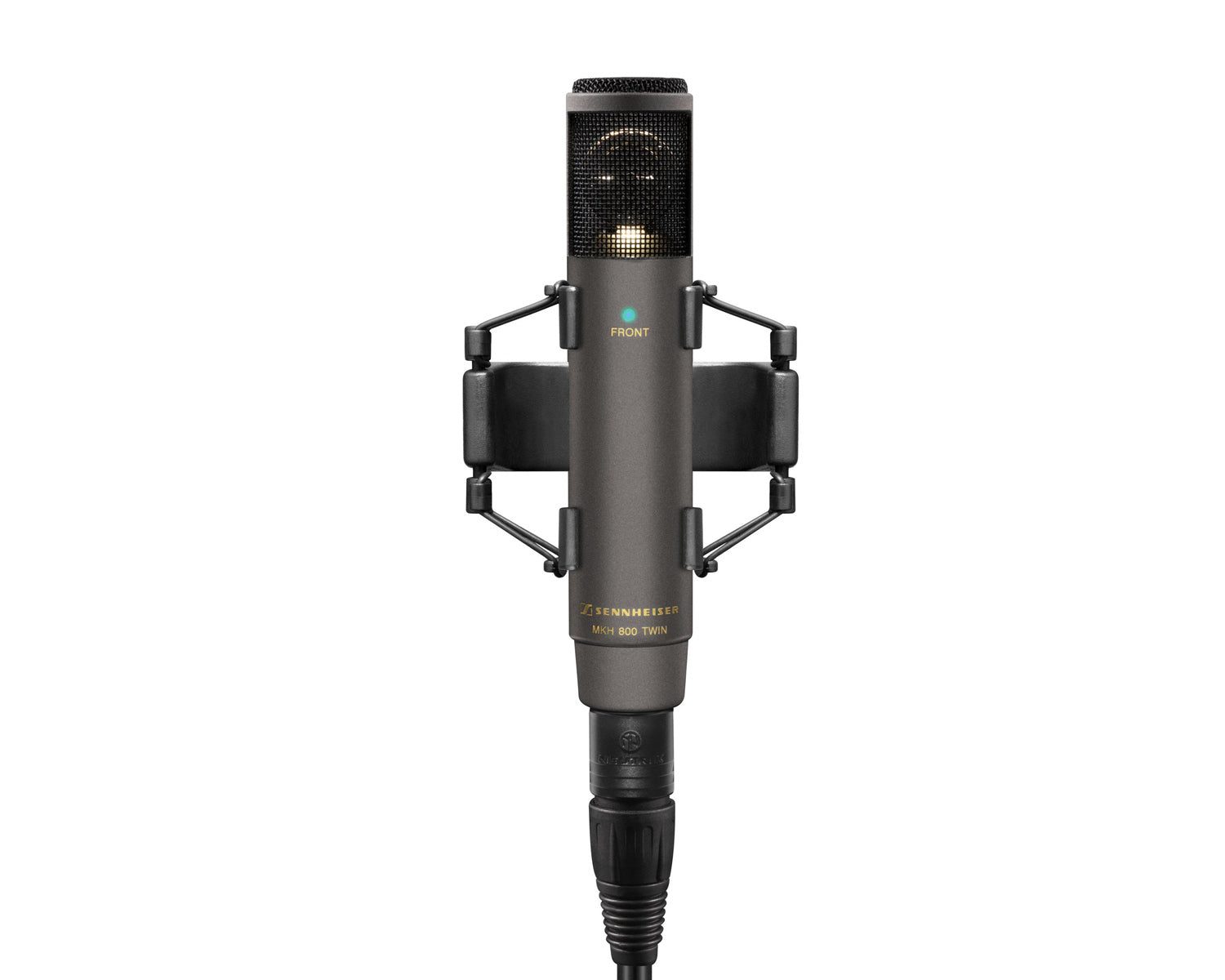

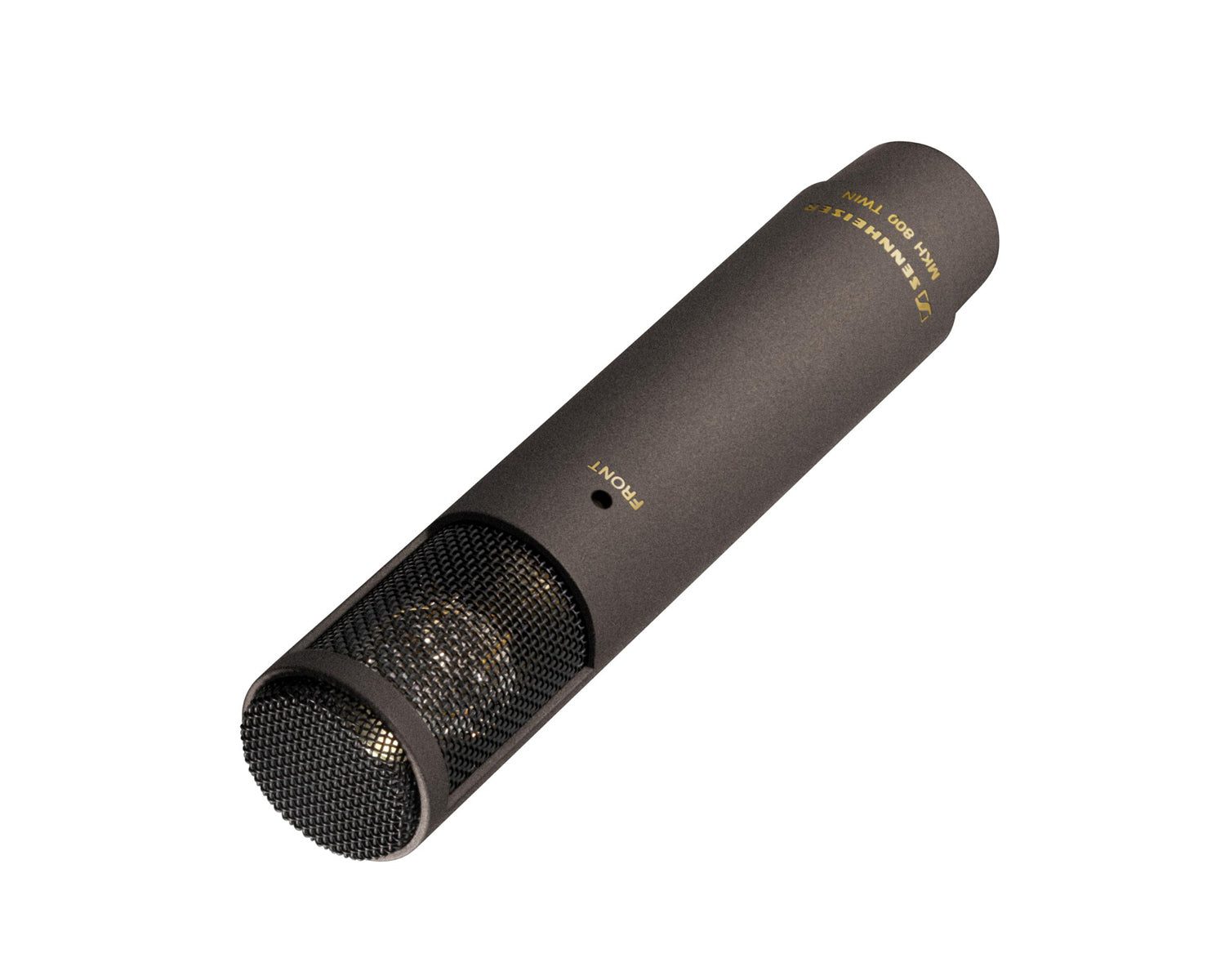

Sennheiser MKH 800 TWIN Nx Universal Studio Condenser Microphone Nextel

• The remote adjustability and the variable pick-up patterns make the MKH 800 TWIN a universal main microphone, soloist microphone or supporting microphone.
• The pick-up patterns can be set and optimised under monitoring conditions. In other words, it is not necessary to fix the pick-up patterns definitively before recording.
• A wide range of mixes for stereo and surround are possible (including in parallel).
• Saving of the microphone signals in two channels also allows an unlimited range of mixes to be realised at a later date.
• The high sensitivity ensures interference-free signal paths as a result of high signal levels. The inherent noise of downstream microphone amplifiers is thus of minor importance.
• Very low inherent noise prevents the masking of filigree sound structures. The depth of the acoustic can be heard more clearly too.
• High linearity of the transducers minimises the signal distortions and ensures the transparency of the sound even at high sound levels.
• The frequency response extends to 50 kHz, thus improving the resolution for complex acoustic details.
• Stable pick-up patterns minimise sound distortion in the direct and diffuse field.
• Negative acoustic effects caused by the housing and the sound inlet basket are minimised.
• The small, slim design and the optionally dark housing design (Nextel) make it visually unobtrusive.
• Finish: Nextel

General

• Frequency response (Microphone): 30 - 50000 Hz
• Transducer principle (Microphone): RF condenser microphone
• Pick-up pattern: omni-directional, cardioid, figure-of-eight
• Sensitivity in free field, no load (1kHz): 40 mV/Pa (-28 dBV)
• Nominal impedance: 100 Ohm
• Min. terminating impedance: 2000 Ohm
• Phantom powering: 48V +/- 4V
• Equivalent noise level: 12 dB (A)
• Equivalent noise level weighted as per CCIR 468-3: 20 dB
• Maximum sound pressure level (passive): 134 dB SPL
• Current consumption: 2 x 3.1 mA
• Dynamic range: 122 dB(A), 114 dB (CCIR)

Physical

• Dimensions: d 27 mm, l 136 mm
• Weight: 172 g
• Finish: Nextel
