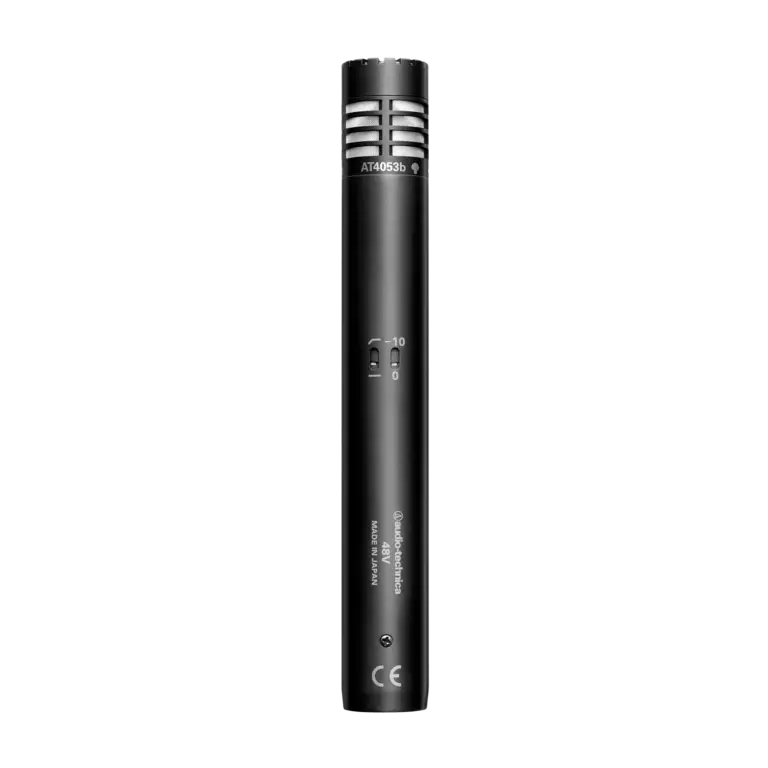

The Audio-Technica AT4053B is a modular hypercardioid condenser microphone from the AT40 Series, built for professional recording, broadcast and sound reinforcement. Its hypercardioid polar pattern reduces pickup from the sides and rear, delivering superior isolation of the desired sound source. The modular design comprises the AT4900b-48 electronic body and AT4053b-EL hypercardioid head capsule (both available separately), with interchangeable omnidirectional (AT4049b-EL) and cardioid (AT4051b-EL) capsules also available. Transformerless circuitry and direct-coupled balanced output ensure a clean, low-distortion signal path.
Polar Pattern
Hypercardioid
Tight pickup pattern
Frequency Response
20 – 20,000 Hz
Full range
High-Pass Filter
80 Hz
Switchable
Pad
10 dB
Switchable
Features
✓
Hypercardioid polar pattern reduces side and rear pickup for superior source isolation
Hypercardioid polar pattern reduces side and rear pickup for superior source isolation
✓
Direct-coupled balanced output for clean signals under high-output conditions
Direct-coupled balanced output for clean signals under high-output conditions
✓
Transformerless circuitry virtually eliminates low-frequency distortion
Transformerless circuitry virtually eliminates low-frequency distortion
✓
Fast transient response for open, transparent reproduction
Fast transient response for open, transparent reproduction
✓
Modular design — body and capsule available separately
Modular design — body and capsule available separately
✓
Interchangeable capsules: omnidirectional (AT4049b-EL) and cardioid (AT4051b-EL)
Interchangeable capsules: omnidirectional (AT4049b-EL) and cardioid (AT4051b-EL)
✓
Switchable 80 Hz high-pass filter and 10 dB pad
Switchable 80 Hz high-pass filter and 10 dB pad
✓
Rugged turned-brass housing for long-term dependability
Rugged turned-brass housing for long-term dependability
Specifications
| Element | Externally polarised (DC bias) condenser |
| Polar Pattern | Hypercardioid |
| Frequency Response | 20 – 20,000 Hz |
| High-Pass Filter | 80 Hz (switchable) |
| Pad | 10 dB (switchable) |
| Output | Direct-coupled, balanced, transformerless |
| Housing | Turned brass |
