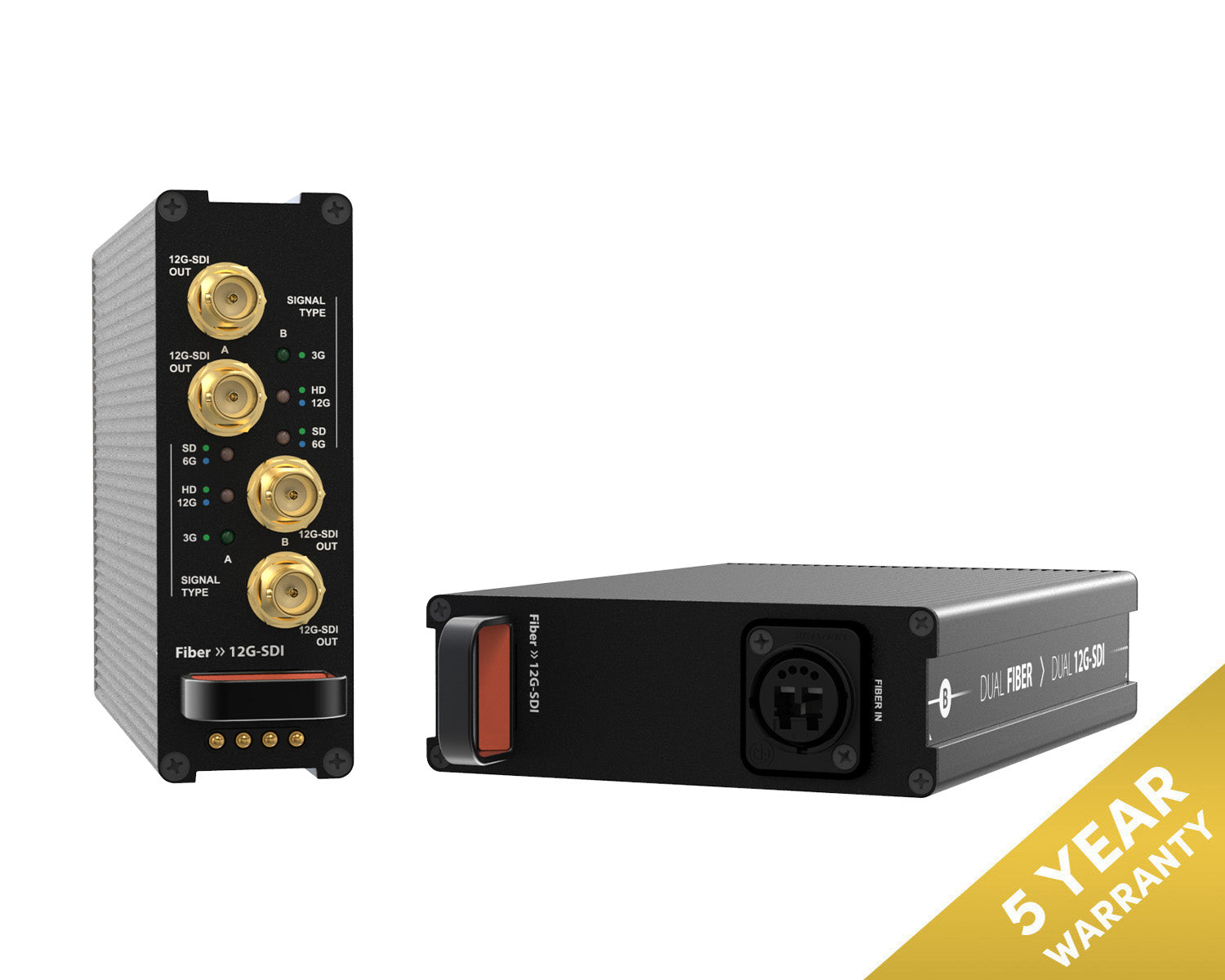

The Theatrixx xVision Reversible DUAL Fibre to 12G-SDI module receives two independent fibre optic signals via a Neutrik opticalCON Duo connector and outputs them as two 12G-SDI feeds over BNC. A B-size dual module designed for high-bandwidth 4K workflows where fibre runs need converting back to SDI at the destination end. Hot-swappable into any xVision Reversible frame.
Fibre MM
Input · opticalCON Duo
2x 12G-SDI
Output · Dual BNC
4K UHD
Max Resolution · 2160p via 12G-SDI
B-Size Dual
Module Size · Double-width slot
Dual ChannelThis module carries two fully independent 12G-SDI channels over a single opticalCON Duo connector. Each fibre in the Duo pair handles one SDI channel, simplifying cable management on long fibre runs while maintaining full 12G bandwidth on each path.
Features
Converts dual multimode fibre to two independent 12G-SDI outputs
Neutrik opticalCON Duo connector – rugged, locking fibre interface
Supports 12G-SDI for 4K UHD single-link transport
Reversible design – insert from front or rear of frame
Hot-swappable – swap modules without powering down the frame
Fully enclosed module – protected against static, dust, and wear
Gold-plated redundant spring pins with magnetic retention for DC power
No external power supplies or additional cabling required
NoteRequires a Theatrixx 2-Bay (RF2) or 8-Bay (RF8) Reversible Rackmount Converter frame (sold separately).
Specifications
| SKU | XVVRM2FIBER2SDI12GM2 |
| Input | Multimode Fibre (opticalCON Duo) |
| Output | 2x 12G-SDI (BNC) |
| Channels | 2 independent SDI channels |
| SDI Standard | SD / HD / 3G / 12G-SDI |
| Module Size | B-size dual-width |
| Compatible Frames | xVision RF2 (2-Bay), RF8 (8-Bay) |
