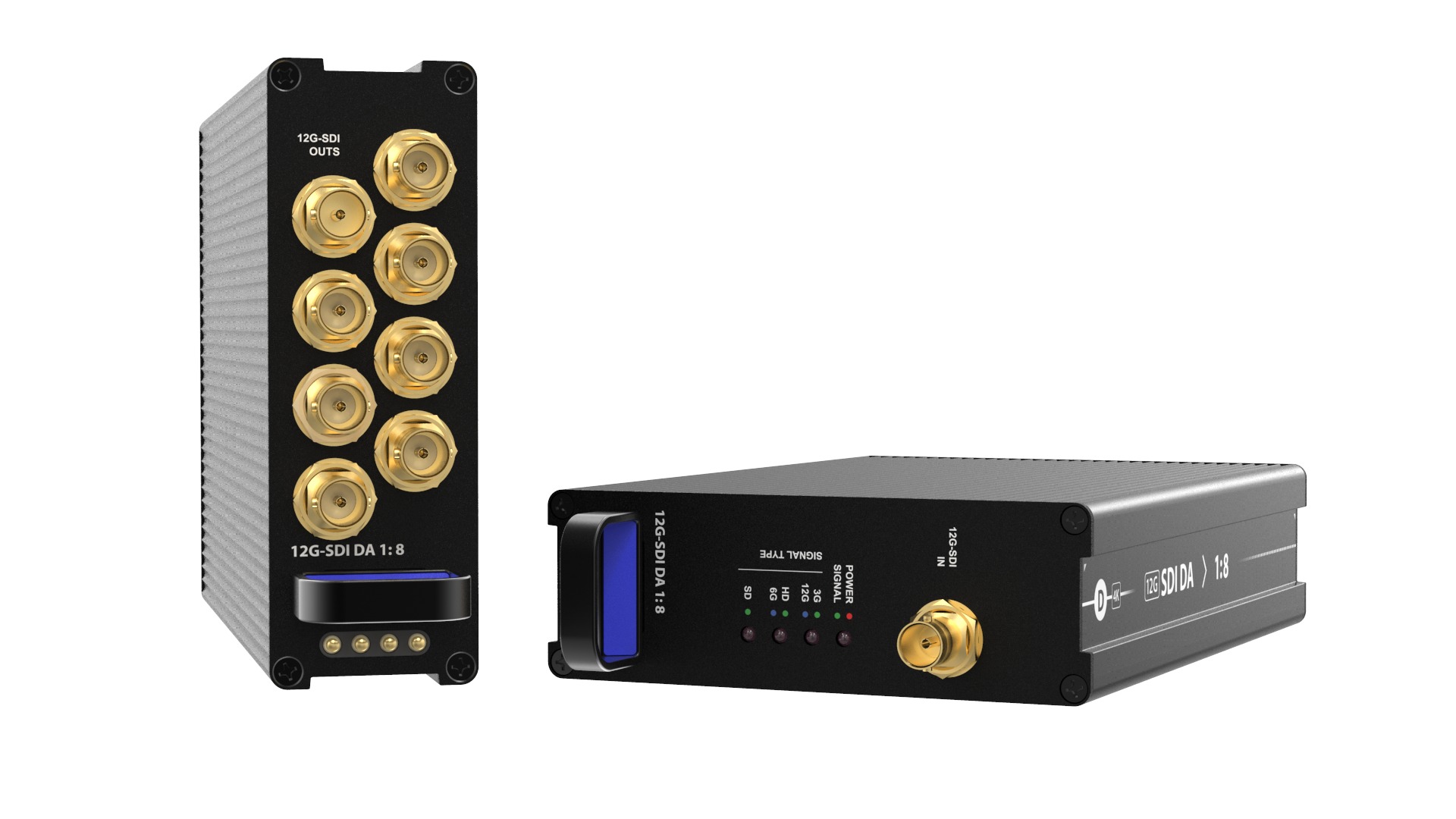

For 4K workflows requiring signal distribution at scale, the Theatrixx xVision Reversible 1:8 12G-SDI DA splits a single 12G-SDI input across eight buffered outputs. Eight outputs from one module slot makes this particularly efficient for large LED wall feeds, multi-destination recording, or broadcast distribution – all powered directly from the xVision Reversible frame.
Distribution
1:8
1 in, 8 out
SDI Standard
12G-SDI
4K UHD capable
Max Resolution
4K UHD
2160p via 12G-SDI
Outputs
8x BNC
Buffered & re-clocked
Features
✓
1 input to 8 buffered, re-clocked 12G-SDI outputs
1 input to 8 buffered, re-clocked 12G-SDI outputs
✓
Supports SD-SDI, HD-SDI, 3G-SDI, and 12G-SDI signals
Supports SD-SDI, HD-SDI, 3G-SDI, and 12G-SDI signals
✓
4K UHD distribution over single-link 12G-SDI
4K UHD distribution over single-link 12G-SDI
✓
Reversible design – insert from front or rear of frame
Reversible design – insert from front or rear of frame
✓
Hot-swappable – swap modules without powering down the frame
Hot-swappable – swap modules without powering down the frame
✓
Fully enclosed module – protected against static, dust, and wear
Fully enclosed module – protected against static, dust, and wear
✓
Gold-plated redundant spring pins with magnetic retention for DC power
Gold-plated redundant spring pins with magnetic retention for DC power
✓
No external power supplies or additional cabling required
No external power supplies or additional cabling required
Note

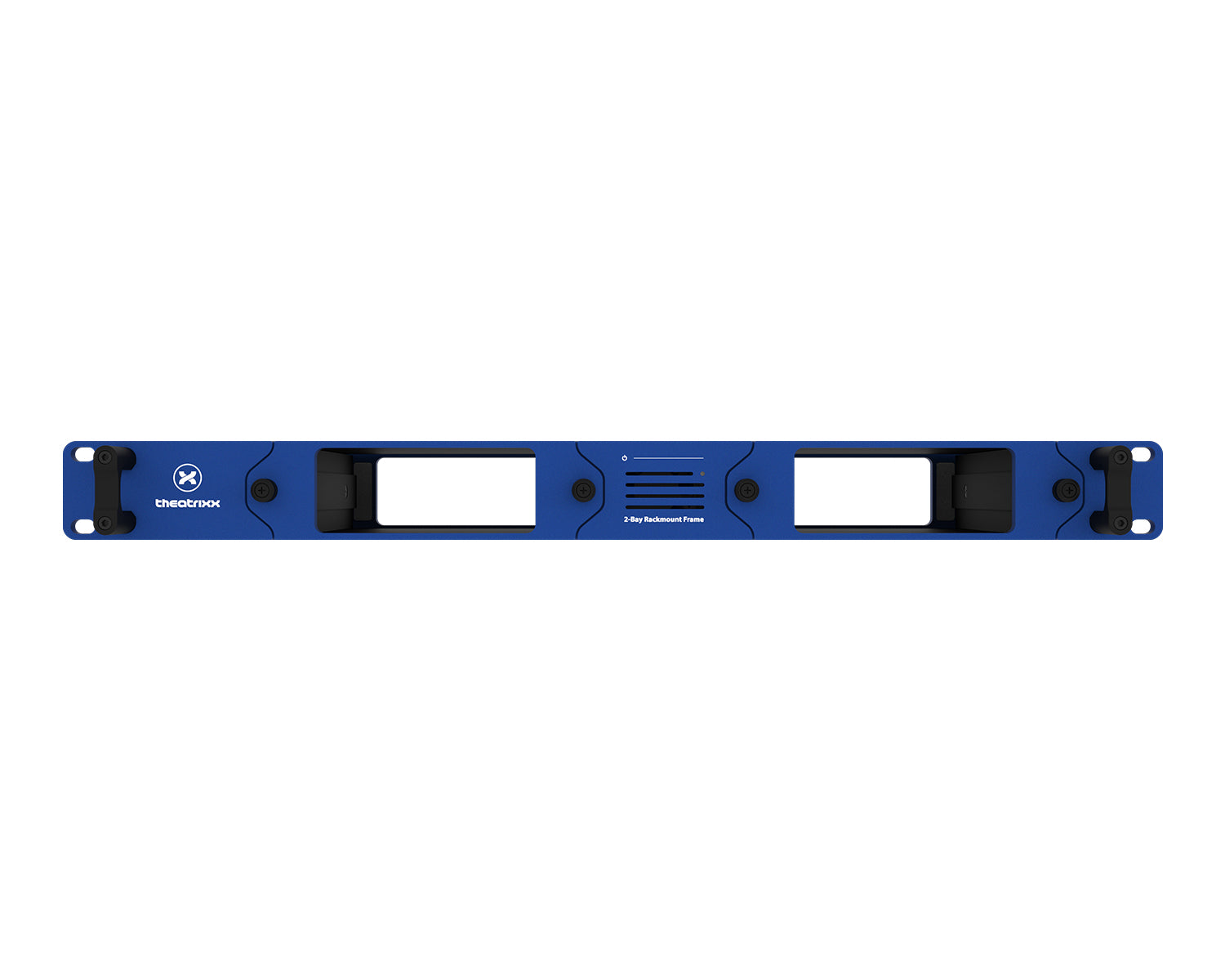

Requires a Theatrixx 2-Bay (RF2) or 8-Bay (RF8) Reversible Rackmount Converter frame (sold separately).
Specifications
| SKU | XVVRMSDIDA812G |

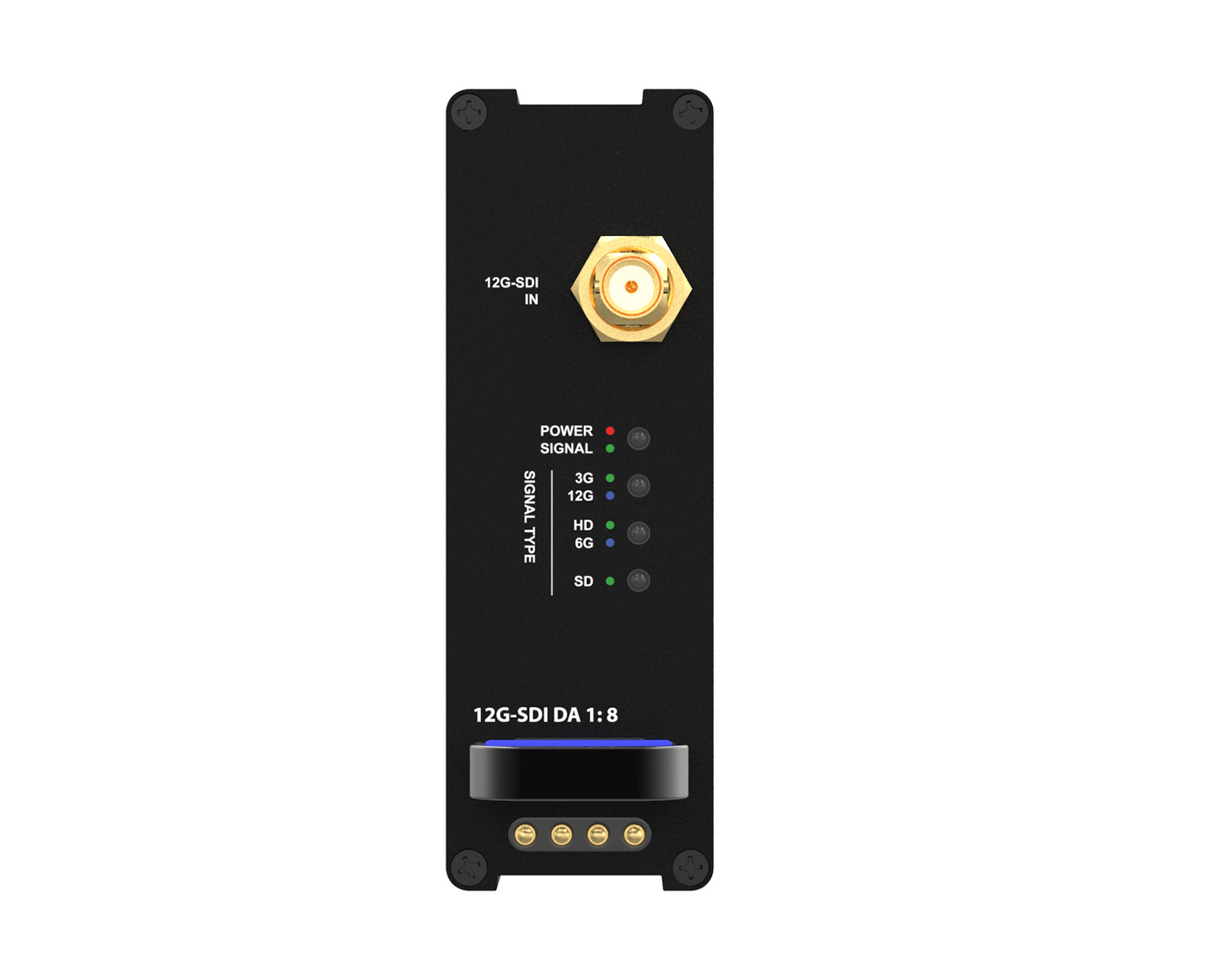

| Input | 1x 12G-SDI (BNC) |

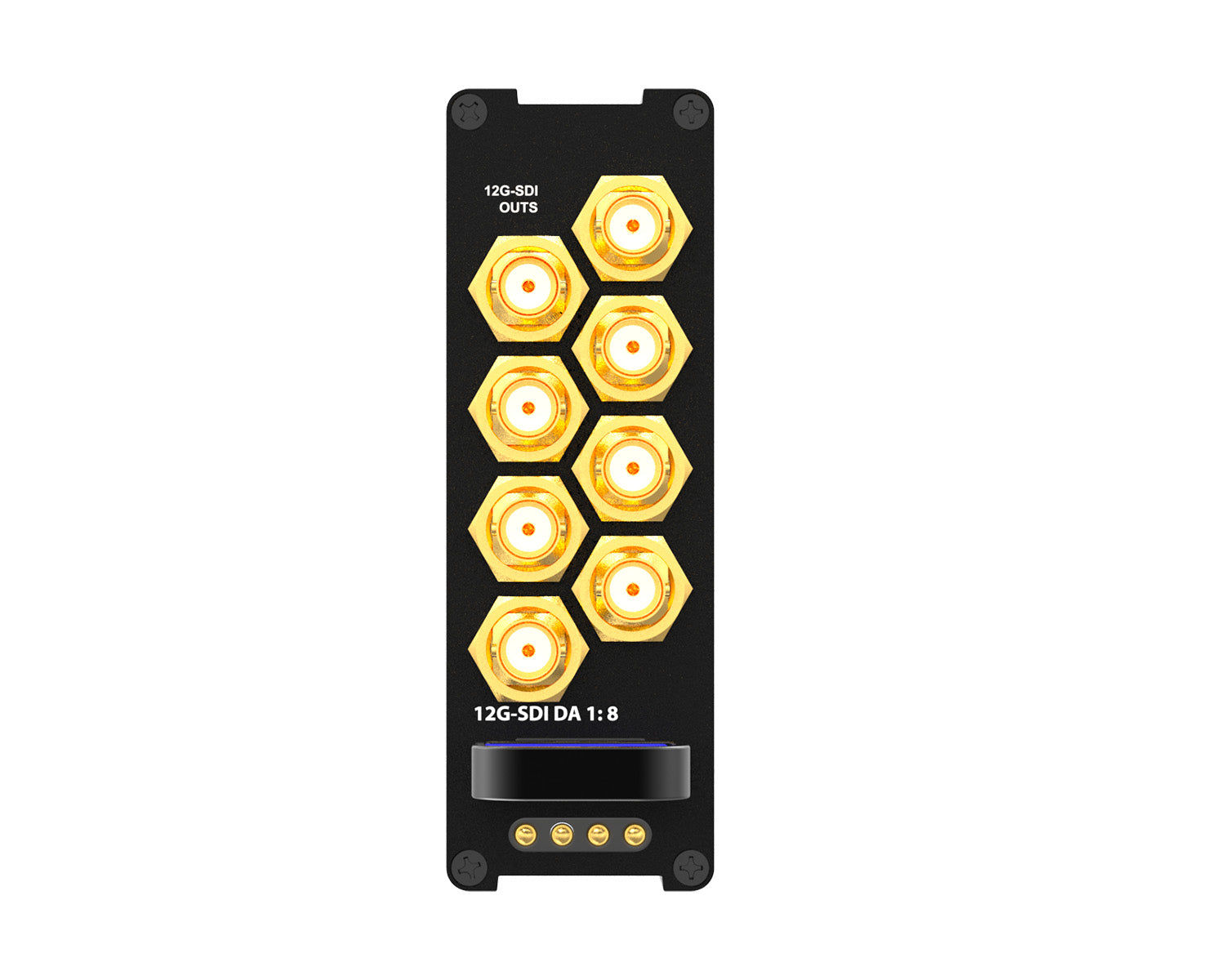

| Output | 8x 12G-SDI (BNC) |
| SDI Standard | SD / HD / 3G / 12G-SDI |
| Maximum Resolution | 4K UHD (2160p) via 12G-SDI |
| Module Size | Single-width |
| Compatible Frames | xVision RF2 (2-Bay), RF8 (8-Bay) |
