Tourspec 15m Neutrik Combi Cable 2.5mm² powerCON TRUE1 TOP and 5-Pin DMX

SKU: CABL2066
Sold out

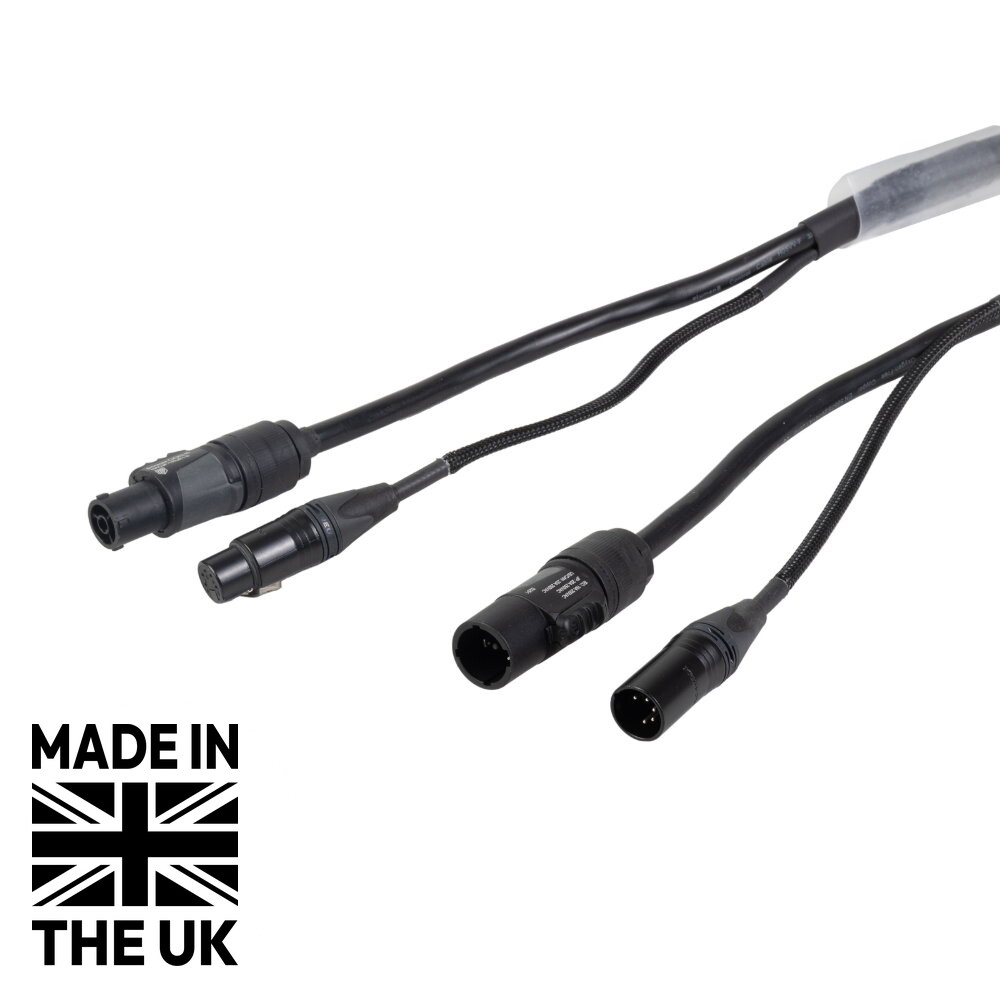

Tourspec 15m Combi Cable 2.5mm² Neutrik powerCON TRUE1 TOP and 5-Pin DMX (CABL2066)
Tourspec 15m Combi Cable 2.5mm² Neutrik powerCON TRUE1 TOP and 5-Pin DMX (CABL2066)
Click to enlarge

    £132.00 inc VAT
    £110.00 ex VAT

    Out of stock

    Out of Stock
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    Available lengths
    10m15m20m
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    A 15m British-made hybrid cable carrying DMX signal and mains power in one outer jacket, terminated with Neutrik powerCON TRUE1-TOP and 5-Pin XLR at both ends. 15m is the useful middle length in a hybrid stock – it covers the drop from an overhead bar down to deck level, or a mid-length link between fixture clusters, without the bulk of a 20m coil on every position.

    15m
    Length · Bar to deck drop
    2.5mm²
    Power core · H05VV-F, 3 core
    110Ω
    Signal · 5-Pin XLR, DMX512
    Neutrik
    Connectors · powerCON TRUE1-TOP
    TRUE1-TOP connectorsTerminated with Neutrik powerCON TRUE1-TOP, the sealed, outdoor-rated version of powerCON TRUE1. TRUE1-TOP and standard TRUE1 connectors are fully compatible with each other, but neither mates with the original blue/grey powerCON. Check what is fitted to your fixtures before ordering a hybrid run.
    Input end

    Male connectors, toward the source

    5-Pin XLR male
    powerCON TRUE1-TOP male
    Output end

    Female connectors, toward the fixture

    5-Pin XLR female
    powerCON TRUE1-TOP female
    Features
    15m length covers overhead bar to deck without excess slack
    Coils smaller than a 20m run for tighter cable trunks
    Made in Britain with Neutrik connectors throughout
    H05VV-F harmonised standard 2.5mm² 3 core power
    Nylon braided signal tail with adhesive lined heatshrink
    Oxygen-free copper cores for signal integrity
    Suits 110Ω balanced data: DMX512, RS422, RS485, timecode
    Also carries analogue or AES digital audio alongside power
    Selected fillers hold the jacket round so it coils cleanly
    Clear heatshrink for identification or asset labelling
    Specifications
    Stock code CABL2066
    Length 15m
    Cable eLumen8 TOUR hybrid cable
    Configuration 5-Pin XLR male + powerCON TRUE1-TOP male to 5-Pin XLR female + powerCON TRUE1-TOP female
    Power core H05VV-F 2.5mm², 3 core
    Signal impedance 110Ω balanced
    Conductors Oxygen-free copper
    Connectors Neutrik
    Barcode / EAN 5056742203631
    Manufactured Made in Britain

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • Made in Britain
    • Neutrik connectors
    • 5-Pin XLR male plus powerCON TRUE1-TOP male to 5-Pin XLR female plus powerCON TRUE1-TOP female
    • Nylon braided signal cable secured by adhesive lined heatshrink
    • Analogue or AES digital audio, RS422/485 or DMX512 control with a 3 core power cable
    • H05VV-F harmonised standard 2.5mm² power core
    • Clear heatshrink suitable for identification or asset label
    • Suitable for most 110Ω balanced data applications such as RS422, RS485, DMX512, and timecode
    • Oxygen-free copper cores for maximum signal integrity
    • Length: 15m
