ADJ UBL6H LED HEX Batten

SKU: ADJ1226200070
ADJ UBL6H
ADJ UBL6H
ADJ UBL6H
ADJ UBL6H
ADJ UBL6H
ADJ UBL6H
Click to enlarge

    £184.00 inc VAT
    £153.33 ex VAT

    1 available online
    Delivered by MondayOrder by 3pm
    Click & Collect tomorrow ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

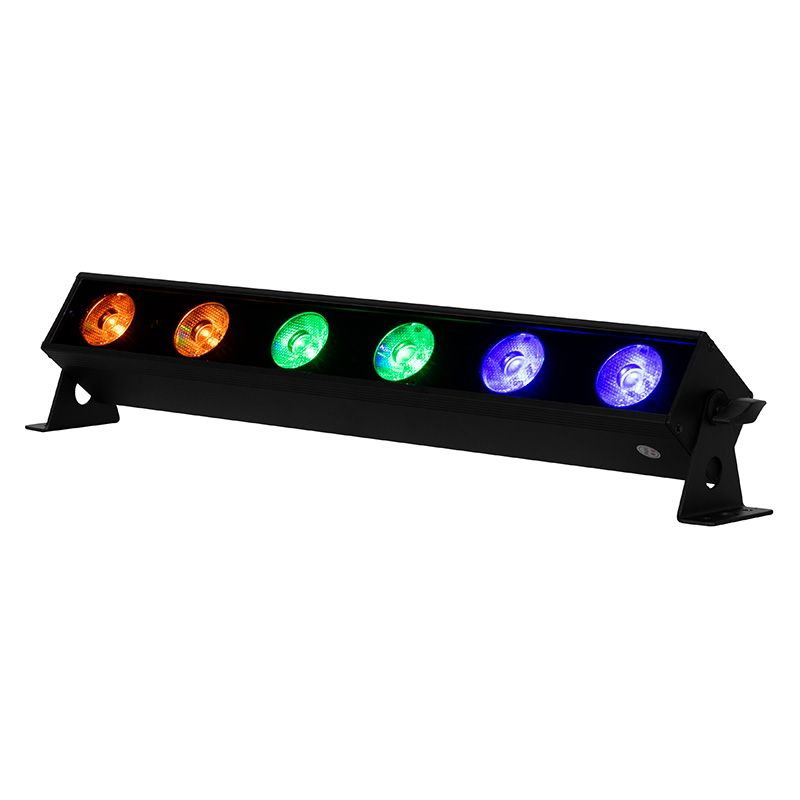

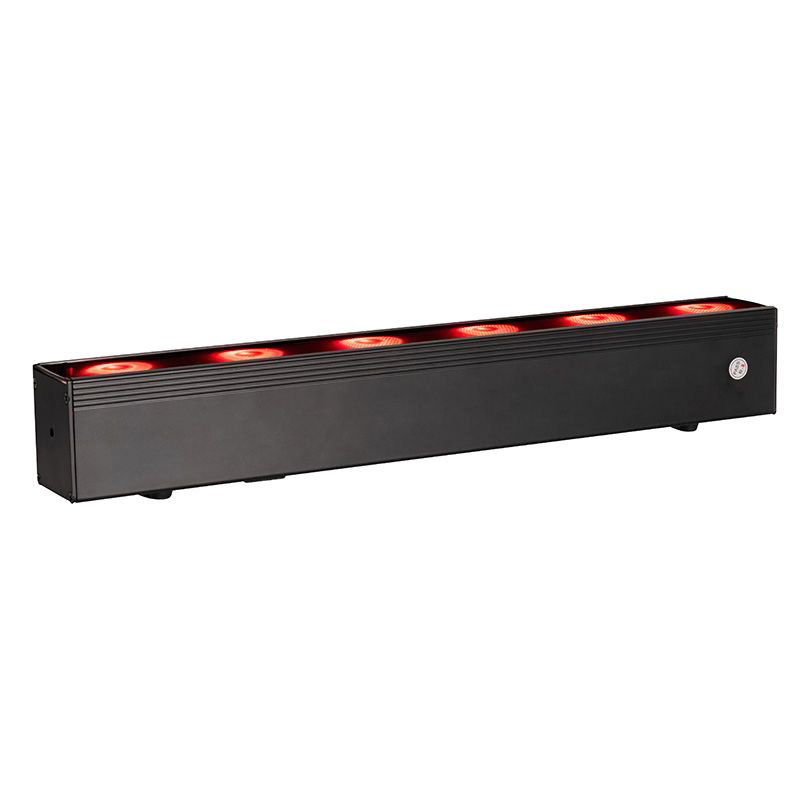

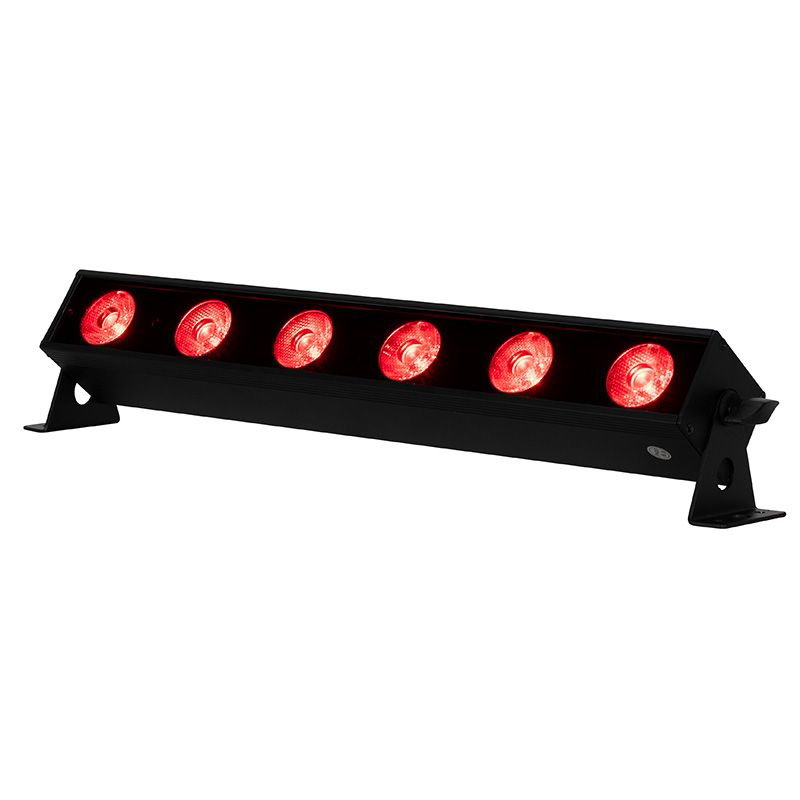

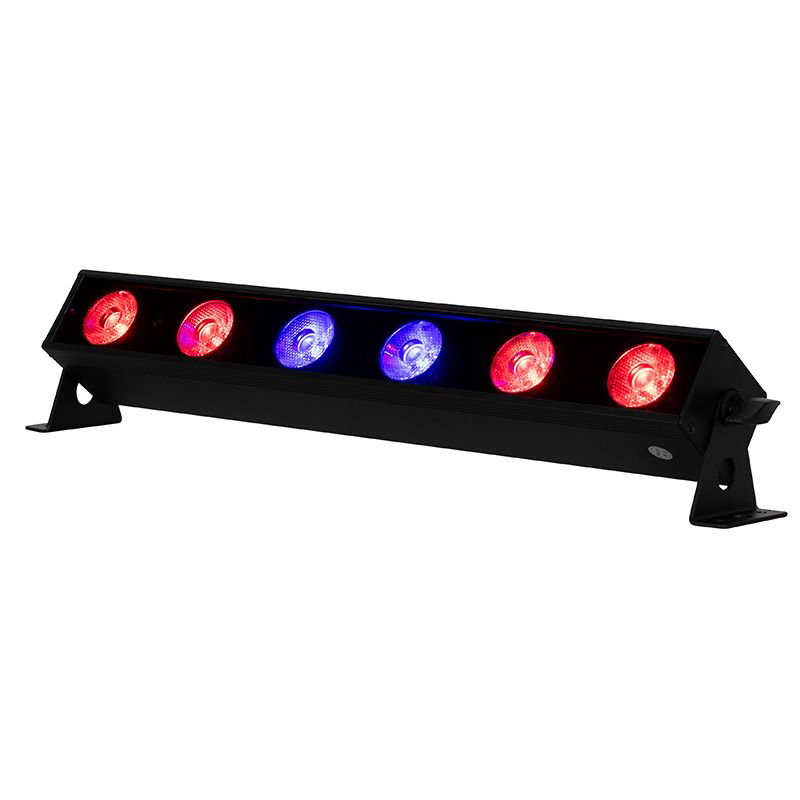

    The ADJ UBL6H (part 1226200070) is a half-metre HEX LED linear wash fixture from the Ultra Series. Six 20W HEX LEDs (red, green, blue, amber, lime and UV) deliver smooth colour mixing with a CRI above 90 and linear colour temperature control from 2,300K to 9,900K. The lime chip improves colour rendering, and a horizontal magnetic alignment feature lets multiple fixtures join seamlessly. Supplied with a locking power cord, UC-IR24 remote, 20 degree diffusion filter and mounting brackets.

    Key Features
    6x 20W RGBAL+UV HEX LEDs
    CRI greater than 90
    Linear colour temperature 2,300K to 9,900K
    17 degree beam angle, 85.5mm pixel pitch
    Horizontal magnetic alignment feature
    RDM compatible, 7 DMX channel modes
    64 built-in colour macros, sound trigger
    Locking power in/out, up to 50 units at 230V
    Specifications
    Light source 6x 20W RGBAL+UV, 50,000 hour rating
    Beam angle 17 degrees
    DMX modes 6, 11, 13, 16, 18, 25, 28 channel
    Connections 5-pin XLR DMX, locking power in/out
    Power input AC 100 to 240V 50/60Hz
    Power draw 26W
    IP rating IP20
    Dimensions (L x W x H) 75 x 568.9 x 106.7mm
    Weight 2kg
    Compare the Range
    ADJ UBL6H
    ADJ UBL6H LED HEX Batten
    £184.00 inc VAT
    £153.33 ex VAT
    • IP rating: IP20
    • Beam angle: 17 degrees
    Viewing Now

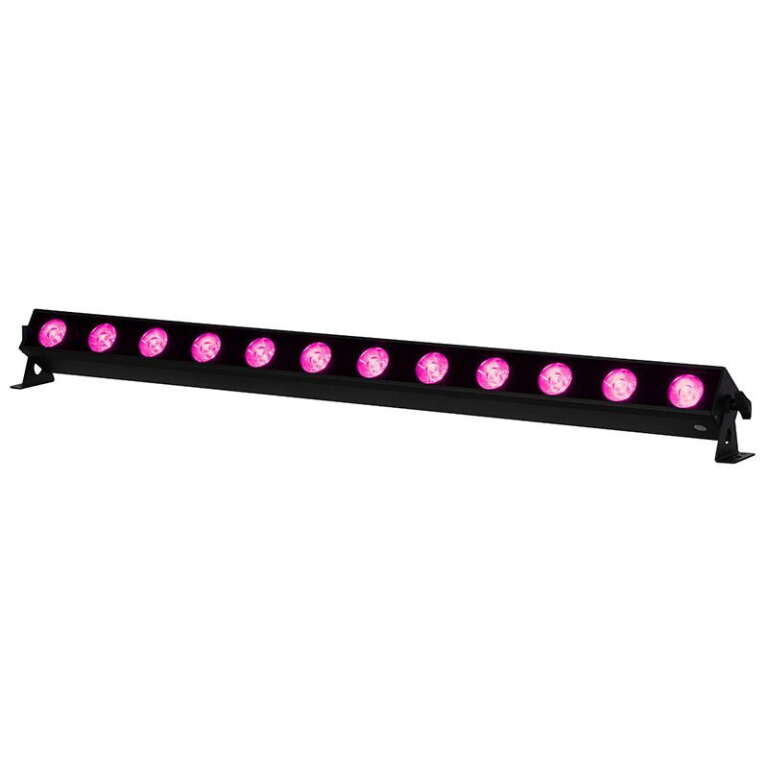

    ADJ UBL12H LED HEX Batten
    ADJ UBL12H LED HEX Batten
    £290.00 inc VAT
    £241.67 ex VAT
    • IP rating: IP20 (indoor use)
    • Beam angle: 17° (40° with optional lens kit)
    • LED source: 12 x 20W RGBAL + UV HEX
    View →

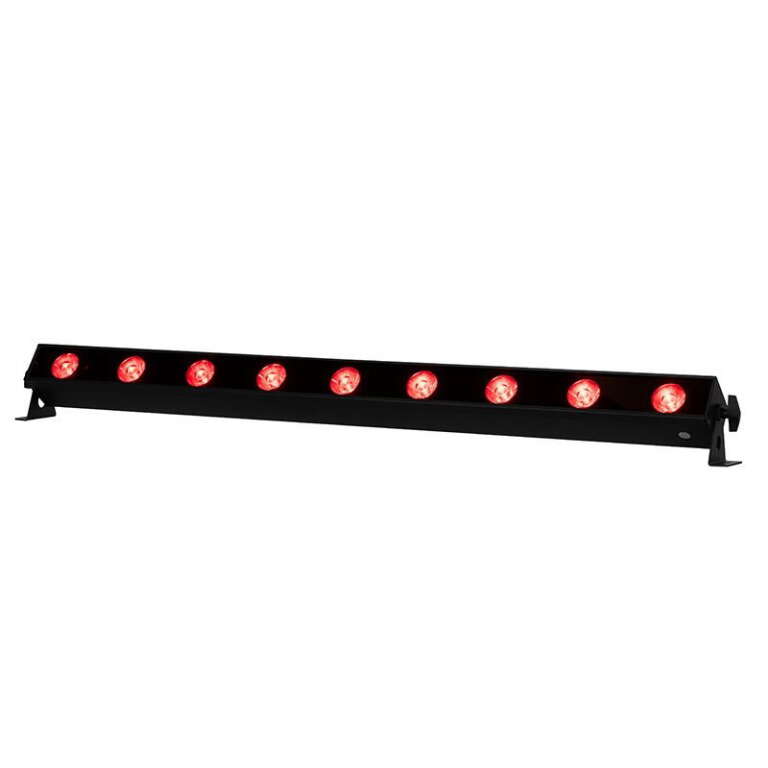

    ADJ UBL9H LED HEX Batten
    ADJ UBL9H LED HEX Batten
    £242.00 inc VAT
    £201.67 ex VAT
    • IP rating: IP20 (indoor use)
    • Beam angle: 17° (40° with optional lens kit)
    • LED source: 9 x 20W RGBAL + UV HEX
    View →

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    SPECIFICATIONS
    Light Source:
    • 6 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
    • Long Life LEDs (Rated at approximately 50,000 hrs.)
    • 17° beam angle
    • CRI >90
    • Pixel Pitch: 85.5mm
    Features:
    • Linear Colour Temperature Control (2,300K to 9,900K)
    • Smooth RGBAL+UV colour mixing

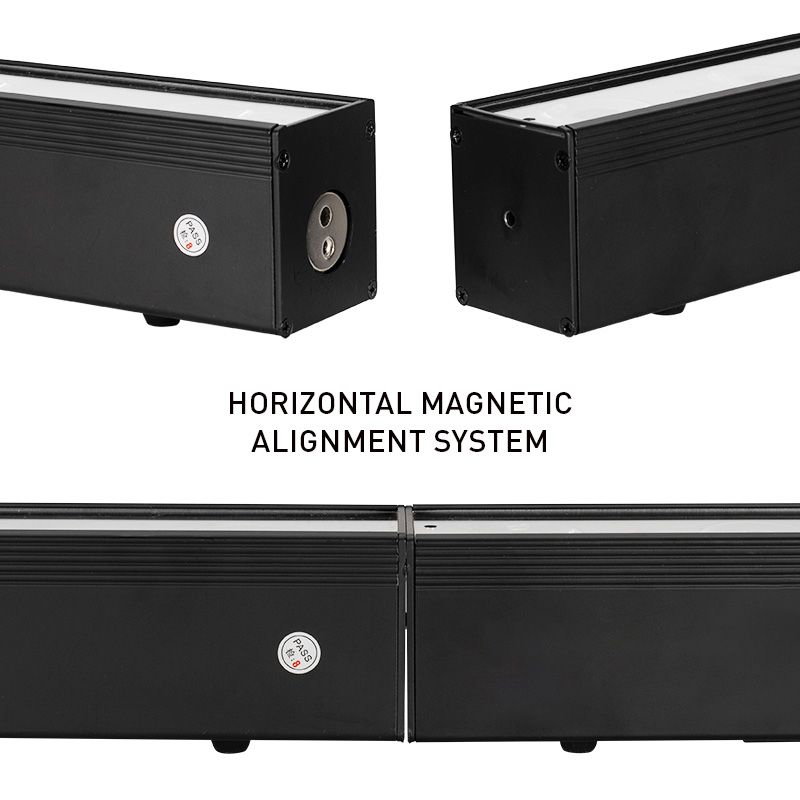

    • Horizontal Magnetic Alignment feature (Built-In)
    • Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 10 meters
    • RDM Compatible
    Control:
    • Linear Colour Temperature Control (2,300K to 9,900K)
    • OLED Display with 4-buttons
    • 7 DMX Channel Modes: 6, 11, 13, 16, 18, 25, & 28 Channels
    • 3 Groups x2 RGBAL+UV LED pixels controllable via DMX in 18, 25 & 28 channel modes
    • 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
    • LED Refresh Rate: 1.9KHz
    • 64 built-in Colour Macros
    • 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
    • 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
    • Built-In Microphone for sound trigger
    • LED pulse and strobe effect
    • Electronic Dimming: 0-100%

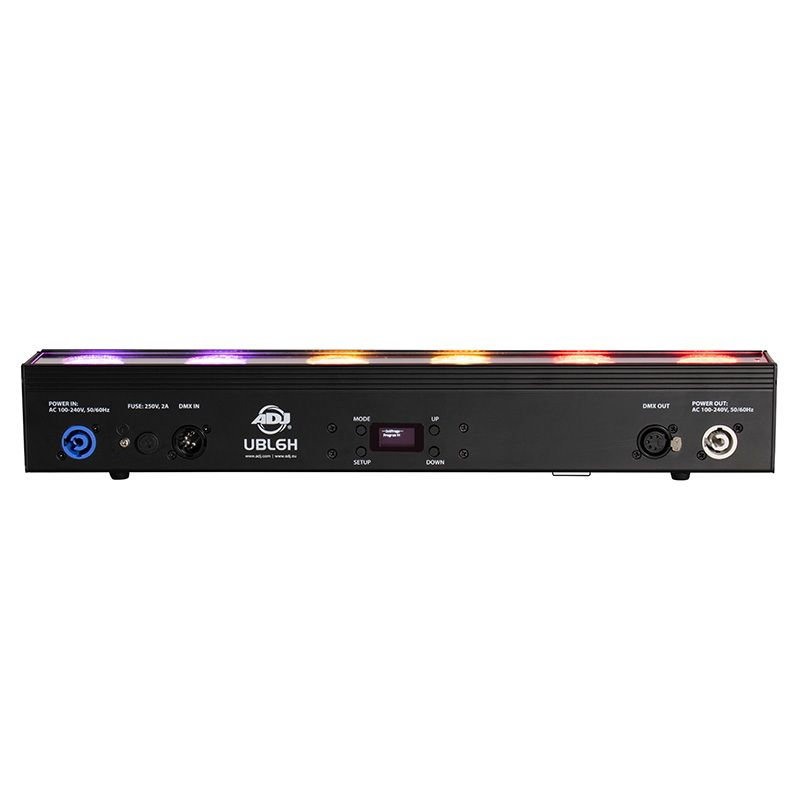

    Connections:
    • Linkable: DMX via 5-pin XLR cable
    • Locking power In/Out to daisy chain power
    Electrical:
    • Multi-voltage operation: AC 100V-240V 50/60Hz
    • Power Draw: 26W
    • Daisy-chain power link (Up to 50 UBL6H's can be linked @230V)
    Dimensions / Weight:
    • Dimensions (LxWxH): 75 x 568.9 x 106.7mm
    • Weight: 2 kg
    Certifications / IP Rating:
    • CE
    • FCC
    • IP20
    Environment:
    Operational Temperature Range: -20°C ~ 45°C
    Storage Temperature: -20°C ~ 45°C
    What's Included:
    • (1) Indoor Locking Power Cord
    • (1) UC-IR24
    • (1) 20° Diffusion Filter
    • Includes mounting brackets to set on the ground or to mount a clamp to for truss mounting
    Optional Accessories:
    • (1) 1x40° Linear Diffusion Lens
    Note: Specifications are subject to change without notice.

    Manuals & Downloads

    PDFManuals & Instructions: adj_ubl6h_-_user_manual_1.pdfPDF
