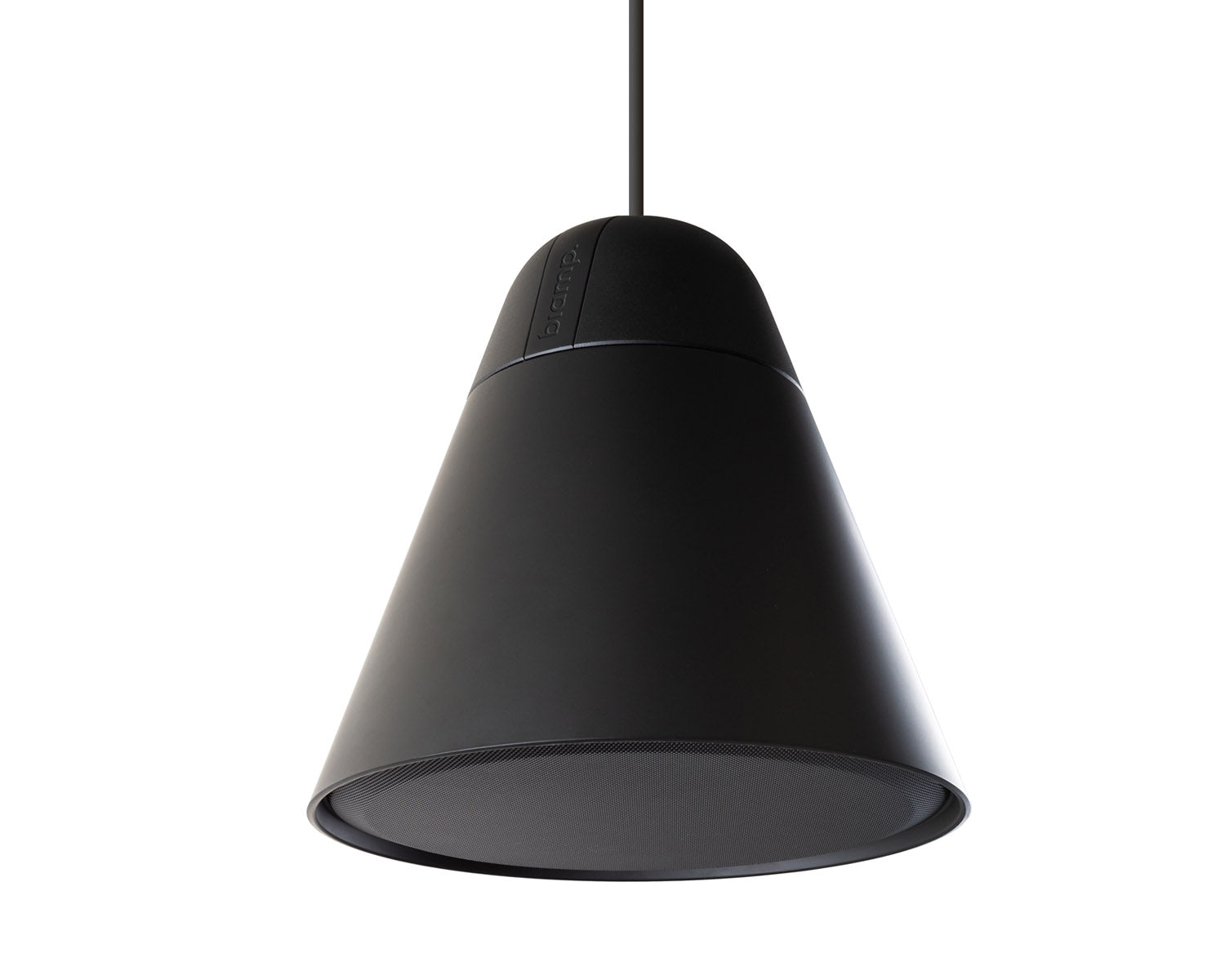

Biamp Apart P30DT-BL 4.25" Two-Way Pendant Loudspeaker 100V Black

Product code: 156039

£211.00 inc VAT
£175.83 ex VAT

SKU: 920-00904-10000
21 available online
More available from supplier in 1–3 weeks
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
Other colours available
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 30 / 15 / 7.5 / 3.75W) or low impedance (16Ω).

The Apart P30DT-BL (920-00904-10000) is a 4.25in two-way pendant loudspeaker for indoor use, finished in black. A tap switch selects 70V, 100V or 16 ohm low impedance operation, and the installer-friendly end cap with magnetic closure hides the tap selector and cable connections. Supplied with two tool-less Gripple cable fasteners for fast suspension.

Key Features

4.25in coated paper LF and 1in soft dome HF
Tap switch for 70V, 100V or 16 ohm operation
Magnetic end cap hides tap selector and connections
Two tool-less Gripple cable fasteners supplied
Euroblock connector with pass-through
Tuned bass reflex port
Self-resetting loudspeaker overload protection
Black finish

Specifications

Biamp Apart P30DT-BL 4.25″ Two-Way Pendant Loudspeaker 100V Black specifications
Type 2-way 4.25-inch pendant loudspeaker
Operating Mode Passive
Drivers LF 1 x 4.25 inches; HF 1 x 1 inch
Power 50W continuous; 200W peak
Transformer 70V: 30W, 15W, 7.5W, 3.75W, 1.75W; 100V: 30W, 15W, 7.5W, 3.75W
Impedance 16Ω
Frequency range 75 Hz to 20 kHz
Sensitivity 87 dB (1W/1m)
Maximum Output 104 dB; 110 dB peak
Dispersion 120° conical
Beamwidth 120°, conical
Recommended amplifier 50W to 100W @ 16 ohms, (28V to 40V)
Operating Environment Indoor
Mounting Two 5m (16.4 ft) wire suspension cables (one as primary support, one as a safety cable), of high tensile galvanized steel wire rope with integrated spring clips for attaching the cable to the bracket and Gripple cable fasteners
Included Accessories Included Accessories:; Two wire suspension cables; Two Gripple cable fasteners; End cap and cable cover; Recommended Accessories:; 75 Hz, 12dB/Oct High Pass; Optional Accessories:; MC-PHK16-12PK: Pendant Hanging Kit with twelve (12) 5m (16ft) lengths of Magic Cable and the connectors to suspend snap-hook-mounted pendant loudspeakers. Available in White or Black.
Enclosure Enclosure / Finish:; ABS plastic, matte finish, White or Black; Grille:; Powder-coated perforated steel; White (RAL 9011) or Black (RAL 9010) finish
Finish Black
Dimensions 233 mm diameter x 223 mm
Weight 2.6 kg
Certifications ETL listed to comply with UL Std 1480A; Certified to CSA C22.2#62368-1; Suspension system and Gripple cable fasteners listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-81.

Full features

  • Installer-friendly end cap with cut-out slot and integrated magnetic closure; hides the tap selector and all cable connections
  • Two tooless Gripple® cable fasteners are provided for a safe, secure, and fast installation
  • Euroblock connector with permanent pass-through
  • Tap switch allows for 70V/100V or 16 ohm low impedance operation
  • Tuned bass reflex port for optimized low frequency performance
  • Loudspeaker overload protection for 24/7 failsafe operation
  • ETL listed to conform with UL Std 1480A; Certified to CSA C22.2#62368-1

Full specifications

General

  • Operating Mode: Passive
  • Operating Environment: Indoor
  • Operating Range (-10dB): 75 Hz to 20 kHz
  • Nominal Beamwidth (H x V): 120°, conical
  • Transducers
    • LF 1 x 4.25" (108 mm) coated paper cone
    • HF 1 x 1" (25 mm) soft dome
  • Continuous Power Handling @ Nominal Impedance
    • Passive
    • 28V
    • 50W @: 16 ohms (200W peak)
  • Nominal Sensitivity @ 1m
    • Passive
    • @ 1W: 87 dB
    • @ 2.83V: 84 dB
  • Nominal Maximum SPL @ 1m
    • Passive
    • Peak: 110 dB
    • Continuous: 104 dB
  • Transformer
    • 70V: 30W, 15W, 7.5W, 3.75W, 1.75W
    • 100V: 30W, 15W, 7.5W, 3.75W
  • Protection: Self-resetting loudspeaker protection
  • Recommended Accessories: 75 Hz, 12dB/Oct High Pass
  • Recommended Amplifiers: 50W - 100W @ 16 ohms, (28V - 40V)

Physical

  • Dimensions: H x W 223 mm x 233 mm (8.78" x 9.17")
  • Weight: 2.6 kg (5.7 lbs)
  • Finish: Black
