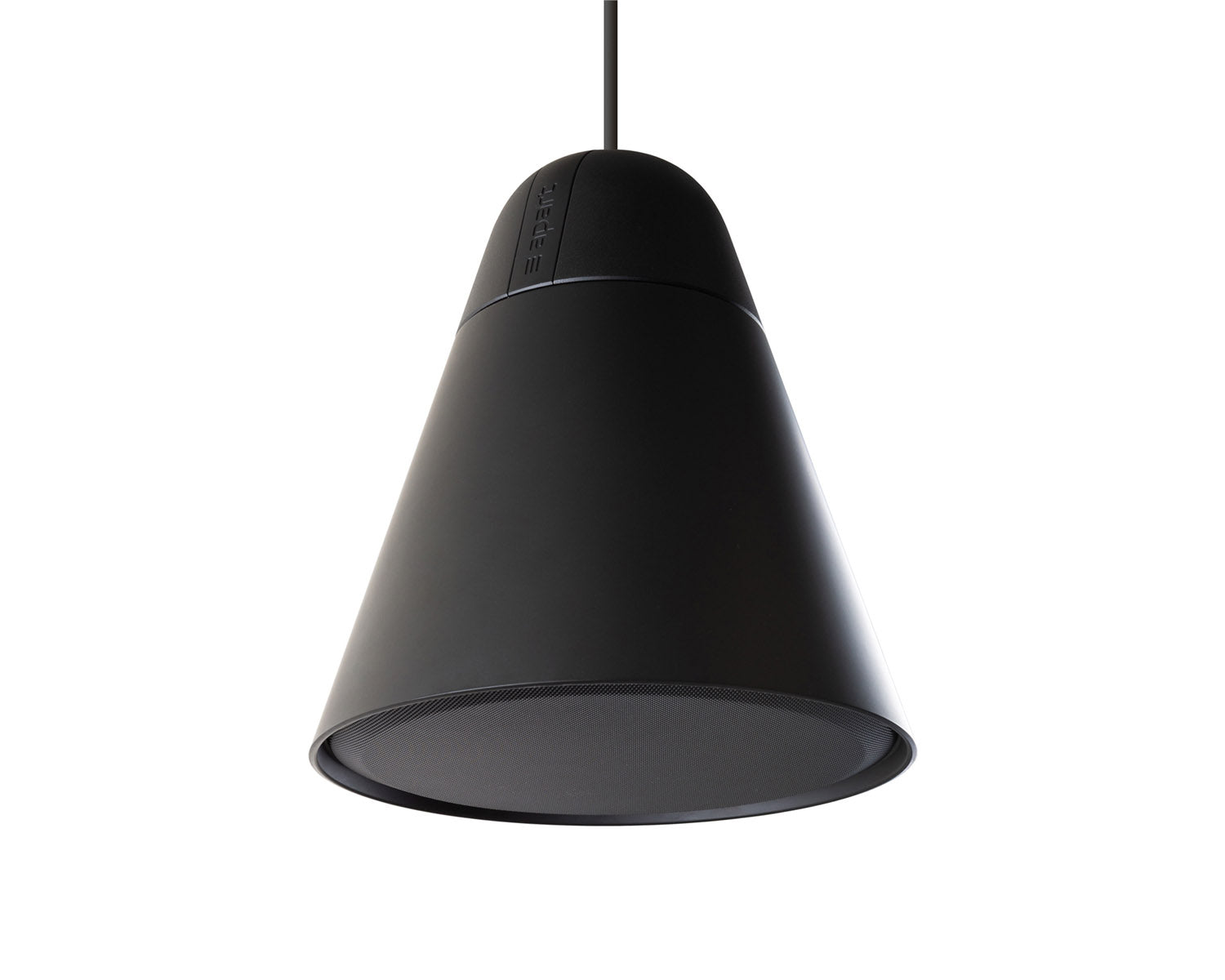

The Apart P60DT-BL (920-00647-10000) is a 6.5in two-way pendant loudspeaker for indoor use, finished in black. It runs at 70V, 100V or 16 ohm and uses a dual Gripple wire suspension system, with a top end-cap that hides the connections and suspension mounts. Suited to high ceilings and large open spaces.
Key Features
6.5in woofer with 1in tweeter, two-way
70V, 100V or 16 ohm operation

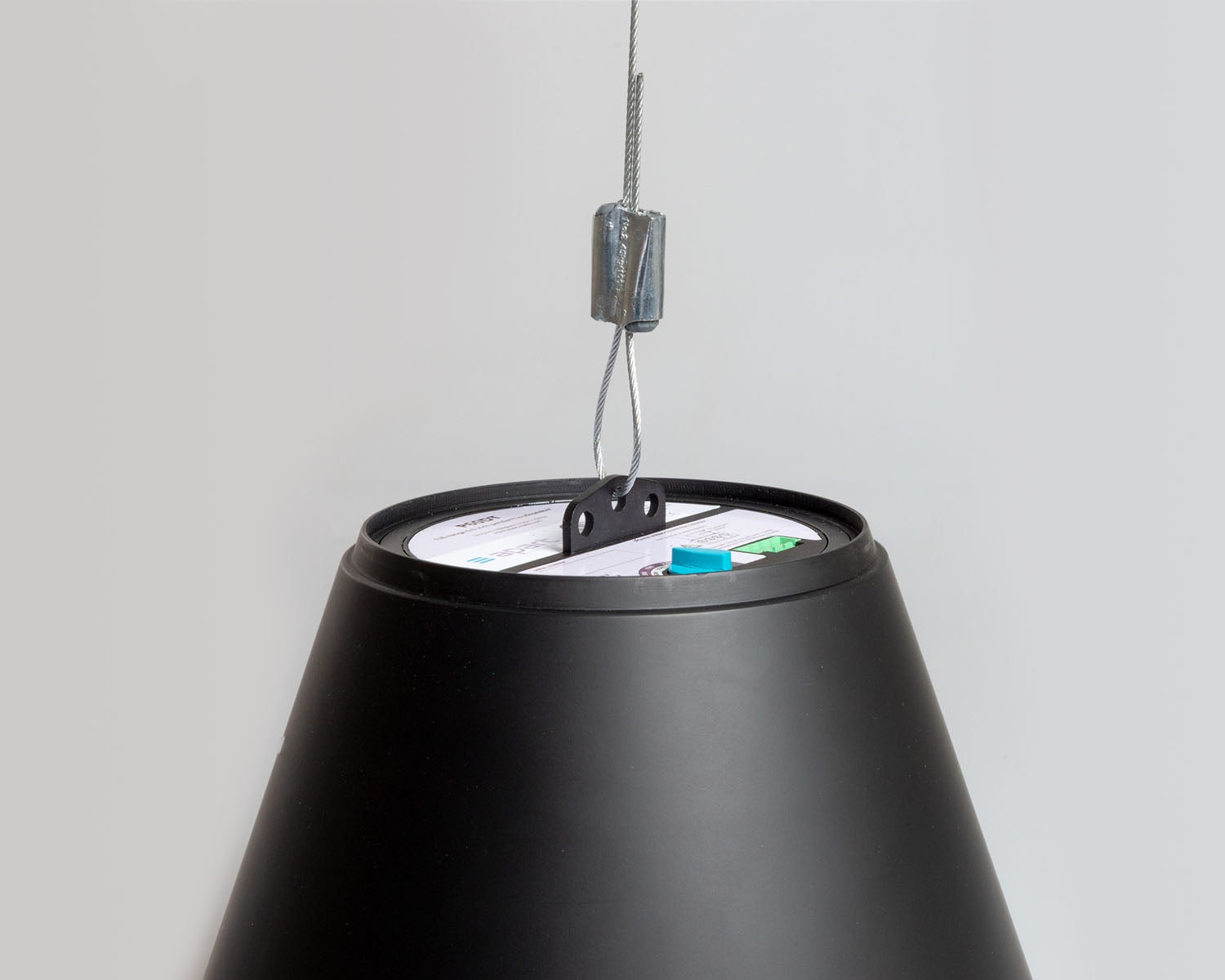

Dual Gripple wire suspension system

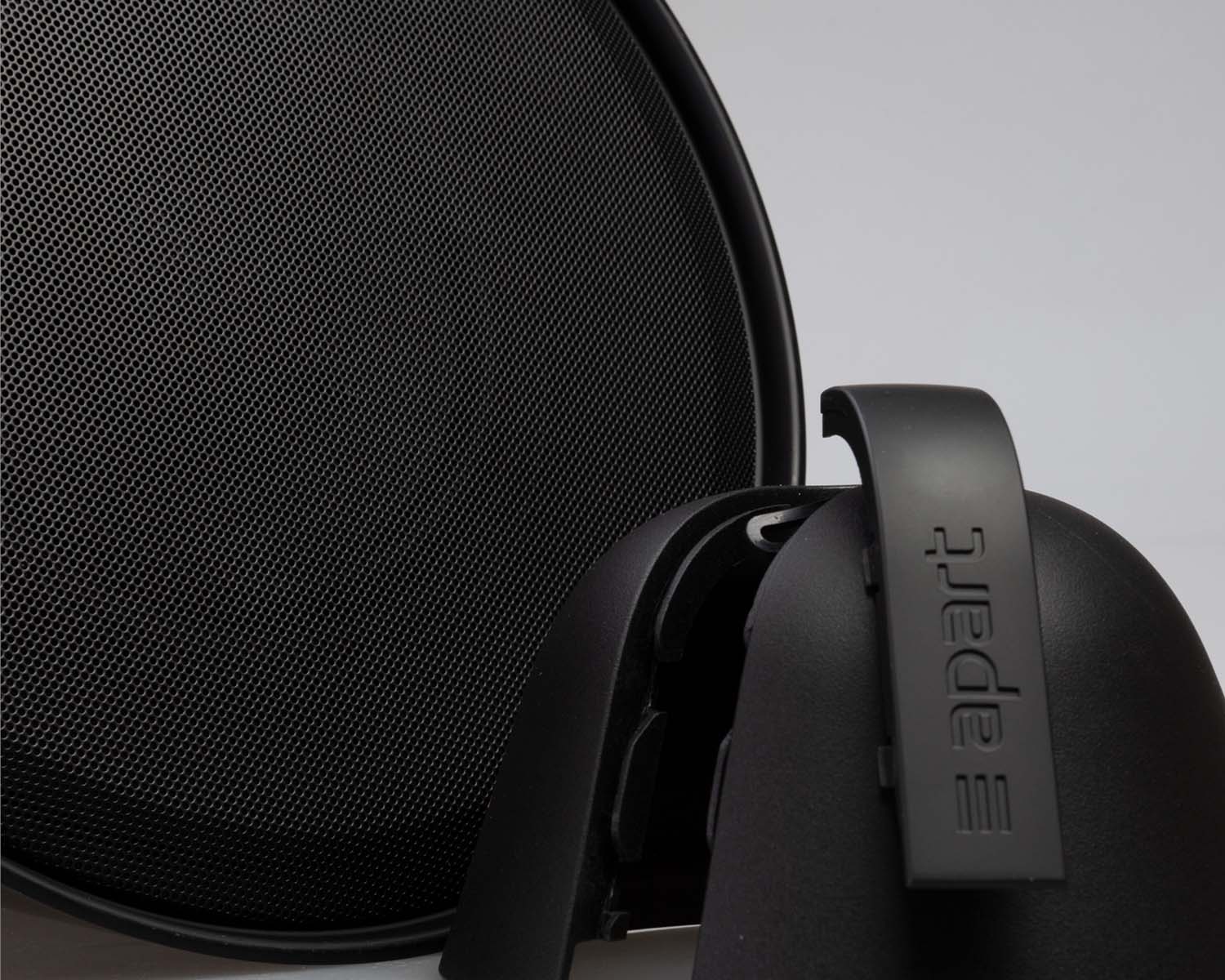

Top end-cap hides connections and mounts
ABS plastic body with steel grille
Black finish
Specifications
| Type | 2-way 6.5-inch pendant mount loudspeaker |
| Operating Mode | Passive |
| Transducers | LF 1 x 165 mm coated paper cone; HF 1 x 25 mm soft dome |
| Power | 60W continuous; 240W peak |
| Transformer | 70V: 60W, 30W, 15W, 7.5W, 3.75W; 100V: 60W, 30W, 15W, 7.5W |
| Impedance | 16Ω |
| Frequency range | 75 Hz to 22 kHz |
| Sensitivity | 89 dB (1W/1m) |
| Maximum Output | 107 dB; 113 dB peak |
| Dispersion | 120° conical |
| Beamwidth | 120° conical |
| Recommended amplifier | 60W to 120W @ 16Ω (31V to 44V) |

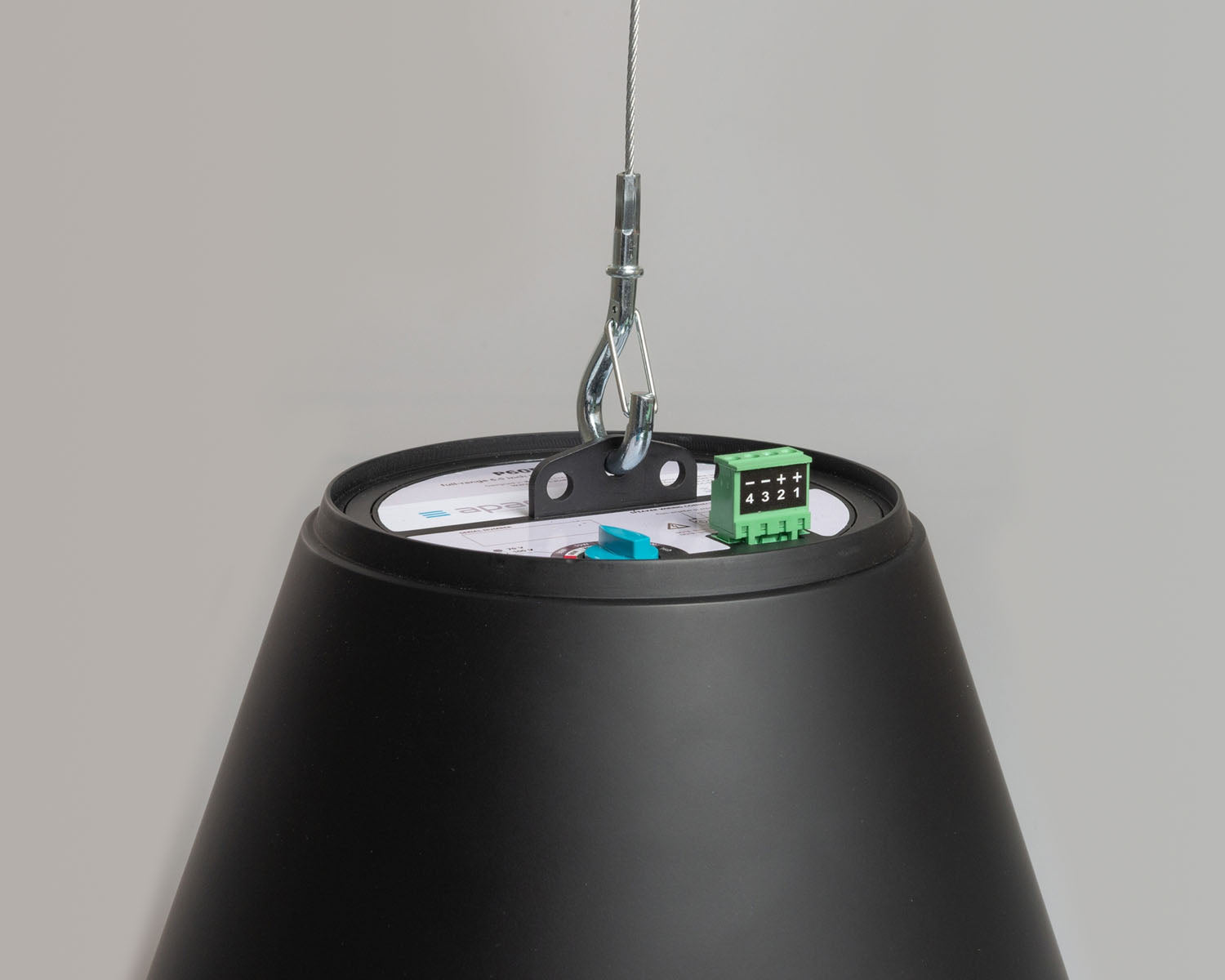

| Input Type | 4-way Euroblock connector with permanent pass-through |
| Control | Power tap / low impedance selector switch |
| IP rating | Suspension system and Gripple cable fasteners listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-81 |
| Operating Environment | Indoor |
| Mounting | Two 5m (16 ft) wire suspension cables (one as primary support, one as a safety cable), of high tensile galvanized steel wire rope with integrated spring clips for attaching the cable to the bracket and Gripple cable fasteners. |
| Included Accessories | Included Accessories:; Two wire suspension cables; Two Gripple cable fasteners; End cap and cable cover; Recommended Accessories:; 75 Hz, 12dB/Oct High Pass; Optional Accessories:; MC-PHK16-12PK: Pendant Hang Kit with (12) 5m (16 ft) lengths of Magic Cable and connectors to suspend snaphook- mounted pendant loudspeakers, black or white |
| Material | Grille: Powder-coated perforated steel White (RAL 9011) or Black (RAL 9010) finish; Enclosure / Finish: ABS plastic, matte finish, White or Black |
| Finish | Black, RAL 9005 |
| Dimensions | 276 mm diameter x 264 mm |
| Weight | 3.9 kg |
| Certifications | ETL listed to comply with UL Std 1480; Certified to CSA C22.2#62368-1 |
