Biamp

Biamp DC220T-M Ceiling Tile Loudspeaker for 600x600mm Grid White

SKU: 910-00337

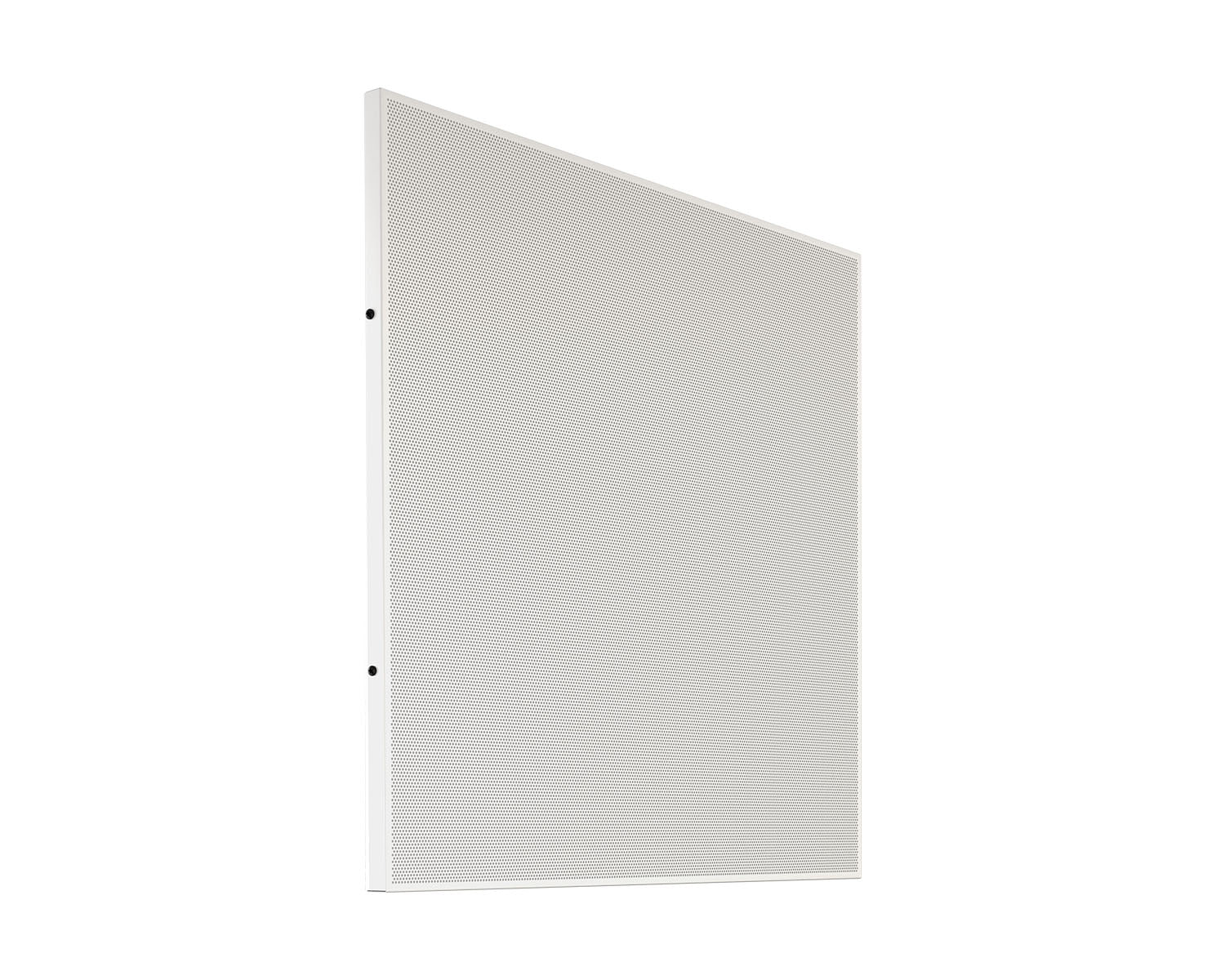

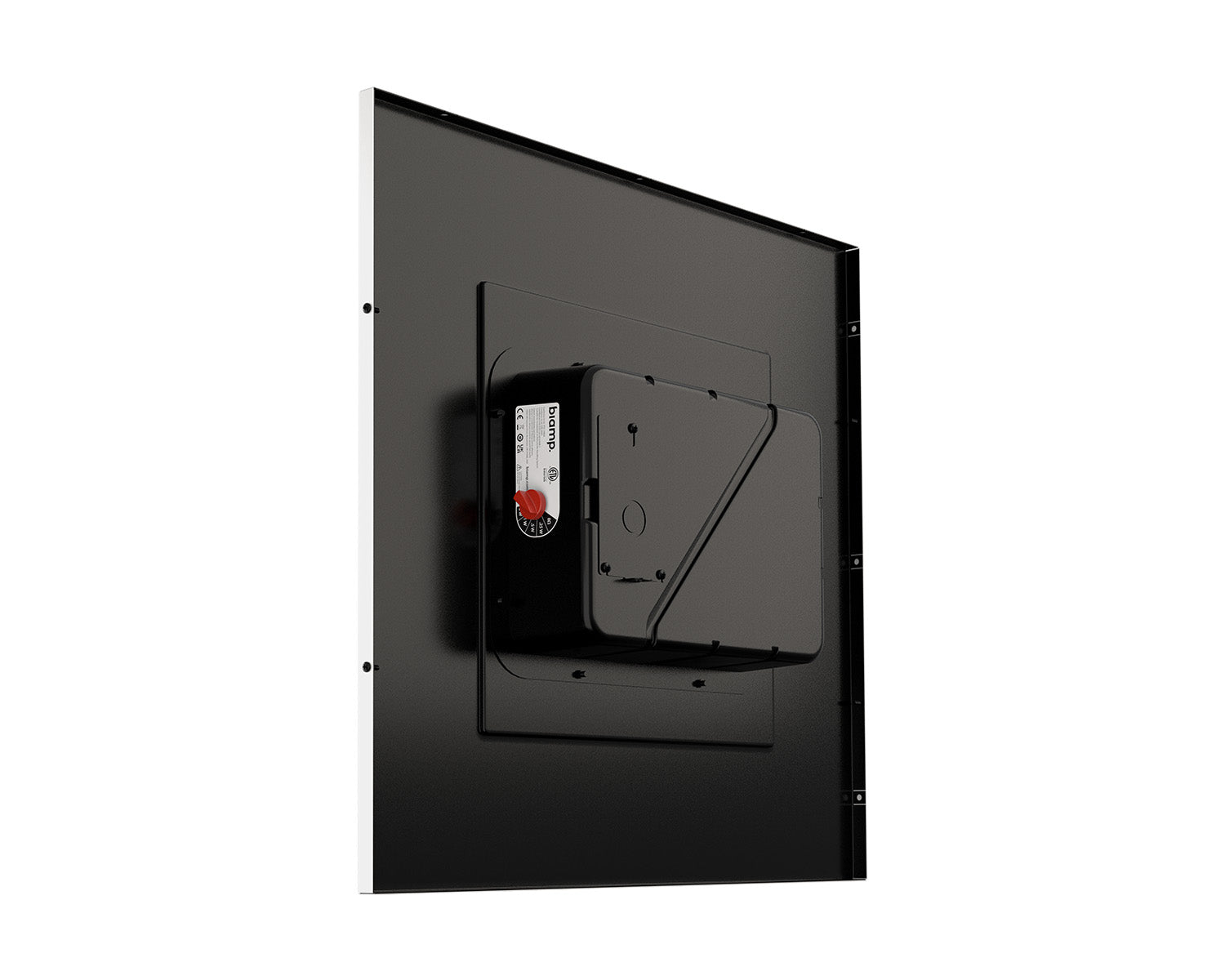

Biamp DC220T-M Ceiling Tile Loudspeaker for 600x600mm Grid White
Biamp DC220T-M Ceiling Tile Loudspeaker for 600x600mm Grid White
Click to enlarge

    £146.00 inc VAT
    £121.67 ex VAT

    1 available online
    More available from supplier in 1–3 weeks
    Delivered by MondayOrder by 3pm
    Click & Collect tomorrow ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Biamp DC220T-M (910-00337) is a passive ceiling tile loudspeaker that drops into a standard 600 x 600 mm suspended ceiling grid. It runs on 70V/100V constant-voltage lines or 8 ohm low impedance, selected by an onboard switch, and is suited to paging and background music in offices, retail and public spaces. A cross-T mounting option also allows fitting into 600 x 1200 mm rectangular grids.

    Key Features
    Single 6.5 inch (165 mm) paper diaphragm full-range driver
    Selectable 70V/100V or 8 ohm low impedance operation
    70V taps: 10W, 5W, 2.5W, 1.25W, 0.625W
    100V taps: 10W, 5W, 2.5W, 1.25W
    Drops straight into a 600 x 600 mm ceiling grid
    Total depth under 107 mm (4.22 inch)
    130 degree conical coverage
    Conduit knock-outs meet plenum air handling requirements
    Designed for use with Biamp Vocia paging systems
    White (RAL 9016) powder-coated perforated steel grille
    Specifications
    Type Metric drop ceiling tile, full range driver, loudspeaker
    System Full-Range
    Operating Mode Passive with selectable low-impedance or 70 V/100 V operation
    Transducers Full Range 1 x 165 mm paper diaphragm driver
    Power Nominal Continuous Power Handling – Passive:; Continuous: 102 db; Peak: 108 db
    Transformer 70V: 10W, 5W, 2.5W, 1.25W, 0.625W; 100V: 10W, 5W, 2.5W, 1.25W
    Frequency range (-10 dB): 100 Hz to 18.5 kHz
    Sensitivity @ 1m:; 93 dB (2.83 V); 93 dB (1 W, 8 Ω)
    SPL Nominal Maximum SPL (Processed) @ 1m; Continuous: 102 dB; Peak: 114 dB; Rated Maximum SPL (Processed) @ 1m; Continuous: 102 dB; Peak: 114 dB
    Beamwidth Nominal Beamwidth: 130°, (conical)
    Recommended amplifier 10 W – 20 W, 8 Ω (9 V – 13 V)
    Connectivity 2-conductor pigtail
    Control Wattage / low impedance selector switch
    IP rating ETL listed to comply with UL1480, UL2043 and CSA62368-1; Suitable for use in air handling spaces per NFPA 70 and NFPA 90
    Operating Environment Indoor
    Mounting Cross-T for use with larger 600 mm x 1200 mm rectangular ceiling grids
    Included Accessories SPA-SCC100 Safety cable 10-pack
    Required Accessories 100 Hz, 12 dB / oct. Butterworth high pass filter; DSP presets for Tesira or ALCs
    Enclosure Enclosure / Finish:; Back Can and Face: Black, Matte finish Steel (RAL9017); Grille:; Powder-coated perforated steel. White finish (RAL 9016)
    Dimensions 596 x 596 x 107 mm (H x W x D)
    Weight 7.1 kg

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • High sensitivity, wide coverage
    • Designed for use with any Vocia paging system
    • Low impedance or 70 V / 100 V operation
    • Easy installation - drop in the grid and connect cabling - done!
    • Low-profile, less than 107 mm (4.2") total depth
    • Conduit knock-outs on the input cover meet plenum air space handling requirements

    Manuals & Downloads

    PDFDatasheetPDF
    PDFA&E SpecificationsPDF
    PDFUser GuidePDF
    PDFDrawing: DC220T-M Drop CeilingPDF
