Biamp Desono COLW81 Column 8x3.3"+HF 80W/100V IP66 White

Product code: 155902

£357.00 inc VAT
£297.50 ex VAT

SKU: 910-01593
51 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 80 / 40 / 30W) or low impedance (8Ω).

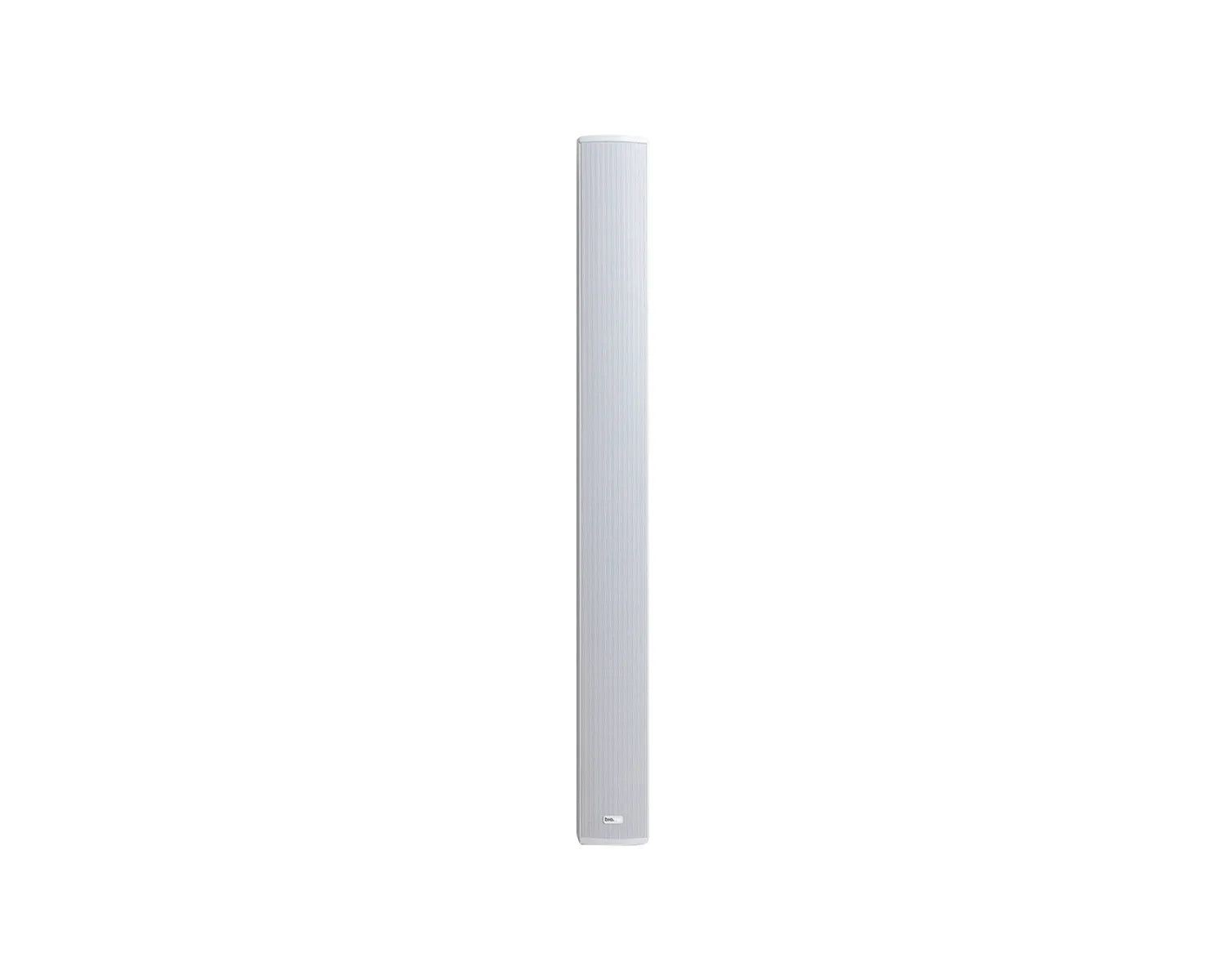

The Biamp Desono COLW81 (910-01593) is a passive column loudspeaker with eight 3.3 inch drivers and a high-frequency dome, rated IP66 for outdoor use and finished in white. A terminal-block tap selects 70V/100V or 8 ohm low impedance operation. Supplied with adjustable tilt L-brackets and two IP66 gland nuts.

Key Features

Eight 3.3 inch (84 mm) coated paper cone LF drivers
One 1 inch (25 mm) soft dome HF driver
IP66 rated for outdoor installation
Selectable 70V/100V or 8 ohm low impedance
70V taps: 80W, 40W, 20W, 15W
100V taps: 80W, 40W, 30W
100 degrees x 10 degrees coverage
High 97 dB sensitivity
Adjustable tilt L-bracket included
5-year warranty

Specifications

Biamp Desono COLW81 Column 8×3.3″+HF 80W/100V IP66 White specifications
Type Two-way 8 x 3.3-inch column loudspeaker
Operating Mode Passive
Drivers LF 8 x 3.3 inches; 1 x 1 inch
Power 80W continuous; 320W peak
Transformer 70V: 80W, 40W, 20W, 15W; 100V: 80W, 40W, 30W
Impedance 8Ω
Frequency range 165 Hz to 17 kHz
Sensitivity 97 dB (1W/1m)
Maximum Output Max Output @1m: 116 dB; 122 dB peak
SPL Nominal Maximum SPL @ 1m; Peak: 122 dB; Continuous: 116 dB
Dispersion (H x V) 100° x 10°
Recommended amplifier 80W to 160W @ 8Ω (25V to 36V)
Connectivity Multi-position pass-through, screw-down terminal block
Control None; select transformer tap or low impedance input via terminal block wiring
IP rating IP66 per IEC 60529
Operating Environment Indoor / Outdoor
Included Accessories L-brackets and 2x IP66 water-tight gland nuts (Included); COLWBRA: pan/tilt mounting bracket
Material Grille: Aluminium White (RAL 9016) finish; Enclosure / Finish: Aluminium, matte finish, White
Finish White, RAL 9016
Dimensions 973 x 99 x 84 mm (H x W x D)

Full features

  • Zoom Certified
  • IP66 rated for outdoor applications such as patios or concourses
  • High speech intelligibility coupled with full-range music reproduction
  • Stylish yet subtle design; blends well in many environments
  • Tap switch allows for 70V/100V or 8Ω low impedance operation
  • L-brackets and 2x IP66 water-tight gland nuts included
  • 5-year warranty

Full specifications

  • Operating Mode:  Passive
  • Operating Environment:  Indoor/Outdoor
  • Operating Range (-10dB):  165 Hz to 17 kHz
  • Nominal Beamwidth (H x V):  100° x 10°
  • Transducers:
    • LF 8 x 3.3" (84 mm) coated paper cone
    • HF 1 x 1" (25 mm) soft dome
  • Continuous Power Handling @ Nominal Impedance:  25V 80W @ 8Ω (320W peak)
  • Nominal Sensitivity @ 1m:
    • @ 1W:  97 dB
    • @ 2.83V:  97 dB
  • Nominal Maximum SPL @ 1m:
    • Peak:  122 dB
    • Continuous:  116 dB
  • Transformer:
    • 70V:  80W, 40W, 20W, 15W
    • 100V:  80W, 40W, 30W
  • Recommended Amplifiers:  80W - 160W @ 8Ω (25V - 36V)
  • Input Connection:  Multi-position pass-through, screw-down terminal block
  • Controls:  None; select transformer tap or low impedance input via terminal block wiring
  • Mounting Provisions:  Adjustable tilt L-bracket
  • Environmental:  IP66 per IEC 60529
  • Dimensions H x W x D:  38.3" x 3.9" x 3.3" (974 mm x 100 mm x 83 mm)
  • Weight:  14.8 lbs (6.7 kg)
  • Finish:  Aluminium, matte finish, White
