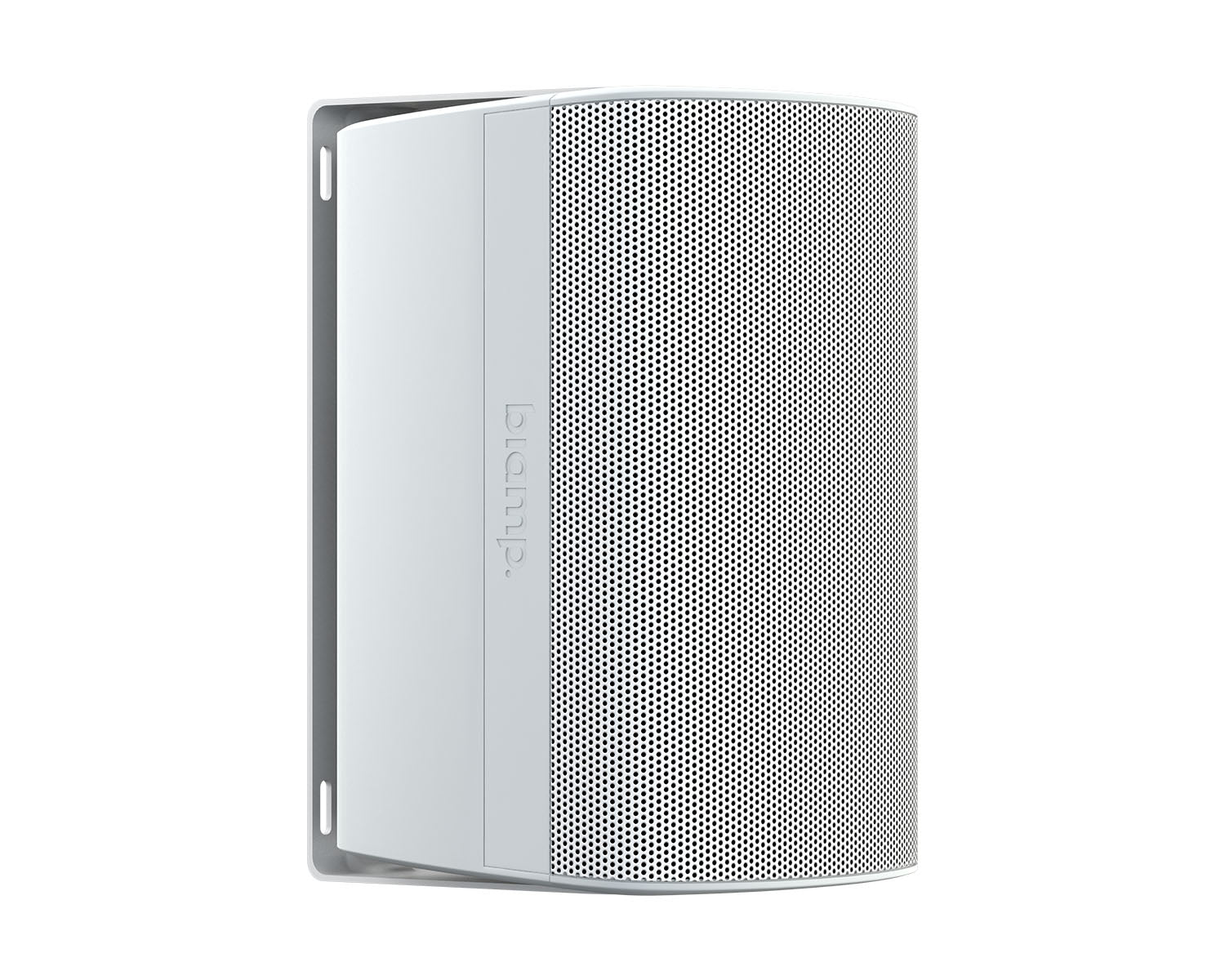

Biamp DX-S5-W 5" 2-Way Coaxial Surface-Mount Loudspeaker White

Product code: 155914

£225.00 inc VAT
£187.50 ex VAT

SKU: 920-00107-20000
Ordered from supplier, allow 1–3 weeks
Delivered by Tue 15th DecOrder by 3pm tomorrow
Click & Collect Mon 14th Dec ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 60 / 30 / 15W) or low impedance (6Ω).

The Biamp DX-S5-W (SKU 920-00107-20000) is a 5 inch two-way coaxial surface-mount loudspeaker in white, with a 1 inch exit compression driver and a built-in 70V/100V autoformer plus low-impedance input. Rated IP54 for direct indoor or outdoor exposure, it shares the components and voicing of the DX ceiling range and ships with a ClickMount pan-tilt bracket (a U-Bracket version is available as DX-S5-UB) for foreground and background distributed audio.

Key Features

Coaxial 5 inch LF and 1 inch HF compression driver for uniform coverage
Built-in 70V/100V autoformer with low-impedance bypass
IP54 rated for indoor or outdoor direct exposure
Wattage / low-impedance selector switch on the rear
Lever-actuated 4-position terminal block with pass-through
ClickMount pan-tilt bracket included
Same voicing as DX ceiling loudspeakers
ETL listed, certified to CSA C22.2 No. 62368-1

Specifications

Biamp DX-S5-W 5″ 2-Way Coaxial Surface-Mount Loudspeaker White specifications
Type Two-way, 5-inch surface mount loudspeaker
Operating Mode Single Amplified with DSP
Transducers LF 1 x 127 mm; HF 1 x 25 mm exit compression driver
Power 100W continuous; 400W peak
Transformer 70V: 60W, 30W, 15W, 7.5W; 100V: 60W, 30W, 15W
Impedance 6Ω
Frequency range 75 Hz to 20 kHz
Sensitivity 92 dB (2.83 V); 91 dB (1 W at rated impedance)
Maximum Output Max Output @1m: 109 dB; 117 dB peak
SPL Nominal Maximum SPL: Passive:; Peak = 115 dB; Continuous = 109 dB; Rated Maximum SPL (Processed): Passive:; Peak = 117 dB; Continuous = 105 dB
Dispersion (H x V) 130° x 125°
Beamwidth (Nominal Beamwidth (H x V) 130° x 125°
Recommended amplifier Passive: 100 W – 200 W into 8 Ω, (28 V – 40 V)
IP rating IP54 per IEC 60529; IEC 60068-2-5 (Solar Radiation); IEC 60068-2-11 (Salt Mist); IEC 60068-2-42 (SO2); IEC 60068-2-60 (Chlorine)
Operating Environment Indoor / Outdoor Direct Exposure
Mounting ClickMount pan-tilt bracket or U-Bracket
Included Accessories ClickMount pan-tilt bracket; optional: SPA-UBDX100 U-Bracket with ClickPlug
Enclosure High impact ABS plastic; Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted, matte finish cover
Finish White, RAL 9016
Dimensions 280 x 180 x 292 mm (H x W x D)
Weight 4.7 kg
Power Consumption Rated Continuous Voltage:; Passive 15.3 V (24 dBV)
Certifications ETL listed to comply with UL 1480A; and CSA STD C22.2# 62368-1
Autoformer 70V: 60W, 30W, 15W, 7.5W; 100V: 60W, 30W, 15W

Full features

  • Same components and voicing as the DX ceiling loudspeakers.
  • Built-in 70 V/100 V auto former
  • Low impedance input
  • Weather-resistant capability
  • High efficiency, output and intelligibility with low distortion
  • Surface mounted speaker

Full specifications

  • Operating mode: Single amplified with DSP
  • Operating environment: Indoor/outdoor direct exposure
  • Operating range (-10dB): 75Hz to 20 kHz
  • Nominal beamwidth (H x V): 130° x 125°
  • Transducers: LF 1 X 5" (127mm) | HF 1 x 1" (25mm) exit compression driver
  • Sensitivity: 92 dB (2.83 V) | 91dB (1 W at rated impedance)
  • Nominal continuous power handling: Passive | 24 V (100W @ 6 Ohms)
  • Nominal maximum SPL: Passive | Peak: 115dB | Continuous: 109dB
  • Rated continuous voltage: Passive | 15.3 V (24 dBV)
  • Rated maximum SPL (Processed): Passive | Peak: 117dB | Continuous: 105dB
  • Autoformer: 70 V: 60 W, 30 W, 15 W, 7.5 W; 100 V: 60 W, 30 W, 15 W
  • Recommended amplifiers: Passive | 100W - 200W into 8 Ohms, (28 V - 40 V)
  • Crossover Frequency: 1.5 kHz
  • Required Accessory: 75 Hz, 12dB/ oct. high pass filter

Physical

  • Input connection: Lever-actuated wire clamping 4-position terminal block with pass-through
  • Controls: Wattage / low impedance selector switch
  • Mounting provisions: ClickMount pan-tilt bracket or U-Bracket
  • Certifications: ETL listed, certified to CSA STD C22.2# 62368-1
  • Environmental rating: IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation), IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2), IEC 60068-2-60 (Chlorine)
  • Dimensions: H x W x D: 280 x 180 x 292 mm (11.02" x 7.09" x 11.51") with ClickMount
  • Weight: 4.7 kg (10.3 lbs) - loudspeaker only
