Biamp DX-S8-W 8" 2-Way Coaxial Surface-Mount Loudspeaker White

SKU: 920-00109-20000
Biamp DX-S8-W 8" 2-Way Coaxial Surface-Mount Loudspeaker White - Image 1
Click to enlarge

    £325.00 inc VAT
    £270.83 ex VAT

    6 in stock (more available subject to additional lead time)

    Order in 71h 14m 21s for FREE delivery by Wed 8th JulClick & Collect available Tue 7th Jul from us in London ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

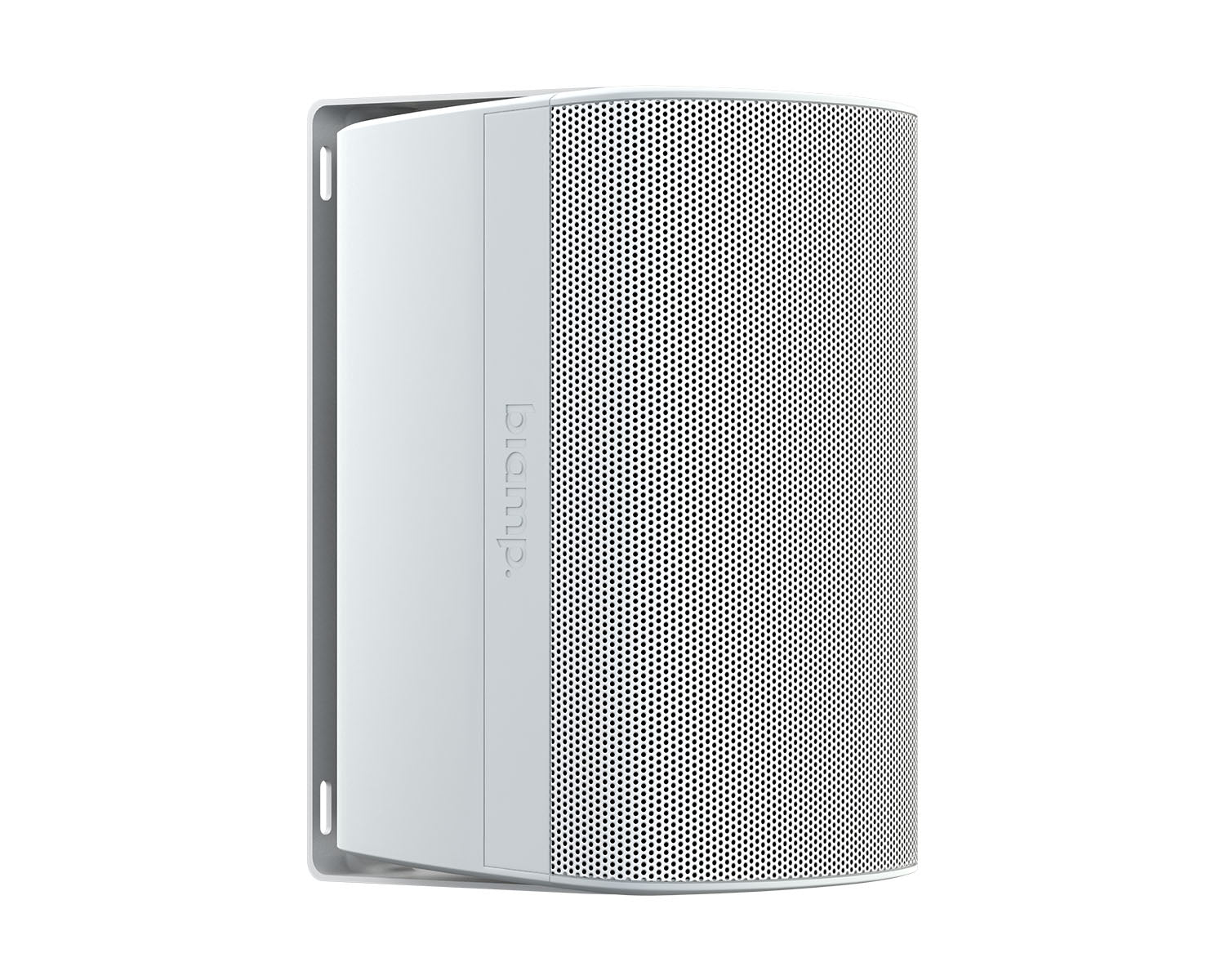

    The Biamp DX-S8-W (SKU 920-00109-20000) is an 8 inch two-way coaxial surface-mount loudspeaker in white, with a 203mm woofer, a 1.25 inch exit compression driver and a built-in 70V/100V autoformer plus low-impedance input. Rated IP54 for indoor or outdoor direct exposure and supplied with ClickMount pan-tilt or U-Bracket mounting, it shares the voicing of the DX ceiling range.

    Key Features
    ✓Coaxial 8 inch LF and 1.25 inch HF compression driver
    ✓Built-in 70V/100V autoformer with low-impedance bypass
    ✓IP54 rated for indoor or outdoor direct exposure
    ✓ClickMount pan-tilt bracket or U-Bracket mounting
    ✓Wattage / low-impedance selector switch
    ✓Lever-actuated 4-position terminal block with pass-through
    ✓Same voicing as DX ceiling loudspeakers
    ✓ETL listed, certified to CSA C22.2 No. 62368-1
    Specifications
    Configuration 8 inch (203mm) LF, 1.25 inch (32mm) compression driver HF
    Operating range (-10dB) 62Hz to 18kHz
    Nominal beamwidth (H x V) 110 deg x 110 deg
    Sensitivity 95dB (2.83V), 94dB (1W)
    Power handling 175W at 7 ohms
    Maximum SPL Peak 122dB, continuous 116dB
    70V taps 120W, 60W, 30W, 15W
    100V taps 120W, 60W, 30W
    Crossover frequency 1.4kHz
    Environmental rating IP54 per IEC 60529
    Dimensions (H x W x D) 385 x 255 x 260mm
    Weight 7.71kg
    Finish White

    More Information

    • 8" surface mountable speaker
    • The same components and voicing as the DX ceiling speakers
    • Built-in 70 V/ 100 V autoformer
    • Low impedance input
    • Wether-resistant capability
    • Uniform coverage from coaxially mounted HF/LF drivers
    • High efficiency, high output, high intelligibility, low distortion
    • Choice of models with ClickMount™
