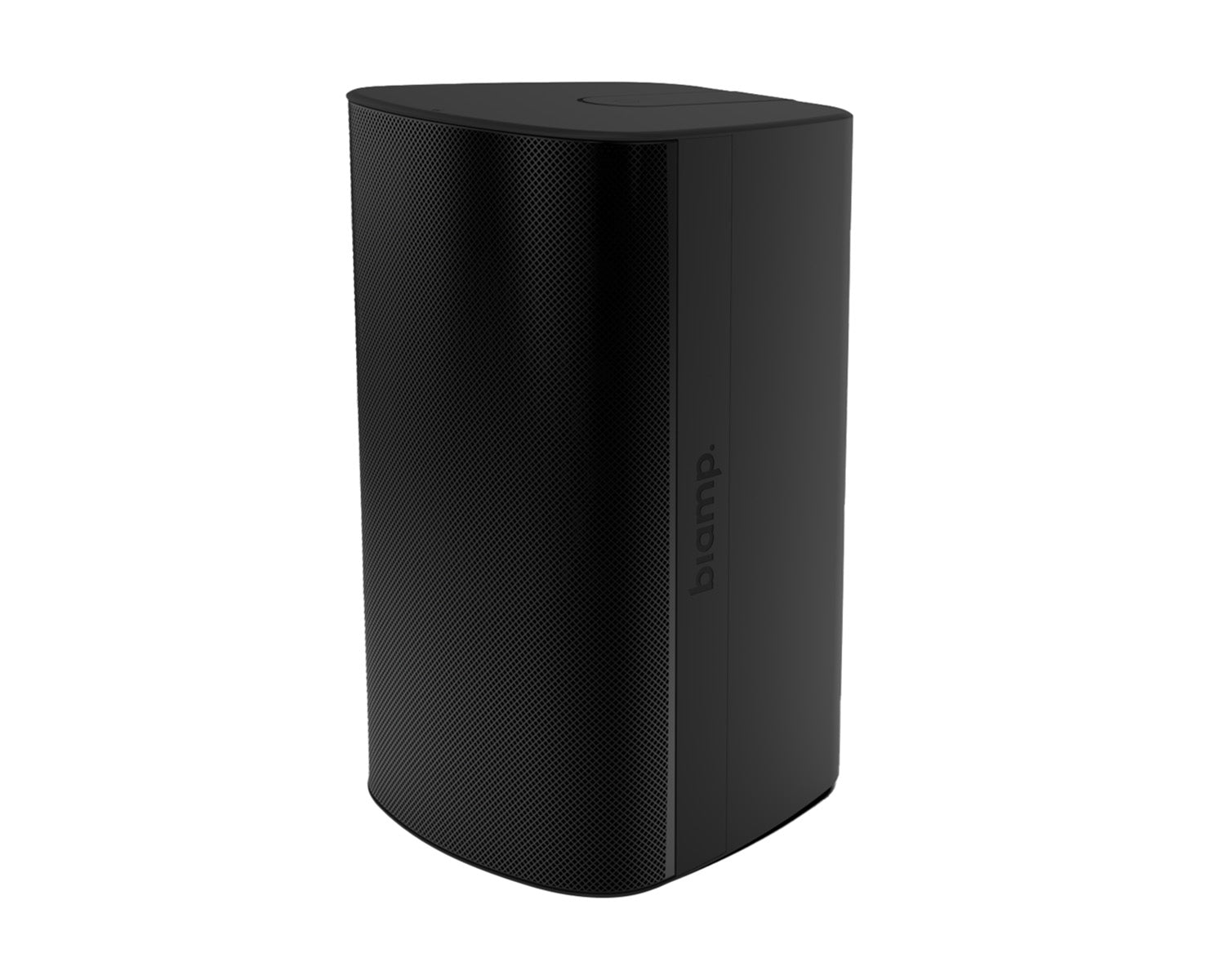

The Biamp EX-S10 (920-01819-10000) is a passive 10 inch two-way coaxial installation loudspeaker in black with an IP54 rating for indoor or outdoor use, supplied with a ClickMount U-bracket. A 6-position switch selects 70 V or 100 V transformer taps or low impedance bypass, making it suited to distributed or full-range zones in venues, hospitality and exterior areas.
Key Features
10 inch (250 mm) treated paper LF cone with 1.4 inch (35 mm) compression driver
Coaxial driver layout for uniform 100 degrees x 100 degrees coverage
6-position selector for 70 V / 100 V taps or low impedance bypass
70 V taps 120 / 60 / 30 / 15 W, 100 V taps 120 / 60 / 30 W
IP54 rated to IEC 60529 for indoor or outdoor use
Supplied with ClickMount U-bracket
Lever-actuated 4-position terminal block with pass-through
EN54-24 and ISO 7240-24 certified, ETL listed to UL 1480A
1.48 kHz crossover with driver protection circuitry
Specifications
| Type | 2-way, 10-inch, coaxial, full-range, surface mount loudspeaker |
| Operating Mode | Passive with selectable low-impedance or 70 V/100 V operation |
| Transducers | LF 1 x 250 mm treated paper cone; HF 1 x 35 mm voice coil compression driver |
| Power | 300W continuous; 1200W peak |
| Transformer | 70V: 120W, 60W, 30W, 15W; 100V: 120W, 60W, 30W |
| Impedance | 8Ω |
| Frequency range | 48 Hz to 20 kHz |
| Sensitivity | 91 dB (1W/1m) |
| Maximum Output | 118 dB; 124 dB peak |
| SPL | Nominal Maximum SPL (Processed) @1m:; Continuous: 118 dB; Peak: 124 dB; Rated Maximum SPL(Processed) @1m:; Continuous: 114 dB; Peak: 126 dB |
| Dispersion | 100° x 100° |
| Beamwidth | 100° x 100° |
| Recommended amplifier | 300 W – 600 W, 8 Ω (49 V – 69 V) |
| IP rating | IP54 per IEC 60529; IEC 60068-2-5 (Solar Radiation); IEC 60068-2-11 (Salt Mist); IEC 60068-2-42 (SO2); IEC 60068-2-60 (Chlorine) |
| Operating Environment | Indoor/Outdoor |
| Mounting | ClickMount pan-tilt bracket or ClickMount U-Bracket |
| Included Accessories | CMX-LG [-B,-W] – Large ClickMount Pan-tilt Bracket Kit; EXUB-S10 [-B,-W] – EX-S10 ClickMount U-Bracket kit |
| Required Accessories | 48 Hz, 18 dB / oct. Butterworth high pass filter; DSP preset |
| Material | Grille: Powder-coated perforated Marine Grade aluminium backed with hydrophobic cloth; Enclosure: High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish; Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover |
| Finish | Black, RAL 9017 |
| Dimensions | 548 x 309 x 355 mm (H x W x D) |
| Weight | 15.2 kg |
| Certifications | ETL listed to comply with UL 1480A; CSA STD C22.2# 62368-1; EN54-24; ISO 7240-24; IEC 62368-1 |
