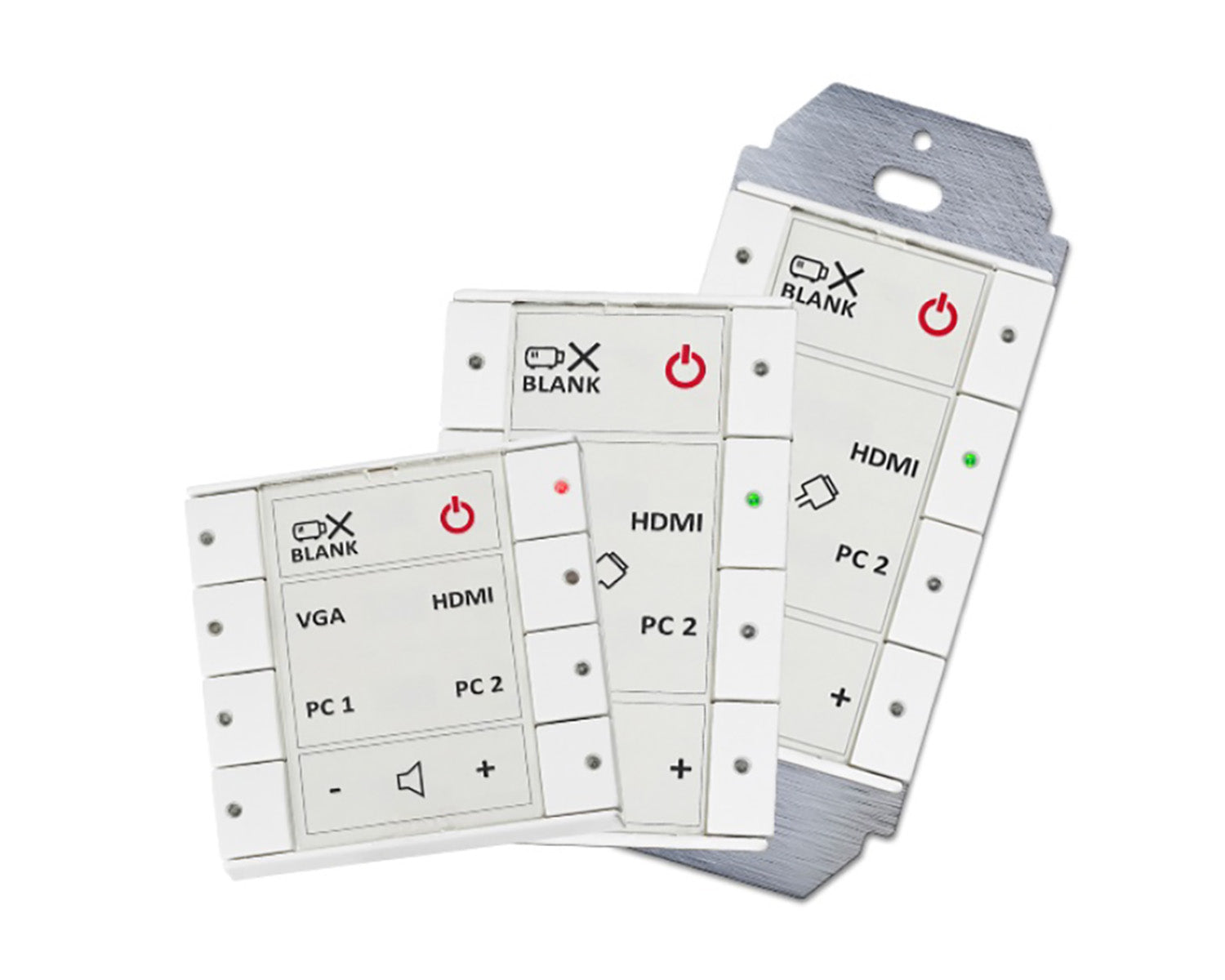

The Biamp Impera Echo (920-01885-20003) is an 8-button mechanical control pad in white with an on-board controller, requiring no external processor. It provides third-party device control over RS-232 and IR with GPIO, suiting room and AV control in meeting rooms, classrooms and presentation spaces. Powered by 12 V DC.
Key Features
Up to 8 software-configurable mechanical buttons with multi-colour LEDs
On-board controller, no external processor required
1 bi-directional RS-232 / IR port with feedback
1 uni-directional RS-232 / IR port
3 GPIO ports
Mini USB connection for configuration and maintenance
Expansion Bus supports up to 2 additional devices
Email notifications for lamp / filter hours and warnings
Covered by Biamp five-year warranty
Specifications
| Buttons | 8 mechanical, multi-colour LED |
| RS-232 / IR ports | 1 bi-directional, 1 uni-directional |
| Baud rate | 1200 to 115200 bit/sec |
| IR frequency range | 381 Hz to 500 kHz |
| GPIO | 3 ports, open drain, max 24 VDC / 0.5 A |
| Expansion Bus | 12 VDC (0.3 A), up to 2 devices |
| Power | 12 VDC, 5 W |
| Operating temperature | 0 to 40 degrees C |
| Dimensions (H x W x D) | 55 x 55 x 17 mm |
| Finish | White |
