Biamp Impera Tango Touch Panel Controller 3 Bi/2 Uni-Directional RS-232

Product code: 155962

£1,252.00 inc VAT
£1,043.33 ex VAT

SKU: 910-01880
2 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

The Biamp Impera Tango (910-01880) is a touch panel control processor offering 3 bi-directional and 2 uni-directional RS-232 ports for third-party device control. It is programmed via Project Designer software, connects over Ethernet and is PoE powered, suiting AV control in meeting rooms and integrated installations.

Key Features

Programmed via Project Designer software
3 bi-directional RS-232 ports or 6 IR ports
2 uni-directional RS-232 ports or 4 IR ports
4 built-in assignable relays
8 GPIO for relays, switches and sensors
RJ-45 Ethernet connection (CAT5e or better)
PoE powered (IEEE 802.3at Class 3, 15 W)
Convection cooled, no fan
Covered by Biamp five-year warranty

Specifications

Biamp Impera Tango Touch Panel Controller 3 Bi/2 Uni-Directional RS-232 specifications

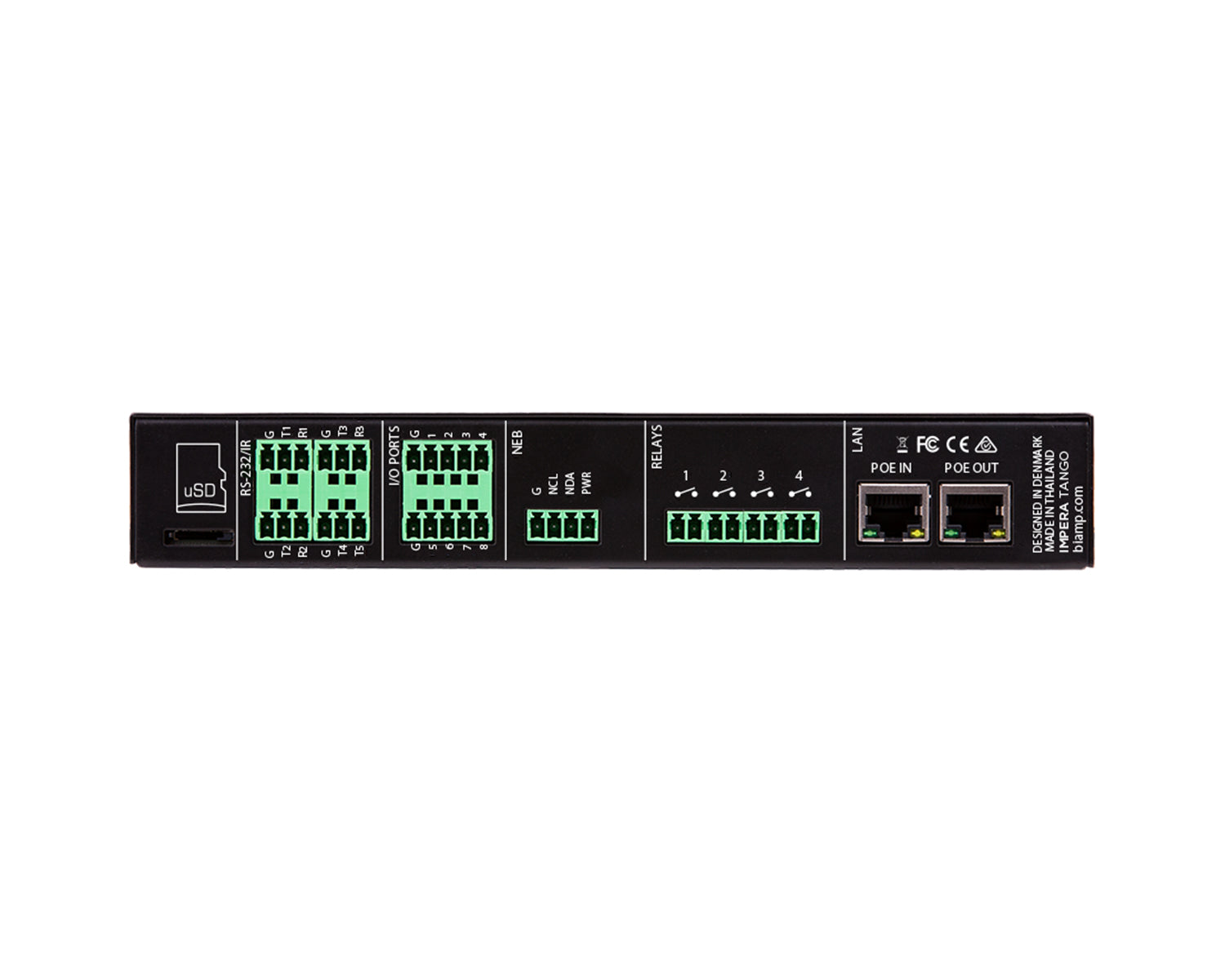

Network RJ-45 Ethernet, CAT5e or better
RS-232 / IR ports 3 bi-directional, 2 uni-directional
Connector 3-pin Euroblock
Baud rate 1200 to 115200 bit/sec
IR frequency range 400 Hz to 500 kHz
GPIO 8 ports, open drain, max 24 VDC / 0.5 A
Relays 4, 30 VDC / 0.5 A
Power PoE IEEE 802.3at Class 3, 15 W
Cooling Convection
Operating temperature 0 to 30 degrees C
Dimensions (H x W x D) 35 x 220 x 70 mm
Weight 0.5 kg

Full features

  • Programmed via Project Designer software
  • 3 bi-directional RS-232 ports or 6 IR ports
  • 2 uni-directional RS-232 ports or 4 IR ports
  • 4 built-in assignable relays
  • 8 GPIO for control of relays, switches, and sensors
  • PoE powered (IEEE 802.3at Class 3, 15W)
  • Covered by Biamp Systems’ five-year warranty

Full specifications

General

  • Network Connection: RJ-45 with Ethernet (CAT5e or better)
  • RS-232 / IR
    • Number of Ports:
    • 3 (bi-directional)
    • 2 (uni-directional)
    • Connector: 3-pin, 0.3-inch Euroblock
    • Baud Rate: 1200 – 115200 bit/sec
    • Data Bits: 7, 8
    • Parity: Even, Odd, None
    • Stop Bits: 1, 2
    • IR Frequency Range: 400 Hz to 500 kHz
  • GPIO
    • Number of Ports: 8
    • Connector: 5-pin, 0.3-inch Euroblock
    • Type: Open drain
    • Input Trigger Low: < 1VDC
    • Input Trigger High: > 4VDC
    • Isolated Output: No
    • Max Voltage: 24VDC
    • Max Current: 0.5A
  • Relays
    • Quantity: 4
    • Connector: 2-pin, 0.3-inch Euroblock
    • Power capacity: 30VDC / 0.5A
  • Power: IEEE 802.3at Class 3, 15W
  • Cooling: Convection
  • Environmental
    • Ambient Operating Temperature Range: 32 - 86° F (0 – 30° C)
    • Humidity: 10-90% relative humidity (non-condensing)
    • Altitude: 0-6,600 ft (0-2000m) MSL

Physical

  • Height: 1.4 inches (35 mm)
  • Width: 8.7 inches (220 mm)
  • Depth: 2.8 inches (70 mm)
  • Weight: 1.1 lbs (0.5 kg)
