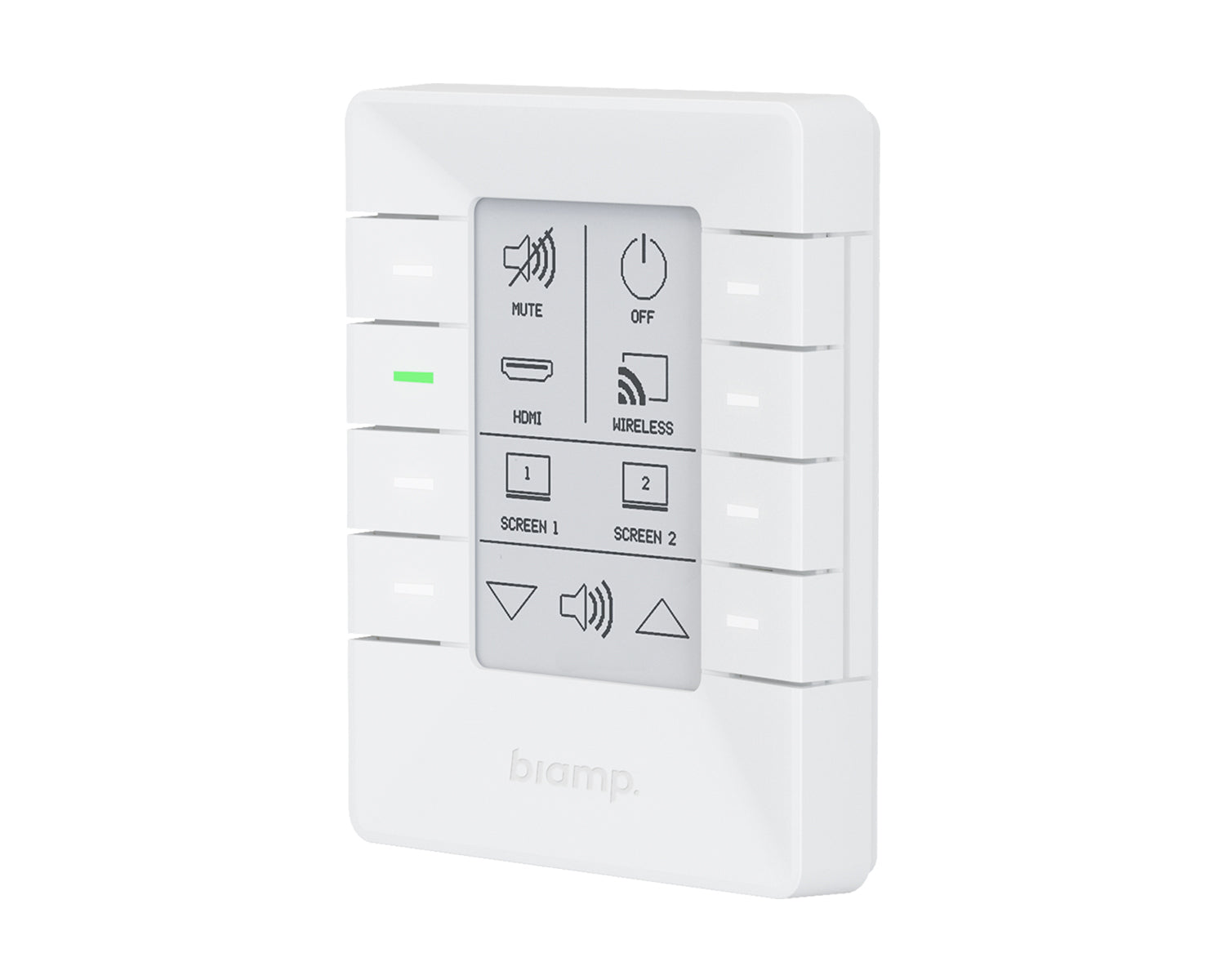

The Biamp Impera Uniform (910-01870) is an 8-button control pad in white with a 2.7 inch E Ink display and an on-board controller, requiring no external processor. It is PoE powered over a single CAT5e/CAT6 cable and provides RS-232, IR and GPIO control, suiting room and AV control in meeting rooms, classrooms and presentation spaces. Supplied with an in-wall mounting bracket, screws and wall plugs.
Key Features
✓Up to 8 software-configurable mechanical buttons with multi-colour LEDs
✓2.7 inch high-contrast E Ink display, 264 x 172 pixels
✓On-board controller, no external processor required
✓1 bi-directional RS-232 port and 2 uni-directional RS-232 ports
✓3 GPIO ports
✓10/100 Mbps Ethernet with autosense
✓PoE powered (IEEE 802.3at Class 1, 4 W) over single cable
✓Expansion Bus supports up to 8 additional devices
✓Mini USB connection for configuration and maintenance
✓Supplied with in-wall mounting bracket, screws and wall plugs
✓Covered by Biamp five-year warranty
Specifications
| Display | 2.7 inch E Ink, 264 x 172 pixels |
| Buttons | 8 mechanical, multi-colour LED |
| RS-232 / IR ports | 1 bi-directional, 2 uni-directional |
| Baud rate | 1200 to 115200 bit/sec |
| IR frequency range | 381 Hz to 500 kHz |
| GPIO | 3 ports, open drain, max 24 VDC / 0.5 A |
| Ethernet | 10/100 Mbps, autosense |
| Expansion Bus | 12 VDC (0.3 A), up to 8 devices |
| Power | PoE IEEE 802.3at Class 1, under 4 W |
| Operating temperature | 0 to 40 degrees C |
| Dimensions (H x W x D) | 94 x 76 x 15 mm |
| Weight | 84 g |
| Finish | White |
