Biamp Parle TCM-1A Pendant AVB Beamtracking Mic and PoE Amplifier White

Product code: 155793

£2,201.00 inc VAT
£1,834.17 ex VAT

SKU: 920-00493-20000
1 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

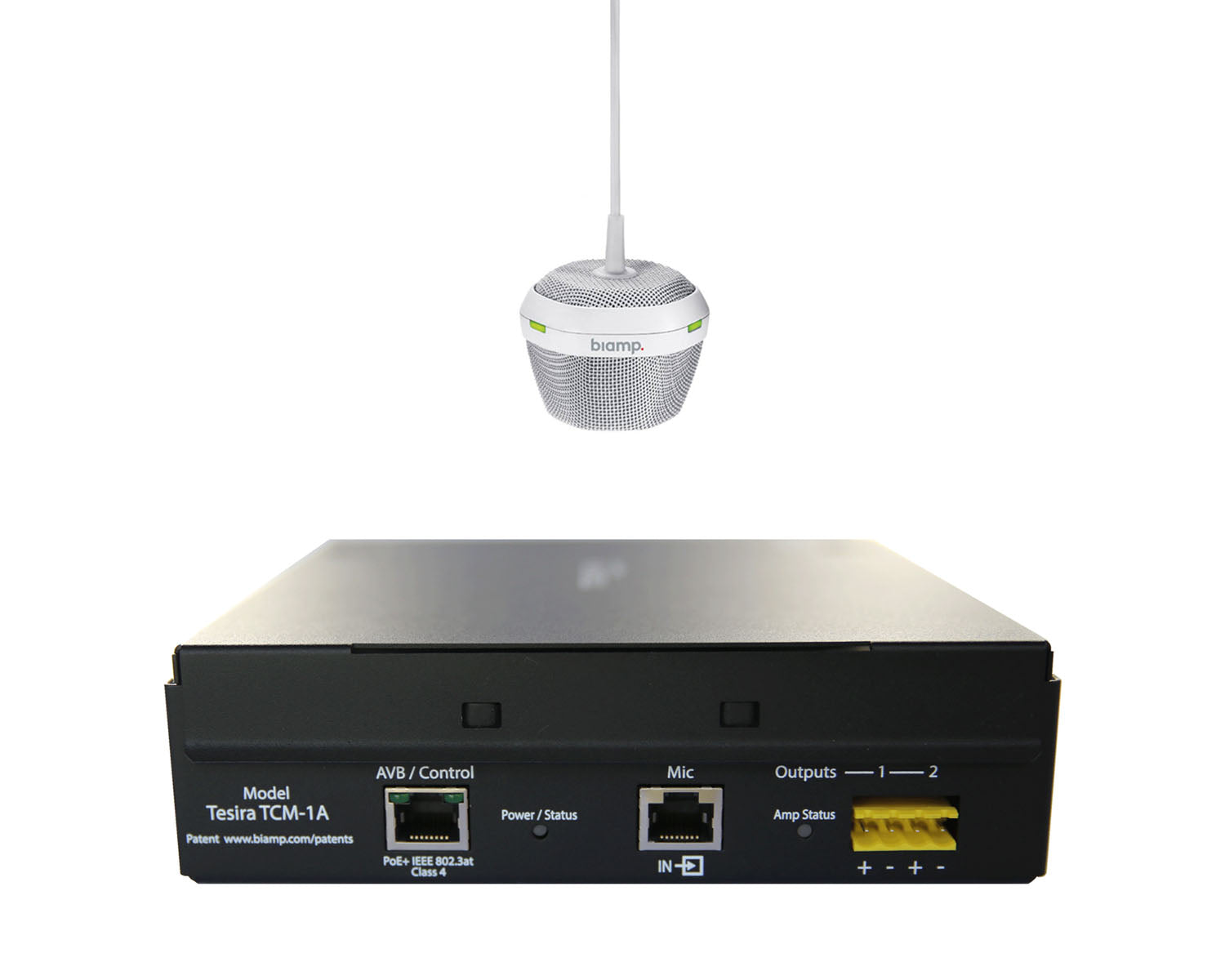

The Biamp Parle TCM-1A (SKU 920-00493-20000) is a white pendant Beamtracking conferencing microphone with an integrated PoE+ amplifier in its plenum box. An 8-element digital array forms three 120 degree zones for 360 degree coverage, tracking and mixing talkers automatically, with a two-channel Class D amp for connecting loudspeakers directly.

Key Features

8-element digital array microphone with Beamtracking
Three 120 degree zones for 360 degree coverage
Integrated 2-channel Class D PoE+ amplifier
Burst output up to 40W per channel at 4 ohm, 30W at 8 ohm
Software-selectable power versus channel count with internal limiter
Powered by PoE+ (IEEE 802.3at Class 4, 30W)
Daisy-chain RJ-45 for up to three mics with TCM-1EX
Green/red LED mute status indicator
User-adjustable mic height
Rated to UL 2043 for air-handling spaces
Covered by Biamp 5-year warranty

Specifications

Biamp Parle TCM-1A Pendant AVB Beamtracking Mic and PoE Amplifier White specifications
Microphone technology 8-element digital array, beamformed
Frequency response 150 Hz – 16 kHz, +/- 3 dB
Maximum SPL 106 dB at 0.5% THD
Amplifier channels 2
Amplifier topology Class D
Burst power (4 ohm / 8 ohm) 40W / 30W per channel
Continuous power (dual channel) 4W per channel
Minimum load 4 ohm
Power PoE+ (IEEE 802.3at Class 4, 30W)
Connectors 2x RJ-45, 4-pin Phoenix outputs
Max distance (switch to box) 100 m
Max daisy-chain distance 10 m
Finish White
Compliance CE, UL/C-UL listed, RoHS, UL 2043

Full features

  • Beamtracking technology actively tracks and intelligently mixes conversations
  • Three 120° zones for 360° coverage
  • Pendant microphone available in either white or black
  • Plenum box includes a PoE+ amplifier:
    • Two channels; 4W continuous per channel
    • Burst mode to handle peak loads; supports up to 40W (4Ω) or 30W (8Ω) per channel
    • Software-selectable power vs. channel count
    • Includes internal limiter function
  • Optional tile bridge mounting accessory available
  • LED mute status indicator
  • User-adjustable mic height
  • Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
  • Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three mics per daisy chain)
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems’ five-year warranty

Full specifications

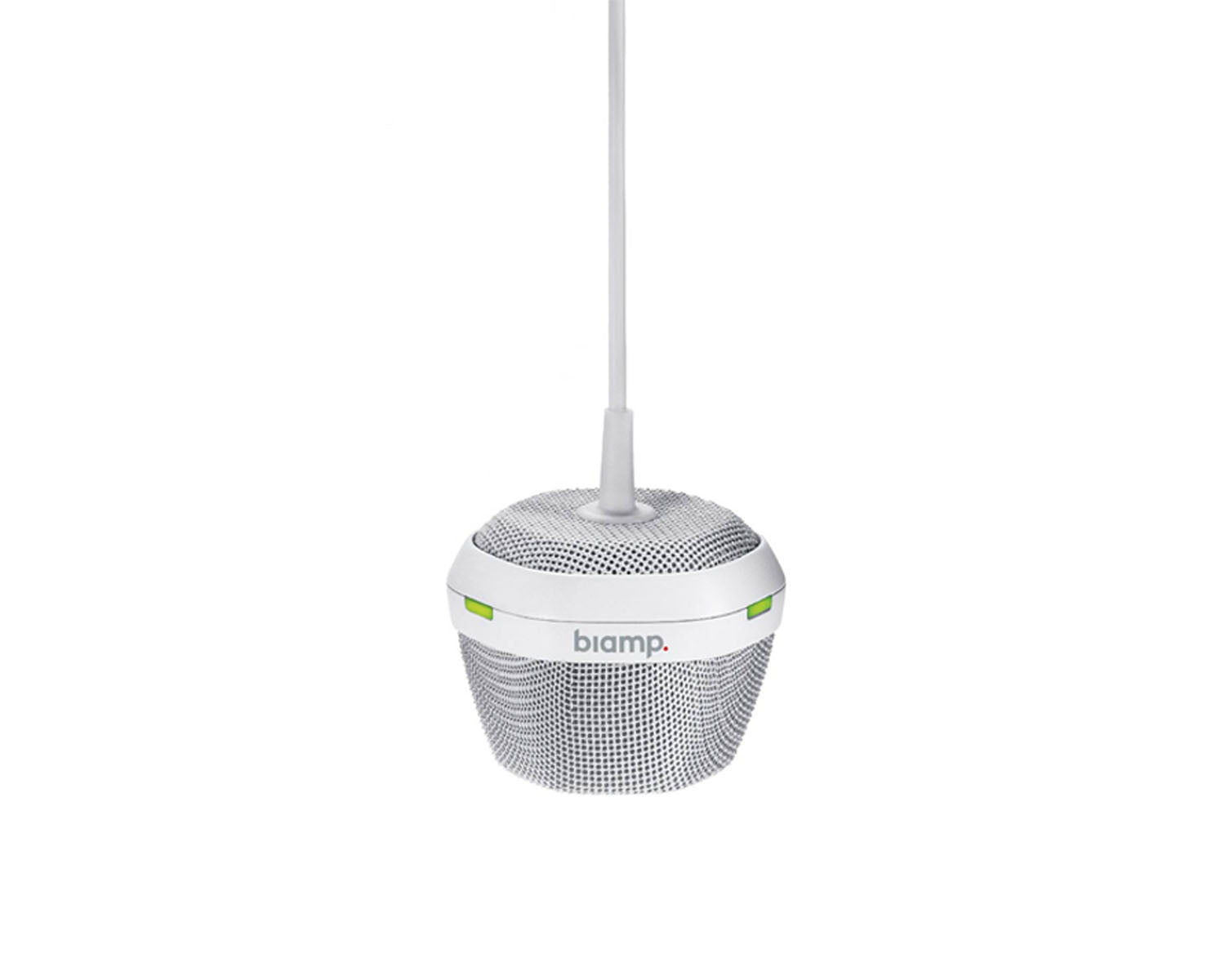

Pendant Microphone

  • Microphone Technology: 8-Element Digital Array
  • Frequency Response (150 Hz - 16 kHz): ± 3dB
  • Polar Pattern: Beamformed
  • Sensitivity (94dB SPL, 1kHz): > 70dB
  • Maximum SPL (at 0.5% THD): 106dB
  • Dynamic Range (THD+N < 10%): 92dB, A-Weighted
  • Indicators: Mute Indicator (Green/Red LED)
  • Digital Interface: Custom/Proprietary
  • Connector: Custom 2-pin (cable length 10 feet [3 meters])
  • Finish: White
  • Overall Dimensions:
    • Height: 2 inches (51 mm)
    • Width: 2.5 inches (63 mm)
    • Depth: 2.5 inches (63 mm)
    • Weight: 0.4 lbs (0.2 kg)

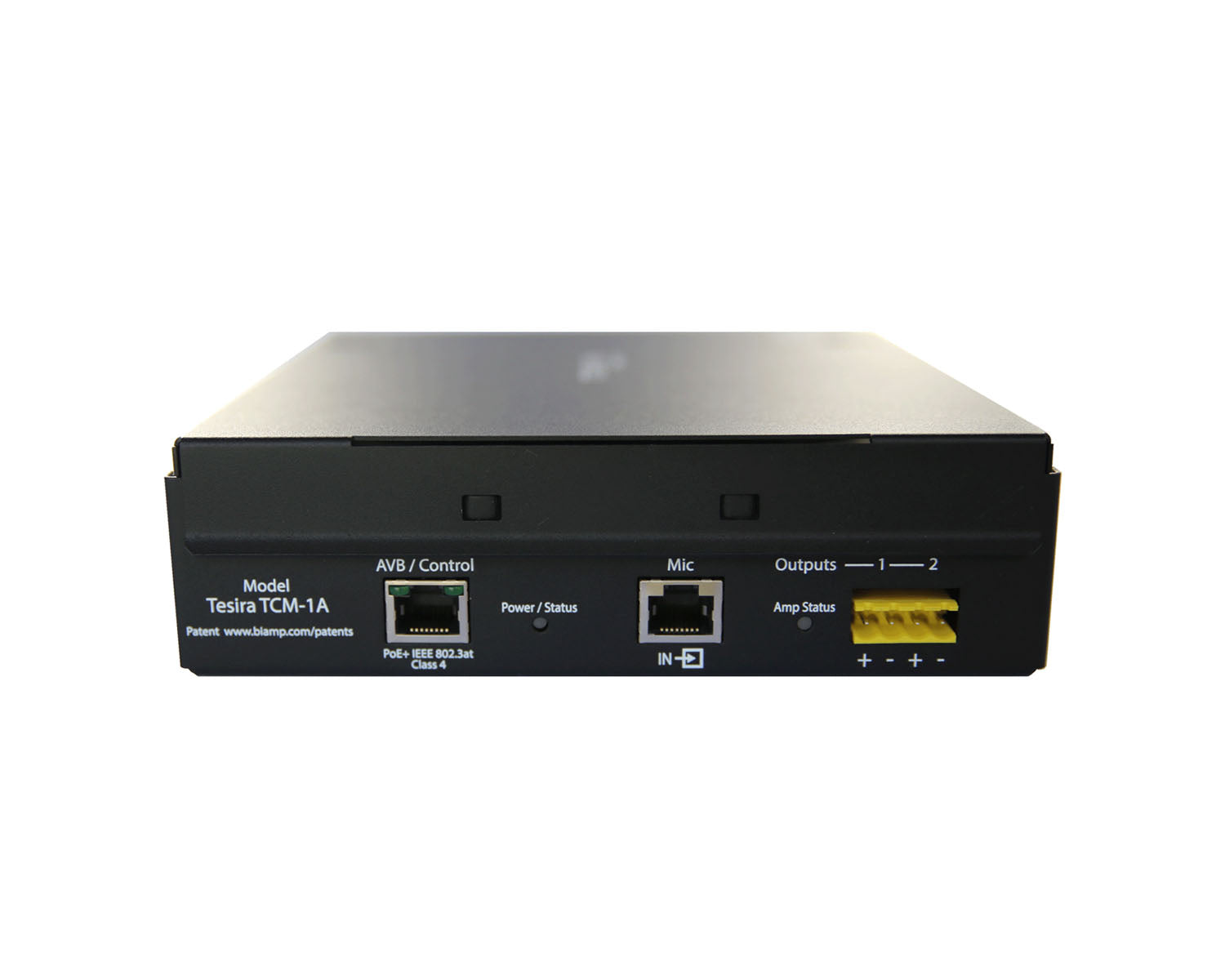

Plenum Box

  • Connectors: Two RJ-45: one between TCM-1A plenum box and switch, the other between TCM-1A plenum box and additional TCM-1EX plenum box; 2-pin 3.5 mm Phoenix connector to TCM-1A microphone
  • Power: PoE+ (IEEE 802.3at Class 4, 30W)
  • Indicators:
    • Power Indicator (Green/Yellow/Red LED)
    • Amp Status Indicator (Green/Yellow/Red LED)
  • Digital Interface: Custom/Proprietary
  • Max Distance Between Devices: 330 feet (100 meters) from switch to TCM-1A plenum box; 33 feet (10 meters) for daisy-chained connections between TCM plenum boxes
  • Overall Dimensions:
    • Height: 2 inches (51 mm)
    • Width: 7 inches (178 mm)
    • Depth: 7.125 inches (181 mm)
    • Weight: 2.4 lbs (1.1 kg)
  • Environmental:
    • Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
    • Humidity: 0-95% relative humidity (non-condensing)
    • Altitude: 0-10,000 ft (0-3000m) MSL
  • Compliance:
    • FCC Part 15B (USA)
    • CE marked (Europe)
    • UL and C-UL listed (USA and Canada)
    • RoHS Directive (Europe)
    • Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces

Amplifier

  • Number of Channels: 2
  • Connectors: 4-pin 5.08 mm Phoenix connectors
  • Amplifier Topology: Class D
  • Burst Power Output (per ANSI/CTA-2006-B @ 1kHz):
    • 4Ω (per channel): 40W
    • 8Ω (per channel): 30W
  • Continuous Power Output:
    • Single Channel Driven, (4Ω, 8Ω): 8W
    • Dual Channel Driven (4Ω, 8Ω): 4W
    • THD+N (20Hz-20kHz, at continuous power): < 0.3%
  • Frequency Response (20Hz-20kHz): ± 1dB
  • Dynamic Range (20Hz-20kHz BW): > 85dB
  • Minimum Operational Load: 4Ω
  • Intermodulation distortion (SMPTE): < 0.3%
  • Cross Talk (channel to channel @ 1kHz): < -90dB
