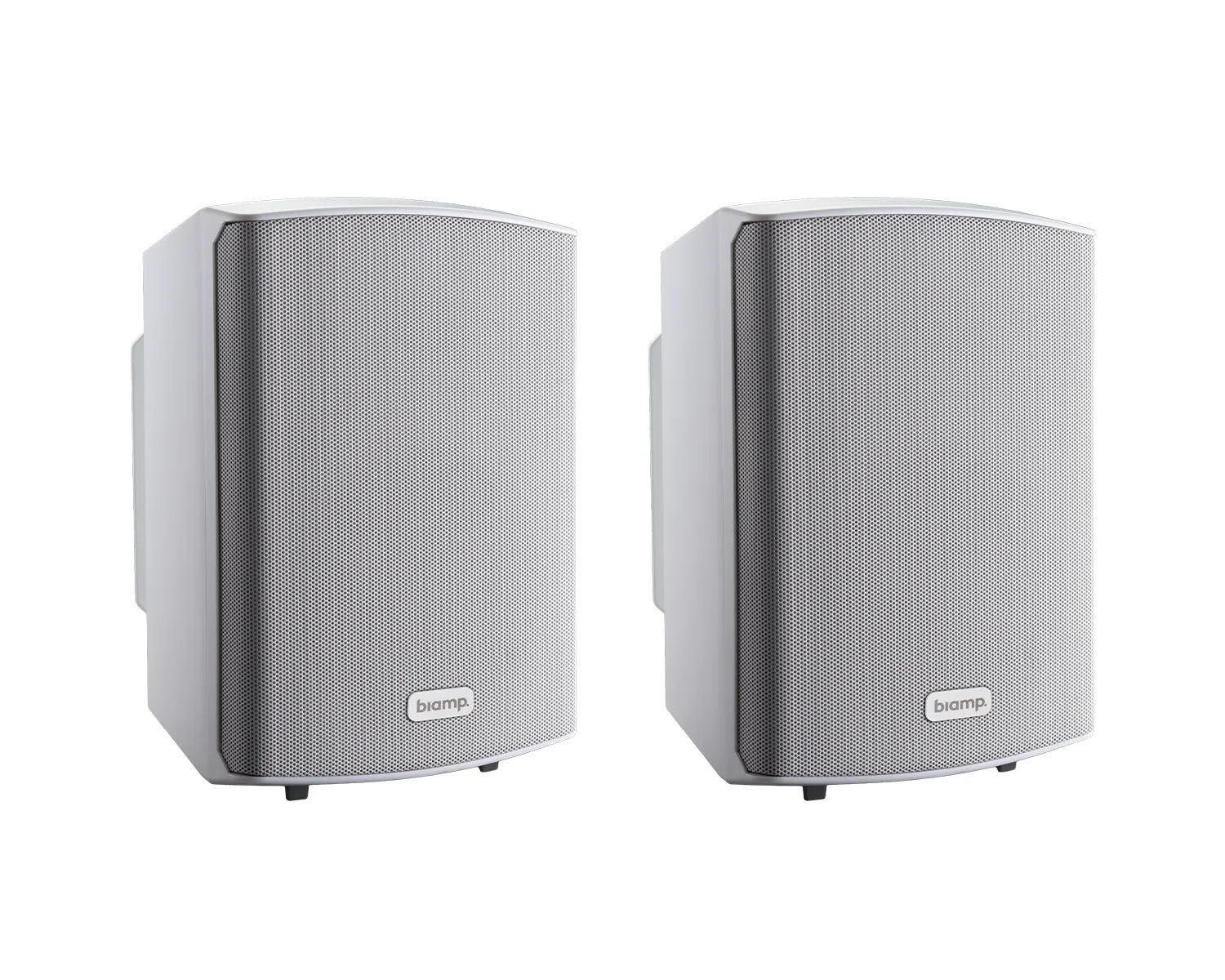

Biamp Apart SDQ5PIR White 5" Active Speaker+Slave+RS232+IR Remote

Product code: 155797

£142.00 inc VAT
£118.33 ex VAT

SKU: 911.1477.900
11 available online
More available from supplier in 1–3 weeks
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included
Optional Add-Ons

About this Product

The Apart SDQ5PIR (SKU 911.1477.900) is an active 2-way bass-reflex speaker in white with a 5.25 inch woofer and 1 inch tweeter, rated 2 x 15W RMS (2 x 30W dynamic). Supplied as a master with passive slave, it accepts two stereo inputs and is controllable by the included IR remote or RS232, suited to monitor and AV/multimedia use.

Key Features

Active 2-way bass-reflex system
5.25 inch woofer and 1 inch tweeter
2 x 15W RMS (2 x 30W dynamic) output power
Master unit plus passive slave
Two stereo inputs (A/B), mixable or selectable
3.5 mm mini-jack and balanced inputs
IR remote control included
RS232 control for system integration
RJ45 connector for optional wall panel
Multifunction LED status indicator
Magnetically shielded
Mounting brackets and power cord included

Specifications

Biamp Apart SDQ5PIR White 5″ Active Speaker+Slave+RS232+IR Remote specifications
System Active 2-way bass-reflex
Woofer 5.25 inch, polypropylene
Tweeter 1 inch
Output power 2 x 15W RMS (2 x 30W dynamic)
Power supply 230 VAC
Sensitivity (1W/1m) 86 dB
Max SPL (1m) 101 dB
Frequency response 45 Hz – 20 kHz
Control IR remote, RS232, optional wall panel
Mounting U-bracket
IP rating IP40
Dimensions (W x H x D) 180 x 253 x 162 mm
Weight 5.6 kg

Full features

  • Active 2 way bass-reflex speaker system
  • Ideal for monitor, Audio-Video applications, multimedia applications
  • Powerfull HiFi 5.25” woofer and 1” tweeter
  • Mounting brackets, IR remote control and power cord included
  • 2 x 15 watts RMS (2 x 30 watts dynamic) output power
  • Enhanced bass response by DTB reflex tuning
  • Multifunction led indicator: standby (orange), on (green), overload (red), off (led not lit)
  • Hi-Q balanced inputs
  • Stereo inputs on standard 3.2 mm mini stereo jack, compatible with headphone outputs and line inputs (Computer, MP3 players)
  • Input sources A, B or via optional wall panel
  • Inputs A and B can be mixed together or selected individually by infrared remote control or RS232
  • Magnetically shielded
  • Stylish design, suited for placement in corners
  • Very high efficiency, high output
  • Standby mode for low power consumption
  • Controllable via infrared remote (included), RS232, wall panels (optional)
  • RS232 control for increased integration in automated audio systems using standard 9 pin serial cable.
  • RJ45 remote wall panel connector (not compatible with computer networks or other types of remote control cabling)

Full specifications

General

  • Power supply: 230 VAC
  • Loudspeaker system: 2-way
  • Woofer size: 5,25 inch
  • Woofer cone material: polypropylene
  • Tweeter size: 1 inch
  • Mounting system: U-bracket
  • Low impedance dynamic power: 2 x 30 watts
  • SPL 1W/1m: 86 dB
  • Max SPL 1m: 101 dB
  • Frequency response: 45 - 20K Hz
  • Main construction material: ABS plastic
  • Grille main material: steel
  • IP rating: 40
  • Active: Yes
  • Horizontal dispersion angle 1000 Hz: 180°
  • Vertical dispersion angle 1000 Hz: 180°

Physical & Dimensions

  • Height: 253mm
  • Width: 180mm
  • Depth: 162mm
  • Weight: 5.6kg
