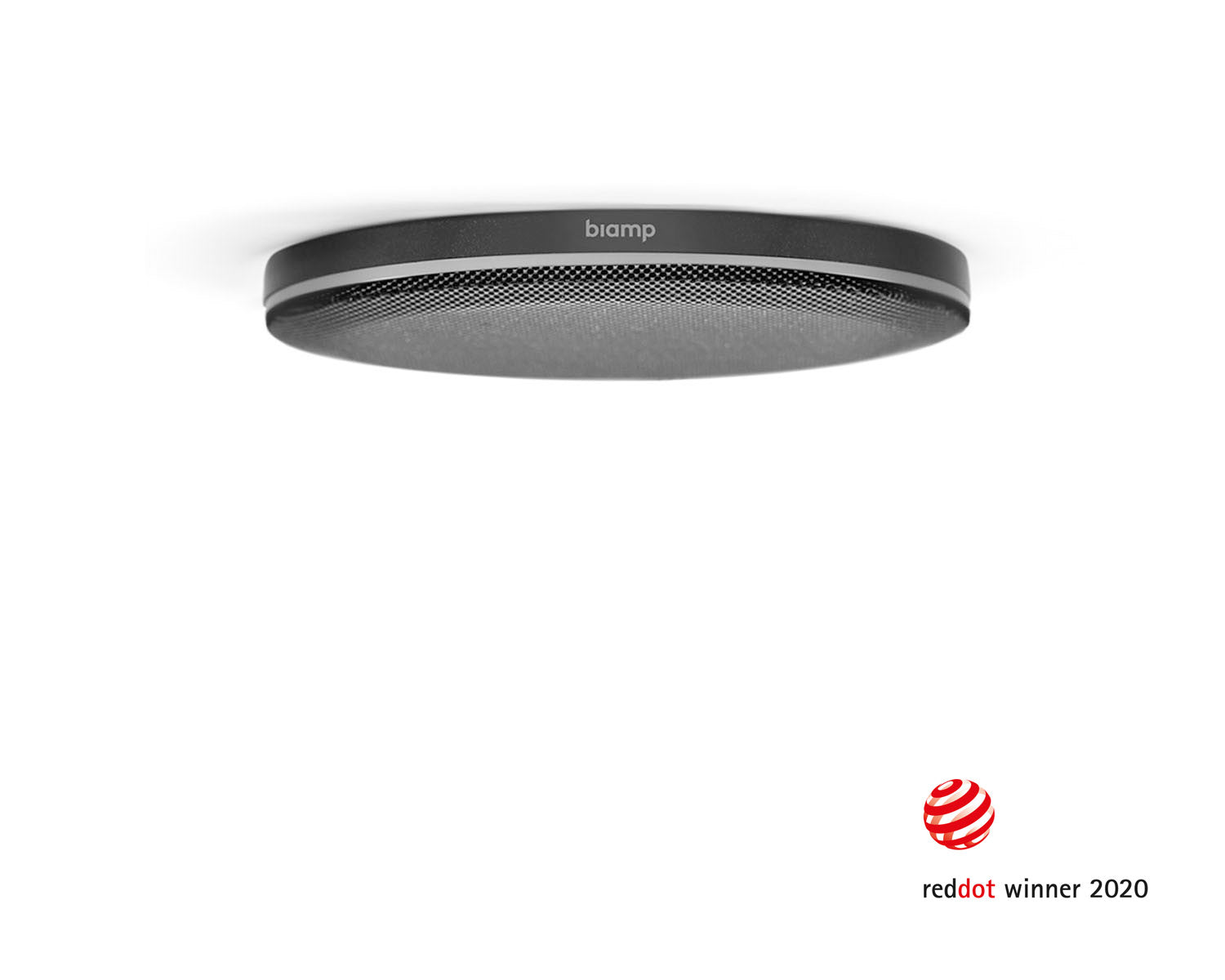

The Biamp Parle TCM-X (90049820–10000) is a ceiling AVB beamtracking microphone in black, 150 mm in diameter and mounting flush to the ceiling. It uses a 16-element digital array with four 90 degree zones for 360 degree coverage, with DSP for beamtracking in the network box and a single CAT cable connection. It uses one channel of AEC per mic and works out of the box with no lobe aiming or room mapping. Evaluated to UL 2043 for air-handling spaces.
Key Features
16-element digital array, active beamformed
Four 90 degree zones for 360 degree coverage
Network box includes DSP for beamtracking
Single CAT cable connection
One channel of AEC per mic
Works out of box, no lobe aiming or room mapping
LED mute status indicator
Black finish, UL 2043 air-handling rated
Specifications
| Microphone technology | 16-element digital array |
| Frequency response | 150 Hz to 16 kHz, +/- 3 dB |
| Polar pattern | Active beamformed |
| SNR | > 76 dB (1 kHz, 94 dBSPL, A-wtd) |
| Maximum SPL | 109 dB at < 1% THD |
| Dynamic range | 92 dB A-weighted |
| Connector | RJ-45 |
| Diameter | 150 mm (5.90 in) |
| Height (excl. mount) | 15 mm |
| Weight | 340 g |
