About this Product

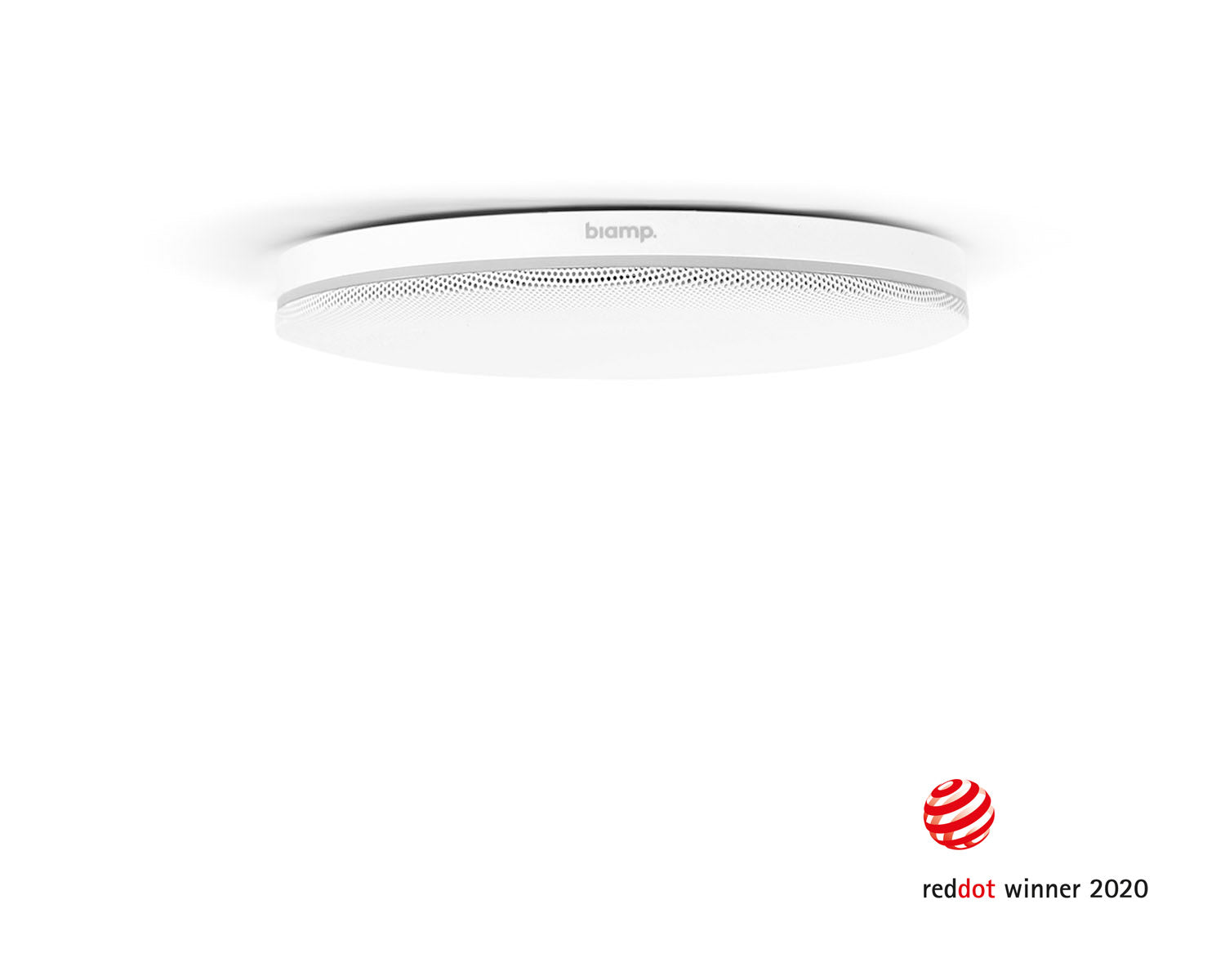

The Biamp Parle TCM-XA pairs an AVB low-profile ceiling microphone with a two-channel PoE+ amplifier for Tesira conferencing systems. The ceiling mic uses Beamtracking technology with four 90-degree zones for full 360-degree coverage, while the network box carries its own DSP module and an amplifier with burst mode, selectable power and an internal limiter, so a small meeting room’s mic and loudspeakers run from a single CAT cable. An additional RJ-45 connector accepts an optional TCM-XEX expansion microphone.

360°
Room coverage
40 W
Burst per channel at 4Ω
109 dB
Maximum SPL
17 mm
Profile height
System planningA maximum of two microphones are permitted per network box: one TCM-X or TCM-XA plus one TCM-XEX via the additional RJ-45 connection. The mic is evaluated to UL 2043 and suitable for use in air handling (plenum) spaces.

Features

Beamtracking with four 90-degree zones for 360-degree coverage
Works out of the box with no lobe aiming or room mapping
Network box with Beamtracking DSP and two-channel PoE+ amplifier
Burst mode handles peak loads: up to 40 W (4Ω) or 30 W (8Ω) per channel
Software-selectable power versus channel count, with internal limiter
Uses only one channel of AEC per microphone
Single cable connection via CAT cable
Additional RJ-45 connection for a TCM-XEX expansion mic
LED mute status indicator
Evaluated to UL 2043 for air handling spaces
CE marked, UL listed and RoHS compliant
Covered by Biamp’s five-year warranty

Specifications

Biamp Parle TCM-XA Ceiling Beamtracking Mic with PoE+ Amplifier, White (920-00499-20000) specifications
Microphone technology 16-element digital array
Frequency response (150 Hz to 16 kHz) ±3 dB
Polar pattern Active beamformed
SNR (1 kHz, 94 dB SPL, A-weighted) >76 dB
Maximum SPL (at <1% THD) 109 dB
Dynamic range (THD+N <1%) 92 dB, A-weighted
Amplifier 2 channels, up to 40 W (4Ω) or 30 W (8Ω) per channel, burst mode, internal limiter
Power PoE+ (IEEE 802.3at Class 4, 30 W)
Connector RJ-45
Height (excluding ceiling mount) 17 mm
Diameter 150 mm
Weight 340 g
Finish White

Full features

  • Measures 5.90 inches (150mm) in diameter
  • Uses only one channel of AEC per mic
  • Network box includes DSP for Beamtracking and a PoE+ amplifier:
    • Two channels
    • Burst mode to handle peak loads; supports up to 40W (4Ω) or 30W (8Ω) per channel
    • Software-selectable power vs. channel count
    • Includes internal limiter function
  • Beamtracking technology works out-of-box without any lobe aiming or room mapping
  • Single cable connection via CAT cable
  • LED mute status indicator
  • Available in either black or white
  • Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
  • Additional RJ-45 connection
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems’ five-year warranty

Full specifications

General

  • Microphone Technology: 16-Element Digital Array
  • Frequency Response (150 Hz - 16 kHz): ± 3dB
  • Polar Pattern: Active Beamformed
  • SNR (at 1kHz, 94dBSPL A-Weighted): > 76dB
  • Maximum SPL (at < 1% THD): 109dB
  • Dynamic Range (THD+N < 1%): 92dB, A-Weighted
  • Indicators: Mute Indicator (Green/Red LED)
  • Digital Interface: Custom/Proprietary
  • Connector: RJ-45
  • Finish: White

Overall Dimensions

  • Height (excluding ceiling mount): 0.7 inches (17 mm)
  • Diameter: 5.90 inches (150 mm)
  • Weight: 0.7 lbs (340 g)
